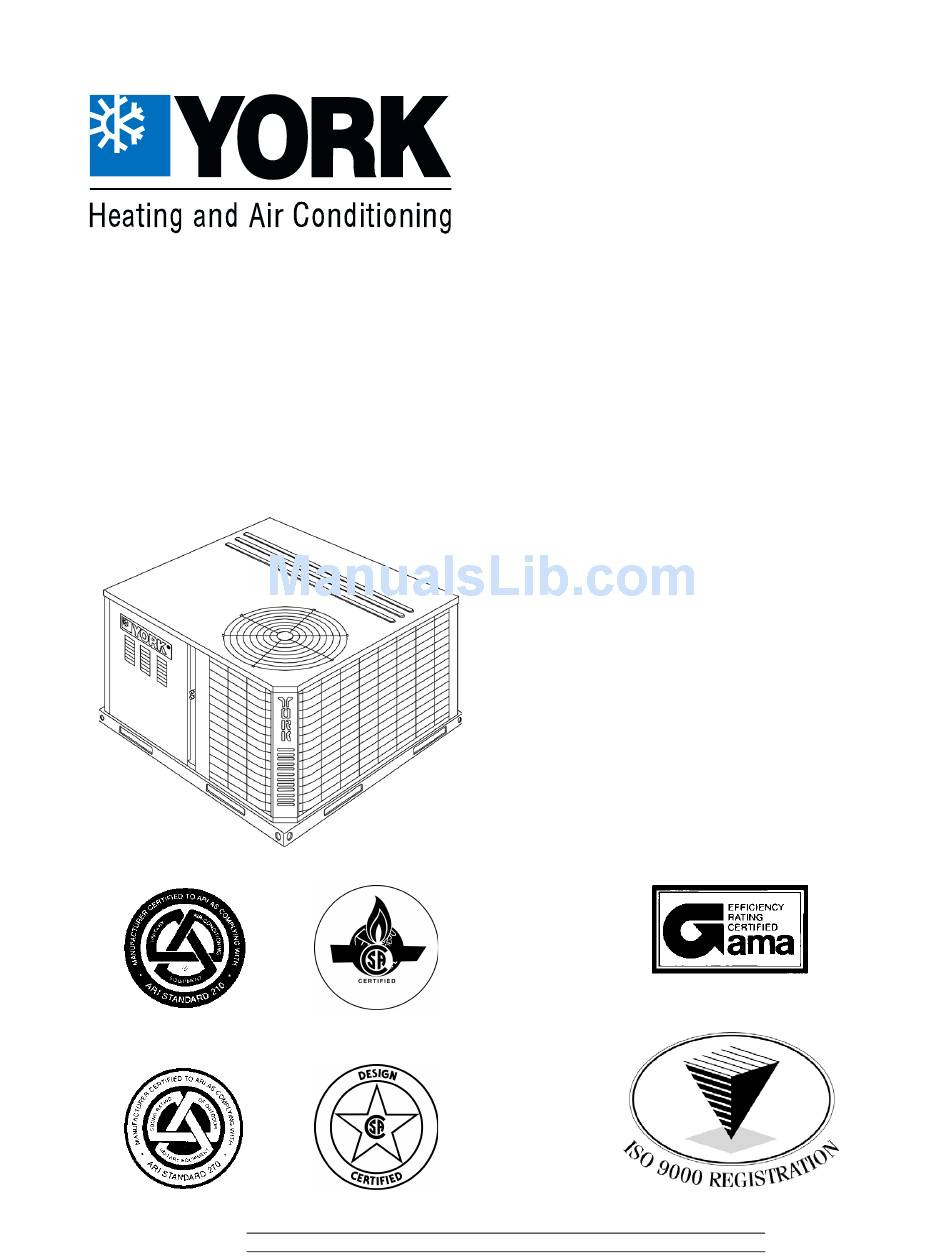

TECHNICAL GUIDE
CHAMPION
PLUS
®
SINGLE PACKAGE GAS/ELECTRIC
AIR COOLED AIR CONDITIONERS
1-1/2 THROUGH 5 NOMINAL TON
DNH018 THROUGH 060
UP TO 12.4 SEER
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
®
FLEXIBLE LIGHT COMMERCIAL UNIT
GENERAL
YORK's Champion
applications ranging from residential to light commercial and
any in between. The Champion
flexibility and choices you need in today's market.
FEATURING
•
COOLING/GAS HEATING UNITS (NATURAL GAS OR
PROPANE)
•
LOW PROFILE
•
QUIET OPERATION
•
COMMON FOOTPRINT
•
OPTIONAL SLIDE IN MOTORIZED DAMPERS
•
OPTIONAL SLIDE IN ECONOMIZERS
•
OPTIONAL ELECTRIC HEATERS
•
OPTIONAL PROPANE CONVERSION KIT
•
OPTIONAL HIGH ALTITUDE CONVERSION KIT
(NATURAL GAS/PROPANE)
•
OPTIONAL NOx KIT
•
FULL PERIMETER BASE RAILS
•
BOTTOM AND SIDE UTILITY CONNECTIONS
•
1" OR 2" CLEANABLE FILTERS STANDARD ON ALL
3 PHASE MODELS. OPTIONAL ON 1 PHASE MODELS
•
WARRANTY - 1 PHASE
•
10 year compressor
•
10 year heat exchanger
•
5 year other parts
•
WARRANTY - 3 PHASE
•
5 year compressor
•
10 year heat exchanger
•
1 year other parts
036-21233-002-A-0903
®
package units are designed to handle
®
is a unit that gives you the
Advertisement
Table of Contents
Related Manuals for York DNH018
Summary of Contents for York DNH018
- Page 1 PLUS ® SINGLE PACKAGE GAS/ELECTRIC AIR COOLED AIR CONDITIONERS 1-1/2 THROUGH 5 NOMINAL TON DNH018 THROUGH 060 UP TO 12.4 SEER FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE ® FLEXIBLE LIGHT COMMERCIAL UNIT GENERAL ®...
-
Page 2: Table Of Contents
230, 460 & 575 VOLTS ......18 14 ADDITIONAL STATIC PRESSURE RESISTANCE 1-1/2 - 3 TON (DNH018 - 036) ....18 15 ADDITIONAL STATIC PRESSURE RESISTANCE 3-1/2 - 5 TON (DNH042 - 060) . -
Page 3: Description
036-21233-002-A-0903 DESCRIPTION These packaged cooling/heating air conditioners are designed for outdoor installation. Only utility and duct con- nections are required at the point of installation. The gas-fired heaters have aluminized steel tubular heat exchangers and hot surface to pilot ignition. They are avail- able in natural gas with field conversion to propane. -
Page 4: Field-Installed Accessories
FAN SYSTEM - All models operate over a wide range of design conditions with a 3-speed direct-drive fan motor. These units easily match all types of applications and pro- vides greater on site flexibility to match comfort requirement. Single phase models have the Comfort-Match system that allows different speed taps for heating or cooling operations. -
Page 5: Unit Component Location
036-21233-002-A-0903 HAIL GUARD KIT - Kit contains protective grilles made of expanded aluminum with full perimeter frame. Sloped hoods are also included to assure maximum protection. ANTI SHORT CYCLE TIMER - Automatically prevents the compressor from restarting for 5 minutes after cycled off.Not required if Thermostat 2ET07700224 and 2ET04700224 are used. -
Page 6: Physical Data
TABLE 1: PHYSICAL DATA MODEL CENTRIFUGAL BLOWER (Dia. x W. in.) EVAPORATOR BLOWER FAN MOTOR HP (3 Speed) ROWS DEEP EVAPORATOR FINS PER INCH COIL FACE AREA (Sq. Ft.) PROPELLER DIA. (in.) CONDENSER FAN MOTOR HP NOM. CFM TOTAL ROWS DEEP CONDENSER FINS PER INCH COIL... -
Page 7: Ratings Cooling/Gas Heating
036-21233-002-A-0903 TABLE 2: RATINGS COOLING/GAS HEATING NET COOLING CAPACITY MODEL SEER 018N03606 17.4 12.0 024N03606 23.8 12.4 024N05606 23.8 12.4 030N03606 28.0 12.0 030N03625 28.0 12.0 030N03646 28.0 12.0 030N05606 28.0 12.0 030N05625 28.0 12.0 030N05646 28.0 12.0 036N03606 36.0 12.0 036N03625 36.0... -
Page 8: Dnh018 Cooling Capacities - 1-1/2 Ton
TABLE 3: DNH018 COOLING CAPACITIES - 1-1/2 TON TEMPERATURE 450 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 16.0 15.0 13.5 TOTAL POWER 1.61 1.61 1.60 INPUT kW 11.6 13.5 11.1 13.1 85 °F 10.6 12.7 10.2 12.2 11.7... -
Page 9: Dnh024 Cooling Capacities - 2 Ton
036-21233-002-A-0903 TABLE 4: DNH024 COOLING CAPACITIES - 2 TON TEMPERATURE 600 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 23.1 22.8 20.2 TOTAL POWER 2.00 1.99 1.98 INPUT kW 12.1 16.6 19.2 11.5 16.0 18.6 85 °F 10.9 15.4 17.9 10.3... -
Page 10: Dnh030 Cooling Capacities - 2-1/2 Ton
TABLE 5: DNH030 COOLING CAPACITIES - 2-1/2 TON TEMPERATURE 750 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 27.2 26.8 24.1 TOTAL POWER 2.35 2.34 2.32 INPUT kW 86 17.3 22.2 24.1 83 15.1 20.1 23.0 85 °F 80 13.0 17.9 20.8... -
Page 11: Dnh036 Cooling Capacities - 3 Ton
036-21233-002-A-0903 TABLE 6: DNH036 COOLING CAPACITIES - 3 TON TEMPERATURE 900 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 35.9 33.6 31.7 TOTAL POWER 3.14 3.09 3.10 INPUT kW 86 19.7 25.4 30.8 83 18.7 24.5 29.8 85 °F 80 17.8 23.5 28.9... -
Page 12: Dnh042 Cooling Capacities - 3-1/2 Ton
TABLE 7: DNH042 COOLING CAPACITIES - 3-1/2 TON TEMPERATURE 1,050 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 38.6 38.4 34.0 TOTAL POWER 4.05 3.83 3.95 INPUT kW 25.5 32.6 34.0 22.5 29.6 34.0 85 °F 19.6 26.6 31.9 16.6 23.6... -
Page 13: Dnh048 Cooling Capacities - 4 Ton
036-21233-002-A-0903 TABLE 8: DNH048 COOLING CAPACITIES - 4 TON TEMPERATURE 1,200 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 50.8 47.4 43.1 TOTAL POWER 4.01 3.98 4.02 INPUT kW 30.9 38.8 43.1 27.5 35.4 41.8 85 °F 24.1 32.0 38.4 20.7... -
Page 14: Dnh060 Cooling Capacities - 5 Ton
TABLE 9: DNH060 COOLING CAPACITIES - 5 TON TEMPERATURE 1,700 CFM OF AIR ON WB °F CONDENSER COIL NET CAP. 66.8 63.1 58.2 TOTAL POWER 5.06 4.96 5.02 INPUT kW 42.8 53.5 58.2 37.9 48.7 57.7 85 °F 33.1 43.8 52.8 28.2 39.0... -
Page 15: Side Supply Air Performance - 208 Volt
036-21233-002-A-0903 TABLE 10: SIDE SUPPLY AIR PERFORMANCE - 208 VOLT MODEL # (Cooling/ Heating) 1432 650 1381 628 1330 605 1279 583 1210 556 1140 529 1071 502 1191 527 1149 510 1107 494 1065 477 1009 459 1681 797 1610 768 1540 740 1465 712 1390 685 1315 657 1204 623 1093 588 1432 650 1381 628 1330 605 1279 583 1210 556 1140 529 1191 527 1149 510 1107 494 1065 477 1742 898 1695 869 1648 841 1601 811 1555 781 1501 747 1446 714 1317 667... -
Page 16: Side Supply Air Blower Performance - 230, 460 & 575 Volt
TABLE 11: SIDE SUPPLY AIR BLOWER PERFORMANCE - 230, 460 & 575 VOLT MODEL # (Cooling/ Heating) MED 1110 383 1055 368 LOW 1384 625 1336 605 1287 584 1239 564 1167 537 1094 509 1022 482 MED 1610 735 1547 708 1483 682 1420 655 1341 625 1262 596 1183 566 1075 534 LOW 1384 625 1336 605 1287 584 1239 564 1167 537 1094 509 1906 982 1857 960 1809 938 1758 913 1706 888 1648 861 1590 834 1445 783 1301 731 MED 1734 848 1693 821 1651 794 1595 764 1539 734 1461 693 1382 653 1266 613... -
Page 17: Bottom Supply Air Blower Performance - 208 Volt
036-21233-002-A-0903 TABLE 12: BOTTOM SUPPLY AIR BLOWER PERFORMANCE - 208 VOLT MODEL # (Cooling/ Heating) 1482 628 1428 613 1374 599 1320 584 1242 556 1163 528 1085 500 1239 510 1184 496 1130 481 1075 467 1687 763 1614 737 1540 712 1458 688 1377 663 1295 639 1147 600 1482 628 1428 613 1374 599 1320 584 1242 556 1163 -528 1085 500 1239 510 1184 496 1130 481 1075 467 1655 771 1609 749 1563 727 1504 698 1444 670 1381 648 1319 626... -
Page 18: Bottom Supply Air Blower Performance - 230, 460 & 575 Volts
Above data includes allowances for a dry evaporator coil, gas heat exchanger and no filters. For additional pressure drops, refer to Tables 14 and 15. TABLE 14: ADDITIONAL STATIC PRESSURE RESISTANCE 1-1/2 - 3 TON (DNH018 - 036) DESCRIPTION WET EVAPORATOR COIL... -
Page 19: Field Wiring Diagram Control Wiring
036-21233-002-A-0903 TABLE 15: ADDITIONAL STATIC PRESSURE RESISTANCE 3-1/2 - 5 TON (DNH042 - 060) DESCRIPTION 1,100 WET EVAPORATOR COIL ECONOMIZER FILTER FRAME KIT Deduct these resistance values from the available external static pressure shown in Table 10, 11, 12, and 13 The pressure through the economizer is greater for 100% outdoor air then for 100% return air. -
Page 20: Electrical Data
TABLE 16: ELECTRICAL DATA VOLTAGE LIMITATIONS MODEL POWER SUPPLY MIN. MAX. 208/230-1-60 208/230-1-60 208/230-1-60 208/230-3-60 460-3-60 208/230-1-60 208/230-3-60 460-3-60 575-3-60 208/230-1-60 208/230-3-60 460-3-60 575-3-60 208/230-1-60 208/230-3-60 460-3-60 575-3-60 208/230-1-60 208/230-3-60 460-3-60 575-3-60 Utilization range “A” in accordance with ARI Standard 110. Dual element, time delay type. -
Page 21: Unit Dimensions - Front
036-21233-002-A-0903 B L O W E R S E R V I C E A C C E S S C O M P A R T M E N T P A N E L G A S S U P P L Y 1 - 1 / 4 "... -
Page 22: Unit Dimensions - Front & Bottom
036-21233-002-A-0903 FIGURE 5 - UNIT DIMENSIONS - FRONT & BOTTOM FIGURE 6 - UNIT DIMENSIONS - BACK & BOTTOM Unitary Products Group... -
Page 23: Typical Slab On Ground Installation
036-21233-002-A-0903 FIGURE 7 - TYPICAL SLAB ON GROUND INSTALLATION FIGURE 8 - TYPICAL ROOF CURB INSTALLATION Unitary Products Group... -
Page 24: Typical Duct Applications
FIGURE 9 - TYPICAL DUCT APPLICATIONS TABLE 19: UNIT WEIGHTS AND CENTER OF GRAVITY SHIPPING OPERATING UNIT WEIGHT WEIGHT SIZE (lbs.) FIGURE 10 - UNIT CENTER OF GRAVITY CORNER WEIGHTS (location, lbs.) (lbs.) “A” “B” “C” "D" FRONT UNIT "A" 49-1/8 "B"... -
Page 25: Roof Curb Dimensions
036-21233-002-A-0903 FIGURE 11 - ROOF CURB DIMENSIONS 1. 8” Roof curb also available FIGURE 12 - ROOF CURB CROSS SECTION Unitary Products Group... -
Page 26: Typical Wiring Diagram
036-21233-002-A-0903 DETAIL "A" FIGURE 13 - TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY) FIGURE 14 - TYPICAL WIRING DIAGRAM (208/230-3-60 POWER SUPPLY) Unitary Products Group... -
Page 27: Typical Wiring Diagram (460-3-60 Power Supply)
036-21233-002-A-0903 FIGURE 15 - TYPICAL WIRING DIAGRAM (460-3-60 POWER SUPPLY) FIGURE 16 - TYPICAL WIRING DIAGRAM (575-3-60) Unitary Products Group... -
Page 28: Typical Wiring Diagram Notes
TYPICAL WIRING DIAGRAM NOTES All field wiring to be accomplished following city, local and/or national codes in effect at time of installation of this unit. Caution: Label all wires prior to disconnection when ser- vicing controls. Wiring errors can cause improper and dangerous operation if any of the wire as supplied with this unit must be removed it must be replaced with type 105°C, 600V wire or equivalent clearly renumbered for... -
Page 29: Mechanical Specifications
MECHANICAL SPECIFICATIONS GENERAL Units shall be manufactured by York International Unitary Products Group in an ISO 9001 certified facility. YORK’s Champion® package units are designed to handle applica- tions ranging from residential to light commercial and any in between. The Champion® is a unit that gives you the flexibil- ity and choices you need in today’s market. - Page 30 REFRIGERANT COMPONENTS Compressors: Shall be fully hermetic type, direct drive, internally protected with internal high-pressure relief and over temperature protection. The hermetic motor shall be suction gas cooled and have a voltage range of + or - 10% of the unit nameplate voltage. Shall have internal isolation and sound muffling to minimize vibration and noise, and be externally iso- lated on a dedicated, independent mounting.
- Page 31 036-21233-002-A-0903 Unitary Products Group...
- Page 32 Subject to change without notice. Printed in U.S.A. Copyright © by Unitary Products Group 2003. All rights reserved. Unitary Products Group Supersedes: 036-21233-001-D-0603 5005 York Drive 036-21233-002-A-0903 Norman 73069...
