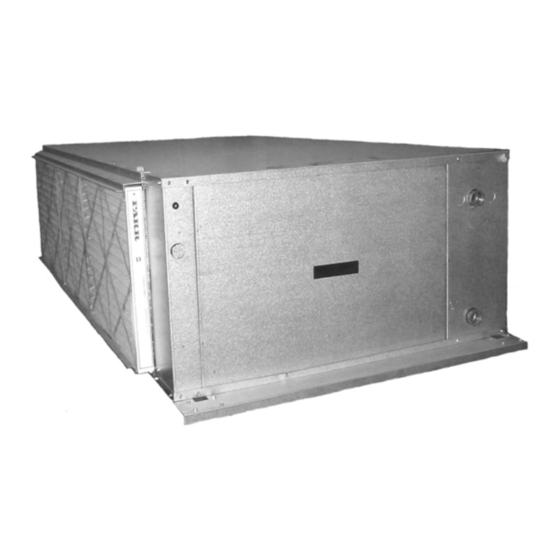

York CH060 Technical Manual
Single package air conditioning water cooled
Hide thumbs
Also See for CH060:
- Technical manual (28 pages) ,
- Installation instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for York CH060
Summary of Contents for York CH060

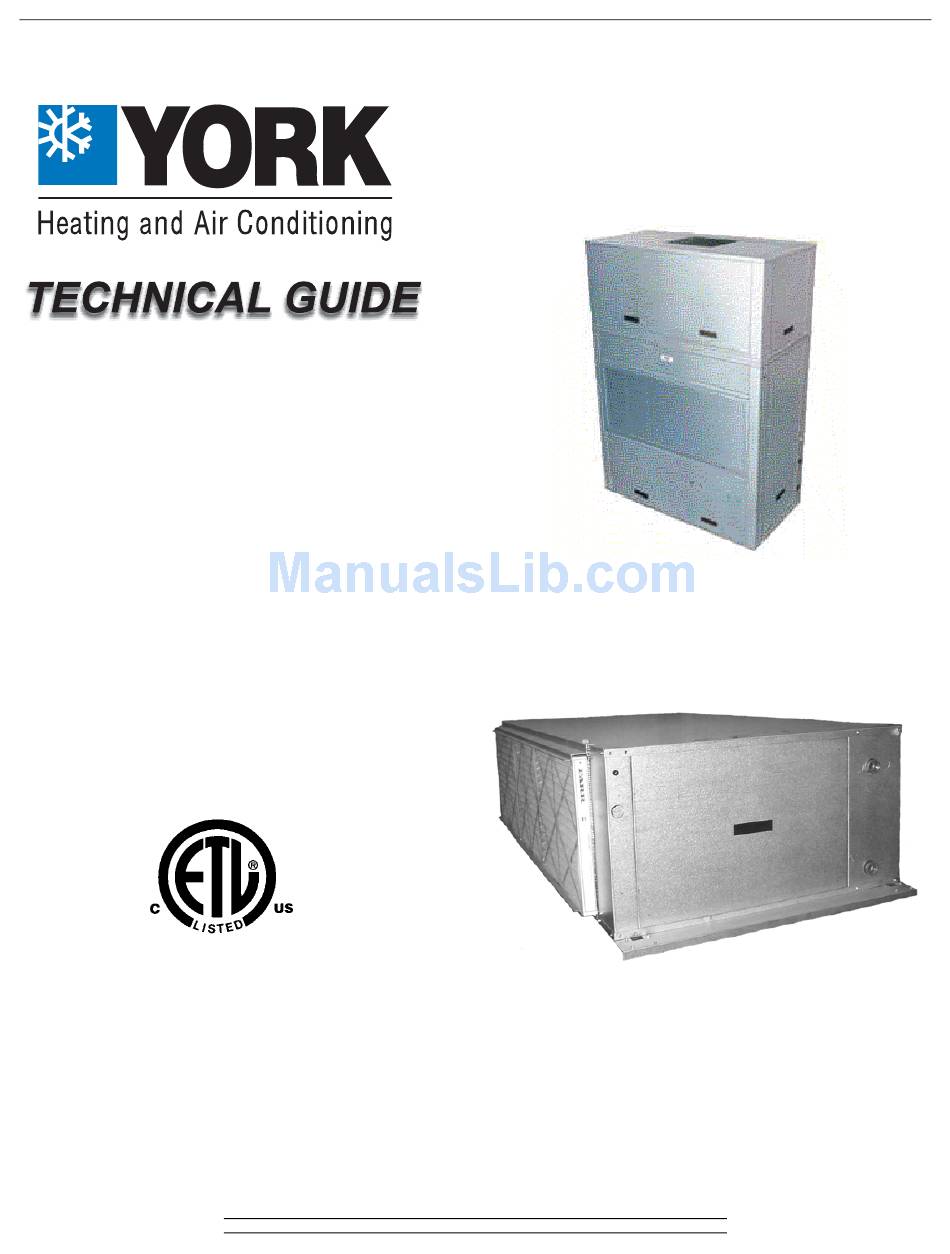

- Page 1 271846-YTG-B-0208 ® MODELS: CU060 - 300 5-25 TONS VERTICAL SINGLE PACKAGE AIR CONDITIONING WATER COOLED MODELS: CH060 - 5-10 TONS HORIZONTAL FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE...
-
Page 2: Table Of Contents
MODELS ........6 SUPPLY AIR BLOWER PERFORMANCE CH060-120, 5 TO 10 TON HORIZONTAL MODELS . . 7 SUPPLY AIR BLOWER PERFORMANCE CU060-240, 5 TO 20 TON VERTICAL MODELS . -
Page 3: Description
271846-YTG-B-0208 DESCRIPTION These units are completely assembled, piped, wired, charged and tested at the factory and are shipped ready for immediate installation. Only the power supply wiring, the thermostat wir- ing, the condenser water piping, the condensate drain piping and the ductwork are required to complete the installation. Units include a one-year limited warranty on all replacement parts and a five-year limited warranty on each compressor. -
Page 4: Factory Installed
FACTORY INSTALLED OVERSIZED EVAPORATOR FAN MOTORS Increased horsepower motors and drive components are available for those applications where external static pres- sure requirements exceed the capability of the standard motor. CORROSION RESISTANT COATINGS Evaporator coil shall receive a 1-mil thickness of a cathodic epoxy type electro-deposition coating, applied in a multiple dip and bake process. -
Page 5: Model
271846-YTG-B-0208 TABLE 1: GENERAL DATA - CH060-120 5-10 TON HORIZONTAL MODELS Model - CH Nominal Cooling(Ton) Cooling Performance Gross Cooling Capacity(Btuh) Design CFM Compressor-Type Number Used Evaporator Coil-Type Face Area(sq ft) Rows/FPI Condenser-Type Number Used/Tons Capacity Nominal Water flow rate (gpm) -
Page 6: Model
TABLE 2: GENERAL DATA CU 5-25 TON VERTICAL MODELS Model - CU Nominal Cooling(Ton) Cooling Performance Gross Cooling Capacity(Btuh) Design CFM Compressor-Type Number Used Evaporator Coil-Type Face Area(sq ft) Rows/FPI Condenser-Type Number Used/Tons Capacity Nominal Water flow rate (gpm) Unit Water Connection Size Evaporator Fan-Type Number Used Diameter x Width (in) -
Page 7: Supply Air Blower Performance Ch060-120, 5 To 10 Ton Horizontal Models
271846-YTG-B-0208 TABLE 3: SUPPLY AIR BLOWER PERFORMANCE CH060-120, 5 TO 10 TON HORIZONTAL MODELS MODEL # SUPPLY CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP 1800 0.41 CH060 2000 0.54 0.70 1069 0.79 1142 0.88 1214 0.98... - Page 8 271846-YTG-B-0208 Johnson Controls Unitary Products...
-
Page 9: Waterside Pressure Drop - Cu Models
271846-YTG-B-0208 TABLE 6: WATERSIDE PRESSURE DROP - CU MODELS Johnson Controls Unitary Products... -
Page 10: Water Pressure Drop Data - Ch Models
271846-YTG-B-0208 TABLE 7: WATER PRESSURE DROP DATA - CH MODELS Johnson Controls Unitary Products... -
Page 11: Cooling Performance Data - Ch 5-10 Ton Horizontal Models
271846-YTG-B-0208 TABLE 8: COOLING PERFORMANCE DATA - CH 5-10 TON HORIZONTAL MODELS CH060 5 TON 2000 CFM 65°F 75°F 63.2 48.3 2.88 59.7 62°F 80°F 63.2 59.5 2.88 59.7 85°F 66.6 66.6 2.92 62.8 75°F 67.4 38.6 2.93 63.0 67°F 80°F... -
Page 12: Cooling Performance Data - Cu 5-20 Ton Vertical Models
TABLE 9: COOLING PERFORMANCE DATA - CU 5-20 TON VERTICAL MODELS CU060 5 TON 2000 CFM 65°F 75°F 62.1 48.9 2.87 58.3 62°F 80°F 62.1 58.2 2.87 58.3 85°F 65.4 65.4 2.91 61.5 75°F 66.4 38.1 2.93 62.0 67°F 80°F 66.4 48.0 2.93... -
Page 13: Cooling Performance Data - Cu 25 Ton
228.5 18.09 333.8 85°F TABLE 11: WATER-SIDE ECONOMIZER COOLING PERFORMANCE DATA - CH 5-10 TON MODELS Air @ 80°F EDB, 67°F EWB UNIT CH060 2000 CH096 3200 CH120 4000 NOTE: 1. All economizer coils are 3R, 10 FPI, aluminum fins with copper tubes and headers. -
Page 14: Models
TABLE 12: WATER-SIDE ECONOMIZER COOLING PERFORMANCE DATA - CU 5-25 TON VERTICAL MODELS Air @ 80°F EDB, 67°F EWB UNIT PD [in WG] CU060 2000 CU096 3200 CU120 4000 CU180 6000 CU240 8000 CU300 10000 NOTE: 1. All economizer coils are 3R, 10 FPI, aluminum fins with copper tubes and headers. 2. -
Page 15: Oversized Motors Cu 5-25 Ton Models
208-230/3/60 CU240 460/3/60 575/3/60 208-230/3/60 CU300 460/3/60 575/3/60 TABLE 15: STANDARD MOTORS CH 5-10 TON MODELS COMPRESSOR MODEL# VOLTAGE 208-230/3/60 CH060 460/3/60 575/3/60 208-230/3/60 CH096 460/3/60 575/3/60 208-230/3/60 CH120 460/3/60 575/3/60 TABLE 16: OVERSIZED MOTORS CH 8-10 TON MODELS COMPRESSOR... -
Page 16: Dimensional Data - Ch 5 Ton Horizontal
271846-YTG-B-0208 FIGURE 1 - DIMENSIONAL DATA - CH 5 TON HORIZONTAL MODEL Johnson Controls Unitary Products... -
Page 17: Dimensional Data - Ch 8 & 10 Ton Horizontal Models
271846-YTG-B-0208 FIGURE 2 - DIMENSIONAL DATA - CH 8 & 10 TON HORIZONTAL MODELS Johnson Controls Unitary Products... -
Page 18: Physical Configuration Data - Ch 8 & 10 Ton Water Side Economizer
Economizer Coil Filter Frame FIGURE 3 - PHYSICAL CONFIGURATION DATA - CH 8 & 10 TON WATER SIDE ECONOMIZER Water Out Electrical Connections 271846-YTG-B-0208 Water 2-3/4 Side View 6-1/2 Condensate Johnson Controls Unitary Products... -
Page 19: Dimensional Data - Cu 5, 8, And 10 Ton
271846-YTG-B-0208 CONDENSATE WATER OUT DRAIN COMPRESSOR/CONDENSER WATER IN FIGURE 4 - DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS TABLE 17: DIMENSIONAL DATA - CU 5, 8, AND 10 TON VERTICAL MODELS CU060 26.00 72.00 CU096 29.00 82.00 CU120 29.00... -
Page 20: Dimensional Data - Cu 15 Ton Vertical
271846-YTG-B-0208 12.88” 18.25” 12.88” 18.50” 2.63” Allow Allow 24” 24” 15.88” minimum minimum clearance clearance Allow 36” minimum clearance FIGURE 5 - DIMENSIONAL DATA - CU 15 TON VERTICAL MODEL Johnson Controls Unitary Products... -
Page 21: Dimensional Data - Cu 20 Ton Vertical
271846-YTG-B-0208 FIGURE 6 - DIMENSIONAL DATA - CU 20 TON VERTICAL MODEL Johnson Controls Unitary Products... -
Page 22: Dimensional Data - Cu 25 Ton Vertical
271846-YTG-B-0208 FIGURE 7 - DIMENSIONAL DATA - CU 25 TON VERTICAL MODEL Johnson Controls Unitary Products... -
Page 23: Supply Air/Return Air Configuration
271846-YTG-B-0208 SUPPLY AIR/RETURN AIR CONFIGURATION All models are field convertible for multiple supply return con- figurations. The 5 through 15 ton models feature a removable upper fan module that can be rotated 180° for top rear dis- FIGURE 8 - SUPPLY AIR/RETURN AIR CONFIGURATION Johnson Controls Unitary Products charge applications. -
Page 24: Hot Water & Steam Heating Coils Dimensional Data
Hot Water and Steam Heating Coil Dimensions (Inches) Unit Model Plenum Dimensions (Inches) Side Grill 5 Ton 16x12 (2x) 8/10 Ton 20x16 (2x) FIGURE 9 - HOT WATER & STEAM HEATING COILS DIMENSIONAL DATA Inlet (MPT Outlet (MPT) CU060 37.50 5.50 CU096 59.50... -
Page 25: Hot Water & Steam Heating Coils Performance Data
271846-YTG-B-0208 Steam Coil Performance @ 2 PSIG Entering Air Dry Bulb Temperature Unit Model 1800 126.6 CU060 2000 147.1 2200 153.6 138.9 3000 258.3 233.4 CU096 3200 266.6 3400 274.5 248.1 3600 282.1 CU120 4000 296.3 267.9 4400 309.5 279.8 5400 425.8 384.9... -
Page 26: Typical Water-Side Economizer Physical
271846-YTG-B-0208 FIGURE 11 - TYPICAL WATER-SIDE ECONOMIZER PHYSICAL CONFIGURATION Johnson Controls Unitary Products... -
Page 27: Schematic
271846-YTG-B-0208 FIGURE 12 - TYPICAL WATER-SIDE ECONOMIZER PIPING SCHEMATIC Johnson Controls Unitary Products... -
Page 28: Typical Water-Side Economizer Control - 15-20 Ton Vertical (208-230 V/3Ph/60Hz)
FIGURE 13 - TYPICAL WATER-SIDE ECONOMIZER CONTROL - 15-20 TON VERTICAL (208-230 V/3PH/60HZ) Subject to change without notice. Printed in U.S.A. 271846-YTG-B-0208 Copyright © 2008 by Johnson Controls, Inc. All rights reserved. Supersedes: 271846-YTG-A-0906 Johnson Controls Unitary Products 5005 York Drive Norman, OK 73069...
