Traps Reference

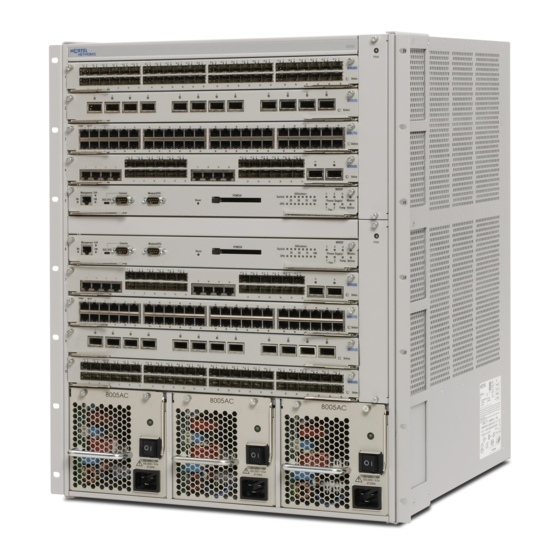

Avaya Ethernet Routing Switch 8800/8600
Release 7.2.10
NN46205-706
Issue 06.03
January 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avaya 8800

Summary of Contents for Avaya 8800

  • Page 1 Traps Reference Avaya Ethernet Routing Switch 8800/8600 Release 7.2.10 NN46205-706 Issue 06.03 January 2014...
  • Page 2 End User. written consent of Avaya can be a criminal, as well as a civil offense under the applicable law. Link disclaimer...
  • Page 3 Avaya Product or Hosted Service. For a list of support telephone numbers and contact addresses, go to the Avaya Support website: http://support.avaya.com (or such successor site as designated by Avaya), scroll to the bottom of the page, and select Contact Avaya Support. Traps Reference January 2014...
  • Page 4 Traps Reference January 2014 Comments? infodev@avaya.com...

  • Page 5: Table Of Contents

    Contents Chapter 1: Introduction...................... Purpose of this document......................... 7 Related resources............................. 7 Documentation..........................7 Training............................7 Avaya Mentor videos........................7 Support..............................8 Chapter 2: New in this release................... Chapter 3: Traps reference....................Proprietary traps............................11 Standard traps............................33 Traps Reference...
  • Page 6 Traps Reference January 2014...

  • Page 7: Chapter 1: Introduction

    Avaya Mentor videos provide technical content on how to install, configure, and troubleshoot Avaya products. About this task Videos are available on the Avaya Support website, listed under the video document type, and on the Avaya-run channel on YouTube. Traps Reference...

  • Page 8: Support

    Introduction • To find videos on the Avaya Support website, go to http://support.avaya.com, select the product name, and check the videos checkbox to see a list of available videos. • To find the Avaya Mentor videos on YouTube, go to http://www.youtube.com/...

  • Page 9: Chapter 2: New In This Release

    Chapter 2: New in this release The following section describes a new update to Avaya Ethernet Routing Switch 8800/8600 Traps Reference (NN46205-706) for Release 7.2.10. Service Level Agreement (SLA) Monitor Release 7.2.10 adds support for the SLA Monitor agent to monitor and analyze performance issues in the network infrastructure.
  • Page 10 New in this release Traps Reference January 2014 Comments? infodev@avaya.com...

  • Page 11: Chapter 3: Traps Reference

    Chapter 3: Traps reference This chapter provides information about traps. The Avaya Ethernet Routing Switch 8800/8600 generates alarms, traps, and logs. For more information about logs, see Avaya Ethernet Routing Switch 8800/8600 Logs Reference, NN46205-701. Proprietary traps The following tables describe Avaya proprietary traps for the Ethernet Routing Switch 8800/8600.
  • Page 12 1.3.6.1.4.1.227 rcnLinkOscillation rcPortIndex A rcLinkOscillation trap 2.1.21.0.8 signifies that the SNMPv2 entity, acting in an agent Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 13 Proprietary traps Notification type Objects Description role, has detected an excessive number of link state transitions on the specified port. 1.3.6.1.4.1.227 rcnMacViolation rcErrorText A rcMacViolation trap 2.1.21.0.9 rcPortIndex signifies that the SNMPv2 entity, acting in an agent role, has received a PDU with an invalid source MAC address.
  • Page 14 1.3.6.1.4.1.227 rcnPasswordCha rcCliPasswordChange A rcPasswordChange trap 2.1.21.0.22 rcCliPassChangeRes signifies that the SNMPv2 entity, acting in an agent role, has detected that one of the cli password is changed. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 15 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnEmError rc2kCardIndex A rcEmError trap signifies 2.1.21.0.23 rcChasEmModeError that the SNMPv2 entity, acting in an agent role, has detected Em error. 1.3.6.1.4.1.227 rcnPcmciaCardRe — A rcPcmciaRemoved trap 2.1.21.0.25 moved signifies that the SNMPv2 entity, acting in an agent role, has detected that the PCMCIA card is being...
  • Page 16 A rcInsufficientMemory trap 2.1.21.0.36 mory indicates insufficient memory on CPU blade for proper operation. Recommended memory = 256 MB available through Avaya Inc. upgrade kit 1.3.6.1.4.1.227 rcnSaveConfigAct rcSysActionL1 A rcSaveConfigAction trap 2.1.21.0.37 indicates the switch run time or boot configuration is being saved.
  • Page 17 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnIgmpLossGrou rcIgmpGroupMember An IgmpLossGroupMember 2.1.21.0.44 pMember trap signifies that a group rcIgmpGroupIpAddres member has been lost on an s rcIgmpGroupInPort interface. rcIgmpGroupIfIndex 1.3.6.1.4.1.227 rcnIgmpNewQueri igmpInterfaceIfIndex An igmpNewQuerier trap 2.1.21.0.45 igmpInterfaceQuerier signifies that a new querier has come up on an interface.
  • Page 18 Extended CP- Limit. 1.3.6.1.4.1.227 rcnExtCpLimitSop rcSysExtCplimitSysOc 2.1.21.0.71 Congestion tapidCongested rcnExtCpLimitSopCongesti rcSysExtCplimitPorts on signifies that system Monitored octapid polling finds that system octapid is congested or not. rcSysExtCplimitSysOctapid Congested signifies whether system octapid is Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 19 Proprietary traps Notification type Objects Description congested or not. rcSysExtCplimitPortsMonito red signifies whether ports are selected for monitoring the ingress traffic utilization. 1.3.6.1.4.1.227 trapTacacsAuthF — This trap is generated when 2.1.21.0.74 ailure users log in to the chassis with tacacs+ authentication but tacacs+ authentication failed.
  • Page 20 Aux2 status. onitoring rcPlugOptModAux2St atus 1.3.6.1.4.1.227 rcnMaxRouteWar rcVrfName A rcnMaxRouteWarnClear 2.1.21.0.110 nClear trap signifies that the number of routes in the routing table of the Virtual Router has dropped below its warning threshold. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 21 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnMaxRouteWar rcVrfName A rcnMaxRouteWarnSet 2.1.21.0.111 nSet trap signifies that the given Virtual Router routing table is reaching its maximum size. Action should be taken to prevent this. 1.3.6.1.4.1.227 rcnMaxRouteDrop rcVrfName A rcnMaxRouteDropClear 2.1.21.0.112 Clear trap signifies that the given Virtual Router routing table...
  • Page 22 License Trial Period expires in days. 1.3.6.1.4.1.227 rcnVrfUp rcVrfName This notification is 2.1.21.0.173 rcVrfOperStatus generated when the specified VRF's operational status is toggled from down to up. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 23 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnVrfDown rcVrfName This notification is 2.1.21.0.174 rcVrfOperStatus generated when the specified VRF's operational status is toggled from up to down. 1.3.6.1.4.1.227 rcnMrouteIngress rcIpResourceUsageGl This notification is 2.1.21.0.175 ThresholdExceed obalIngressRecInUse generated when the number rcIpResourceUsageGl of mroute ingress records obalIngressThreshold...
  • Page 24 An SPBM IS-IS trap signifies 2.1.21.0.194 pdate that LSDB information has changed. 1.3.6.1.4.1.227 rcnChasFanCooli rcChasFanOperStatus A rcnChasFanCoolingLow 2.1.21.0.196 ngLow rcChasFanType trap signifies that the rcErrorLevel chassis is running on low fan rcErrorText cooling. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 25 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnSmpFtpFail — A rcnSmpFtpFail trap 2.1.21.0.205 signifies that Ftp/Tftp has failed in SMP(System Messaging Platform). Ftp of logfile happens when logfile in PCMCIA becomes full or PCMCIA has no space. 1.3.6.1.4.1.227 rcnSmpLogFileDe — A rcnSmpLogFileDeleted 2.1.21.0.206 leted...
  • Page 26 An rcnaSshSessionLogout 2.1.21.0.285 ogout trap signifies that there is an rcLoginHostInetAddre SSH session logout. This trap deprecates the rcnSshSessionLogout trap. 1.3.6.1.4.1.227 rcnaSshUnauthori rcLoginHostAddressT 2.1.21.0.286 zedAccess rcnaSshUnauthorizedAcce rcLoginHostInetAddre ss trap signifies that an unauthorized access has Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 27 Proprietary traps Notification type Objects Description occurred. This trap deprecates the rcnSshUnauthorizedAccess trap. 1.3.6.1.4.1.227 rcnaAuthenticatio rcLoginUserName 2.1.21.0.287 nSuccess rcLoginHostAddressT rcnaAuthenticationSuccess trap signifies that a login is rcLoginHostInetAddre successful. The trap includes login username, address type and inet address. This trap deprecates the rcnAuthenticationSuccess trap.
  • Page 28 100 % of the peer SA limit. 1.3.6.1.4.1.227 rcnMsdpMaxPeer rcMsdpVrfId This event is generated 2.1.80.1.0.8 SACacheErrorCle rcMsdpPeerSALimit when the SA entries for this peer drops to 95% of the peer SA limit. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 29 Proprietary traps Notification type Objects Description 1.3.6.1.4.1.227 rcnMsdpEstablish rcMsdpVrfId The MSDP Established 2.1.80.1.0.9 MsdpPeerFsmEstabli event is generated when the shedTransitions MSDP FSM enters the ESTABLISHED state. 1.3.6.1.4.1.227 rcnMsdpBackwar rcMsdpVrfId 2.1.80.1.0.10 dTransition MsdpPeerState MSDPBackwardTransition Event is generated when the MSDP FSM moves from a higher-numbered state to a lower-numbered state.
  • Page 30 Indicates the 8–byte Local LSP ID, 2.1.63.9.1 which consists of the System ID, Circuit ID, and Fragment Number. 1.3.6.1.4.1.227 rcIsisLocall1M Indicates the l1-metric for the IS-IS 2.1.63.9.2 etric interface on the local Node. Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 31 Proprietary traps Notification Objects Description type 1.3.6.1.4.1.227 rcIsisNgbLspI Indicates the 8–byte neighbor LSP 2.1.63.9.3 ID, which consists of the System ID, Circuit ID, and Fragment Number. 1.3.6.1.4.1.227 rcIsisNgbl1Me Indicates the l1-metric for the IS-IS 2.1.63.9.4 tric interface on the neighbor Node. 1.3.6.1.4.1.227 rcIsisPlsbTrap metricMismatch(1),...
  • Page 32 Indicates the SMLT Split-BEB 2.1.63.9.29 SplitBeb secondary(2) configured in the IST Peer switch. 1.3.6.1.4.1.227 rcIsisLocalHos Indicates the IS-IS local host 2.1.63.9.30 tName name. 1.3.6.1.4.1.227 rcIsisNgbHost Indicates the IS-IS neighbor host 2.1.63.9.31 Name name. Traps Reference January 2014 Comments? infodev@avaya.com...

  • Page 33: Standard Traps

    Indicates the IS-IS local interface 2.1.63.9.32 face index for a previously found adjacency. Standard traps The following table describes standard traps that the Avaya Ethernet Routing Switch 8800/8600 can generate. Table 6: Standard traps Notification type Objects Description 1.3.6.1.2.1.10.1...
  • Page 34 StatsUnknownMe sTypeErrors mplsLdpSession StatsUnknownTlv Errors 1.3.6.1.2.1.10.1 mplsLdpSession mplsLdpSession This notification is sent when the 66.4.0.4 Down State value of mplsLdpSessionState mplsLdpSession leaves the operational(5) state. DiscontinuityTime mplsLdpSession StatsUnknownMe sTypeErrors mplsLdpSession StatsUnknownTlv Errors Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 35 Standard traps Notification type Objects Description 1.3.6.1.2.1.14.1 ospfVirtIfStateCh ospfRouterId An ospfIfStateChange trap 6.2.1 ange ospfVirtIfAreaId signifies that there has been a ospfVirtIfNeighbo change in the state of an OSPF r ospfVirtIfState virtual interface. This trap should be generated when the interface state regresses (e.g., goes from Point-to-Point to Down) or progresses to a...
  • Page 36 The SNMP trap that is alarmVariable generated when an alarm entry alarmSampleTyp crosses its rising threshold and e alarmValue generates an event that is alarmRisingThres configured for sending SNMP hold traps. TRAP TYPE ENTERPRISE rmon Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 37 Standard traps Notification type Objects Description 1.3.6.1.2.1.16.0 fallingAlarm alarmIndex The SNMP trap that is alarmVariable generated when an alarm entry alarmSampleTyp crosses its falling threshold and e alarmValue generates an event that is alarmFallingThre configured for sending SNMP shold traps. TRAP TYPE ENTERPRISE rmon 1.3.6.1.2.1.46.1 vrrpTrapStateTra...
  • Page 38 Generated at the completion of ressType a ping test when the pingCtlTargetAdd corresponding ress pingCtlTrapGeneration object is pingResultsOper set to testCompletion(4). Status pingResultsIpTar getAddressType pingResultsIpTar getAddress pingResultsMinRt pingResultsMaxR pingResultsAvera geRtt pingResultsProbe Responses pingResultsSentP robes Traps Reference January 2014 Comments? infodev@avaya.com...
  • Page 39 Standard traps Notification type Objects Description pingResultsRttSu mOfSquares pingResultsLastG oodProbe 1.3.6.1.2.1.81.0 traceRoutePathC traceRouteCtlTar The path to a target has hange getAddressType changed. traceRouteCtlTar getAddress traceRouteResult sIpTgtAddrType traceRouteResult sIpTgtAddr 1.3.6.1.2.1.81.0 traceRouteTestF traceRouteCtlTar Could not determine the path to ailed getAddressType a target traceRouteCtlTar (traceRouteNotifications 2).
  • Page 40 — A linkUp trap signifies that the sending protocol entity recognizes that one of the communication links represented in the agent's configuration has come up. TRAP-TYPE ENTERPRISE snmp 1.3.6.1.6.3.1.1.5 authenticationFai — — lure Traps Reference January 2014 Comments? infodev@avaya.com...
