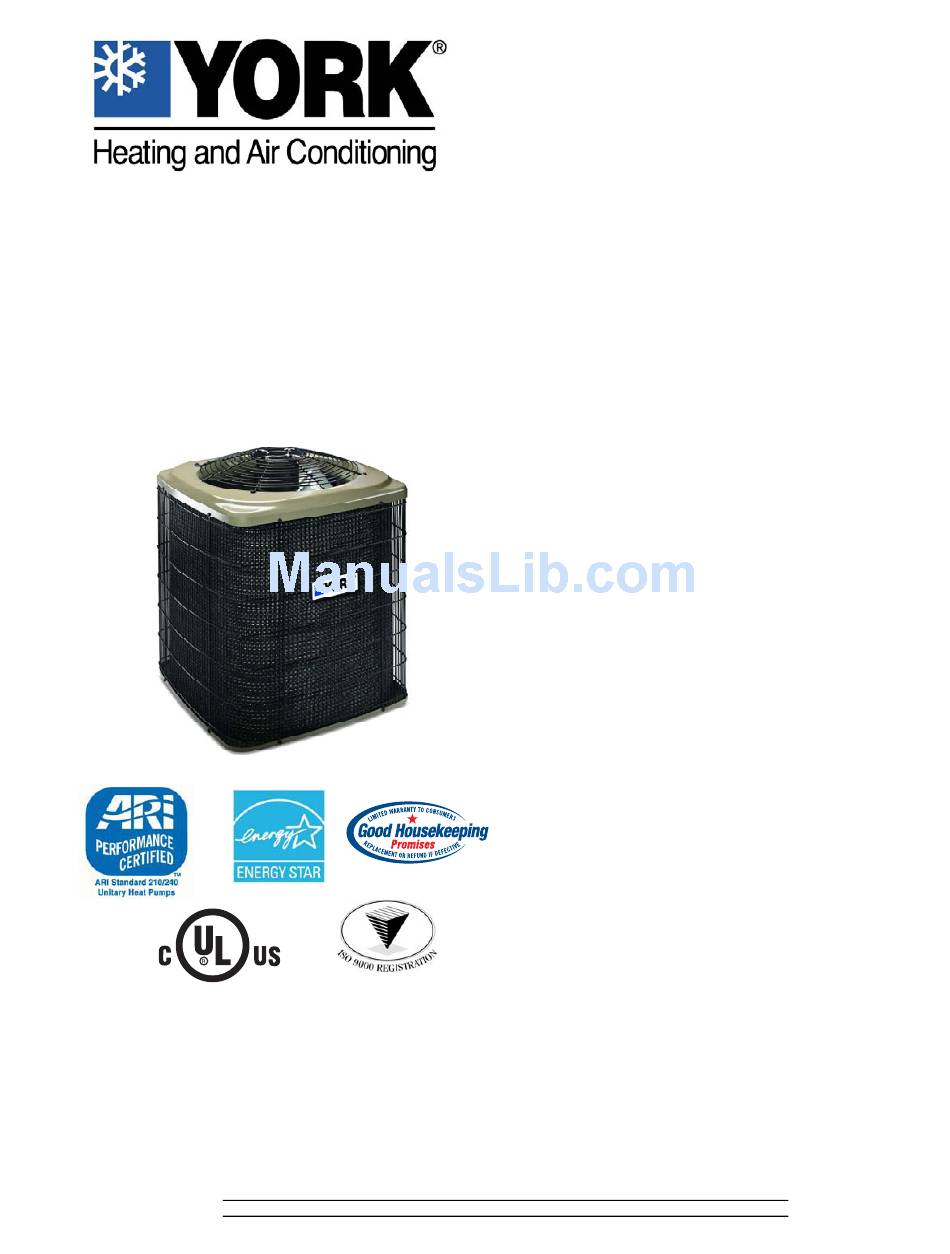

TECHNICAL GUIDE
SPLIT-SYSTEM
AIR CONDITIONERS
14.5 SEER – R-410A
MODELS:
TCGF24 THRU 60
(2 THRU 5 NOMINAL TONS, 1 PHASE)
LISTED
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
Additional rating information can be found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION

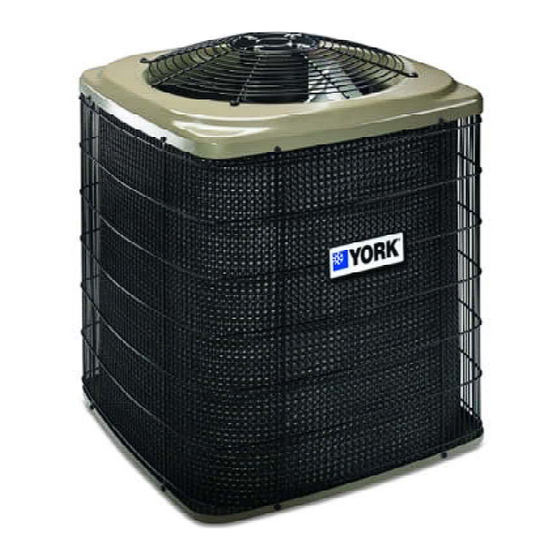

The 14.5 SEER Series condensing unit is the outdoor part of
a versatile system of air conditioning. It is designed to be cus-
tom-matched with one of UPG's complete line of evaporator
sections, with each serving a specific function. Matching Air
Handlers are available for upflow, downflow, or horizontal
applications to provide a complete system. Electric Heaters
are available, if required. Add-on coils are available for use
with upflow, downflow, or horizontal furnaces and air han-
dlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• QUALITY CONDENSER COILS - The coil is constructed
• PROTECTED COMPRESSOR - The compressor is inter-
• DURABLE FINISH - The cabinet is made of pre-painted
• LOWER INSTALLED COST - Installation time and costs
• TOP DISCHARGE - The warm air from the top mounted
• LOW OPERATING SOUND LEVEL - The upward air flow
• LOW MAINTENANCE - Long life permanently lubricated
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
• SECURED SERVICE VALVES - Secured re-usable ser-
ISO 9001
Certified Quality
• U.L. and C.U.L. listed - approved for outdoor application.
Management System
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
of aluminum microchannel tubing and enhanced aluminum
fins for increased efficiency and corrosion protection.
nally protected against high pressure and temperature and
externally by a factory installed high pressure switch. This
protects the compressor if undesirable operating condi-
tions occur. A liquid line filter-drier further protects the
compressor.
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
are reduced by easy power and control wiring connec-
tions. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
carries the normal operating noise away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolated compressor mounts minimize compressor
operating sounds.
motor-bearings need no annual servicing.
nections, and a single panel covering the electrical con-
trols make for easy servicing of the unit.
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
413432-YTG-A-0608
