Yeoman PM302 Fittings Manual

Fitting A Woodburning Tray
THIS ADDITIonAl InSTrucTIon MuST BE ATTAcHED To
AnD rEAD In conJuncTIon WITH THE InSTAllATIon
AnD uSEr InSTrucTIonS For:
• Yeoman Boiler Stove - PM302
The following addition has been designed to compliment
the above manual. This addition should be located after:
• Section 7: Ash Removal, User Section

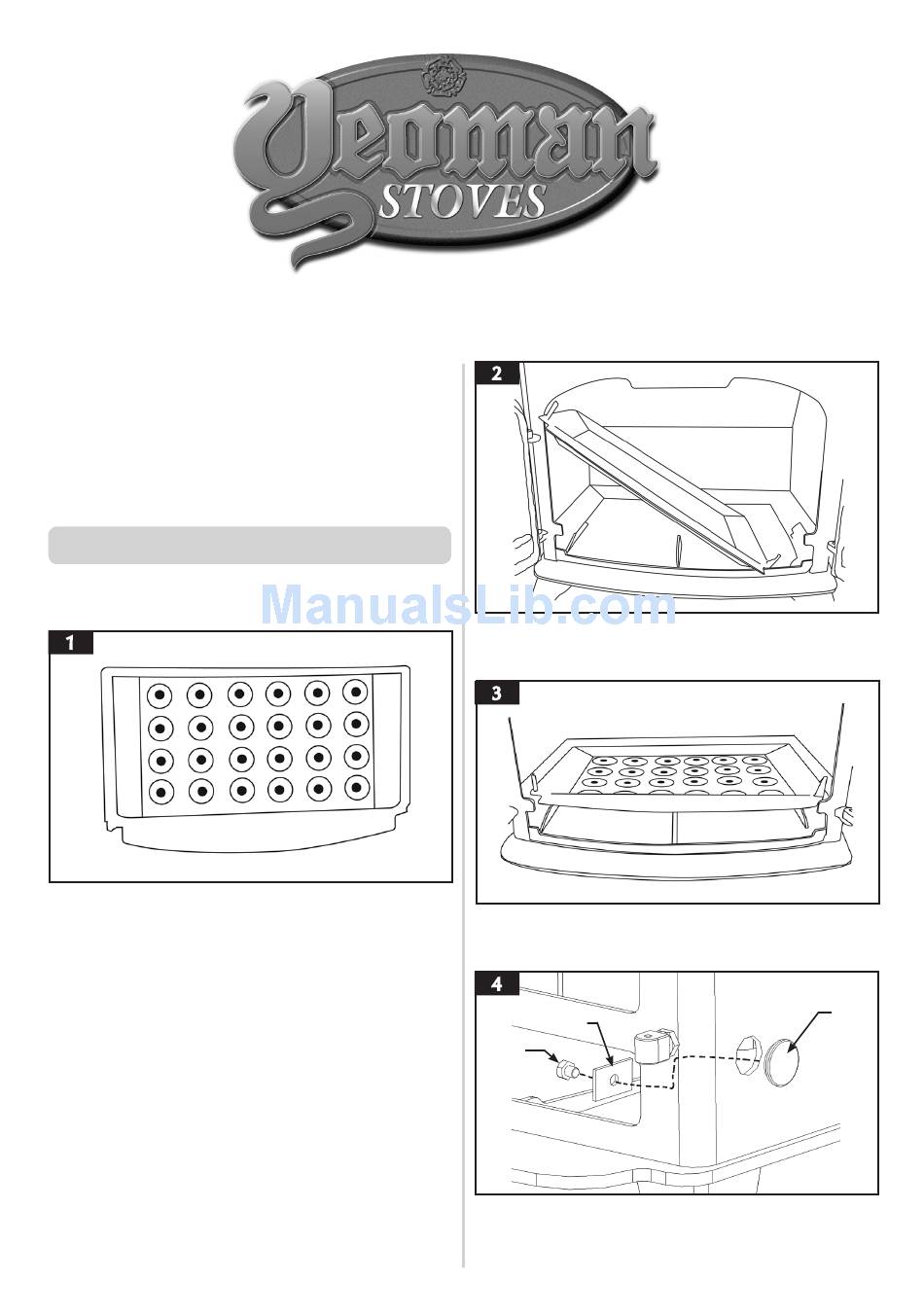

1. FITTIng THE WooDBurnIng TrAy
1.1 In order to burn wood continuously in this appliance a
Wood Burning Tray should be fitted, Diagram 1
2.2 Remove the Multi-fuel Grate from the appliance see Page
23, Section 4
2.3 To fit the Wood Tray:
• Remove the Log Bar and Ashlip
• Hold the tray flat with the front edge (indicated by the
supports - Diagram 3) pointing forwards
• Tip diagonally and insert through the front of the stove,
Diagram 2
• Place flat on the fixings on the bottom of the appliance,
Diagram 3
• Fit the plug supplied in the right hand side where the
riddling mechanism is located, Diagram 4
Clamp
Bolt
• Replace the Log Bar and the Ashlip
PM340 - Issue 1 (December 2009)
Plug
PR8454
