Yazoo/Kees Z9 Commercial Collection System Z9A Operating And Parts Manual

Yazoo/Kees Z9 Commercial Collection System Z9A Operating And Parts Manual

Commercial collection system
Hide thumbs Also See for Z9 Commercial Collection System Z9A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Models: Z9A
Manual No. 200897 Rev. 02 (10-30-03)

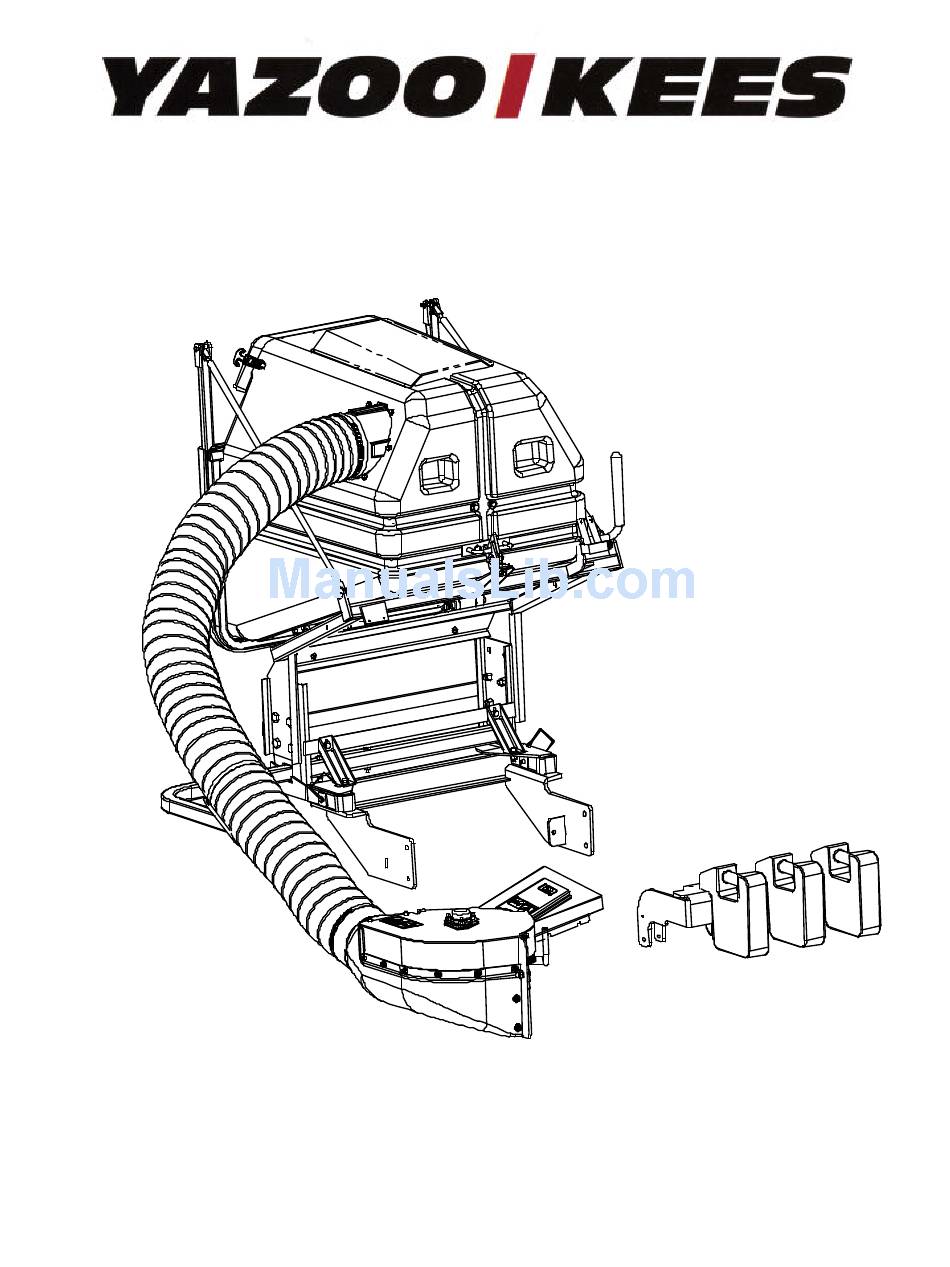

Z9 Commercial
Collection System
Operator and Parts Manual
Please read these instructions carefully and make
sure you understand them before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z9 Commercial Collection System Z9A and is the answer not in the manual?

Questions and answers

Related Manuals for Yazoo/Kees Z9 Commercial Collection System Z9A

Summary of Contents for Yazoo/Kees Z9 Commercial Collection System Z9A

  • Page 1 Collection System Operator and Parts Manual Models: Z9A Manual No. 200897 Rev. 02 (10-30-03) Z9 Commercial Please read these instructions carefully and make sure you understand them before using the machine.

  • Page 2: Table Of Contents

    WARNING: Engine exhaust, some of its constituents, and certain vehicle components con- tain or emit chemicals known to the State of California to cause cancer and birth defects or INDEX other reproductive harm. ©2003 Yazoo/Kees Power Equipment. All rights reserved. Beatrice, NE. Printed U.S.A.

  • Page 3: Specifications

    Height Length Width (without hose or blower) Width (with hose and blower) Deck Options Weight (without spindle drive/blower assembly) Weight (with spindle drive/blower assembly) Total Capacity Usable Capacity Hose SPECIFICATIONS 47 - 50 in. (119 - 127 cm.) 38 in. (97 cm.) 34.5 in.

  • Page 4: Features And Controls

    FEATURES & CONTROLS Exhaust Inlet Door Hose Support Hose NOTE: Your Front Weight Bar and Hitch may look different from those shown in this diagram. Hood Container Release Lever Upper Frame Lower Frame Hitch Bracket Hitch Drive Kit Front Weight Front Weight Assembly...

  • Page 5: Safety Rules

    General Information This manual will assist you in the safe operation and proper maintenance of your Yazoo/Kees equipment. Read it thoroughly before attempting to operate the machine. Call your dealer or Yazoo/ Kees Customer Service if additional information is required.
  • Page 6 3 - Operation • Never run an engine in an enclosed area. • Only operate in good light, keeping away from holes and hidden hazards. • Slow down and use extra care on hillsides. Make turns gradually and at slow speed. Do not operate across the sides of slopes.

  • Page 7: Unpacking Instructions

    Unpacking Instructions 1. Wear gloves and eye protection. Remove wood pieces. 2. Cut straps around carton and remove top. NOTE: Watch for nails and wood splinters. 3. Slide carton sleeve out of bottom tray and lift over Z9. Assembly Instructions Frame Assembly Tools Required: 1.

  • Page 8: Mounting The Z9

    Mounting the Z9 NOTE: This portion of the assembly requires lifting the Z9; two people are required. Tools Required: 1. 9/16" wrench 2. Ratchet 3. 9/16" socket Hitch Bracket Lower Frame ASSEMBLY Wire Lock 1. Install the Hitch from the Custom Kit accord- ing to the instruction sheet included in that carton.

  • Page 9: Spindle Drive And Drive Kit Assembly

    Spindle Drive & Drive Kit Assembly For use on mowers equipped with either a 42", 48", 52" or 61" deck: 1. Remove the discharge chute. 2. Remove the right hand belt shield. 3. Remove the deck belt from the right spindle assembly sheave.

  • Page 10: Hose Trimming

    Hose Trimming Tools Required: Utility Knife 1. Carefully measure the length needed. Re- member that although the hose is flexible, it will not stretch. 2. Measure the same length on the hose that needs to be trimmed, and with the utility knife, cut through the webbing at the proper location.

  • Page 11: Operation

    Operating the Vacuum 1. NEVER USE THE Z9 WITHOUT ALL HOSES AND SHIELDS SECURELY AT- TACHED. 2. Make sure all hoses are connected at both ends. Inspect hoses prior to each use. 3. Do not use the Z9 on slopes greater than 15 degrees.

  • Page 12: Transport

    SERVICE AND MAINTENANCE Transport WARNING The Z1-9 container must be completely empty while driving forward onto a trailer. If the Z1-9 must be loaded onto a trailer while there is still debris in the container, the mower must be backed up onto the trailer to avoid tipping.

  • Page 13: Caring For Vacuum Hoses

    SERVICE AND MAINTENANCE Caring For Vacuum Hoses 1. Inspect hoses before each use. If hoses have excessive wear, tears, or punctures, replace immediately. 2. To prolong the life of the hose, periodically rotate hose and turn hose end to end. Refer to Preventative Maintenance Schedule in this manual.

  • Page 14: Troubleshooting Guide

    SERVICE AND MAINTENANCE Troubleshooting Guide DANGER Before servicing unit wait for all moving parts to come to a complete stop. Turn engine off and remove the spark plug wire. PROBLEM Engine Does Not Start. 1. Spark plug wire disconnected. 2. Engine ON/OFF switch in OFF position. 2. Put switch in ON position. 3.

  • Page 15: Parts Illustration

    PARTS ILLUSTRATION...

  • Page 16: Container Assembly

    CONTAINER ASSEMBLY...
  • Page 17 CONTAINER ASSEMBLY ITEM PART NO. 1 ... 108970 ... 1 ... CONTAINER ASM. 2 ... 200876 ... 1 ... EXHAUST ASM. 3 ... 200691 ... 2 ... CLEVIS PIN 1/4 X 2 3/4 4 ... ER99082 ... 4 ... HAIR PIN #13 5 ...

  • Page 18: Frame Assembly

    FRAME ASSEMBLY ITEM PART NO. DESCRIPTION 1 ... 62072 ... 1 ... LOWER FRAME 2 ... 200510 ... 1 ... UPPER FRAME 3 ... ER99069 ... 8 ... BOLT, 1/2-13 X 1 1/4 4 ... ER99020 ... 4 ... BOLT, 3/8-16 X 1 1/4 5 ...

  • Page 19: Hitch & Front Weight Bar Assembly

    HITCH & FRONT WEIGHT BAR ASSEMBLY 200209 ER99668 ER92731 200810 ER92531 FRONT WEIGHT QTY 2 INCLUDED WITH COLLECTION UNIT QTY 1 INCLUDED WITH CUSTOM KIT SEE INSTRUCTION SHEET INCLUDED WITH CUSTOM KIT FOR PARTS LIST.

  • Page 20: Spindle Drive Assembly

    SPINDLE DRIVE ASSEMBLY...
  • Page 21 SPINDLE DRIVE ASSEMBLY ITEM PART NO. DESCRIPTION 1 ... 106752 ... 1 ... FAN COVER W/DECALS 2 ... 108941 ... 1 ... UPPER HOUSING 3 ... 109900 ... 1 ... LOWER HOUSING 4 ... 106786 ... 2 ... BEARING W/O COLLAR 5 ...

  • Page 22: Drive Kit Assembly

    DRIVE KIT ASSEMBLY (539) 108960 - 42 INCH DECK (539) 108961 - 48 INCH DECK (539) 108962 - 52 INCH DECK (539) 108963 - 61 INCH DECK ITEM PART NO. 1 ... 108950 ... 1 ... 42 SHIELD ... 108953 ... 1 ... 48 SHIELD ...
  • Page 24 Yazoo/Kees Power Equipment 700 Park St. Beatrice, NE 68310 PHONE (402) 223-2391 TOLL FREE PHONE (877) 368-TURF FAX (402) 223-4791 WEBSITE www.yazookees.com Technical Assistance: For technical assistance, please contact your local dealer or Yazoo/Kees Customer Service. MANUAL NO. 200897 REV A...
