Summary of Contents for Yamaha YDP2006

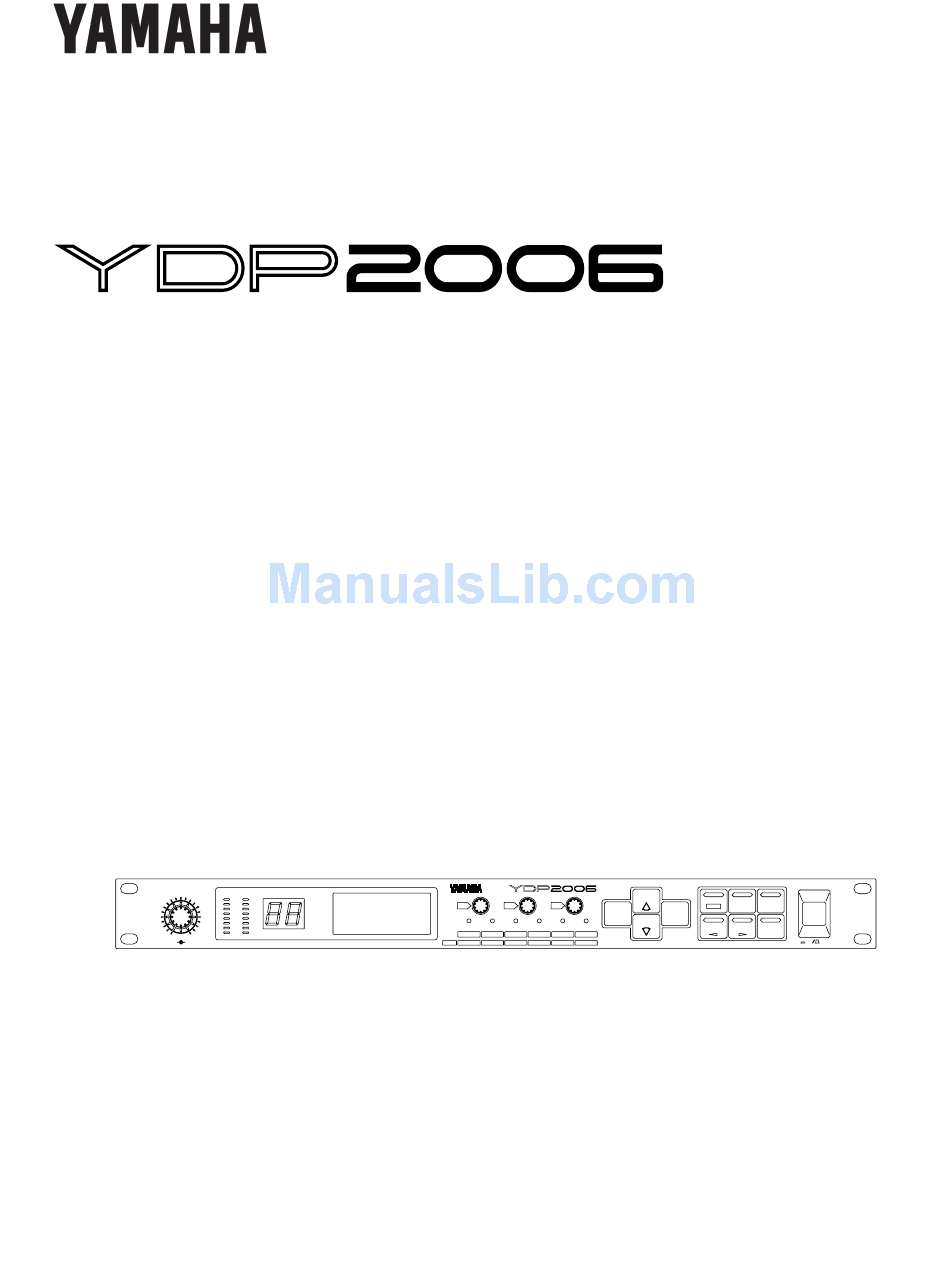

- Page 1 PARAMETRIC EQUALIZER OPERATING MANUAL MANUEL D’UTILISATION BEDIENUNGSHANDBUCH INPUT LEVEL CLIP MEMORY YDP2006 MEMORY PARAMETRIC EQUALIZER STORE RECALL NOTCH POWER NOTCH UTILITY BYPASS...
- Page 2 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
-
Page 3: Table Of Contents
The front panel ... 4 The rear panel ... 5 Memory areas ... 6 How the memories are arranged in the YDP2006 Recalling an equalization setting Storing an equalization setting A note on software protection Using the display ... 7 The [PEQ] and [NOTCH] keys ... -
Page 4: Congratulations
One of the biggest advantages of Yamaha digital equalizers (apart from their stunning 20 bit sound) is the ability to store the equalizer settings you create for instant recall. The YDP2006 has the ability to store 40 different settings in this way, avoiding the need to completely reconfigure the knobs every time the unit has to be used for a different purpose, or in... -
Page 5: Precautions
5 years. If the battery voltage falls below a certain level, a “***WARNING*** LOW BATTERY” message will appear on the screen when the power is turned on. If this occurs, have the battery replaced by at a qualified Yamaha service center. Do not attempt to replace the battery yourself! 3 –... -
Page 6: The Front Panel
INPUT LEVEL – two concentric rotary controls (inner control is left channel) to adjust the level of the signal fed into the YDP2006. Level meters – L and R – These meters come after the A-D convertors in the signal chain. -
Page 7: The Rear Panel
+4dB or -20dB. When connecting other equipment, refer to the specifications of the other units to match the signal levels correctly. OUTPUT MIDI -20dB +4dB 5 – The rear panel INPUT -20dB +4dB shield type equilibrium transmis- shield type equilibrium transmis- YDP2006... -
Page 8: Memory Areas
6 – Memory areas Memory areas How the memories are arranged in the YDP2006 The unit contains 40 memory areas which contain equalization settings, all of which are user-programmable. This allows you to set up and store frequently-used equalization set- tings which you can recall at any time. -
Page 9: Using The Display
[PEQ] [NOTCH] Using the large LCD screen, your YDP2006 has several different ways of displaying settings, and being able to edit them. These different modes are accessed with the [PEQ] and [NOTCH] keys. Pressing the [PEQ] key will take you through the equalization displays, and pressing the [NOTCH] key will take you through the notch filter, and LPF and HPF filter displays. -
Page 10: Display When In Mono Mode
MONO.L 1-6 and MONO.R 1-6. If the unit is in notch mode, the [L/<] and [R/>] keys toggle between notches 1-4, HPF, LPF (MONO.L), and MONO.R notches 1-4, as shown above. YDP2006 Graphical display of all active equalizer bands (MONO.L 1-6 on one screen and MONO.R 1-6 on the other). -
Page 11: Linking Channels
Put more simply, if you wish to toggle a notch, filter on/off that is already selected, just press the selector once. If it’s not selected, press the selector twice. 9 – Using the display – Linking channels YDP2006... -
Page 12: Utilities
23). Names set using this function are displayed on the screen whenever you step through the memory areas using the [%] or [^] keys. YDP2006 The [UTILITY] key will be lit for all these displays... -
Page 13: Bulk Dump
NOTE You can dump this data over MIDI to a MIDI data filer device (including a personal com- puter), or over the Y-485 network to a computer connected through the YAMAHA IFU485 interface. There is no need to set the unit into any special receive mode to receive bulk dump data from an external device. -
Page 14: Y-485 Comm. I/O
EXECUTING” will appear briefly on screen as the data is copied. If software protection is on, nothing will appear on screen, and no data will be copied when you press the [STORE] key. YDP2006 Only one parameter is available here: the data which will be recognized by the unit over the Y-485 network. There are three values, selectable with the F encoder: OFF, PGM CHANGE and ALL. -
Page 15: Software Protect
SECONDS. The distance units (FEET, METERS) allow you to enter delay times expressed in distance (select the appropriate one, depending on your familiarity with the metric system). The SECONDS option allows you to enter delay times directly in milliseconds. YDP2006... -
Page 16: Tutorial
14 – TUTORIAL TUTORIAL In this section we will go over the setting up of the YDP2006, from the parametric equalizer and the filters, to the delay and input attenuation. The information is presented as a tuto- rial—from it, you should be able to pick up the techniques necessary to make settings for any situation. -
Page 17: Making Parametric Equalizer Settings
Making parametric equalizer settings Here is where the user interface of the YDP2006 really makes parametric equalization easy. For the most part, you will never need to set any parameters numerically (unless you want to)—the resulting frequency response of the equalizer, and the notch filters can be displayed graphically on the screen. -
Page 18: Using The Notch Filters, And The Hpf And Lpf
(the shelving HPF and LPF don’t have Q). I. Turning the filters on and off individually II. Editing the filters graphically YDP2006 Once you have decided on the frequency for the equal- izer band, turn the G rotary encoder to move the response curve up or down, and the Q rotary encoder to adjust the width of the band. -
Page 19: Editing The Filters Numerically
For the notch filters, use the Q rotary encoder to alter the Q of the notch. The figure shown is adjustable from 0.5 to 10.0 (10.0 is the narrowest). Of course, the HPF and LPF shelving filters do not take Q values. YDP2006... -
Page 20: Setting Up The Input Level, Attenuation And Delay
Setting up the input level, attenuation and delay I. Input level and input attenuation There are two operations on the YDP2006 that affect the input level—the input level control in the analog domain (pre A/D converters), and the attenuation parameter (INP.ATT) in the digital domain (post A/D converters). -
Page 21: Specifications
2 (balanced) +4/–20dBm (switchable) +24dBm (switch at +4dB) 20-bit linear 20-bit linear 44.1kHz 40 (all user-programmable) Program Change messages select memory areas 120V/60Hz 230V/50Hz 240V/50Hz 480 x 335 x 45 (18.9 x 13.2 x 1.8) (19” 1U rackmount) 4.6 (10.1) YDP2006... -
Page 22: Midi Implementation Chart
YAMAHA [Digital Parametric Equalizer] Model: YDP2006 Function Basic Default Channel Changed Default Mode Messages Altered Note Number :True Voice Note ON Velocity Note OFF After Key’s Touch Ch’s Pitch Bender Control Change Prog Change :True # System Exclusive System :Song Pos... -
Page 23: User Programs
66 – User programs / Programmes utilisateur / User-Programme User programs / Programmes utilisateur / User-Programme Unit number: ________ Programmer: _____________ Backed up to: ________ Date: ______ Memory Program name: area YDP2006 Date: Comments:... -
Page 24: Program Change Table
67 – Program change table / Tableau de changement de programme / Program-Change-Tabelle Program change table / Tableau de changement de programme / Program-Change-Tabelle Unit number: ________ Bank: ________ Backed up to: ____________ Date: ________ Received Selects: Received Selects: Received Selects: Received Selects: YDP2006... -
Page 25: Block Diagram
68 – Block diagram / Schéma de principe / Blockdiagramm Block diagram / Schéma de principe / Blockdiagramm INPUT INPUT LEVEL Emphasis +4 -20 +4 -20 MIDI THRU Y-485 YDP2006 LEVEL Emphasis STEREO MODE 4-band Notch 4-band Notch 4-band Notch 4-band... -
Page 26: Dimensions
ADVARSEL! Lithiumbatteri! Eksplosionsfare. Udskiftning mà kun foretages af en sagkyndig, – og som beskrevet i servicemanualen. 69 – Dimensions / Abmessungen 440 (17 ") W : 480 (18 ") 348 (13 ") ”. pour les valeurs en pouces. ”. YDP2006... - Page 27 VQ95590 R2 1 CR 97 09 500 CR Printed in Japan P.O.Box 1,Hamamatsu,Japan...
