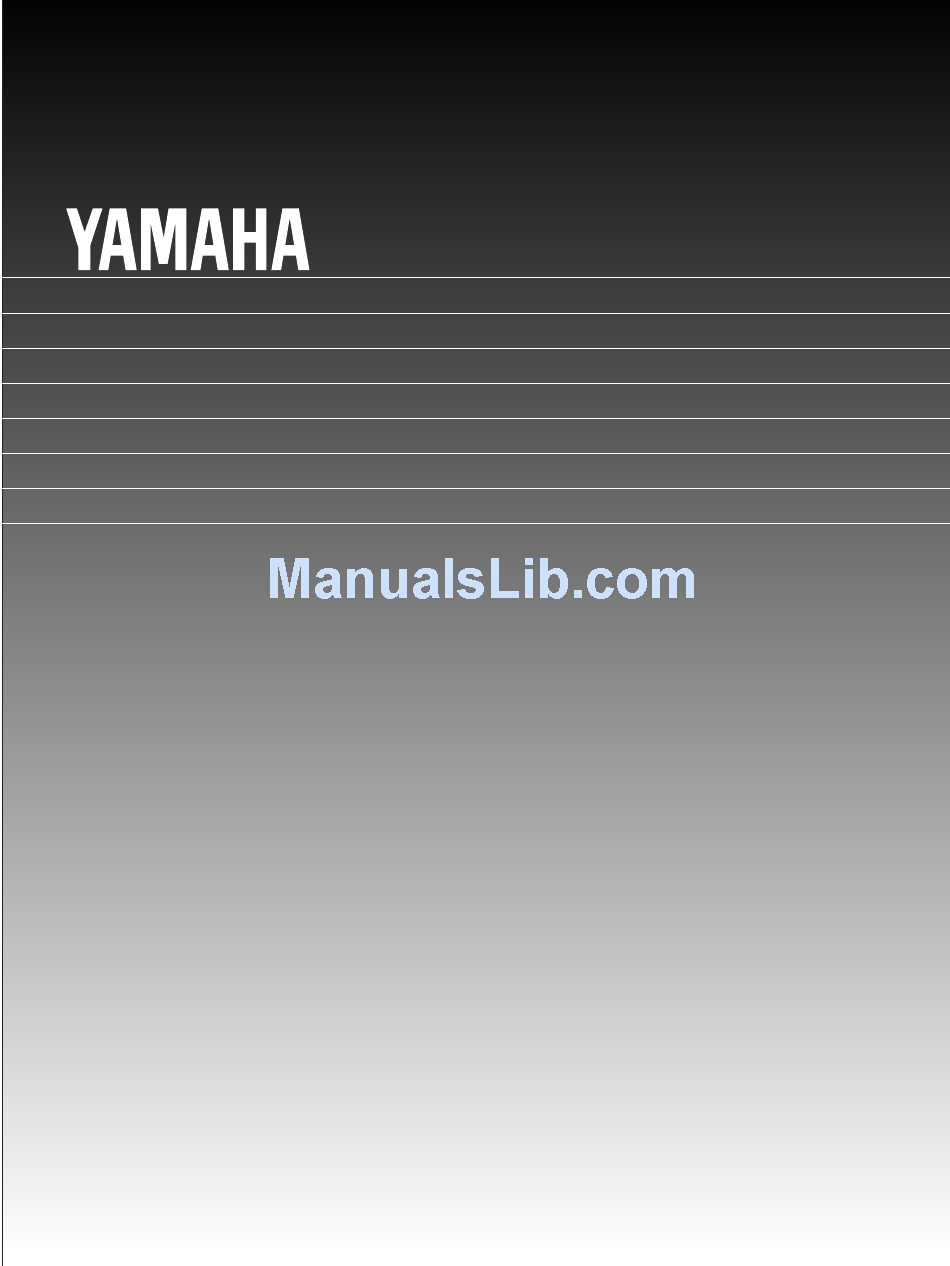

TX -670RDS
Natural Sound AM/FM Stereo Tuner
Syntonisateur AM/FM stéréo de la série "Natural Sound"
"Natural Sound" MW/UKW-Stereo-Tuner
Natural Sound AM/FM stereotuner
Sintonizzatore stereo AM/FM a suono naturale
Sintonizador estéreo de AM/FM de sonido natural
Natural Sound Stereo Tuner
OWNER'S MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-670RDS and is the answer not in the manual?

Questions and answers

Related Manuals for Yamaha TX-670RDS

Summary of Contents for Yamaha TX-670RDS

  • Page 1 TX -670RDS Natural Sound AM/FM Stereo Tuner Syntonisateur AM/FM stéréo de la série “Natural Sound” “Natural Sound” MW/UKW-Stereo-Tuner Natural Sound AM/FM stereotuner Sintonizzatore stereo AM/FM a suono naturale Sintonizador estéreo de AM/FM de sonido natural Natural Sound Stereo Tuner OWNER’S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING...

  • Page 2: Supplied Accessories

    SUPPLIED ACCESSORIES ACCESSOIRES FOURNIS MITGELIEFERTE ZUBEHÖRTEILE MEDFÖLJANDE TILLBEHÖR ACCESSORI IN DOTAZIONE ACCESORIOS INCLUIDOS BIJGELEVERDE ACCESSOIRES AM Loop Antenna/Indoor FM Antenna Cadre-antenna AM/Antenne FM intérieure MW-Rahmenantenne/UKW-Innenantenne AM ramantenn/FM inomhusantenn Antenna AM ad anello/Antenna FM per interni Antena de cuadro de AM/Antena FM interior AM Lusantenne/FM Binnenantenne (U.K.

  • Page 3: Table Of Contents

    Thank you for selecting this YAMAHA stereo tuner FEATURES • Multi-Functions for RDS Broadcast Reception • 40 Station Random Access Preset Tuning • Manual Station Name Input Capability • Automatic Preset Tuning for RDS Stations • Multi-Status Station Memory •...

  • Page 4: Antenna Connections

    ANTENNA CONNECTIONS Each antenna should be connected to the designated terminals correctly, referring to the following figure. Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may result in improvement.
  • Page 5 Connecting the indoor FM antenna (U.K. model) *If you connect an outdoor FM antenna to this unit, do not connect the indoor FM antenna to this unit. Connecting the AM loop antenna * The AM loop antenna should be placed apart from the main unit. The antenna may be hung on a wall. * The AM loop antenna should be kept connected, even if an outdoor AM antenna is connected to this unit.

  • Page 6: Connections To The Amplifier

    TUNER Connection cord (included) OUTPUT * This unit has a remote control sensor. It receives signals from the separately purchased remote control transmitter or a remote control transmitter provided with a YAMAHA amplifier. Amplifier This unit To AC outlet Remote control sensor...

  • Page 7: Automatic Tuning

    Normally, if station signals are strong and there is no interference, quick automatic-search tuning (AUTOMATIC TUNING) is possible. However, if signals of the station you want to select are weak, you must tune to it manually (MANUAL TUNING). AUTOMATIC TUNING POWER Select the reception band (FM or AM) while watching the display.

  • Page 8: Manual Tuning

    MANUAL TUNING Follow steps 1 and 2 on the previous page. TUNING MODE AUTO/MAN’L “AUTO TUNING” goes off. Other functions to improve FM reception signal quality MODE button Normally, press this button so that the “AUTO ST” indicator illuminates. When receiving an FM stereo broadcast in this mode, it is received in stereo automatically.

  • Page 9: Manual Preset Tuning

    MANUAL PRESET TUNING This unit can store station frequencies (selected by tuning operation) by using the preset station buttons. With this function, you can select any desired station by only pressing the corresponding preset station button. Up to 40 stations (8 stations x 5 pages) can be stored.
  • Page 10 To store stations with names of your own giving You can store a station with a name of your own giving. As many as 8 letters and/or numerals can be selected for the naming. By using this function, you can easily find a certain station even if you are not sure of that station’s frequency. You can give names to all preset stations.

  • Page 11: Automatic Preset Tuning

    AUTOMATIC PRESET TUNING You can also make use of an automatic preset tuning function for RDS stations only. By this function, this unit performs automatic tuning and stores RDS stations with strong signals sequentially. Up to 40 stations are stored automatically to the preset station buttons in the same way as in the manual preset tuning method on page 9.

  • Page 12: Exchanging Preset Stations

    EXCHANGING PRESET STATIONS You can exchange the places of two preset stations each other by easy operations. Example) If you want to shift the preset station on E1 to A5, and vice versa. Recall the preset station on E1 (by following the method of “To recall a preset station”...

  • Page 13: Receiving Rds Stations

    RECEIVING RDS STATIONS RDS (Radio Data System) is a data transmission system gradually being introduced by FM stations in many countries. Stations using this system transmit an inaudible stream of data in addition to the normal radio signal. RDS data contains various information, such as AF (Alternative Frequencies for the same program station), PI (Program Identification), PS (Program Service station name), PTY (Program Type name), etc.
  • Page 14 To turn the unit into the PS mode or PTY mode Press the FREQ/PS/PTY button. Whenever pressed, the mode changes into the PS mode, PTY mode and returns to usual mode in turn. * When an RDS station is received, the display is automatically turned into the PS mode. PS/PTY SEEK FREQ/PS PTY SHIFT Note...
  • Page 15 Calling a preset RDS station by the station name (PS SEEK) You can call a desired RDS station stored in this unit by only inputting the name of the station in the PS mode. By this operation, this unit searches the station from among all preset stations. You do not have to input a full name, even only the first letter can be used for calling.
  • Page 16 Calling a preset RDS station by the program type (PTY SEEK) By designating a program type, the unit automatically searches RDS stations of that program type from among all preset stations. * There are 15 program types to classify RDS stations. For details, refer to page 13. Turn the unit into the PTY mode.
  • Page 17 Calling the best quality RDS station which broadcasts the This function automatically searches and calls another RDS station of the best reception quality which broadcasts the same program now you are listening to. This function utilizes AF (Alternative Frequencies for the same program station) and PI (Program Identification) of RDS data service. The search is carried out among the RDS network stations.

  • Page 18: Remote Control Transmitter (Separate Purchase)

    Selects a desired page (A–E) of the preset station buttons. (Refer to “PRESET TUNING” on page 9.) Preset station buttons Used to store stations or recall stored stations. (Refer to “PRESET TUNING” on page 9.) YAMAHA REMOTE CONTROL TRANSMITTER Remote control transmitter operation range Notes There should be no large obstacles between the remote control transmitter and the main unit.

  • Page 19: Troubleshooting

    If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM Crackling sounds from time to time (especially in weak signal areas).

  • Page 20: Specifications

    SPECIFICATIONS FM SECTION Tuning Range [U.K. and Europe models]...87.5 to 108 MHz 50 dB Quieting Sensitivity (IHF) [U.K. model] 75 ohms Mono ...1.55 µV (15.1 dBf) 75 ohms Stereo (NARROW) ...21 µV (37.7 dBf) Usable Sensitivity [U.K. model] 75 ohms, 1 kHz, 100% mod. (30 dB S/N Quieting) ...0.8 µV (9.3 dBf) [Europe model] (DIN) 75 ohms Mono (S/N 26 dB) ...0.8 µV...
  • Page 21 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN VQ43170-0 BWWO, G Printed in Japan YAMAHA MUSIC AUSTRALIA PTY, LTD.
