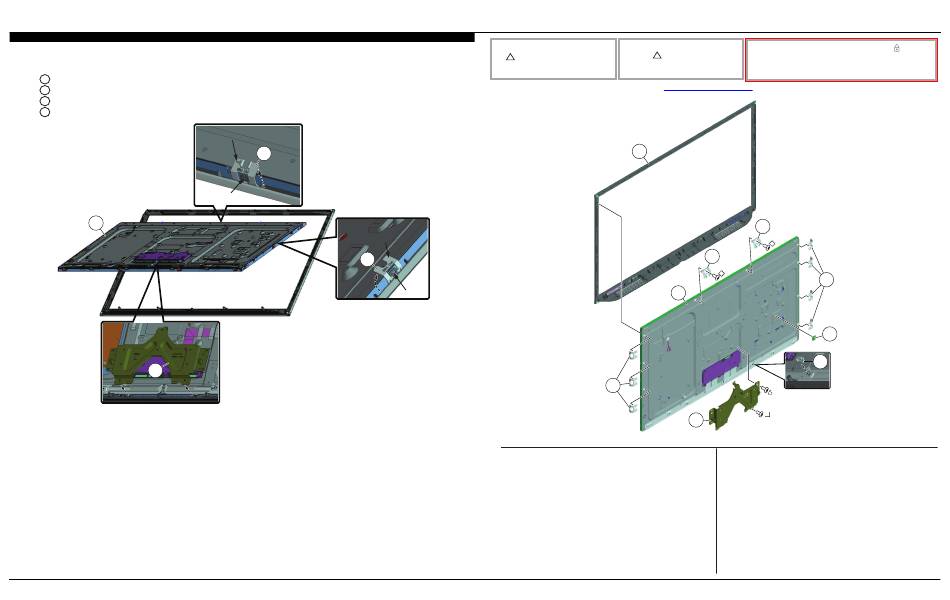

PANEL BRACKETS AND LCD PANEL REMOVAL

A Remove screws, then press the Bezel tabs and lift up the Panel Brackets (H).
B Press the Bezel tabs and tilt up the Panel Brackets (V).
C Remove the screws and lift up the Bottom Frame.
D Gently lift up the LCD Panel.
D
C

CLEANING THE LCD PANEL

CAUTION: When cleaning the TV, be sure to unplug the power cord to avoid any chance of electric shock.
Clean the cabinet of the TV with a dry soft cloth, and wipe the LCD screen gently with a soft cloth.
; Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.
; If using a chemically pretreated cloth, please follow the instruction provided on the package.
; Never use strong solvents such as a thinner, alcohol or benzine for cleaning.
; Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.
; Do Not use paper towels, any type of abrasive pad, rags, rubber or vinyl materials to clean the screen. Using these
materials could easily scratch the screen which may result in permanent damage.
; Do Not use any cleaning product containing alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol,
ammonia, benzine, thinner or insecticide. Using any of these harsh cleaners may result in permanent damage to the
screen.
; Do Not spray water or detergent directly onto the TV screen . If liquid drips into the bottom of the screen it may cause a
failure.
KDL-40HX750/46HX750/46HX751/55HX750/55HX751
Panel Bracket (H)
A
Bezel tab
Panel Bracket (V)
B
SECTION 4 - DISASSEMBLY/PART NUMBER INFORMATION
NOTE: The components identified by shading
and mark are critical for safety. Replace only
!
with part number specified.
(Check the Sony Authorized Servicer Portal at http://www.sony.com/asp website for any additional service related issues.)
Bezel tab
REF. NO. PART NO.
151 4-414-803-01
151 4-414-790-01
151 4-414-790-11
151 4-414-782-01
151 4-414-782-11
152 NA
FOR ALL LCD PANEL AND TCON BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
NOTE: Les composants identifies per un trame et
NOTE: The components identified by a red outline and a
une marque sont critiques pour la securite.
! confidential information. Specific instructions must be adhered to whenever
Ne les remplacer que par une piece portant le
these components are repaired and/or replaced.
numero specifie. See Appendix A: Encryption Key Components in the back of this manual.
151
153
153
152
154
157
DESCRIPTION [ASSEMBLY INCLUDES] REF. NO.
BEZEL (40 ZE2) A 153
(KDL-40HX750 ONLY) 154
BEZEL (46 ZE2) A 155
(KDL-46HX750 ONLY) 156
BEZEL (46 ZE2) A 157
(KDL-46HX751 ONLY) NOTE: THIS PART IN NOT INCLUDED WITH THE LCD PANEL
BEZEL (55 ZE2) A
△
(KDL-55HX750 ONLY)
□
BEZEL (55 ZE2) A
◇
(KDL-55HX751 ONLY)
LCD PANEL
mark contain
154
155
156
PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
4-299-512-01 BRACKET, PANEL (H)
4-299-509-01 BRACKET, PANEL (V)
4-262-708-03 CLAMPER, CABLE
4-300-810-01 SHEET, THERMAL (ATREYU)
4-299-522-01 FRAME, BOTTOM (L)
4-159-298-01 SCREW, +PSW M4X10
2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
4-256-393-01 SCREW, +PSW M3X6 W12
