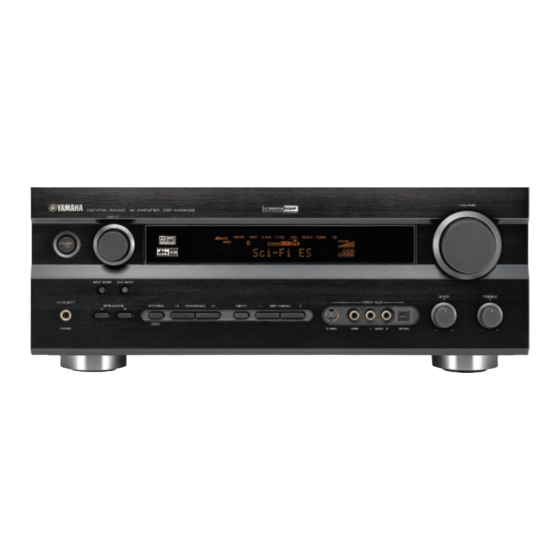

Yamaha DSP-AX640SE Product Bulletin

Digital home cinema amplifier.
Hide thumbs


Advertisement

DSP-AX640SE

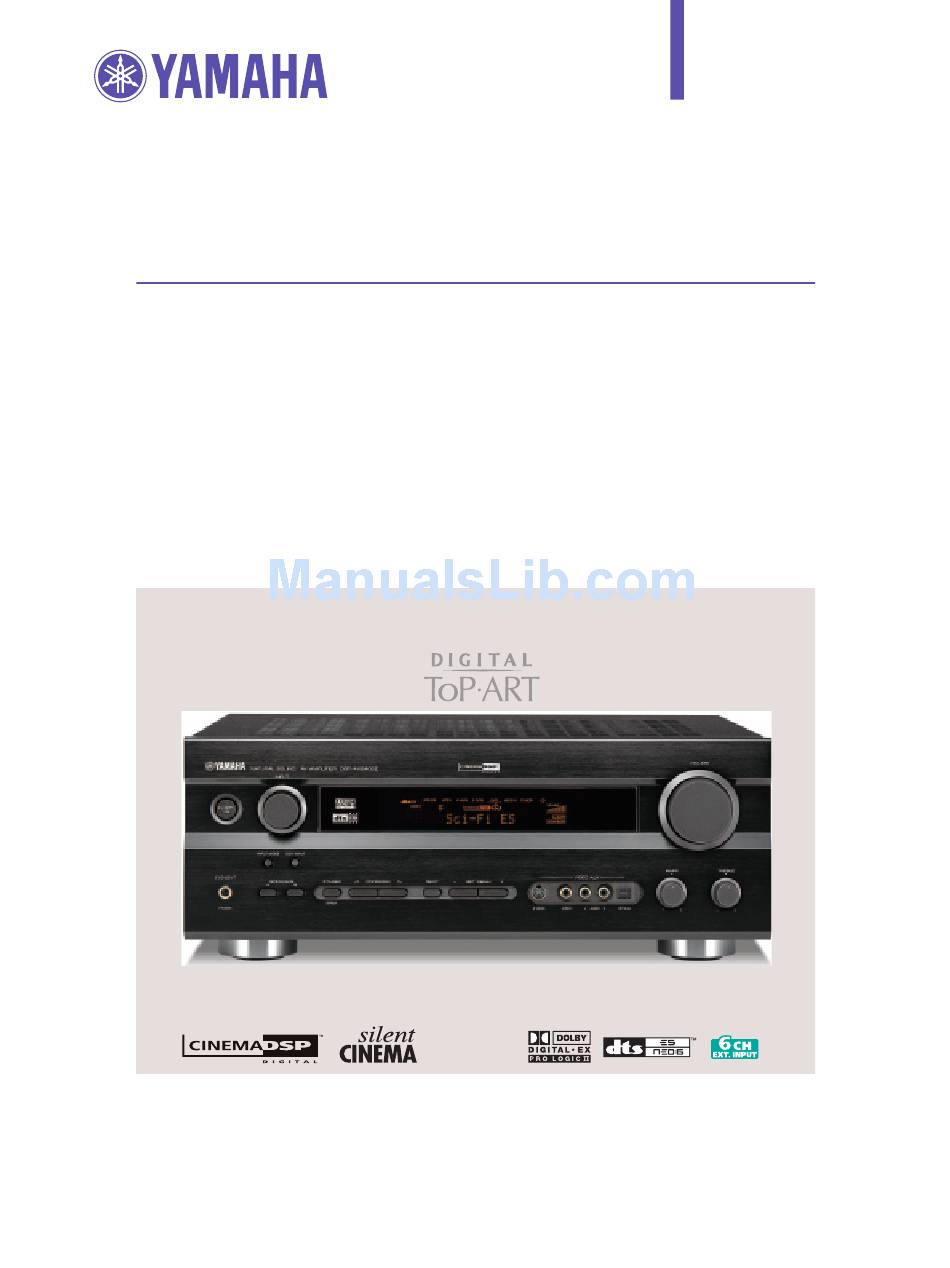

NEW PRODUCT BULLETIN
Digital Home Cinema Amplifier
DSP-AX640SE
High performance, extremely versatile amplifier designed to serve as
the core component of any high quality home cinema system. Major features include
6-channel discrete amplification (85W x 6, RMS), Yamaha's Digital ToP-ART design concept, Quad-Field
CINEMA DSP, 24 surround programmes and SILENT CINEMA. Compatible with the newest 6.1-channel
movie sound formats including Dolby Digital EX,
DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, Dolby Pro Logic II and DTS Neo:6.
Enjoy Home Cinema the Way You've Always Imagined It: Dynamic,
Realistic Surround Sound with Many Programme Variations.
1/10 (G/B)

Advertisement

   Also See for Yamaha DSP-AX640SE

   Related Manuals for Yamaha DSP-AX640SE

   Summary of Contents for Yamaha DSP-AX640SE

  • Page 1

    High performance, extremely versatile amplifier designed to serve as the core component of any high quality home cinema system. Major features include 6-channel discrete amplification (85W x 6, RMS), Yamaha’s Digital ToP-ART design concept, Quad-Field CINEMA DSP, 24 surround programmes and SILENT CINEMA. Compatible with the newest 6.1-channel movie sound formats including Dolby Digital EX, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, Dolby Pro Logic II and DTS Neo:6.

  • Page 2

    Digital Home Cinema Amplifier Digital ToP-ART Digital ToP-ART (Total Purity Audio Reproduction Technology) is the name Yamaha has given to a design philosophy whose goal is to maximize digital quality while minimizing analogueue circuitry. The culmination of the best digital...

  • Page 3

    * In addition to the six channels (Main L/R, Centre, Rear L/R, Rear Centre) there is a subwoofer output (hence 6.1-channel format compatibility) and two front effect channels (a total of 9 DACs). The front effect channel signals, unique to Yamaha CINEMA DSP, are mixed with the main channel signals to achieve more precise separation of dialogue, music and effects on the front sound stage and a superior sense of presence as compared to other systems.

  • Page 4

    6-Channel High Power, Discrete Amplifier Configuration The DSP-AX640SE will deliver as much as 85W of power to each of six channels (two main, two rear, one centre and one rear centre). This is more than enough to fill even the largest rooms with vibrant music and Richter-scale sound effects.

  • Page 5

    The high precision FE mica and metallic mylar film capacitors use polypropylene material and are the highest performance types on the market. DSP-AX640SE Interior View and Signal Flow ( 5/10 (G/B) DSP-AX640SE NEW PRODUCT BULLETIN DSP-AX640SE High Quality Parts Extra-Large Low-Impedance Transformer The large 4.8 kg low-impedance...

  • Page 6

    It will seem as if the walls of your room have disappeared and you are in the middle of your own immense theater! DSP-AX640SE Surround Programmes: 24 Surround Programmes (44 Variations) HiFi DSP Programmes CONCERT HALL Concert Hall JAZZ CLUB...

  • Page 7

    Quad-Field CINEMA DSP Rear Left Surround/ Effect Sound Field Rear Centre Surround/ Effect Sound Field 7/10 (G/B) DSP-AX640SE NEW PRODUCT BULLETIN SILENT CINEMA Sound Field Imaging Virtual CINEMA DSP Sound Field Imaging Presence (Front) Sound Field Dialogue Effect...

  • Page 8: Easy Setup And Operation

    All the A/V Connections Needed for the Present and Into the Future! Plus a Host of Convenient Features. Easy Setup and Operation The DSP-AX640SE has an ergonomic design that ensures simple, convenient operation. Everything from the layout of the controls to the display menus has been planned to make using the unit easy and enjoyable.

  • Page 9

    S-video and optical digital input terminals for connecting game machines, digital equipment, and so on. Fixed and Assignable Terminals Yamaha offers terminals that can be either independently assigned to sources or defaulted to fixed settings. Speaker A, B or A+B Selection...

  • Page 10

    6.1-channel digital surround. It is compatible with DVD and all other A/V sources. Yamaha CINEMA DSP technology has received a patent in the U.S. (Patent No. 5,261,005).
