- Page 1 YST -SW305/205 Active Servo Processing Subwoofer System OWNER’S MANUAL...
-
Page 2: Safety Instructions
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT Please record the serial number of this system in the space below. - Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. IMPORTANT : When connecting this product to accessories and/or another product use only high quality shielded cables.
-
Page 4: Unpacking
UNPACKING After unpacking, check that the following item is contained. Nonskid pads... -
Page 5: Caution
G Secure placement or installation is the owner’s responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers. G VOLTAGE SELECTOR (China and General models only) -
Page 6: Table Of Contents
Connecting to speaker output terminals of the amplifier ... 6 FEATURES • This subwoofer system employs Advanced YAMAHA Active Servo Technology which YAMAHA has developed for reproducing higher quality super-bass sound. (Refer to page 12 for details on Advanced YAMAHA Active Servo Technology.) This super-bass sound adds a more realistic, theater-in- the-home effect to your stereo system. -
Page 7: Placement
PLACEMENT Å : subwoofer, : main speaker) One subwoofer will have a good effect on your audio system, however, the use of two subwoofers is recommended to obtain more effect. If using one subwoofer, it is recommended to place it on the outside of either the right or the left main speaker. -
Page 8: Connections
Connecting to line output (pin jack) terminals of the amplifier Connect the main speakers to the speaker output terminals of the amplifier. • To connect with a YAMAHA DSP amplifier (or AV receiver), connect the SUBWOOFER (or LOW PASS etc.) terminal on the rear of the DSP amplifier (or AV receiver) to the L/MONO INPUT2 terminal of the subwoofer. -
Page 9: Using Two Subwoofers
POWER SPLIT SUBWOOFER To AC outlet • When connecting to a monaural line output terminal of the amplifier, connect the L/MONO INPUT2 terminal. Left main speaker OUTPUT INPUT TO SPEAKERS – – /MONO – – INPUT Amplifier *Illustration shows YST-SW205. -
Page 10: Connecting To Speaker Output Terminals Of The Amplifier
PHASE HIGH NORM REV POWER (Both A and B speaker outputs must be ON.) Left main speaker INPUT /MONO Amplifier OUTPUT INPUT TO SPEAKERS – – /MONO – – FROM AMPLIFIER INPUT Amplifier *Illustration shows YST-SW205. Left main speaker... - Page 11 Left main speaker OUTPUT INPUT TO SPEAKERS – – /MONO – – FROM AMPLIFIER INPUT Amplifier *Illustration shows YST-SW205. > Tighten the terminal knob. Simply insert the Banana Plug connector into the terminal. Subwoofer OUTPUT INPUT AUTO PHASE STANDBY TO SPEAKERS –...
-

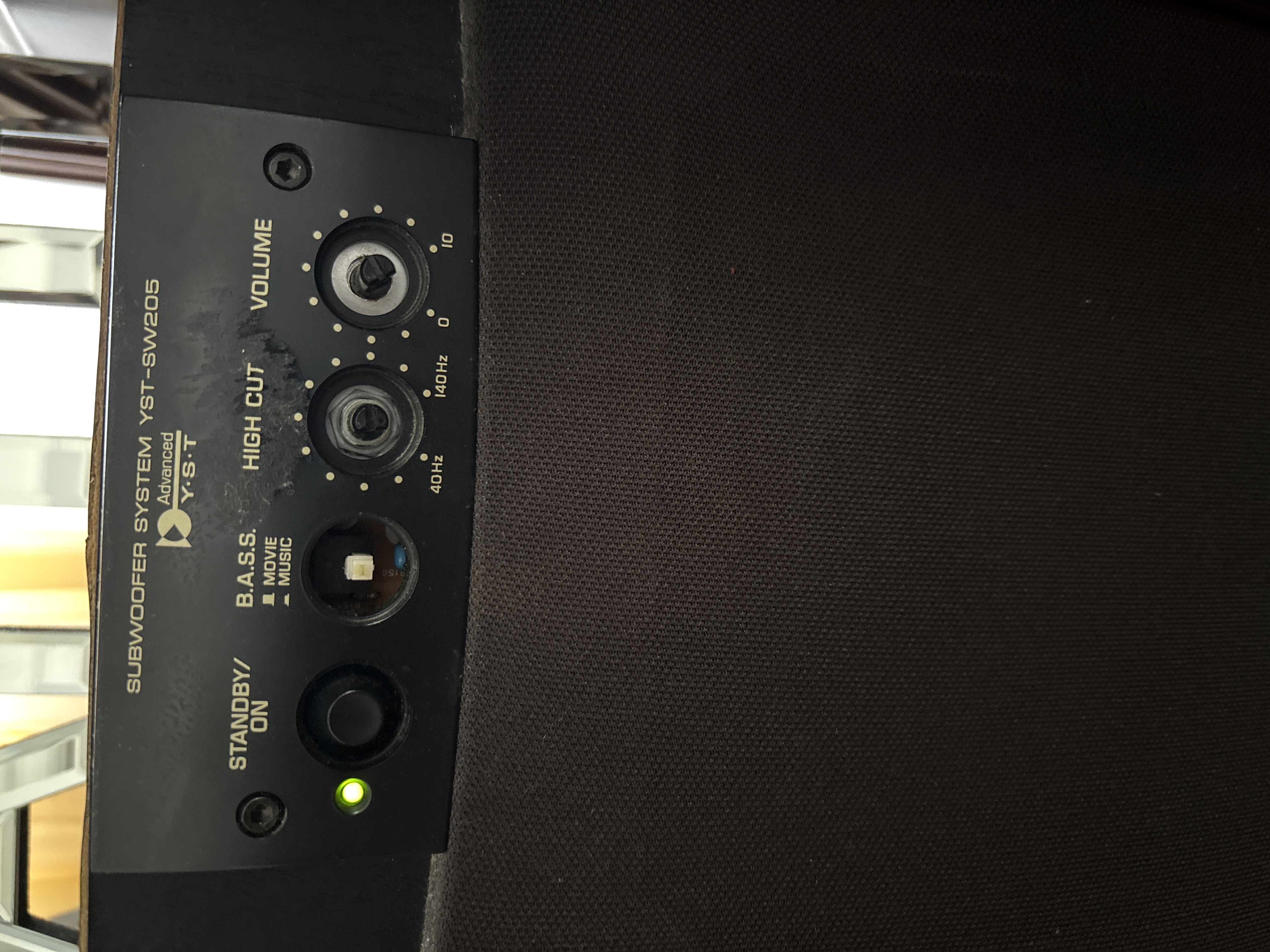

Page 12: Controls And Their Functions
B.A.S.S. HIGH CUT VOLUME MOVIE MUSIC 40Hz 140Hz INPUT AUTO PHASE STANDBY /MONO HIGH NORM REV ⁄ Front panel SUPERWOOFER SYSTEM YST-SW205 STANDBY/ B.A.S.S. HIGH CUT VOLUME MOVIE MUSIC 40Hz 140Hz OUTPUT INPUT AUTO PHASE STANDBY TO SPEAKERS – –... -
Page 13: Automatic Power-Switching Function
¤ OUTPUT (TO SPEAKERS) terminals Can be used for connecting to the main speakers. Signals from the INPUT1 terminals ( these terminals. (Refer to “CONNECTIONS” for details.) INPUT2 terminals Used to input line level signals from the amplifier. (Refer to “CONNECTIONS” for details.) ‹... -
Page 14: Adjusting The Subwoofer Before Use
ADJUSTING THE SUBWOOFER BEFORE USE Before using the subwoofer, adjust the subwoofer to obtain the optimum volume and tone balance between the subwoofer and the main speakers by following the procedures described below. Front panel SUPERWOOFER SYSTEM YST-SW205 STANDBY/ B.A.S.S. HIGH CUT... -
Page 15: Frequency Characteristics
HIGH CUT VOLUME 40Hz 140Hz * One graduation of this control represents 10 Hz. PHASE–Set to the REV (reverse) position. 500Hz YST-SW205 HIGH CUT YST-SW305 40Hz * One graduation of this control represents 10 Hz. Main speaker’s PHASE–Set to the REV... -
Page 16: Advanced Yamaha Active Servo Technology
ADVANCED YAMAHA ACTIVE SERVO TECHNOLOGY The theory of Yamaha Active Servo Technology has been based upon two major factors, the Helmholtz resonator and negative-impedance drive. Active Servo Processing speakers reproduce the bass frequencies through an “air woofer”, which is a port or opening in the speaker’s cabinet. -
Page 17: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions given below do not help, disconnect the power cable and contact your authorized YAMAHA dealer or service center. -
Page 18: Specifications
Dimensions (W x H x D) Magnetic shielding type YST-SW305 ... 235 mm x 585 mm x 445 mm YST-SW205 ... 235 mm x 485 mm x 402 mm Weight YST-SW305 ... 21 kg (46 lbs. 5 oz.) YST-SW205 ... 15 kg (33 lbs. 1 oz.) Accessories ... - Page 19 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...
