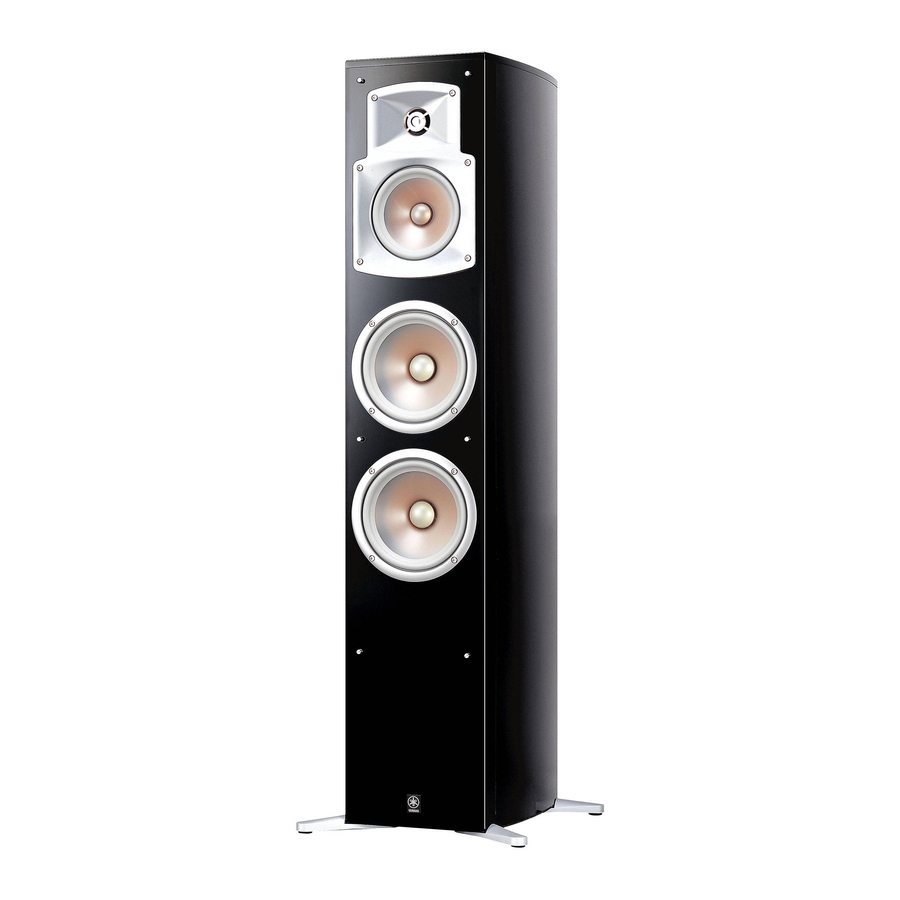

Yamaha NS-555 Owner's Manual

Yamaha speaker system owner's manual
Hide thumbs

Advertisement

OWNER'S MANUAL
PRECAUTIONS
Read these precautions carefully before using your
speakers.
• To assure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
• Install the speaker in a cool, dry, clean place - away from
windows, heat sources, sources of excessive vibration,
dust, moisture and cold. Avoid sources of humming
(transformers, motors). To prevent fire or electrical
shock, do not expose the speaker to rain or water.
• To prevent the enclosure from warping or discoloring,
do not place the speaker where it will be exposed to
direct sunlight or excessive humidity.
• Do not place the following objects on the speaker:
Glass, china, small metallic, etc.
If glass etc. falls by vibrations and breaks, it may
cause bodily injury.
A burning candle etc.
If the candle falls by vibrations, it may cause fire and
bodily injury.
A vessel with water in it
If the vessel falls by vibrations and water spills, it may
cause damage to the speaker, and/or you may get an
electric shock.
• Do not place the speaker where foreign objects such as
water drips might fall. It might cause a fire, damage to
the speaker, and/or bodily injury.
• Do not place the speaker where it is liable to be knocked
over or struck by falling objects. Stable placement will
also ensure better sound performance.
• Placing the speaker on the same shelf or rack as the
turntable can result in feedback.
• Never put a hand or a foreign object into the port located
on the rear of the speaker as this might cause bodily
injury and/or damage to the speaker.
• When moving the speaker, do not hold the port as it
might cause bodily injury and/or damage to the speaker.
• Any time you note distortion, reduce the volume control
on your amplifier to a lower setting. Never allow your
amplifier to be driven into "clipping". Otherwise the
speaker may be damaged.
• When using an amplifier with a rated output power
higher than the nominal input power of the speaker, care
should be taken never to exceed the speaker's maximum
input.
• Do not attempt to clean the speaker with chemical
solvents as this might damage the finish. Use a clean, dry
cloth.
NS-777/NS-555
Thank you for selecting a YAMAHA speaker system.
• Do not attempt to modify or fix the speaker. Contact
qualified YAMAHA service personnel when any service
is needed. The cabinet should never be opened for any
reasons.
• Secure placement or installation is the owner's
responsibility. YAMAHA shall not be liable for any
accident caused by improper placement or
installation of speaker.
PRECAUTIONS WHEN
POSITIONING THE SPEAKERS
The speaker is constructed with the majority of the weight
located in its upper portion, and is thus susceptible to
falling over if proper care is not taken to insure its stability.
If the speaker falls over, it may damage the speaker or be
the cause of injury (or even death) to persons and/or
damage to personal property.
For safe and proper use of the speaker:
• Position the speaker in a location that is solid, level,
smooth, and low (with respect to the floor).
• Do not push or apply pressure to the side of the speaker
when moving, or lean objects against the side of the
speaker.
• Do not sit on or set objects on top of the speaker.
Vibrations or jolts associated with earthquakes and other
phenomena or activities may cause the speaker to fall over.
For safety reasons, using commercially available products
that increase stability in the speaker is recommended
(metal fittings or chains, etc.).
Use the stands included with the speaker to
increase stability:
Be sure to use the stands regardless of where the speaker is
positioned. Attaching the stands included with the speaker
reinforces the base of the speaker not to fall over.
Please be cautioned that even though the stands are
connected, this does not guarantee that the speaker will not
fall over.
URG
Speaker
System
1

Advertisement

loading

  Related Manuals for Yamaha NS-555

  Summary of Contents for Yamaha NS-555

  • Page 1 NS-777/NS-555 OWNER’S MANUAL Thank you for selecting a YAMAHA speaker system. PRECAUTIONS Read these precautions carefully before using your speakers. • To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
  • Page 2: Attaching The Stands

    ATTACHING THE STANDS When placing the speakers, be sure to use the stands to increase stability. Stand (R x 2, L x 2) Pad x 4 Washer x 4 Note The provided stands are in two types. Two stands are for the right side and others are for the left side.
  • Page 3: Using A Banana Plug

    [Standard Connection] Leave the short bars in place when connecting. Short bar Tighten Loosen NS-777/NS-555 (R) SPEAKERS Speaker output terminals of the amplifier Amplifier or Receiver ICONNECTIONS • Connect the screw-type input terminals at the rear of the speaker to the speaker output terminals of the amplifier (or receiver) with the speaker cable.
  • Page 4: Placing The Speakers

    [Bi-Wired Connection] Remove the short bars before connecting. Mid-woofer/ woofer terminals NS-777/ NS-777/ NS-777/ NS-555 (R) NS-555 (L) NS-555 (R) SPEAKERS – – Amplifier or Receiver Both SPEAKERS A and B should be selected. This speaker system is capable of bi-wired connections. To...
  • Page 5: Removing The Front Cover

    NS-777 NS-555 Note When the cover is removed, take care not to touch the speaker units with your hands or to exert excessive force with tools.
  • Page 6 卸下前盖 前盖四周六点被扣紧, 可根据需要卸下。 卸下前盖时, 握住两边从扬声器慢慢直拉出来。如需再安装,将前 盖里层的六个钉对准扬声器六个相应的孔,轻轻推 入。 NS-777 NS-555 注意 当前盖被卸下后,切勿用手接触扬声器或用工具过分 施力。 规格 NS-777 种类... 3 声道低频反射式扬声器系统 驱动器... 20 cm 圆锥低音扬声器× 2 波导喇叭 13 cm 圆锥中型 波导喇叭 2.5 cm 穹型低音扬声器 频率响应... 30 Hz 至 35 kHz 额定阻抗... 6 欧姆 额定输入功率...100 W 最大输入功率...250 W...
