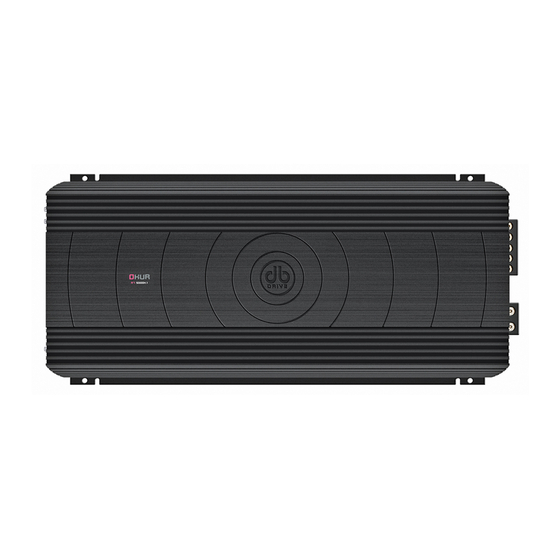

- Page 1 A7 5000H.1 User Manual Installation Instructions/Owner’s Manual www.dbdrive.net DUE TO CONTINUOUS IMPROVEMENT OF THE PRODUCT THE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 2 WORLD RECORD BREAKING TECHNOLOGY 1. AMPLIFIERS’ SPECIFICATION A7 5000H.1 Peak @ 14.4V : 1 Ohm 1 x 5000 Watts 2 Ohms 1 x 2500 Watts Frequency Response 10Hz - 250Hz < 100dB Signal to Noise Ratio 250 < Damping Factor 6V ~ 0.2V Low Level Input 35Hz ~ 10KHz...
-
Page 3: Installation
www.dbdrive.net GAIN (6V ~ 0.2V) +12V (POWER CONNECTION) Matching the output voltage of the headunit’s RCA d to the fuse positive te minal SUBSONIC FILTER (10Hz ~ 50Hz @ 24dB/Oct) the spea to eli GND ( GROUND CONNECTION ) It is connected BASS BOOST (0~9dB @ 45Hz) ass 0 ~ 9dB REM (REMOTE) -
Page 4: Speaker Connection
BATTERY 3-4. SPEAKER CONNECTION DB Drive recommends to use minimum 12 gauge speaker connecting cables. Run 12 gauge speaker connecting cables from your speakers to OKUR amplifier’s mounting location. Keep speaker cables away from the power cables and OKUR amplifier’s input cables. Use grommets anywhere the cables have to pass through the holes in the metal frame or sheet metal. - Page 5 www.dbdrive.net OKUR COMPETITION DIGITAL MONOBLOCK AMPLIFIERS’ SPEAKER CONNECTION DIAGRAM 2 8 ~ 2 ohms 8 ~ 2 ohms 3-5. OKUR COMPETITION AMPLIFIER’S MULTI-LINKING CONNECTION. Multi-linking connection allows linking of 2 digital ampli llowing connection d Headunit MASTER AMPLIFIER 6V 0.2V 10Hz 50Hz 0dB 12dB 35Hz...
- Page 6 WORLD RECORD BREAKING TECHNOLOGY Step 5. Connect speaker cable ( + ) on slave ampli Headunit MASTER AMPLIFIER 8 ~ 2 ohms SLAVE AMPLIFIER...
- Page 7 www.dbdrive.net 4. TROUBLE SHOOTING NO SOUND ( NO OUTPUT ) 1) Please check all connections, cables’ routing, short and voltage at OKUR amplifiers and headunit. 2) Please check built-in or external fuses, If it is brown, please repalce with new one. 3) Please check whether speakers work well, you can test speakers by connecting to another amplifiers.
- Page 8 Due to the nature of the use of this product, DB DRIVE warrants the OKUR A7 5000H.1 amplifier for a period of 90 days from the date of original invoice. This warranty applies to the original purchase only. The amplifier must be purchased directly from an authorized DB Drive dealer or DB Research.
