Yamaha YST-MS55D Owner's Manual

Powered multimedia speakers
Hide thumbs

Advertisement

UCA
POWERED MULTIMEDIA SPEAKERS
YST-MS55D
OWNER'S MANUAL
MODE D'EMPLOI
SPEAKERS

Advertisement

Table of Contents
loading

  Also See for Yamaha YST-MS55D

  Related Manuals for Yamaha YST-MS55D

  Summary of Contents for Yamaha YST-MS55D

  • Page 1 POWERED MULTIMEDIA SPEAKERS YST-MS55D OWNER’S MANUAL MODE D’EMPLOI SPEAKERS...
  • Page 2: Safety Instructions

    CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
  • Page 3 If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America 6600 Orangetho- rpe Ave. Buena Park, CA90622, U.S.A.
  • Page 4: Table Of Contents

    • Do not use force on switches, knobs, or cables. When you move the YST-MS55D, first turn off the power to the speakers, then disconnect the power cable from the AC outlet and the cables from the connected devices.
  • Page 5: Introducing The Yst-Ms55D Speaker System

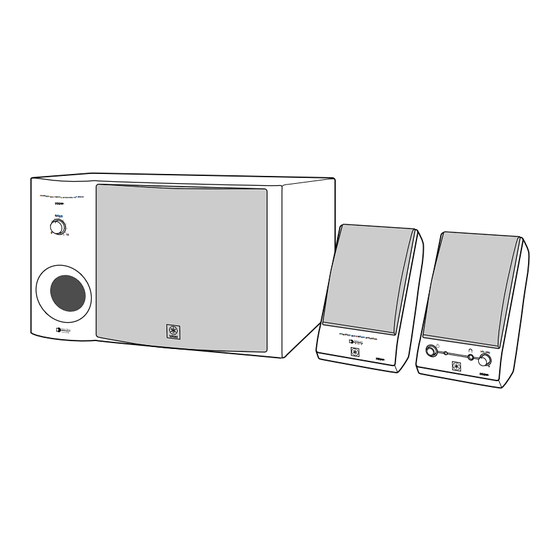

    They reproduce a clearer sound, with less noise and distortion, and never require a soundcard! The YST-MS55D includes three speaker components: a left satellite speaker, a right satellite speaker, and a sub- woofer.
  • Page 6: Controls & Connectors

    Controls & Connectors Front BASS Front (Right satellite speaker) 1 BASS control: Use this control to adjust the vol- ume of the subwoofer. We recommend that you set the control between twelve o’clock and one o’clock. Turn it clockwise to increase the volume; counterclockwise to decrease it.
  • Page 7: Installing Usb Driver

    Installing USB driver When connecting this unit and your computer with the USB cable and controlling this unit from the computer, you must install the following software on your com- puter. • USB driver software : Necessary for this unit to communicate with your computer ...
  • Page 8: Microsoft Windows 98/98Se Or Windows Me

    Installing the software Microsoft Windows 98/98SE or Windows Me Installing and checking the USB driver 1. Turn on your computer and, if it’s not running already, start Windows 98/98SE or Windows 2. Connect the power cord to a suitable AC outlet. This unit can be on or in standby mode when installing the driver.
  • Page 9 Make the following settings on your computer after the installation of the driver is finished. Setting of Audio and Audio CD [Windows 98/98SE only] • Terminate all the activated applications. • When using Windows 98SE, restart Windows, first. 1. Click the Windows “Start” button and select “Settings”, and then “Control Panel”.
  • Page 10: Microsoft Windows 2000 Professional

    Microsoft Windows 2000 Professional Installing and checking the USB driver 1. Turn on your computer and, if it’s not running already, start Windows 2000 Professional, and log in with Administrator. 2. Connect the power cord to a suitable AC outlet. This unit can be on or in the standby mode when installing the driver.
  • Page 11 Make the following settings on your computer after the installation of the driver is finished. Setting of Audio and Audio CD 1. Click the Windows “Start” button and select “Settings”, and then “Control Panel”. 2. Double-click the “Sounds and Multimedia” icon.
  • Page 12: Macintosh Computer

    You can input analog audio signals into Inputs 1 and 2 (3.5 mm stereo mini plug input jacks) on the rear of right sat- ellite speaker and use the YST-MS55D system like conventional multimedia speakers. (For example, you can con- nect the outputs from a soundcard.)
  • Page 13: Troubleshooting

    Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions given below do not help, disconnect the power cord and contact your authorized YAMAHA dealer or service center. PROBLEM...
  • Page 14: Non Skid Pad

    8 pcs of non skid pads 1 set * Specifications subject to change without notice. Please contact an authorized Yamaha dealer for more information on this product or connections to your computer. 19 mm (3/4") balanced dome, magnetic shielding Midrange : 8 cm (3") cone, magnetic shielding...
  • Page 15 Printed in China V770200...
