ASSEMBLY INSTRUCTIONS

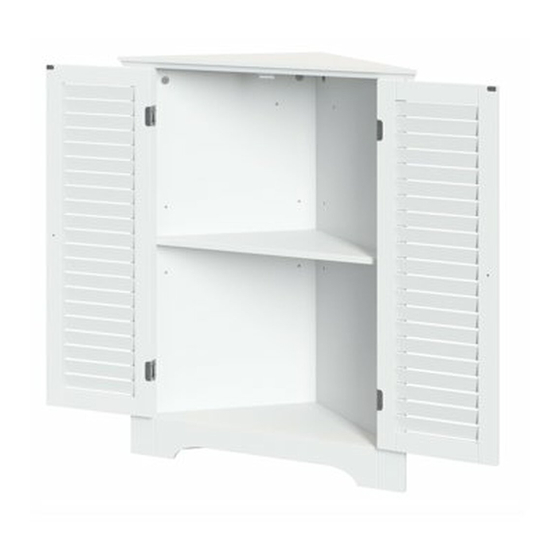

Ellsworth 3-Shelf Corner Cabinet
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Ellsworth 3-Shelf Corner Cabinet
Summary of Contents for RiverRidge Ellsworth 3-Shelf Corner Cabinet
- Page 1 ASSEMBLY INSTRUCTIONS Ellsworth 3-Shelf Corner Cabinet ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS. IF LOADED WITH MORE THAN 25 POUNDS PER SHELF AS THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Side Support Board Right Side Support Board Lower Cross Bar Right Side Door Left Side Door Adjustable Shelf Bottom Shelf Left Side Board Right Side Board... - Page 4 PARTS LIST PARTS DESCRIPTION 4PCS Cam Bolt 4PCS Cam Lock 12PCS Wood Dowel Magnet 2PCS Screw (3x14mm) 18PCS Screw (3x10mm) 4PCS Hinge 2PCS Magnet Plate 13PCS Screw (4x25mm) 2PCS Knob 2PCS Machine Screw (4x18mm) 4PCS Shelf Holder 2PCS Plastic Anchor 2PCS Screw (4x45mm) TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 1. Insert 1 screw (F) through hole on magnet plate (H) and tighten to right side door (5). 2. Insert 4 screws (F) through holes on 2 hinges (G) and tighten to right side door (5). 3. Repeat above steps to assemble magnet plate (H) and 2 hinges (G) to left side door (6). STEP 2 1.
- Page 6 STEP 3 1. Attach right side door (5) and left side door (6) to left side support board (2) and right side support board (3) by inserting 8 screws (F) through holes on hinges (G) on right side door (5) and left side door (6) and tighten to left side support board (2) and right side support board (3).
- Page 7 STEP 5 1. Attach left side panel (9) to shelf (8) and left side support board (2) by inserting 4 screws (I) through holes on left side panel (9) and tighten to shelf (8) and left side support board (2). STEP 6 1.
- Page 8 STEP 7 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Attach magnet (D) to top board (1) by inserting 2 screws (E) through holes on magnet (D) and tighten to top board (1). STEP 8 1.
- Page 9 STEP 9 1. Insert 4 cam locks (B) into cam lock holes on left side panel (9) and right side panel (10) and rotate clockwise to lock cam bolts (A) in place. 2. Insert 4 holders (L) into holes on desired position for shelf (7). 3.
-
Page 10: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 11 Enjoy your new cabinet!
