Summary of Contents for Yamaha PortaTone PSR-A300

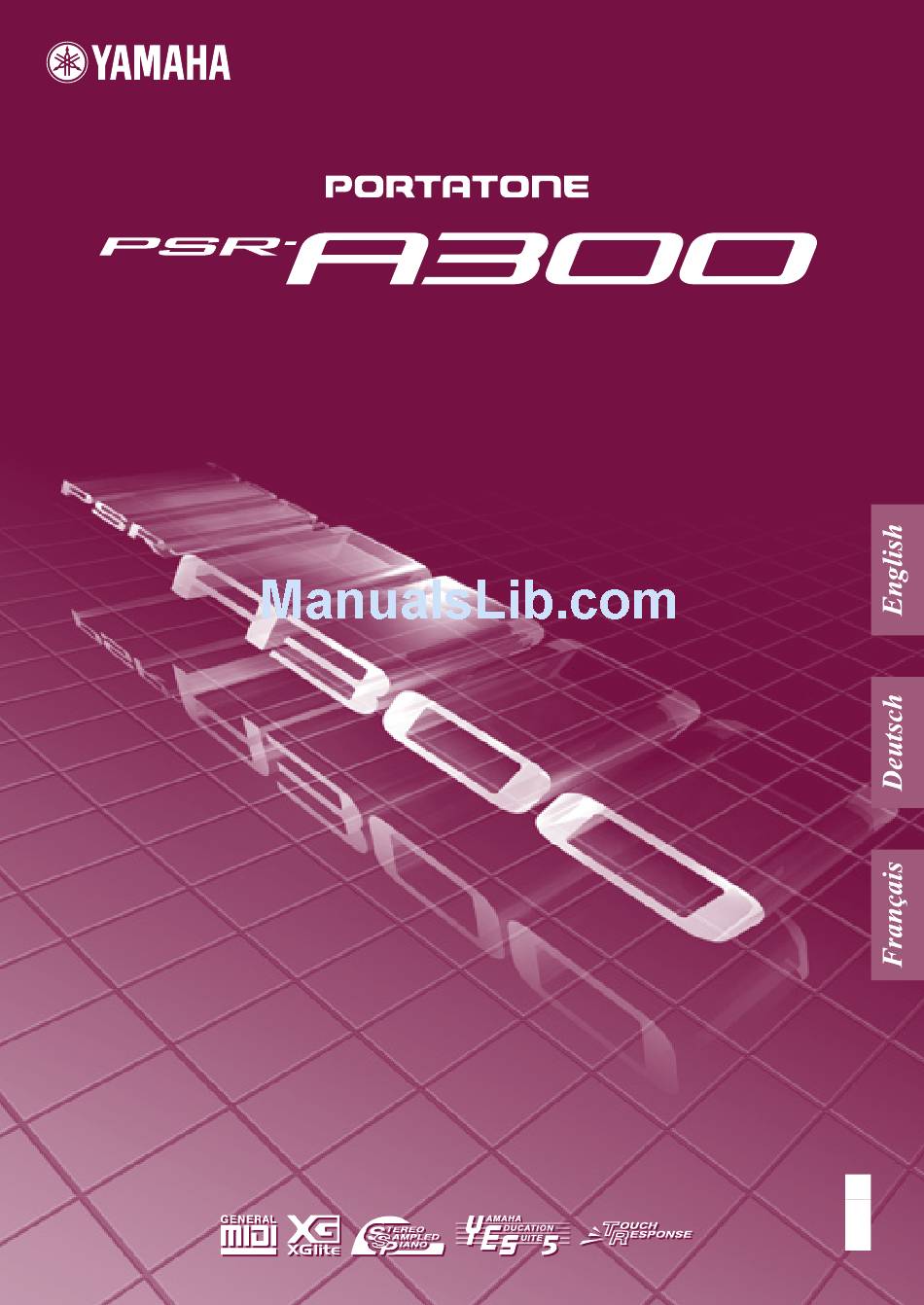

  • Page 1 Owner’s Manual Owner’s Manual Bedienungsanleitung Bedienungsanleitung Mode d’emploi Mode d’emploi...
  • Page 2: Special Message Section

    Yamaha. This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.
  • Page 3 * This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. OBSERVERA! Apparaten kopplas inte ur växelströmskällan (nätet) så länge som den ar ansluten till vägguttaget, även om själva apparaten har stängts av.
  • Page 4 • Use the specified adaptor (PA-3B, PA-3C or an equivalent recommended by Yamaha) only. Using the wrong adaptor can result in damage to the instrument or overheating. • Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
  • Page 5: Copyright Notice

    • Do not insert a finger or hand in any gaps on the instrument. Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed. Always turn the power off when the instrument is not in use.
  • Page 6: Panel Logos

    System Level. XGlite As its name implies, “XGlite” is a simplified version of Yamaha’s high-quality XG tone gener- ation format. Naturally, you can play back any XG song data using an XGlite tone generator. However, keep in mind that some songs may play back differently compared to the original data, due to the reduced set of control parameters and effects.
  • Page 7: Table Of Contents

    About MIDI What is MIDI? ... 62 What You Can Do With MIDI... 62 Transferring Performance Data To and From Another Instrument... 63 Transferring data between the PSR-A300 and a computer... 65 Troubleshooting ...68 Index ...69 Voice List...71 Maximum Polyphony ... 71 Drum Kit &...
  • Page 8: Setting Up

    Be sure to do the following operations BEFORE turning on the power. Power Requirements Although the instrument will run either from an optional AC adaptor or batteries, Yamaha recommends use of an AC adaptor whenever possible. An AC adaptor is more environmentally friendly than batteries and does not deplete resources.
  • Page 9: Connecting Headphones (Phones/Output Jack)

    Connecting a footswitch (SUSTAIN Jack) The sustain function lets you produce a natural sustain as you play by pressing an optional footswitch. Plug the Yamaha FC4 or FC5 footswitch into this jack and use it to switch sustain on and off. NOTE •...
  • Page 10: Panel Controls And Terminals

    ■ Rear Panel #0 MIDI IN/OUT terminals ...page 62 #1 SUSTAIN jack...page 9 #2 PHONES/OUTPUT jack ...page 9 #3 DC IN 12V jack...page 8 PSR-A300 Owner’s Manual ■ Front Panel Style List (page 83) !4 !5 Song List (page 21)
  • Page 11 GrandPno ■ Rear Panel Display (page 36) GrandPno Panel Controls and Terminals Voice List (page 72) @6 @7 PSR-A300 Owner’s Manual...
  • Page 12: Quick Guide

    Select the desired Voice by using the number buttons [0]-[9], [+], [-]. Refer to the Voice List on page 72. Play the keyboard. Try selecting and playing different Voices. PSR-A300 Owner’s Manual Voice number Voice name GrandPno Flute Appears when the Voice mode.
  • Page 13: Playing Two Voices Simultaneously-Dual

    Two Voices sound at the same time Appears when Dual is on. Flute Currently selected Dual Voice Marimba PSR-A300 Owner’s Manual NOTE • You can also access the Dual Voice setting display by pressing the [FUNC- TION] button several times, then selecting Dual Voice.
  • Page 14: Playing Different Voices With The Left And Right Hands-Split

    Select a Split Voice Select the desired Split Voice by using the number buttons [0]- [9], [+], [-]. Refer to the Voice List on page 72. PSR-A300 Owner’s Manual Split Point Main Voice and Dual Voice Appears when Split is on.
  • Page 15: Playing The Grand Piano Voice

    Press the [VOICE] button. Select the desired kit. Select one of the Voice numbers from 109-121 or 518-523 by using the number buttons [0]-[9], [+], [-]. Example: 109 Standard Kit 1 Std.Kit1 PSR-A300 Owner’s Manual...
  • Page 16: Drum Kit List

    Rock Kit Electronic Kit Analog Kit Dance Kit ● Oriental Percussion Kit List Arabic Kit Khaligi Kit Irani Kit PSR-A300 Owner’s Manual Jazz Kit Brush Kit Symphony Kit SFX Kit 1 SFX Kit 2 Sound Effect Kit Arabic Mix Kit...
  • Page 17: Step

    Drum Kit & Oriental Percussion Kit List on page 78. After trying out these sounds, press the [PORTABLE GRAND] button to reset the instrument Voice to the default setting of Voice “001 Grand Piano.” PSR-A300 Owner’s Manual...
  • Page 18: Step

    Setting the metronome tempo Press the [TEMPO/TAP] button to display the tempo. Set the metronome tempo by using the number buttons [0]-[9], [+], [-]. The tempo can be adjusted between 32-280. PSR-A300 Owner’s Manual GrandPno Tempo value Tempo Displays the...
  • Page 19 Set the metronome volume by using the number buttons [0]-[9], [+], [-]. Time signature TimeSig MetroVol Metronome Volume PSR-A300 Owner’s Manual NOTE • The time signature cannot be changed for Songs and Styles, because each has a fixed time signature.
  • Page 20: Step

    Songs transferred from a computer on page 67 Press the [START/STOP] button. The Song will begin playing. You can stop playback at any time by pressing the [START/ STOP] button. PSR-A300 Owner’s Manual Song number Song name Arabic Appears when the Song mode is active.
  • Page 21: Song List

    Nocturne op.9-2 (F. Chopin) Etude op.10-3 “Chanson de L’adieu” (F. Chopin) Menuett BWV. Anh.114 (J. S. Bach) Piano Concerto No.21 2nd mov. (W. A. Mozart) Romanze (Serenade K.525) (W. A. Mozart) Ode to Joy (L. v. Beethoven) PSR-A300 Owner’s Manual...
  • Page 22: Step

    Here’s how to play a rhythm of a Style. The rhythm sound consists of percussion instruments. ● STYLE FILE The Style File Format “SFF” is Yamaha’s original style file format which uses a unique conversion system to provide high-quality automatic accompaniment based on a wide range of chord types.
  • Page 23: Playing With A Style

    [SYNC START] button. 8BtModrn Appears when auto accompaniment is on Split Point (54; F#2) 8BtModrn NOTE • You can change the Split Point. Refer to “Setting the Split Point” on page 48. Flashes when Sync Start is on. PSR-A300 Owner’s Manual...
  • Page 24 Try playing other chords with your left hand and play a melody with your right hand. Auto Accompani- ment range You can stop playback at any time by pressing the [START/STOP] button. PSR-A300 Owner’s Manual Split Point Split Point...
  • Page 25: Step

    Song 036 will automatically be selected. In this case, you will record over and erase any previous data in Song 036, so be careful that you won’t be erasing any material you want to keep! PSR-A300 Owner’s Manual...
  • Page 26: Recording To A Specified Track

    User Song like that depicted below. User Song Track 2 Track 1 Your own keyboard Style performance PSR-A300 Owner’s Manual (The “ACMP ON” lights.) (The “ACMP ON” is unlit.) User Song Data that can be recorded to Track 1 Your own keyboard...
  • Page 27: Recording To Track 1

    • You can record a new track while listening to a previously recorded track (the track indi- cation will appear). You can also mute recorded tracks (the track will disappear) while recording a new track by pressing the desired track button. PSR-A300 Owner’s Manual...
  • Page 28: Deleting User Songs

    A confirmation message will appear on the display. You can cancel the delete operation by pressing the [-/NO] but- ton. Press the [+/YES] button to delete the Song. “Writing!” message will appear while the track is being deleted. PSR-A300 Owner’s Manual User 1 ClrUser1 Sure? Writing! NOTE •...
  • Page 29: Step

    The range is from “-64” to “63” cents (one cent is one hundredth of a semitone). Current cent value Tune D PSR-A300 Owner’s Manual NOTE • The Scale Setting function is always turned off, when- ever the power switch is turned on.
  • Page 30: Registering The Scale Settings

    While holding the ORIENTAL SCALE [MEMORY] button, press one of the [MEMORY 1-4] buttons. The indicator of the selected button will light to indicate that the data has been stored. PSR-A300 Owner’s Manual above. NOTE • Press the [-] and [+] buttons...
  • Page 31: Recall The Scale Settings

    Scale Memory can be turned off by pressing the currently lit [MEMORY 1-4] button. The indicator goes out and the PSR-A300 returns to the regular scale setting. Set the Accompaniment Tuning on You can select whether Scale Tuning is applied to accompaniment or not. Press the [FUNCTION] button, repeatedly if necessary, until “TuneAcc”...
  • Page 32: Step

    “12,” the pitch bend range becomes +/-1 octave. Press the [FUNCTION] button a number of times until “PBRange” appears. Use the number buttons [0]-[9], [+], [-] to set the Pitch Bend range as required. PSR-A300 Owner’s Manual Currently Pitch Bend range Pitch Bend range PBRange...
  • Page 33: Backup And Initialization

    Songs) by using Music- soft Downloader to trans- fer them to a computer. Refer to the section “Transferring a user file from the PSR-A300 to a computer” on page 67. CAUTION • When you execute the Flash Clear operation, Song data you have pur- chased and downloaded will also be cleared.
  • Page 34: Basic Operation And Displays

    About the [START/STOP] button Press the [START/STOP] button after pressing the [SONG] or [STYLE] button to start play- back of the selected Song or Style (rhythm). PSR-A300 Owner’s Manual Adjusting the volume Turn the [MASTER VOLUME] dial. Rotate coun- Rotate clock-...
  • Page 35 Press the [+] button briefly to increase the value by 1, or press the [-] button briefly to decrease the value by 1. Press and hold either button to continuously increase or decrease the value in the corresponding direction. Press briefly to decrease. PSR-A300 Owner’s Manual BritePno Press briefly to increase.
  • Page 36: Display

    Song when the Song lesson function is in use. Also indicates the notes of a chord—either when playing a chord or when using the Dictionary function. PSR-A300 Owner’s Manual Song/recording track display Information related to the Song/recording tracks is shown here.
  • Page 37: Song Lesson

    Song Lesson Yamaha Education Suite 5 You can select any Song you like and use it for a left-hand, right-hand, or both-hands lesson. Song Lesson lets you learn how to play Songs in three easy steps. Songs that can be used with the Lesson feature include Songs transferred from a computer to flash memory (SMF Format 0 only;...
  • Page 38 The melody of the part you selected in Step 2 will sound. Listen to it carefully and learn it well. Stop the Lesson mode. You can stop the Lesson mode at any time by pressing the [START/ STOP] button. PSR-A300 Owner’s Manual Right-hand lesson Both-hands lesson BothHand No LPart...
  • Page 39: Lesson 2 (Timing)

    Song playback before Lesson 2 starts. If a Song is currently being played back, stop the Song first, then continue from Step NOTE • Even after Lesson 2 has started and the Song is playing, you can still select the part. PSR-A300 Owner’s Manual...
  • Page 40: Lesson 3 (Waiting)

    Play the notes shown in the display. Try playing the correct notes. Stop the Lesson mode. You can stop the Lesson mode at any time by pressing the [START/ STOP] button. PSR-A300 Owner’s Manual WAITING NOTE • You cannot select the part during Song playback before Lesson 3 starts.
  • Page 41: Song Settings

    Press the [SONG] button. HnkyTonk Hold for longer than a second. NOTE • You cannot change the mel- ody Voice of a User Song. PSR-A300 Owner’s Manual...
  • Page 42: Mute

    [TRACK 1] or [TRACK 2] again during Song playback, or by select- ing any other Song. Pressing one of the Track but- tons [TRACK 1] or [TRACK 2] will mute the corresponding track during Song playback. PSR-A300 Owner’s Manual Current Song Volume Song Volume SongVol Arabic Lit—track contains data.
  • Page 43: Practice Makes Perfect

    “A” at the very begin- ning of the Song press the [A-B REPEAT] button before starting playback of the Song. NOTE • The A-B Repeat function will be canceled when you select another Song or Style mode. PSR-A300 Owner’s Manual...
  • Page 44: Play With A Variety Of Effects

    Harmony Type is different—refer to the section “How to sound each Harmony Type” on the next page as well as the Harmony Type List for details. PSR-A300 Owner’s Manual Appears when harmony is on. Currently selected Harmony type...
  • Page 45: Adding Reverb

    Main Voice, not to Dual or Split Voices. • The keys left of the Split Point of the keyboard pro- duce no harmony notes when the auto accompani- ment is on (ACMP ON is lit). PSR-A300 Owner’s Manual...
  • Page 46: Adding Chorus

    Press the [+] button to turn the Panel Sustain on. Panel Sustain will be added to the notes you play on the keyboard when the Panel Sustain is on. To turn it off, press the [-] button. PSR-A300 Owner’s Manual Chorus1 Sustain...
  • Page 47: Handy Performance Features

    Select a Touch Sensitivity setting between 1 and 3 by using the number buttons [0]-[9], [+], [-]. Appears when Touch Response is on. Currently selected Touch Sensitivity Medium PSR-A300 Owner’s Manual NOTE • The Touch Response func- tion cannot be used for some Voices (such as organ), even if the Touch Response icon appears in the display.
  • Page 48: Setting The Split Point

    Press the [FUNCTION] button a number of times until the “Transpos” appears. Use the number buttons [0]-[9], [+], [-] to set the Transpose value between -12 and +12 as required. PSR-A300 Owner’s Manual Split Point SplitPnt Split Point Current transpose value...
  • Page 49: Tuning

    • The pitch of the Drum and Oriental Percussin Kits Voices (Voice numbers 109- 121, 518-523) cannot be changed. • Press the [+] and [-] buttons simultaneously to instantly reset the value to its default setting (000). PSR-A300 Owner’s Manual...
  • Page 50: Changing The Tempo Of The Song/Style

    • Split Voice Volume • Split Voice Octave • Split Voice Chorus Send Level You can adjust each of the parameters above in the Function settings (page 60). PSR-A300 Owner’s Manual Current Tempo value Tempo NOTE • Press the [+] and [-] buttons...
  • Page 51: Style (Auto Accompaniment) Functions

    The bass and chords will begin playing as soon as you play a chord in the accompaniment range of the keyboard. Immediate Start Accompani- ment range Style playback begins when Sync Start standby you play a chord Start at the tapped tempo Appears when the auto accompaniment is on PSR-A300 Owner’s Manual...
  • Page 52 Playback will stop when the ending has played all the way through. If you press the [INTRO/ENDING/rit.] button a second time (while the ending is playing), the ending will play in ritardando (the tempo will gradually get slower). PSR-A300 Owner’s Manual Immediate Stop Stop immediately and enter the Sync Start...
  • Page 53: Pattern Variation (Sections)

    Press the [STYLE] button and then select a Style. Turn auto accompaniment on. Press the [ACMP ON/OFF] button. Turn SYNC START on. Press the [SYNC START] button. Intro Main A/B Ending Auto fill Appears when the auto accompani- ment is on. Style (Auto Accompaniment) Functions PSR-A300 Owner’s Manual...
  • Page 54 When the ending is finished, the auto accompaniment stops automati- cally. You can have the ending gradually slow down (ritardando) by pressing the [INTRO/ENDING/rit.] button again while the ending is playing back. PSR-A300 Owner’s Manual MAIN A The name of the selected section—MAIN A or MAIN B—will be displayed INTRO≥A...
  • Page 55: Adjusting The Style Volume

    Set the Style volume by using the number buttons [0]-[9], [+], [-]. Style (Auto Accompaniment) Functions Style Volume StyleVol NOTE • Press the [+] and [-] buttons simultaneously to instantly reset the value to its default setting (100). PSR-A300 Owner’s Manual...
  • Page 56: Playing Auto Accompaniment Chords

    CM aug ( #11) (13) * Notes enclosed in parentheses are optional; the chords will be recognized without them. PSR-A300 Owner’s Manual Split Point—default setting: 54 (F#2) • To play a seventh chord Press the root note together with the nearest white key to the left of it.
  • Page 57 • The auto accompaniment will sometimes not change when related chords are played in sequence (e.g. some minor chords fol- lowed by the minor sev- enth). • Two-note fingerings will pro- duce a chord based on the previously played chord. PSR-A300 Owner’s Manual...
  • Page 58: Looking Up Chords Using The Chord Dictionary

    Try playing a chord in the auto accompaniment section of the key- board, checking the indications in the display. When you’ve played the chord properly, a bell sound signals your suc- cess and the chord name in the display flashes. PSR-A300 Owner’s Manual Dict. Keys for chord type Keys for root...
  • Page 59: About Chords

    Minor 7 th chord Root ◆ Diminished chord Minor 3rd Minor 3rd Root note Chord type Major 7 th Major 7 th Major chord 7 th , suspended 4 th 7sus4 Flatted 7 th Suspended 4 th chord PSR-A300 Owner’s Manual...
  • Page 60: Function Settings

    SongVol Transpose TransPos Tuning Tuning Pitch Bend Range PBRange Split Point SplitPnt Touch Sensitivity TouchSns PSR-A300 Owner’s Manual StyleVol Value Function item Writing! Range/settings 000-127 Determines the volume of the Style. 000-127 Determines the volume of the Song. -12–00–12 Determines the pitch of the instrument by semitone incre- ments.
  • Page 61 Songs for Lessons” on page 67 ON/OFF Determines whether Demo cancel is enabled or not. When this is set to ON, the Demo Song will not play, even if the [DEMO] button is pressed. Function Settings Description PSR-A300 Owner’s Manual...
  • Page 62: About Midi

    CAUTION • Connect the PSR-A300 to external equipment only after turning off power for all devices. Then, turn on the power, first to the PSR-A300, then to the con- nected external equipment. What You Can Do With MIDI •...
  • Page 63: Transferring Performance Data To And From Another Instrument

    Transferring Performance Data To and From Another Instrument By connecting the PSR-A300 to other MIDI devices or a computer, the perfor- mance data of the instrument can be used on those other MIDI devices or com- puter, and also the performance data from other MIDI devices and computer can be received and sounded with the PSR-A300.
  • Page 64 Press and hold the [DEMO] button for longer than a second to call up the PC Mode. Hold for longer than a second. Select PC1, PC2, or OFF by using the [+], [-] buttons. PSR-A300 Owner’s Manual PC2* PC mode NOTE • If External Clock is ON and...
  • Page 65: Transferring Data Between The Psr-A300 And A Computer

    You can set Initial Send in the Function settings (page 60). Transferring data between the PSR-A300 and a computer The PSR-A300 includes 35 preset Songs and 135 Styles, but you can load other Songs and Styles from your computer and use them in the same way as the preset Songs as long as the loaded Song is SMF format 0* or SFF (Style File Format).
  • Page 66 MIDI connection between the PSR-A300 and a USB- equipped computer. Make sure to purchase a Yamaha UX16 or a quality USB-MIDI interface at a musical instrument store, computer store or electrical appliance store. If you use the UX16 interface, install the driver supplied with the interface on your computer.
  • Page 67 Downloader application, refer to the Online help topic “Transferring Data Between the Computer and Instrument (for unprotected data)” of the Musicsoft Downloader. ● Data that can be loaded to the PSR-A300 from a computer • Songs : 99 Songs max (Song numbers 041-) •...
  • Page 68: Troubleshooting

    The part indications, such as Right, Left and Both Hands, do not appear—even when pressing the [R] or [L] buttons for the Lesson. PSR-A300 Owner’s Manual Possible Cause and Solution This is normal and indicates that the instrument is receiving electrical power.
  • Page 69: Index

    External Clock ... 61, 64 FF ... 21 Flash Clear ... 33 Flash Memory ... 67 Footswitch (Sustain jack) ... 9 Function Setting List ... 60-61 Grade ... 39 Harmony ... 44-45 Harmony Type List ... 84 Harmony Volume ... 61 PSR-A300 Owner’s Manual...
  • Page 70 Press and Hold for a while ... 34 Recording ... 25-27 Remote Control ... 65 Reverb ... 45 Reverb Level ... 61 PSR-A300 Owner’s Manual Reverb Type List ... 85 Rew ... 21 Rhythm ... 22 Root ... 56, 58 Save data to computer ...
  • Page 71: Voice List

    Polyphonie maximale • • • • • • • • • • • • • • • • • • • • • Le PSR-A300 dispose d’une polyphonie maximale de 32 notes. Cela signifie que l’instrument peut reproduire un nombre maximal de 32 voix à...
  • Page 72 60’s Clean Guitar Muted Guitar Overdriven Guitar Distortion Guitar BASS Acoustic Bass Finger Bass Pick Bass Fretless Bass PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Bank Select Voice (0 - 127) (0 - 127) Voice Name MIDI Program Voice Name...
  • Page 73 Program Change# (0 - 127) (0 - 127) (1 - 128) PIANO *138 CHROMATIC PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Voice Name Grand Piano Grand Piano KSP Piano Strings Dream Bright Piano Bright Piano KSP Electric Grand Piano...
  • Page 74 Steel Guitar with Body Sound Mandolin Jazz Guitar Jazz Amp Clean Guitar Chorus Guitar Muted Guitar Funk Guitar 1 PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Bank Select Voice Voice Name (0 - 127) (0 - 127) *247 MIDI...
  • Page 75 Voice Program Change# (0 - 127) (0 - 127) (1 - 128) REED SYNTH LEAD PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Voice Name Soft Brass Choir Brass Soprano Sax Alto Sax Sax Section Tenor Sax Breathy Tenor Sax...
  • Page 76 Goblins Goblins Synth Creeper Ritual To Heaven Night Glisten Bell Choir Echoes Sci-Fi PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Bank Select Voice Voice Name (0 - 127) (0 - 127) MIDI Program Voice Name Change# (1 - 128)
  • Page 77 Voices / Liste des voix orientales Voice Name Bank Select Voice (0 - 127) (0 - 127) PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Voice List / Voice-Liste / Liste des voix MIDI Program Voice Name Change# (1 - 128)
  • Page 78: Drum Kit & Oriental Percussion Kit List

    D# 6 D# 5 F# 6 F# 5 PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi • „ “ bedeutet, dass der Schlagzeugklang gleich „Standard Kit 1“ ist. • Jede Perkussionsnote belegt eine Note. • Die MIDI-Note # und Note sind in Wirklichkeit eine Octave tiefer als hier aufgeführt.
  • Page 79 Scratch Push Cuica Open Scratch Pull Scratch Pull Triangle Mute Triangle Open Shaker Jingle Bell Bell Tree PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi 127/0/28 127/0/33 127/0/41 Dance Kit Jazz Kit Brush Kit SD Jazz H Light Brush Slap L...
  • Page 80 G# 4 A# 5 A# 4 C# 6 C# 5 D# 6 D# 5 F# 6 F# 5 PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi 127/0/1 127/0/49 Alternate Standard Kit 1 Symphony Kit assign Surdo Mute Surdo Open Hi Q...
  • Page 81 Tabel High Sak Jingle Bell Tablah Sak 1 Tabel High Tak Bell Tree Tablah Dom 1 Tabel Low Sak PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi 126/0/38 126/0/39 Khaligi Kit Irani Kit Daf Tom Daf Chain Up Daf Back...
  • Page 82 G# 4 A# 5 A# 4 C# 6 C# 5 D# 6 D# 5 F# 6 F# 5 PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi 127/0/1 126/0/65 Alternate Standard Kit 1 Arabic Mix Kit assign Surdo Mute Conga Analog H...
  • Page 83: Style List

    Jerk MasmoudiKabir Samai Khaligi KhaligiRhumba Shakshaka Khebaiti Emarati Muruba Bastah Dazzah Sharah Seeroos AlBudoor Wadea Samri PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Style Style Name Mathoalath Ashori Liwa Tanborah Sout Adani Maghrebi Ray1 Ray2 Ray3 Khammari Iranian BandariDance...
  • Page 84: Effect Type List

    Echo 1/16 note Echo 1/24 note Echo 1/32 note PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi Description If you want to sound one of the harmony types 01-05, play keys to the right side of the Split Point while playing chords in the left side of the keyboard after turning Auto Accompani- ment on.
  • Page 85 This produces a rich, animated wavering effect in the sound. Hiermit wird eine volltönende und lebhafte Tonhöhenschwankung erzeugt. Vous obtenez un effet d’ondulation riche et animé dans le son. No effect. Kein Effekt. Pas d’effet. PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi...
  • Page 86: Midi Implementation Chart

    MIDI Implementation Chart / MIDI-Implementierungstabelle / PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi...
  • Page 87 Feuille d’implémentation MIDI PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi...
  • Page 88: Midi Data Format

    5 Local ON/OFF <Local ON> Bn, 7A, 7F <Local OFF> Bn, 7A, 00 Value for “n” is ignored. PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi HINWEIS: 1 Im Standardbetrieb (Werkseinstellungen) funktioniert das Instrument gewöhnlich als multi-timbraler 16- Kanal-Klangerzeuger, und eingehende Daten haben keinen Einfluß...
  • Page 89 Format des données MIDI NOTE: 1 Le PSR-A300 fonctionne par défaut (réglages d’usine) comme un générateur de son multi timbre à 16 canaux. De ce fait, la réception de données n’affecte ni les voix de panneau ni les réglages de panneau. Cependant, les messages MIDI figurant dans la liste ci-dessous...
  • Page 90: Effect Map

    Flanger 68...127 No Effect PSR-A300 Owner’s Manual / Bedienungsanleitung / Mode d’emploi * Lorsque la valeur Type LSB reçue ne correspond à aucun type d’effet, une valeur correspondant à un type d’effet (la plus proche possible de la valeur spécifiée) est automatiquement sélectionnée.
  • Page 91: Specifications

    Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer. * Die technischen Daten und Beschreibungen in dieser Bedienung- sanleitung dienen nur der Information.
  • Page 92: Limited Warranty

    PSR SERIES OF PORTATONE ELECTRONIC KEYBOARDS If during the first 90 days that immediately follows the purchase date, your new Yamaha product covered by this warranty is found to have a defect in material and/or workmanship, Yamaha and/or its authorized representative will repair such defect without charge for parts or labor.
  • Page 93 For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below. Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante.
  • Page 94 Yamaha PK CLUB (Portable Keyboard Home Page, English Only) http://www.yamahaPKclub.com/ Yamaha Manual Library http://www.yamaha.co.jp/manual/english/ U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation © 2005 Yamaha Corporation ???PO???.?-01 WE15380 Printed in China...
