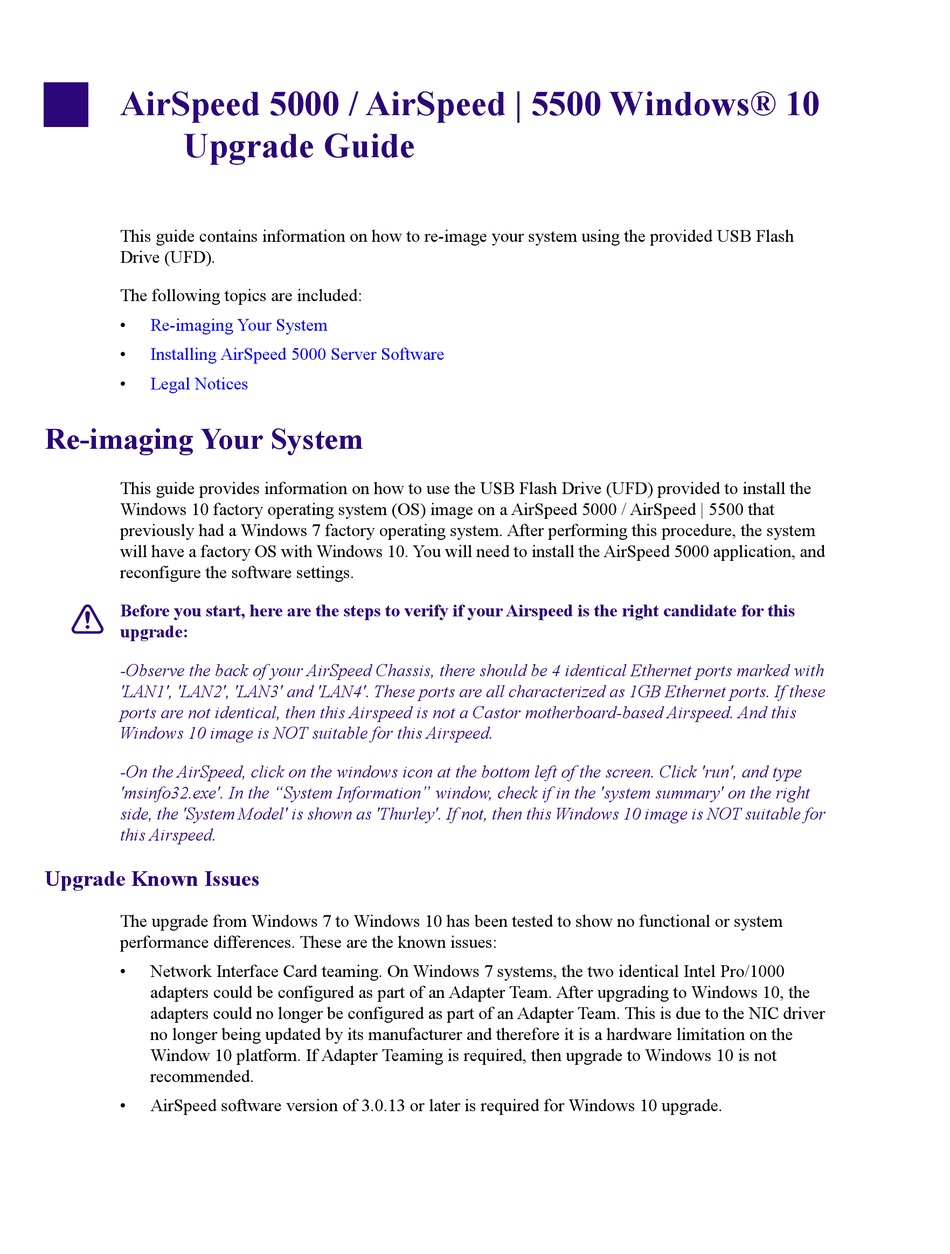

AirSpeed 5000 / AirSpeed | 5500 Windows® 10
Upgrade Guide
This guide contains information on how to re-image your system using the provided USB Flash
Drive (UFD).
The following topics are included:

Re-imaging Your System

Re-imaging Your System
This guide provides information on how to use the USB Flash Drive (UFD) provided to install the
Windows 10 factory operating system (OS) image on a AirSpeed 5000 / AirSpeed | 5500 that
previously had a Windows 7 factory operating system. After performing this procedure, the system
will have a factory OS with Windows 10. You will need to install the AirSpeed 5000 application, and
reconfigure the software settings.
c
Before you start, here are the steps to verify if your Airspeed is the right candidate for this
upgrade:
-Observe the back of your AirSpeed Chassis, there should be 4 identical Ethernet ports marked with
'LAN1', 'LAN2', 'LAN3' and 'LAN4'. These ports are all characterized as 1GB Ethernet ports. If these
ports are not identical, then this Airspeed is not a Castor motherboard-based Airspeed. And this
Windows 10 image is NOT suitable for this Airspeed.
-On the AirSpeed, click on the windows icon at the bottom left of the screen. Click 'run', and type
'msinfo32.exe'. In the "System Information" window, check if in the 'system summary' on the right
side, the 'System Model' is shown as 'Thurley'. If not, then this Windows 10 image is NOT suitable for
this Airspeed.

Upgrade Known Issues

The upgrade from Windows 7 to Windows 10 has been tested to show no functional or system
performance differences. These are the known issues:
Network Interface Card teaming. On Windows 7 systems, the two identical Intel Pro/1000
adapters could be configured as part of an Adapter Team. After upgrading to Windows 10, the
adapters could no longer be configured as part of an Adapter Team. This is due to the NIC driver
no longer being updated by its manufacturer and therefore it is a hardware limitation on the
Window 10 platform. If Adapter Teaming is required, then upgrade to Windows 10 is not
recommended.
AirSpeed software version of 3.0.13 or later is required for Windows 10 upgrade.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirSpeed 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avid Technology AirSpeed 5000

  • Page 1 Windows 10 factory operating system (OS) image on a AirSpeed 5000 / AirSpeed | 5500 that previously had a Windows 7 factory operating system. After performing this procedure, the system will have a factory OS with Windows 10. You will need to install the AirSpeed 5000 application, and reconfigure the software settings.
  • Page 2 LSI MegaRAID Storage Manager Software in the AirSpeed 5000 / AirSpeed | 5500 Setup Guide.  (Option) Set up remote access to the AirSpeed 5000 or AirSpeed 5500 server, as described in the topic Setting Up Remote Access to the Server in the AirSpeed 5000 / AirSpeed | 5500 Setup Guide ...
  • Page 3 Re-imaging Your System  Install the AirSpeed 5000 Server software as described in the topic Installing AirSpeed 5000 Server Software in the AirSpeed 5000 / AirSpeed | 5500 Setup Guide. IMPORTANT: When you are done installing the AirSpeed 5000 application on the AirSpeed 5000 or AirSpeed 5500 server, a dialog box opens, asking if you want to reboot your system.
  • Page 4 Re-imaging Your System 10. In the Enter a choice field, type 2 to recover both the C: and D: partitions (the entire system disk), and press Enter. 11. Type Y to confirm any changes. The Symantec Ghost opens, and will display the progress of the image restoration. When it is finished, you will get a message in the Recovery Complete dialog box saying “Drive Image Completed Successfully.”...
  • Page 5 Installing AirSpeed 5000 Server Software A message appears asking if you are sure you want to import foreign disks. 19. Click OK on any Confirmation dialog boxes that appear. The drives will display the following information: Your media drive (Disk 2) will be available with media and databases intact.
  • Page 6 Corp. which bears no responsibility for Avid products. All other trademarks are the property of their respective owners. For a full list of Avid trademarks, see: http://www.avid.com/US/about-avid/legal- notices/trademarks. Avid AirSpeed 5000 / AirSpeed 5500 Generation 2 Windows 10 Upgrade Guide• 9320-70046-00 Rev C • August, 2017 • 08/28/17...
