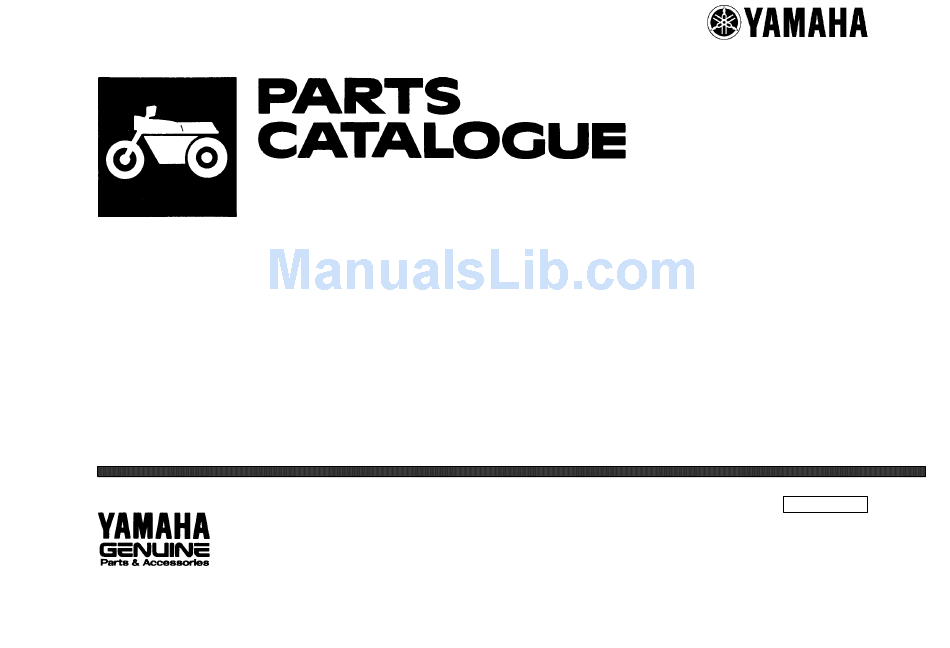

  • Page 1 TW125 (5RS1) EUROPE 1A5RS–300E1...
  • Page 2 TW125 PARTS CATALOGUE E2001 by Yamaha Motor Co., Ltd. 1st Edition, Oct. 2001 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in Japan...
  • Page 4 TW125(5RS1) 1. Modifications or additions which have been made after issue of the Parts Catalogue will be announced in the Yamaha Parts News. It is advisable that you make necessary corrections to the Parts Catalogue according to the Yamaha Parts News.

  • Page 5: Model Label

    (1) A label called “Model Label” is affixed in the location as indicated in (3) below. When using this parts catalogue, please be sure to cross–refer the “model code – production code No.” in the catalogue to the “model code – production code No. “indicated on the Model Label affixed onto the product concemed.

  • Page 6: Table Of Contents

    ENGINE CYLINDER HEAD ........CYLINDER ......... CRANKSHAFT.

  • Page 7: Cylinder Head

    FIG. 1 CYLINDER HEAD REF. PART NO. DESCRIPTION 1 5EK–11110–01 CYLINDER HEAD ASSY 2 93440–10085 .CIRCLIP 3 90153–06029 .SCREW, HEXAGON 4 90430–06014 .GASKET 5 5H0–11133–11 .GUIDE, INTAKE VALVE 6 3NS–11181–00 GASKET, CYLINDER HEAD 1 7 99530–14016 PIN, DOWEL 8 90430–14131 GASKET 9 90105–08195 BOLT, FLANGE...
  • Page 8 FIG. 2 CYLINDER REF. PART NO. DESCRIPTION 1 3NS–11310–00 CYLINDER 2 93210–63489 O–RING 3 4DD–11351–00 GASKET, CYLINDER 4 93210–13361 O–RING 5 99530–14016 PIN, DOWEL 6 91317–06030 BOLT 7 15A–11162–00 ABSORBER 2 8 5H0–11162–00 ABSORBER 2 9 15A–11161–01 ABSORBER 1 10 15A–15441–00 HOLDER, CLUTCH CABLE REMARKS...

  • Page 9: Crankshaft. Piston

    FIG. 3 CRANKSHAFT. PISTON REF. PART NO. DESCRIPTION 1 5N0–11400–00 CRANKSHAFT ASSY 2 5N0–11412–09 .CRANK 1 3 5N0–11422–00 .CRANK 2 4 5H0–11681–00 .PIN, CRANK 1 5 93310–530J3 .BEARING 6 5N0–11651–00 .ROD, CONNECTING 7 93306–30611 BEARING 8 25A–11631–00–Y0 PISTON (STD) 25A–11636–00 PISTON (0.50MM O/S) 25A–11638–00 PISTON (1.00MM O/S)
  • Page 10 FIG. 3 CRANKSHAFT. PISTON REF. PART NO. DESCRIPTION 24 93306–30427 BEARING 25 90282–05013 KEY, STRAIGHT 26 90215–14205 WASHER, LOCK 27 90170–14284 28 90280–05013 KEY, WOODRUFF 29 90201–10508 WASHER, PLATE 30 90101–10188 BOLT 31 36X–13324–00 GEAR, PUMP DRIVE REMARKS...

  • Page 11: Valve

    FIG. 4 VALVE REF. PART NO. DESCRIPTION 1 5N0–12111–01 VALVE, INTAKE 2 5N0–12121–01 VALVE, EXHAUST 3 4G0–12116–01 SEAT, VALVE SPRING 4 4G0–12113–01 SPRING, VALVE INNER 5 4G0–12114–01 SPRING, VALVE OUTER 6 5H0–12119–00 SEAL, VALVE STEM 7 4G0–12117–00 RETAINER, VALVE SPRING 8 4G0–12118–00 COTTER, VALVE 9 36X–12151–00...

  • Page 12: Camshaft. Chain

    FIG. 5 CAMSHAFT. CHAIN REF. PART NO. DESCRIPTION 1 5N0–12171–10 CAMSHAFT 1 2 1KH–12176–00 SPROCKET, CAM CHAIN 3 93604–10011 PIN, DOWEL 4 90101–10303 BOLT 5 90201–10591 WASHER, PLATE 6 90387–255F3 COLLAR 7 94580–41104 CHAIN 8 5H0–12231–00 GUIDE, STOPPER 1 9 5N0–12241–00 GUIDE, STOPPER 2 10 2LN–12210–10 TENSIONER ASSY, CAM CHAIN...

  • Page 13: Oil Pump

    FIG. 6 OIL PUMP REF. PART NO. DESCRIPTION 1 5H0–13300–02 OIL PUMP ASSY 2 5H0–13326–01 .GEAR, PUMP DRIVEN 2 (45T) 3 93603–12030 .PIN, DOWEL 4 4BE–13329–01 GASKET, PUMP COVER 5 98707–06030 SCREW, FLAT HEAD 6 5H0–13327–00 COVER, PUMP GEAR 7 51Y–13411–00 STRAINER, OIL 8 90501–18576 SPRING, COMPRESSION...

  • Page 14: Intake

    FIG. 7 INTAKE REF. PART NO. DESCRIPTION 1 5LB–13586–02 JOINT, CARBURETOR 1 2 93210–35537 O–RING 3 90149–06002 SCREW 4 90450–44062 HOSE CLAMP ASSY 5 2JX–14411–01 CASE, AIR CLEANER 1 6 5LB–14453–10 JOINT, AIR CLEANER 1 7 2JL–14437–00 DUCT 8 2JX–14412–00 CAP, CLEANER CASE 1 9 2JX–14452–00 SEAL...
  • Page 15 FIG. 8 CARBURETOR REF. PART NO. DESCRIPTION 1 5RS–14301–00 CARBURETOR ASSY 1 2 97801–05010 .SCREW, PAN HEAD 3 5LB–14321–00 .SCREW, THROTTLE 4 2JX–14333–00 .SPRING, THROTTLE STOP 5 5LB–14357–00 .WASHER, PLAIN 6 5LB–1434A–00 .SUCTION PISTON ASSY 7 5LB–14936–00 .SEAT, SPRING 8 5LB–14275–00 .SPRING 9 5RS–14336–00 .NEEDLE...
  • Page 16 FIG. 8 CARBURETOR REF. PART NO. DESCRIPTION 28 5LB–14386–00 .PIN, FLOAT 29 5LB–14390–00 .NEEDLE VALVE ASSY 30 98901–04006 .SCREW, BIND 31 5LB–14384–00 .GASKET, FLOAT CHAMBER 32 4JP–14323–00 .DRAIN, SCREW 33 5LB–14592–00 .SCREW 34 5LB–14292–00 .BRACKET 2 35 5FY–14197–00 .PIPE 36 5FY–14196–00 .PIPE 37 4TR–83790–00 .HEATER ASSY (15W)

  • Page 17: Exhaust

    FIG. 9 EXHAUST REF. PART NO. DESCRIPTION 1 2JX–14611–01 PIPE, EXHAUST 1 2 5H0–14612–00 NUT, RING 3 5LB–14628–00 PROTECTOR, EXHAUST PIPE 4 4BD–14766–00 WASHER, PROTECTOR 5 98907–06010 SCREW, BIND 6 90206–06090 WASHER, WAVE 7 2JL–14711–11 MUFFLER 1 8 2JX–14728–00 PROTECTOR, MUFFLER 2 9 90202–05191 WASHER, PLATE 10 98907–06010...

  • Page 18: Crankcase

    FIG. 10 CRANKCASE REF. PART NO. DESCRIPTION 1 5EK–15100–01 CRANKCASE ASSY 2 99530–12016 .PIN, DOWEL 3 371–11167–01 .PIPE, BREATHER 2 4 95027–06040 .BOLT, FLANGE 5 90387–125F1 COLLAR 6 90387–125F1 COLLAR 7 95027–06030 BOLT, FLANGE 8 95027–06090 BOLT, FLANGE 9 95027–06085 BOLT, FLANGE 10 90430–06014 GASKET...

  • Page 19: Crankcase Cover 1

    FIG. 11 CRANKCASE COVER 1 REF. PART NO. DESCRIPTION 1 5EK–15410–00 CRANKCASE COVER ASSY 1 2 2JX–15377–00 GUIDE, INLET 3 3AW–15451–03 GASKET, CRANKCASE COVER 1 4 99530–12016 PIN, DOWEL 5 95027–06025 BOLT, FLANGE 6 90105–06017 BOLT, FLANGE 7 90105–06014 BOLT, FLANGE 8 90340–14117 PLUG, STRAIGHT SCREW 9 93210–14369...

  • Page 20: Starter

    FIG. 12 STARTER REF. PART NO. DESCRIPTION 1 2HT–15512–00 GEAR, IDLER 1 2 90387–125Y0 COLLAR 3 5H0–15521–00 SHAFT 1 4 5H0–15517–00 GEAR, IDLER 2 (56T) 5 90201–25290 WASHER, PLATE 6 4H7–15580–10 STARTER CLUTCH OUTER ASSY 7 90501–04596 .SPRING, COMPRESSION 8 1J7–15583–01 .CAP, STARTER CLUTCH SPRING 9 93615–12088 .PIN, DOWEL...
  • Page 21 FIG. 13 CLUTCH REF. PART NO. DESCRIPTION 1 36X–16111–00 GEAR, PRIMARY DRIVE 2 90282–05043 KEY, STRAIGHT 3 90215–14205 WASHER, LOCK 4 90170–14284 5 36X–16150–00 PRIMARY DRIVEN GEAR COMP. 6 5H0–16154–00 PLATE, THRUST 1 7 2JX–16371–00 BOSS, CLUTCH 8 537–16321–00 PLATE, FRICTION 9 137–16324–00 PLATE, CLUTCH 1 10 5H0–16351–00...
  • Page 22 FIG. 13 CLUTCH REF. PART NO. DESCRIPTION REMARKS 28 93420–28055 CIRCLIP...

  • Page 23: Transmission

    FIG. 14 TRANSMISSION REF. PART NO. DESCRIPTION 1 5H0–17411–01 AXLE, MAIN (16T) 2 5H0–17141–02 GEAR, 4TH PINION (29T) 3 90209–16209 WASHER 4 93410–20038 CIRCLIP 5 5N0–17131–00 GEAR, 3RD PINION (24T) 6 5N0–17141–01 GEAR, 4TH PINION (27T) 7 5N0–17121–00 GEAR, 2ND PINION (21T) 8 93306–20401 BEARING (B6204) 9 93101–15101...
  • Page 24 FIG. 14 TRANSMISSION REF. PART NO. DESCRIPTION 28 2JX–17471–00 PLATE, COVER 29 98507–06010 SCREW, PAN HEAD 30 93102–17187 OIL SEAL 31 93306–20313 BEARING (B6203C4) 32 90560–17368 SPACER 33 99009–17400 CIRCLIP REMARKS...

  • Page 25: Shift Cam. Fork

    FIG. 15 SHIFT CAM. FORK REF. PART NO. DESCRIPTION 1 5N0–18540–00 SHIFT CAM ASSY 2 136–18542–00 .POINT, NEUTRAL 3 93315–23607 BEARING 4 1RH–18185–00 SEGMENT 5 93604–16092 PIN, DOWEL 6 93604–20156 PIN, DOWEL 7 90151–06013 SCREW, COUNTERSUNK 8 1RH–18140–00 STOPPER LEVER ASSY 9 90508–26539 SPRING, TORSION 10 4JG–18511–00...

  • Page 26: Shift Shaft

    FIG. 16 SHIFT SHAFT REF. PART NO. DESCRIPTION 1 5H0–18120–02 SHIFT LEVER ASSY 2 90506–08227 .SPRING, TENSION 3 90508–29540 SPRING, TORSION 4 99001–10600 CIRCLIP 5 90201–12588 WASHER, PLATE 6 93608–50158 PIN, DOWEL 7 93102–12106 OIL SEAL (SD 12–22–5 HS) 8 1RL–18110–00 SHIFT PEDAL ASSY 9 132–18113–01 .COVER, SHIFT PEDAL...

  • Page 27: Frame

    FIG. 17 FRAME REF. PART NO. DESCRIPTION 1 5EK–21110–10 FRAME COMP. 2 1RL–21316–00–33 STAY, ENGINE 3 3 95817–08065 BOLT, FLANGE 4 90185–08089 NUT, SELF–LOCKING 5 90201–08366 WASHER, PLATE 6 2JX–21315–00 STAY, ENGINE 2 7 95817–08050 BOLT, FLANGE 8 90185–08089 NUT, SELF–LOCKING 9 90201–08366 WASHER, PLATE 10 90105–08066...
  • Page 28 FIG. 17 FRAME REF. PART NO. DESCRIPTION REMARKS 28 3MA–27491–00 PROTECTOR...

  • Page 29: Fender

    4 90154–05004 SCREW, BINDING 5 95607–05200 NUT, U FLANGE 6 90338–12192 PLUG 7 90110–06181 BOLT, HEXAGON SOCKET HEAD 8 3WF–2153E–70 EMBLEM, YAMAHA 9 2YG–21611–00 FENDER, REAR 10 5RS–24188–00 MOLD, FUEL TANK 11 90480–12053 GROMMET 12 90119–06063 BOLT, WITH WASHER 13 5EK–21685–00 BRACKET, LICENSE 14 90119–06056...

  • Page 30: Side Cover

    7 90267–40075 RIVET, BLIND 8 90201–04018 WASHER, PLATE 9 90480–13197 GROMMET 10 90119–06056 BOLT, WITH WASHER 11 90480–01141 GROMMET 12 116–82131–00 BAND, BATTERY 13 99247–00100 EMBLEM, YAMAHA 14 2JX–28100–00 TOOL KIT 15 3TJ–82131–00 BAND, BATTERY 16 1YW–21638–00 DAMPER 1 REMARKS...

  • Page 31: Rear Arm

    FIG. 20 REAR ARM REF. PART NO. DESCRIPTION 1 5RS–22110–00 REAR ARM COMP. 2 2JX–22123–00 BUSH 1 3 2JX–22124–00 BUSH 2 4 90386–18146 BUSH 5 90380–18139 BUSH, SOLID 6 93109–18020 OIL SEAL 7 401–22128–01 SEAL, GUARD 8 401–22127–00 SHIM 9 2JX–22141–00 SHAFT, PIVOT 10 90201–120E8 WASHER, PLATE...

  • Page 32: Rear Suspension

    FIG. 21 REAR SUSPENSION REF. PART NO. DESCRIPTION 1 5FY–22210–20–33 SHOCK ABSORBER ASSY, REAR 2 90380–12051 .BUSH, SOLID 3 1M1–22216–00 .BUSH, REAR SHOCK ABSORBER 4 90109–100E2 BOLT 5 95617–10100 NUT, U 6 90201–100E9 WASHER, PLATE 7 90240–12075 PIN, CLEVIS 8 90201–12175 WASHER, PLATE 9 91401–30025 PIN, COTTER...

  • Page 33: Steering

    FIG. 22 STEERING REF. PART NO. DESCRIPTION 1 93399–99942 BEARING 2 22F–23411–01 RACE, BALL 1 3 22F–23412–01 RACE, BALL 2 4 22F–2341E–00 RETAINER, BALL BEARING 5 36X–23416–00 COVER, BALL RACE 2 6 90179–25033 7 90202–26142 WASHER, PLATE 8 90179–25615 9 3YF–23418–00 WASHER, SPECIAL 10 90179–22412 11 90338–16148...

  • Page 34: Front Fork

    FIG. 23 FRONT FORK REF. PART NO. DESCRIPTION 1 5RS–23102–00 FRONT FORK ASSY (L.H) 2 5EK–23126–00 .TUBE, OUTER (LEFT) 3 22W–23153–L0 ..RING, SNAP 4 22W–23145–L0 ..OIL SEAL 5 51Y–23125–00 ..METAL, SLIDE 1 6 54G–23144–00 ..SEAL, DUST 7 5RS–23110–00 .INNER TUBE COMP.1 8 5RS–23170–00 .CYLINDER COMP., FRONT FORK 9 3R6–23173–L0...
  • Page 35 FIG. 23 FRONT FORK REF. PART NO. DESCRIPTION 28 3J2–23114–00 .O–RING 29 22U–23118–01 .SPACER 30 3DM–23149–10 .WASHER, SPRING UPPER 31 278–23181–50 .BOLT, HEXAGON SOCKET HEAD 32 509–23158–L0 .GASKET 33 5EK–23340–00 UNDER BRACKET COMP. 34 164–23462–00 .SEAL, STEERING 35 4CS–23191–20 BOOT 36 2K5–23192–00 BAND 37 1W4–23194–L0...

  • Page 36: Fuel Tank

    FIG. 24 FUEL TANK REF. PART NO. DESCRIPTION 1 5RS–YK241–00–P0 FUEL TANK COMP. 5RS–YK241–00–P1 FUEL TANK COMP. 5RS–YK241–00–P2 FUEL TANK COMP. 2 5LB–2416B–40 EMBLEM 3 5RS–24141–00 PROTECTOR, FUEL TANK 4 4L0–24181–00 DAMPER, LOCATING 1 5 30X–24182–01 DAMPER, LOCATING 2 6 30X–24183–01 DAMPER, LOCATING 3 7 30X–24186–01 WASHER, SPECIAL...

  • Page 37: Seat

    FIG. 25 SEAT REF. PART NO. DESCRIPTION 1 5LB–24770–00 SEMI–DOUBLE SEAT ASSY 2 5LB–24731–00 .COVER, SEAT 3 5LB–24734–00 .BAND, SEAT 4 90201–06765 .WASHER, PLATE 5 97017–06020 .BOLT 6 92907–06100 .WASHER, SPRING 7 18A–24723–00 .DAMPER, SEAT 8 1L9–24741–A0 .PAD, SEAT 9 90119–06063 BOLT, WITH WASHER REMARKS...

  • Page 38: Front Wheel

    FIG. 26 FRONT WHEEL REF. PART NO. DESCRIPTION 1 5EK–25111–00 HUB, FRONT 2 93306–20203 BEARING (B6202RS) 3 90560–15312 SPACER 4 93102–20281 OIL SEAL (SD 20–35–5) 5 94425–18603 RIM (2.50–18) 6 4TP–25304–10 SPOKE SET, REAR 7 94113–18009 TIRE (130/80–18M/C 66P TW–203) 8 94213–18232 TUBE (130/80–18 TR4) 9 94340–18086...

  • Page 39: Front Brake Caliper

    FIG. 27 FRONT BRAKE CALIPER REF. PART NO. DESCRIPTION 1 4JG–2582T–10 DISC, BRAKE 2 90109–065G4 BOLT 3 5LB–2580T–00 CALIPER ASSY (LEFT) 4 4JG–W0057–00 .PISTON ASSY, CALIPER 5 4JG–W0047–00 ..CALIPER SEAL KIT 6 5JW–25914–00 .PIN, SLIDE 7 4TT–25937–00 .BOOT 2 8 5LB–W0045–00 .BRAKE PAD KIT 9 4TT–25919–00 .SUPPORT, PAD...

  • Page 40: Rear Wheel

    FIG. 28 REAR WHEEL REF. PART NO. DESCRIPTION 1 5RS–25311–00 HUB, REAR 2 90560–17305 SPACER 3 93306–30317 BEARING 4 93306–20348 BEARING 5 93106–25022 OIL SEAL 6 3Y6–25321–10 PLATE, BRAKE SHOE 7 4AT–W253E–00 BRAKE SHOE KIT 8 90506–12001 .SPRING, TENSION 9 90506–15001 .SPRING, TENSION 10 5DV–25351–10 CAMSHAFT...
  • Page 41 FIG. 28 REAR WHEEL REF. PART NO. DESCRIPTION 28 3Y1–25388–01 PULLER, CHAIN 1 29 3Y1–25389–00 PULLER, CHAIN 2 30 2JX–25381–10 AXLE, WHEEL 31 90185–16127 NUT, SELF–LOCKING 32 90201–164H4 WASHER, PLATE 33 9Y581–97125 CHAIN 34 94681–97001 .JOINT.CHAIN (DID428HD–RJ) REMARKS...

  • Page 42: Steering Handle. Cable

    FIG. 29 STEERING HANDLE. CABLE REF. PART NO. DESCRIPTION 1 5RS–26111–00 HANDLEBAR 2 1LX–26242–01 GRIP (RIGHT) 3 5BE–26243–00 TUBE, THROTTLE GUIDE 4 3Y1–26249–00 RING, LEAF 5 1LX–26241–01 GRIP (LEFT) 6 4RR–26129–00 WASHER 7 5LB–26302–01 THROTTLE CABLE ASSY 8 90464–06214 CLAMP 9 90465–13152 CLAMP 10 5EK–26335–00...

  • Page 43: Front Master Cylinder

    FIG. 30 FRONT MASTER CYLINDER REF. PART NO. DESCRIPTION 1 5RS–25870–00 MASTER CYLINDER SUB ASSY 2 5CG–W0041–00 .CYLINDER KIT, MASTER 3 5RB–25854–00 .DIAPHRAGM, RESERVOIR 4 4GY–25852–01 .CAP, RESERVOIR 5 36Y–2589H–00 .SCREW 6 3RW–25867–00 BRACKET, MASTER CYLINDER 7 97007–06025 BOLT 8 92907–06600 WASHER, PLATE 9 5RS–25872–00 HOSE, BRAKE 1...

  • Page 44: Stand. Footrest

    FIG. 31 STAND. FOOTREST REF. PART NO. DESCRIPTION 1 5EK–27211–00 PEDAL, BRAKE 2 132–18113–01 COVER, SHIFT PEDAL 3 97007–06020 BOLT 4 95307–06700 5 5RS–27231–00 ROD, BRAKE 6 90240–06076 PIN, CLEVIS 7 92907–06200 WASHER 8 91401–20012 PIN, COTTER 9 90506–18289 SPRING, TENSION 10 1M1–27244–00 COVER 11 90501–10245...
  • Page 45 FIG. 31 STAND. FOOTREST REF. PART NO. DESCRIPTION 28 2JX–27311–02 STAND, SIDE 29 90506–18224 SPRING, TENSION 30 90506–26225 SPRING, TENSION 31 1TX–27351–00 GUIDE, SIDE STAND 32 5RS–27315–00 LINK, SIDE STAND 33 90109–10473 BOLT 34 90185–10037 NUT, SELF–LOCKING 35 2JX–27442–10 BRACKET 2 36 5RS–27432–00 BRACKET 1 37 92017–08016...

  • Page 46: Generator

    FIG. 32 GENERATOR REF. PART NO. DESCRIPTION 1 5BT–85550–00 ROTOR ASSY 2 4WP–85510–10 STATOR ASSY 3 4JG–85580–01 COIL, PULSER 4 91317–06025 BOLT 5 91317–06020 BOLT REMARKS...

  • Page 47: Starting Motor

    FIG. 33 STARTING MOTOR REF. PART NO. DESCRIPTION 1 5RS–81890–00 MOTOR ASSY 2 50M–81801–M0 .BRUSH SET 3 93210–25711 .O–RING 4 93210–55669 .O–RING 5 59V–81828–M0 .SCREW SET 6 4JG–8183G–00 CORD COMP. 7 98507–05008 SCREW, PAN HEAD 8 92907–05100 WASHER, SPRING REMARKS...

  • Page 48: Flasher Light

    FIG. 34 FLASHER LIGHT REF. PART NO. DESCRIPTION 1 3YF–83310–01 FRONT FLASHER LIGHT ASSY 1 2 47J–83312–00 .LENS, FLASHER 3 97706–40620 .SCREW, TAPPING 4 306–83311–40 .BULB, FLASHER (12V–21W) 5 3YF–83320–01 FRONT FLASHER LIGHT ASSY 2 6 47J–83322–00 .LENS, FLASHER 2 7 97706–40620 .SCREW, TAPPING 8 306–83311–40...

  • Page 49: Meter

    FIG. 35 METER REF. PART NO. DESCRIPTION 1 3RM–83570–60 SPEEDOMETER ASSY (km/h) 5RS–83570–00 SPEEDOMETER ASSY (mph) 2 3RM–83536–00 .SOCKET, METER 3 4G1–84744–00 .BULB (12V–3.4W T–10) 4 5EK–83568–00 PILOT BOX, UPPER 5 5Y1–83513–00 DAMPER 6 15A–83519–00 BRACKET, METER 7 1M1–83526–00 DAMPER 2 8 90201–05033 WASHER, PLATE 9 437–83525–00...

  • Page 50: Headlight

    FIG. 36 HEADLIGHT REF. PART NO. DESCRIPTION 1 5RS–84310–00 HEADLIGHT UNIT ASSY 5RS–84310–10 HEADLIGHT UNIT ASSY 2 42X–84315–01 .RIM, HEADLIGHT 3 198–84334–60 .NUT, ADJUSTING 4 1A0–84332–60 .SPRING, SCREW 5 341–84331–60 .SCREW, RIM ADJUSTING 6 5JX–84312–00 .HOLDER, SOCKET 7 4E2–84347–00 .BULB (12V–4W) 8 2F9–84314–00 .BULB (12V–60/55W) 9 4JG–84397–00...

  • Page 51: Taillight

    FIG. 37 TAILLIGHT REF. PART NO. DESCRIPTION 1 56U–84710–41 TAILLIGHT UNIT ASSY 2 1M8–84521–40 .LENS, TAILLIGHT 3 1M1–84523–60 .GASKET, LENS 4 1A2–84714–41 .BULB (12V–21/5W) 5 1M1–84524–60 .SCREW, LENS FITTING 6 4L0–84753–00 DAMPER 7 90209–08125 WASHER 8 90109–06005 BOLT 9 90201–083A0 WASHER, PLATE 10 2JL–21685–00 BRACKET, LICENSE...

  • Page 52: Handle Switch. Lever

    FIG. 38 HANDLE SWITCH. LEVER REF. PART NO. DESCRIPTION 1 5EK–83972–00 SWITCH, HANDLE 4 2 98507–05030 .SCREW, PAN HEAD 3 1LN–82911–00 HOLDER, LEVER 1 4 33G–82913–01 HOLDER, LEVER LOWER 1 5 4GY–83912–00 LEVER 1 6 90109–06799 BOLT 7 95607–06100 NUT, U 8 4GY–82917–01 SWITCH 9 98507–05020...

  • Page 53: Electrical 1

    FIG. 39 ELECTRICAL 1 REF. PART NO. DESCRIPTION 1 5RS–82590–00 WIRE HARNESS ASSY 2 90465–13275 CLAMP 3 5Y9–12491–00 CLAMP 1 4 90465–13152 CLAMP 5 5Y9–12491–00 CLAMP 1 6 341–82594–00 CLAMP 7 1UA–82591–00 BAND 8 25G–83936–01 BAND, SWITCH CORD 9 5Y9–12491–00 CLAMP 1 10 5Y9–12491–00 CLAMP 1...
  • Page 54 FIG. 40 ELECTRICAL 2 REF. PART NO. DESCRIPTION 1 5EK–82510–00 MAIN SWITCH ASSY 2 97007–06016 BOLT 3 92907–06600 WASHER, PLATE 4 5FY–82541–00 WIRE, LEAD 5 2JX–82530–02 STOP SWITCH ASSY 6 3LD–82566–60 SWITCH, SIDE STAND 7 90157–05008 SCREW, PAN HEAD 8 29U–81950–93 RELAY ASSY 9 4GY–82540–10 NEUTRAL SWITCH ASSY...

  • Page 55: Numerical Index

    GRID GRID PART NO. PART NO. 5CG–W0041–00 D – 10 36X–12151–00 B – 5LB–W0045–00 D – 5H0–12156–00 B – 4JG–W0047–00 D – 2NX–12159–00 B – 51L–W0048–00 D – 5N0–12171–10 B – 4JG–W0057–00 D – 1KH–12176–00 B – 4AT–W253E–00 D – 2LN–12210–10 B –...
  • Page 56 GRID GRID PART NO. PART NO. 2JX–25381–10 D – 120–27431–00 D – 12 3Y1–25388–01 D – 5RS–27432–00 D – 12 3Y1–25389–00 D – 120–27433–00 D – 12 3HT–25398–00 D – 2JX–27437–00 D – 12 15A–25451–20 D – 2JX–27442–10 D – 12 5LB–2580T–00 D –...
  • Page 57 GRID GRID PART NO. PART NO. 90465–13152 E – 91701–06032 D – 12 90465–13275 E – 92017–08016 D – 12 90465–16187 B – 14 92901–08100 D – 90467–09006 D – 92907–04200 C – 10 90467–10041 B – 92907–04600 D – 10 90467–11106 B –...
