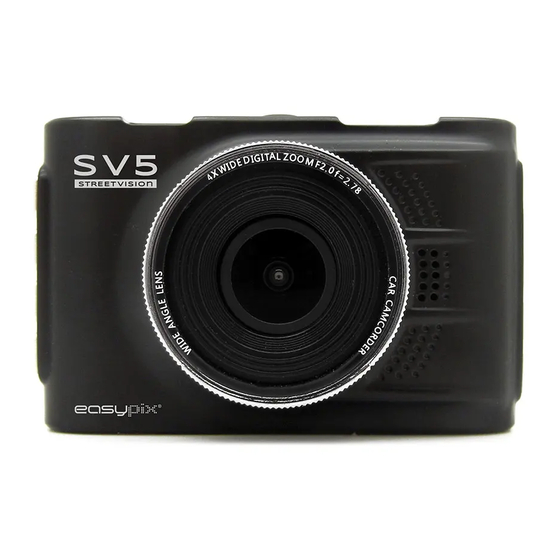

Easypix Streetvision SV5 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SV5 • EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Streetvision SV5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Easypix Streetvision SV5

Summary of Contents for Easypix Streetvision SV5

  • Page 1 SV5 • EN...
  • Page 2 SV5 • EN 1) TF Slot 2) Up 3) Menu button 4) Down 5) Mic 6) Reset 7) Power/Screen Backlight On/Off 8) Lock button 9) Mode 10) OK/Pause key 11) USB 12) HDMI-Out IMPORTANT INFORMATION To ensure the optimal functioning of your camera, please note the following important information:...
  • Page 3 SV5 • EN The camera must be connected to the car cigarette lighter socket via the AC adapter for proper operation. MicroSD card: • Please ensure your memory card is formatted in the camera before first using the card for the first time (Settings > Format). •...

  • Page 4: Function Description

    SV5 • EN FUNCTION DESCRIPTION 1) TF Slot - Memory Card Slot 2) Up/Fast-backward Function I: Page up In the settings menu or playback mode, short press【Up】to navigate Function II: Rewind In playback mode, short press【Up】to rewind. 3) Menu button In standby, short press【Menu】to enter the settings menu Short press 【Up】or【Down】to select the menu options Short press 【OK】to confirm.
  • Page 5 SV5 • EN 7) Power/Screen Backlight On/Off Long press to turn the camera on/off. Function I: To Turn On Long press【Power】and hold for 3s to turn the camera on. After switching on the camera will start recording automatically. To Turn Off: Long press【Power】and hold for 3s.

  • Page 6: Special Features

    SV5 • EN Function 2: Start/Stop video recording. In video mode, short press 【OK】 to start taking video, and short press 【OK】 again to stop taking video. Function 3: Camera In camera mode, short press【OK】to take a photo. Function 4: Pause video playback In playback mode, short press【OK】to pause the video playback.
  • Page 7 SV5 • EN One-press lock function This camera also features a one-press lock function, which allows you to manually mark files you wish to protect from deletion during the camera’s normal recording and over-writing process. To protect a file, while in video mode, short press【Lock】and the current recording will be protected.
  • Page 8 SV5 • EN Video / Photo playback Switch the camera on and short press【Mode】twice to switch to playback mode. Short press 【Up】 / 【 Down】 to select a photo file to view or video file to playback. Short press 【OK】to confirm your selection. Too exit Playback mode short press【Mode】.

  • Page 9: Technical Specifications

    SV5 • EN TECHNICAL SPECIFICATIONS G-sensor Built-in LCD screen size 3” /7.6cm (16:9) Lens 140° Full HD (1728x1296) By interpolation, Video resolution Full HD (1920x1080), HD (1280x720) Video format Loop recording Motion detection 12M, 10M, 8M, 5M, Photo resolution 3M, 2M, VGA, 1.3M Photo format SDHC TF card up to 32GB Memory card...

  • Page 10: Troubleshooting

    SV5 • EN TROUBLE SHOOTING  For problems encountered during normal user please try the resolutions suggested below:  Can’t take photos and record video Ensure the memory card has enough available space or is not locked  The camera automatically stops when recording Ensure you are using a compatible high-speed SDHC memory card.
  • Page 11 For technical help please visit our support area on www.easypix.eu. CONFORMITY The manufacturer hereby declares that the CE marking was applied to the product StreetVision SV5 in accordance with the basic requirements and other relevant provisions of the following CE Directives:...
  • Page 12 SV5 • EN DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
  • Page 13 SV5 • EN Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type.
