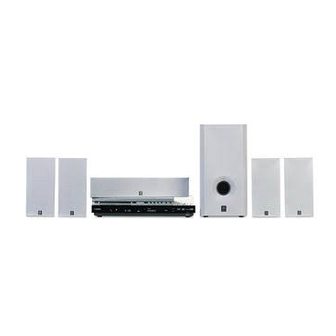

- Page 1 DVD HOME THEATER SOUND SYSTEM DVX-S100 DVX-S100: DVR-S100 + NX-S100S + NX-S100C + SW-S100 OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage”... - Page 3 This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. IMPORTANT : When connecting this product to accessories and/or another product use only high quality shielded cables.
- Page 4 YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
-
Page 5: Table Of Contents
INTRODUCTION FEATURES ... 2 CHECKING THE ACCESSORIES ... 3 INSTALLING BATTERIES IN THE REMOTE CONTROL ... 3 CONTROLS AND FUNCTIONS ... 4 Front panel ... 4 Remote control (AMP mode) ... 6 Front panel display (left) ... 8 Front panel display (right) ... 9 PREPARATION PREPARATION STEPS ... -
Page 6: Features
The DVX-S100 is the Home Theater Sound System that delivers a powerful and realistic sound experience like that found in a movie theater just by combining the unit with the TV. The newest DSP programs will enhance the power and realism of various sources, from movies to concerts, and sporting events. -
Page 7: Checking The Accessories
CHECKING THE ACCESSORIES Check your package to make sure it contains the following items. DVR-S100 Remote control Batteries (x2) (AA, R06, UM-3) POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 Indoor FM antenna CODE SET SHIFT HALL... -
Page 8: Controls And Functions
CONTROLS AND FUNCTIONS Front panel STANDBY/ON 1 STANDBY/ON Turns this unit on, or set it to the standby mode. When you turn this unit on, you will hear a click and there will be a 4 to 5-second delay before this unit can reproduce sound. - Page 9 CONTROLS AND FUNCTIONS 0 INPUT H/G Selects the input source you want to listen to or watch. q INPUT MODE Sets the priority for the types of input signals (AUTO, DTS, ANALOG) to receive when one component is connected to two or more input jacks. w DSP H/G Selects the DSP program.
-
Page 10: Remote Control (Amp Mode)
CONTROLS AND FUNCTIONS Remote control (AMP mode) This section explains the function of each button on the remote control when you operate this unit as an amplifier, not as a tuner or a DVD player. Make sure that the AMP mode is selected before starting operation. -
Page 11: Using The Remote Control
I Using the remote control Approximately 6 m (20 feet) 30° 30° Handling the remote control • Do not spill water or other liquids on the remote control. • Do not drop the remote control. • Do not leave or store the remote control in the following types of conditions: –... -
Page 12: Front Panel Display (Left)
CONTROLS AND FUNCTIONS Front panel display (left) This front panel display mainly displays the information related to the playback of discs. A B – GROUP TITLE TRACK PGM RND DVD V CD 8 8 8 8 8 8 8 8 8 8 8 8 VIDEO AUDIO 1 Play mode indicators... -
Page 13: Front Panel Display (Right)
Front panel display (right) 2 3 4 VIRTUAL SILENT MATRIX MOVIE THTR B. BOOST DIGITAL PRO LOGIC 8 8 8 8 8 8 8 8 8 8 8 8 8 8 1 Decoder indicators Lights up when the t, g, MATRIX are activated. -
Page 14: Preparation Steps
In order to enjoy sound and video images with this sound system, follow the procedures as described below. See each page for details. Installing batteries in the remote control (P.3) Speaker setup (P.11) • Speaker placement (P.11) • Installing the speakers (P.12) Connections (P.14 –... -
Page 15: Speaker Setup
This unit has been designed to provide the best sound- field quality with a 5-speaker system, using front left and right speakers, rear left and right speakers and a center speaker. The front speakers are used for the main source sound plus effect sounds. -
Page 16: Installing The Speakers
SPEAKER SETUP Installing the speakers I Placing the center speaker Place the speaker on TV whose top is flat or on the floor under the TV or inside the TV rack so that it is stabilized. When placing the speaker on top of the TV, to prevent the speaker from falling down, put the provided fasteners at four points on the bottom of the speaker and the top of the Peel off the... - Page 17 Hang the holes on the protruding screws. 60 mm • Make sure that the screws are securely caught by the narrow parts of the holes. • You can use the lower holes on the rear of the front/rear speakers. 60 mm Cautions •...
-
Page 18: Connections
Connecting TV and audio/video components I Types of video jacks 1 COMPONENT VIDEO jacks (U.S.A., Canada, Australia and General models) Transmit color difference (P separately and provide the best quality picture. 2 VIDEO jack Conventional composite video signal. 3 S VIDEO jack Transmits color and luminance separately and achieves high-quality color reproduction. - Page 19 I The connection example Use a cable specified for connecting each type of jacks. (The included video pin cable is used for connecting this unit to a video monitor.) For Audio component Audio pin cable Coaxial cable Optical cable For A/V component Audio/Video cable The connection example shown below is just an example.
-
Page 20: Connecting The Antennas
• A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about the outdoor antennas. Notes •... -
Page 21: Connecting The Speakers
Connecting the speakers Connect the included speakers to the DVD AUDIO/VIDEO receiver (DVR-S100) using the included speaker cables and system connector cables as shown below. DVD Audio/Video receiver (DVR-S100) VIDEO FM ANT GND – AM ANT 75ΩUNBAL. MONITOR MONITOR VIDEO 1 VIDEO 2 MD/CD-R MD/CD-R... - Page 22 CONNECTIONS The back of the (RED) Subwoofer (RED) Connector Color tube (RED) (BLUE) Color tube (BLUE) • The connector of the included speaker cable and the terminal of the subwoofer are classified by color. Connect the same colors. • The label of the speaker is attached to each speaker cable. Connect the speakers in accordance with the labels.
-
Page 23: Connecting To An External Amplifier
Connecting to an external amplifier If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the 6CH PREOUT jacks as follows. Note • When you have connected this unit to an external amplifier, select PRE in “9 SP/PRE OUT”... -
Page 24: Adjusting Speaker Output Levels
ADJUSTING SPEAKER OUTPUT LEVELS This section explains how to adjust speaker output levels using the test tone generator. When this adjustment is complete, the output level heard at the listening position should be the same from each speaker. This is important for best performance of the digital sound field processor, and the various decoders (Dolby Digital, Dolby Pro Logic, Dolby Pro Logic II and DTS). -
Page 25: Basic Playback
Basic operations You can play the software loaded on the audio and video components connected to this unit. POWER POWER SLEEP SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE... -
Page 26: This Unit
BASIC PLAYBACK I When you have finished using this unit Press STANDBY/ON on the front panel (POWER ( on the remote control) to set this unit in the standby mode. I Setting the sleep timer Use this feature to automatically set this unit in the standby mode after the amount of time you have set. -
Page 27: Selecting A Sound Field Program
Selecting a sound field program This unit’s built-in DSP (Digital Sound field Processor) can simulate various acoustic environments, including a concert hall and movie theater, with its 9 sound field programs. For the best results, choose a program appropriate for the selected audio source. - Page 28 BASIC PLAYBACK Program ENTERTAINMENT/ Game ENTERTAINMENT/ Concert Video TV SPORTS MONO MOVIE MOVIE THEATER 1/ Spectacle MOVIE THEATER 1/ Sci-Fi MOVIE THEATER 2/ Adventure MOVIE THEATER 2/ General q/DTS/ENHANCED q/DTS/NORMAL • When you set this unit in the standby mode, the current source and DSP program are memorized and are automatically selected when you turn on the power again.
- Page 29 I Table of Program Names for Each Input Format This unit automatically chooses the appropriate decoder and DSP sound field pattern according to the input signal format. Input 2 channel ANALOG, PCM, Program DOLBY DIGITAL, DTS MOVIE 70 mm Spectacle THEATER 1 70 mm Sci-Fi MOVIE...
- Page 30 BASIC PLAYBACK I Selecting PRO LOGIC II You can enjoy the 2-channel sources decoded into five discrete channels by selecting PRO LOGIC II in program No. 9. (While playing a 2-channel source) Press AMP. Press q/DTS. The previously selected sub program appears on the front panel display.
- Page 31 I SILENT CINEMA DSP You can enjoy a powerful sound field similar to what you could expert from actual speakers with SILENT CINEMA DSP. You can listen to SILENT CINEMA DSP by connecting your headphones to the while the digital sound field processor is on. Enjoy all the DSP program using the headphones.
-
Page 32: Recording
Recording adjustments and other operations are performed from the recording components. Refer to the operation instructions for these components. Turn on the power of this unit and all connected component. Select the source component you want to record from. The procedure for selecting an input source is the same as the one described in “BASIC PLAYBACK”... -
Page 33: Disc Information
Types of disc that this unit can play This unit is designed for use with following types of disc only. Never attempt to load any other type of disc into this unit because it may damage this unit. DIGITAL VIDEO In this manual, the type of discs are indicated as below. -
Page 34: Mp3 Playback
DISC INFORMATION • Playback of discs is generally not affected by small particles of dust or fingerprints on their playing surface. Even so, they should be kept clean. Wipe by using a clean, dry cloth. Do not wipe with a circular motion; wipe straight outward from the center. -
Page 35: Remote Control (Dvd Mode)
REMOTE CONTROL (DVD MODE) This section explains how each button on the remote control functions when you play a disc. Press DVD first when using this unit as a DVD player. • The buttons on the remote control whose names are written in green are operation buttons when you operate this unit in the DVD mode. -
Page 36: Playing A Disc
Basic operation STANDBY/ON STANDBY/ON POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT (U.S.A. model) Press STANDBY/ON on the front panel or POWER ( ) on the remote control to turn the power on. - Page 37 POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT A–B /DTS SELECT MATRIX 6.1 STEREO >...
-
Page 38: On-Screen Menu
You can control various items using on-screen menu bar. POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT A–B... -
Page 39: Icons For Disc Menu
Icons for disc menu eg) DVD-Video Digital 1 ENG 3/2.1 ch 1 : 46 : 50 Title number DVD-V Track number DVD-A Chapter number DVD-V Group number DVD-A Time index (hour:minute:second) 1 : 46 : 50 DVD-A DVD-V You can start play from the desired point by specifying the elapsed time. -
Page 40: Icons For Player Menu
ON-SCREEN MENU Icons for player menu I Play mode menu eg) DVD-Video 1 2 3 ✱ ✱ – – – A-B repeat (^ P.46) DVD-A DVD-V [ENTER] (start point)^[ENTER] (finish point) To cancel [ENTER] Repeat play (^ P.45) DVD-V C: Chapter, T: Title, OFF: Normal play DVD-A T: Track, A: All, G: Group, OFF: Normal play Play mode display... -
Page 41: Shuttle Screen
I Video menu Digital picture mode DVD-A DVD-V N: Normal C: Cinema image (suited for movie viewing) U: User mode To change the user mode 1 Select User mode. 2 Press (j, i) to select the item you wish to change. -
Page 42: Using Multiple Functions
USING MULTIPLE FUNCTIONS Using a disc’s menu Discs may contain multiple audio tracks, subtitles, index and bonus materials such as movie trailers and cast information, etc. And many of them have menu screens that enable you to control these features. This section gives you general instruction about how to operate these screens. -
Page 43: Dvd-Audio Features
DEFINITION” OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR VIDEO MONITOR COMPATIBILITY WITH THIS MODEL 525P DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. This unit is compatible with YAMAHA digital cinema projector DPX-1. DVD-Audio features DVD-A VIDEO 1 CODE SET... -
Page 44: Enhancing Audio Quality (Disc Direct)
USING MULTIPLE FUNCTIONS I To play a bonus group Some discs contain bonus groups. If it requires 4 digit password, consult the disc jacket, etc. Press a to stop play. Press GROUP while pressing SHIFT. The group and track icons appear on the video monitor. -
Page 45: Switching Audio Tracks, Subtitles And Angles
Switching audio tracks, subtitles and angles DVD-A DVD-V Some discs are encoded with several audio tracks, multilingual subtitles or multiple camera angles. Refer to disc jacket etc. to see which feature is supported. POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE... -
Page 46: All Group Play
USING MULTIPLE FUNCTIONS All group play DVD-A Press a to stop play. Press PLAY MODE while pressing SHIFT. The “All group play” screen appears. Press w. Programmed play DVD-A You can enjoy listening to your favorite tracks selected from a disc in any desired order by programming tracks. POWER POWER SLEEP... -
Page 47: Random Play
I To change or add to the program during programmed play Press a repeatedly to stop programmed play. Press the cursor buttons (u, d) to select the order of the tracks you want to play. Press the numeric buttons to enter a track number. -
Page 48: Bookmarks
USING MULTIPLE FUNCTIONS I To cancel random mode Press a repeatedly to stop playback during random play. Press PLAY MODE while pressing SHIFT. The “RND” indicator goes off. • Opening the disc tray also cancels this mode. Note • When this unit is in random mode while a Video CD (ver.2.0) is loaded, playback control is canceled during random play. -
Page 49: Repeat Play
Repeat play DVD-A DVD-V This function allows you to play your desired chapter, track or disc repeatedly. VIDEO 1 CODE SET SHIFT SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT A–B /DTS SELECT... -
Page 50: Repeat A-B
USING MULTIPLE FUNCTIONS Repeat A-B DVD-A DVD-V This function allows you to specify two points and play between them repeatedly. VIDEO 1 CODE SET SHIFT SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT A–B... -
Page 51: Setup Menu
With the setup menu, you can change this unit’s system defaults to suit your preference and this system. Operating the setup menu VIDEO 1 CODE SET SHIFT SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT... -
Page 52: Summary Of Settings
SETUP MENU Summary of settings The following chart shows the menu groups and each items. In the “Options” column, the factory settings are underlined. Menu groups Disc Audio DVD-A Select the preferred audio track language. Subtitle DVD-A Select the preferred subtitle language. Menus DVD-A Select the preferred disc menu language. - Page 53 Menu groups Video Black Level Control (U.S.A. and Canada models) Change the black level of the picture. Select “Lighter” when you connect to the monitor using VIDEO or S VIDEO terminal. Select “Darker” when using COMPONENT terminals. NTSC Disc Output (U.K., Europe, Australia and General models) Select video signal format (PAL 60 or NTSC) to be output when playing NTSC disc.
- Page 54 SETUP MENU Menu groups Others DVD-Video Mode Some DVD-Audio discs contain the DVD-Video contents that can be played only by a DVD-Video player. If you want to play the contents, select “On”. If not, select “Off”. Demo A demonstration of the unit’s on-screen displays starts when you select “On”.
-
Page 55: Ratings
Ratings DVD-V Depending on software capability, you can prevent discs or scenes with objectionable material from being played according to your desired rating. You can select the level and lock it by designating a password. Level 8 All DVDs can be played. Level 7 to 1 Level of restriction becomes severer as the number gets smaller. -
Page 56: Speaker Settings
SETUP MENU Speaker settings DVD-A When you adjust speakers while DISC DIRECT is functioning, follow the procedures described below. VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE REPEAT A–B /DTS... - Page 57 b Delay time (Only center/rear channels of the DVD-Video discs recorded in the Dolby Digital format) To obtain the maximum effect of Dolby Digital 5.1 channel source, all speakers should be located at the same distance from the listening position. However, in many cases the center speaker is placed in line with the front speakers, etc.
-
Page 58: Tuning
Indication on the front panel (example) Preset station number Reception band C 1 : A M 6 3 0 k H z Preset station Colon Station frequency group The colon (:) lights up in the preset mode and goes off in the tuning mode. -
Page 59: Presetting Stations
Presetting stations PRESET/BAND MEMORY DISC DIRECT A/B/C/D/E PRESET/BAND PRESET/TUNING MEMORY AUTO/MAN’L A/B/C/D/E PRESET/TUNING AUTO/MAN'L u / d I Automatically presetting stations (for FM stations) This function enables this unit to automatically tune in to FM stations with strong signals, and to store up to 40 (8 stations x 5 groups) of those stations in order. -
Page 60: Tuning In To A Preset Station
TUNING Press MEMORY on the front panel while the “MEMORY” indicator is flashing. The station band and frequency appear on the front panel display with the preset group and number you have selected. Repeat steps 1 to 5 to store other stations. Notes •... -
Page 61: Operating Other Components Using The Remote Control
Setting the manufacturer code (remote control signal assigned to each manufacturer) for your TV, VCR or MD/ CD recorder on the remote control allows you to operate not only the DVX-S100 but also your TV, VCR or MD/ CD recorder using the remote control. Note •... - Page 62 OPERATING OTHER COMPONENTS USING THE REMOTE CONTROL I Table of control buttons POWER POWER SLEEP TV MODE INPUT TUNER MUTE CD–R SUBTITLE AUDIO VIDEO 2 VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE MOVIE 1 MOVIE 2 PLAY MODE...
-
Page 63: Set Menu
The SET MENU consists of 9 items including the speaker mode setting. Choose the appropriate item and adjust or select the values as necessary. • You can adjust the items on the SET MENU while playing a source. List of SET MENU items Items Initial settings 1 SPEAKER SET... -
Page 64: Speaker Set (Speaker Mode Settings)
SET MENU 1 SPEAKER SET (speaker mode settings) Use this feature to select suitable output modes for your speaker configuration. If you do not use one or any of the included speakers, or if you use other speakers instead of the included speakers, set the following. -
Page 65: Lfe Level
I 1D BASS (LFE/bass out mode) LFE signals carry low-frequency effects when this unit decodes a Dolby Digital or DTS signal. Low-frequency signals are defined as 90 Hz and below. The Low- frequency signals can be directed to both front left and right speakers, and the subwoofer (subwoofer can be used for both stereo reproduction and the DSP program). -
Page 66: Sp Dly Time (Speaker Delay Time)
SET MENU 3 SP DLY TIME (speaker delay time) Use this feature to adjust the delay of the center channel sounds. This feature works when there is sound output from the center speaker, with a source like Dolby Digital or DTS, etc. Ideally, the center speaker should be the same distance from the main listening position as the left and right speakers. -
Page 67: O Assign (Input Assignment)
7 I/O ASSIGN (input assignment) It is possible to assign jacks according to the component to be used if this unit’s DIGITAL INPUT jack settings (component names for jacks) differ from that component. This makes it possible to change the jack assignment and effectively connect more components. -
Page 68: Adjusting The Level Of The Effect Speakers
ADJUSTING THE LEVEL OF THE EFFECT SPEAKERS You can adjust the output level of each effect speaker (center, rear left and right, and subwoofer) while listening to a source. VIDEO 1 CODE SET SHIFT HALL JAZZ ROCK ENTERTAINMENT SETUP ANGLE MARKER SPORTS MONO MOVIE... -
Page 69: Changing The Parameter Settings For Dsp Programs
CHANGING THE PARAMETER SETTINGS FOR DSP PROGRAMS Adjusting the delay time You can adjust the time difference between the beginning of the sound from the front speakers and the beginning of the sound effect from the rear speakers. The larger the value, the later the sound effect is generated. -
Page 70: Adjusting The Parameter Settings For Pro Logic Ii Music
CHANGING THE PARAMETER SETTINGS FOR DSP PROGRAMS Adjusting the parameter settings for PRO LOGIC II Music I Changing parameter settings You can adjust the values of PRO LOGIC II Music parameters so the sound fields are recreated accurately in your listening room. VIDEO 1 CODE SET SHIFT... -
Page 71: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are having is not listed below or if the instruction below does not help, set this unit to the standby mode, disconnect the power cord, and contact the nearest authorized YAMAHA dealer or service center. I General... - Page 72 TROUBLESHOOTING Problem The output level of the center speaker is set to No sound from the minimum. center speaker. “1A CENTER” on the SET MENU is set to NON. One of the Hi-Fi DSP programs (1 to 4) has been selected (except for 5ch Stereo). The source encoded with a Dolby Digital or DTS signal does not have a center channel signal.
-
Page 73: Disc Playback
I Disc playback Problem No response when Some operations may be prohibited by the buttons pressed. disc. Playback does not The disc is damaged. start. There is moisture on the laser pickup. The disc has been loaded upside down. The disc is dirty. Alternative An alternative language is not selected with languages fail to be... - Page 74 TROUBLESHOOTING Problem No on-screen display. On-Screen Menu Icons not displayed or only partially displayed on the television. There is a lot of ghosting. “No Play” appears The disc that this unit cannot play is loaded. on the unit’s display. This unit does not The disc is not placed properly.
- Page 75 I Tuner Problem Previously preset The preset stations are cleared. stations cannot be tuned in. FM stereo reception is The characteristics of FM stereo noisy. broadcasts may cause this problem when the transmitter is too far away or the antenna input is poor. There is distortion, and There is multipath interference.
-
Page 76: Glossary
Based on a wealth of actually measured data, YAMAHA CINEMA DSP uses YAMAHA original sound field technology to combine Dolby Pro Logic, Dolby Digital and DTS systems to provide the visual and audio experience of movie theater in the listening room of your own home. - Page 77 Interlace and progressive output NTSC, the video signal standard, has 525 interlaced (i) scan lines, whereas progressive scanning uses twice the number of scan lines. This is called 525p. The 525i video signals output from this unit’s COMPONENT VIDEO OUT terminals (Y, P ) allow you to enjoy higher quality pictures than if the signals were output from the video output terminal or S VIDEO OUT terminal.
- Page 78 GLOSSARY SILENT CINEMA YAMAHA has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed using headphones.
-
Page 79: Specifications
Speakers ... 7 cm (3 inch) cone x 3, 1.5 cm (5/8 inch) piezo, Impedance ... 6 Ω • Subwoofer Model Name ... SW-S100 Type ... Advanced YAMAHA Active Servo Technology system Speaker ... 16 cm (6-1/2 inch) woofer, magnetically shielded GENERAL • Power Supply [U.S.A. - Page 80 LIST OF MANUFACTURER’S CODES (Device Code: 2) Yamaha 99 92 Admiral 92 93 Aiwa 94 76 Akai 95 96 Alba BellÅïHowell Bestar Blaupunkt 29 22 Blue sky Brandt Brocsonic Bush Clatronic Craig Croslex Curtis Mathis 97 26 Daewoo 97 98 24 27 28...
- Page 81 Telefunken 76 77 Thorn 93 96 Toshiba 35 69 89 Universum 96 27 76 W.WHouse Wards 95 96 36 62 (Device Code: 4) Yamaha Sony DENON 22 23 Kenwood Pioneer Marantz Philips Hitachi (Device Code: 5) Yamaha 99 98 22...
- Page 82 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...
