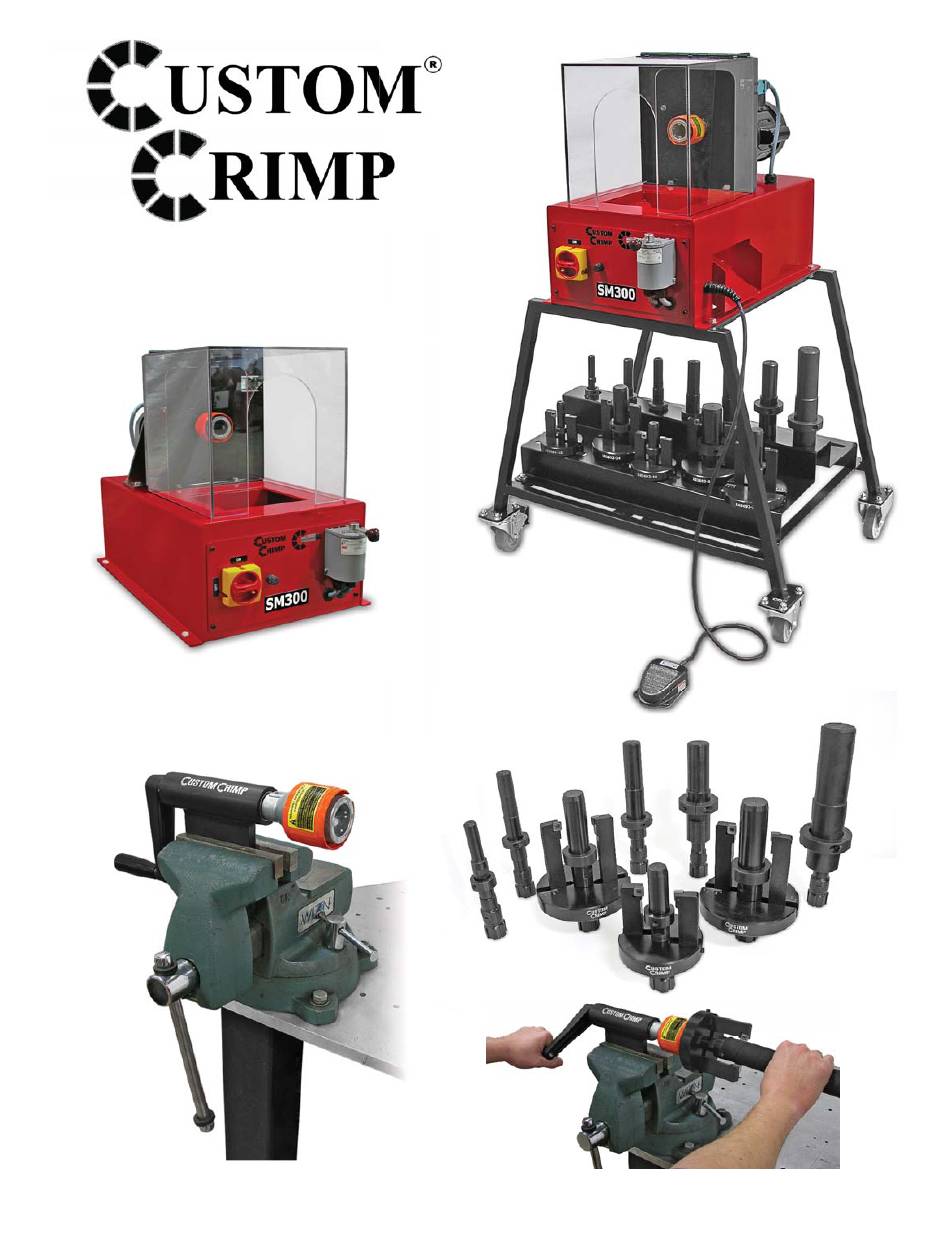

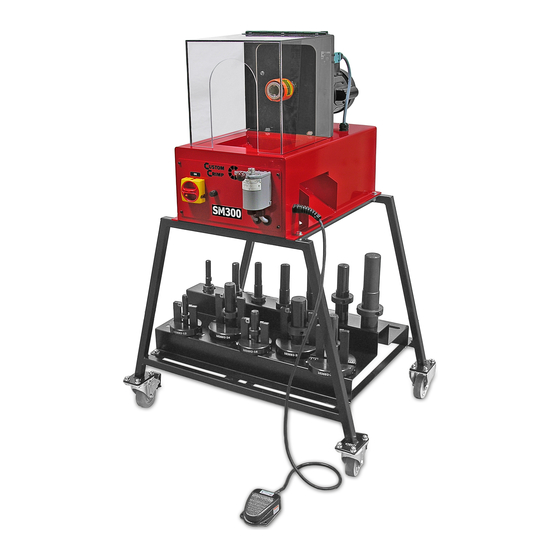

The SM 300 Hose Skiver can be either bench
mounted or mounted on its own SM300 Mobile Cart.
SM 300 / SM 300M
HOSE SKIVING TOOL MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Custom Crimp SM 300

Summary of Contents for Custom Crimp SM 300

  • Page 1 The SM 300 Hose Skiver can be either bench mounted or mounted on its own SM300 Mobile Cart. SM 300 / SM 300M HOSE SKIVING TOOL MANUAL...

  • Page 2: Safety Precautions

    CONSULT HOSE AND FITTING MANUFACTURER’S SPECIFICATIONS FOR CORRECT SKIVE MEASUREMENTS. ALWAYS WEAR EYE PROTECTION AND APPROPRIATE PROTECTIVE GEAR. INDEX SM 300M / SM 300 HOSE SKIVER COMPONENT PARTS IDENTIFICATION..........3 AVAILABLE ACCESSORIES...........................4 SM 300 HOSE SKIVER SPECIFICATIONS AND INITIAL SETUP..............5 SM 300 HOSE SKIVER OD TOOLING FEATURES..................6 WORKING WITH OD TOOLING........................7...
  • Page 3 SM 300M / SM 300 HOSE SKIVER COMPONENT PART IDENTIFICATION PTO Coupling for quick tool change Heavy duty vice mounting bracket ou t g b ac et Handle PTO Coupling for quick tool change 14-⅜" Safety Shield which lifts Hand Operated Skiving Tool...

  • Page 4: Available Accessories

    AVAILABLE ACCESSORIES Hose OD Skiving Tool Hose ID Skiving Tool Size Assembly P/N: Size Assembly P/N: 103692-04 104028-04 103692-06 104028-06 103692-08 104028-08 103692-10 104028-10 103692-12 104028-12 103692-16 104028-16 103692-20 104028-20 103692-24 104028-24 103692-32 104028-32 103692-40 104028-40 103692-48 104028-48 Hand Operated Hose Skiver Tool SM300 Tool Holder SM300 Mobile Cart P/N:SM 300M...
  • Page 5 SM 300M / SM 300 HOSE SKIVER SPECIFICATIONS SM 300M SPECIFICATIONS: HOSE CAPACITY ----------------------------------------------------------1/2 INCH TO 3 INCH ID AND OD (-04 THRU -48) SKIVER SIZE --------------------------------------------------------------------------------------------14-⅜" LONG WEIGHT --------------------------------------------------------------------------------------------------------------10 LBS SM 300 SPECIFICATIONS: POWER REQUIREMENTS-----------------------------------------------------------------110 V 15 AMP 60 HZ SERVICE HOSE CAPACITY ----------------------------------------------------------1/2 INCH TO 3 INCH ID AND OD (-04 THRU -48) SKIVER SIZE W/O OPTIONAL MOBILE CART ---------------------------------------------------L:29"...
  • Page 6 SM 300 HOSE SKIVER OD TOOLING FEATURES The SM 300 Hose Skiver has the capacity and available tooling to skive 2, 4, and 6 wire hoses from 1/2 inch thru 3 inches. OD tools use readily available carbide cutting inserts. Carbide inserts not only wear longer than conventional steel cutting tools, but they never need sharpening.
  • Page 7 HOW TO LOAD THE OD TOOLING 1. Lift the safety guard out of the way. 2. Select the proper OD tool and verify that adjustment arms are set to proper depth. 3. Push the PTO quick coupling (as shown) back, align grooves on OD tool and insert until PTO snaps into place.
  • Page 8 HOW TO ADJUST SKIVING DEPTHS ON OD TOOL 1. Place the hose on to mandrel and slide the hose up to the cutting inserts. 2. Loosen the 3/8-16 hex head bolt with a 9/16" wrench. 3. Slide the adjustment bars to a position just above hose wires (as shown).
  • Page 9 HOW TO CHANGE THE OD SKIVING INSERT 1. Use the insert removable tool that was provided to loosen the screw. 2. Remove the cutting insert. 3. Rotate the cutting insert 90° and lock screw into place. Note: OD skiving inserts should be replaced when a chip or other damage occurs or as need.
  • Page 10 HOW TO LOAD THE ID TOOLING 1. Lift the safety guard out of the way. 2. Select the proper ID tool. 3. Push the PTO quick coupling (as shown) back, align grooves on ID tool and insert until PTO snaps into place. 4.
  • Page 11 HOW TO ADJUST SKIVING DEPTHS ON ID TOOL 1. Place the hose on to mandrel and slide the hose up to the cutting insert. 2. Loosen the set screw that locks insert into place (as shown). 3. Adjust the depth set screw to inner diameter wire. 4.
  • Page 12 EXPLODED PARTS VIEW...
  • Page 13 EXPLODED PARTS VIEW...
  • Page 14 EXPLODED PARTS VIEW...
  • Page 15 EXPLODED PARTS VIEW...
  • Page 16 EXPLODED PARTS VIEW SM 300 ELECTRICAL ASSEMBLY (104057-MAN-1) ITEM PART NUMBER DESCRIPTION 103620 BASE ASSEMBLY 103628 ELECTRICAL ACCESS PANEL 104043 MOTOR DRUM SWITCH 103800 1/2 NPT DOME CORD GRIP 104046 110V FOOT PEDAL 91255A242 10-24 X 1/2 BHCS 104045 DISCONNECT SWITCH...
  • Page 17 EXPLODED PARTS VIEW SM 300 MOTOR ASSEMBLY (104057-MAN-2) ITEM PART NUMBER DESCRIPTION 103622 HAS-200 MOTOR MOUNT ASSEMBLY 104053 HAS-200 300V SAFETY LIMIT SWITCH 104044 HAS-200 FHP AC GEARMOTOR 103873 POLYCARBONATE DOOR 104056 HAS-200 SAFETY DOOR HINGE 91255A585 5/16-18 X 1 1/4'' BHCS...
  • Page 18 If any product or part manufactured by CustomCrimp is found to be defective by CustomCrimp, at its option, CustomCrimp will either repair or replace the defective part or product and return via ground transportation, freight prepaid. Custom Crimp will not cover any incoming or outgoing freight charges for machines sold outside The United States.
  • Page 19 Custom Crimp ® Custom Machining Services, Inc. 326 N. County Rd. 400 East Valparaiso, IN 46383 Ph: (219) 462-6128 Fax: (219) 464-2773 www.customcrimp.com See the complete line of CustomCrimp ® Crimpers and Accessories at: CustomCrimp www.customcrimp.com (219) 462-6128 ®...
