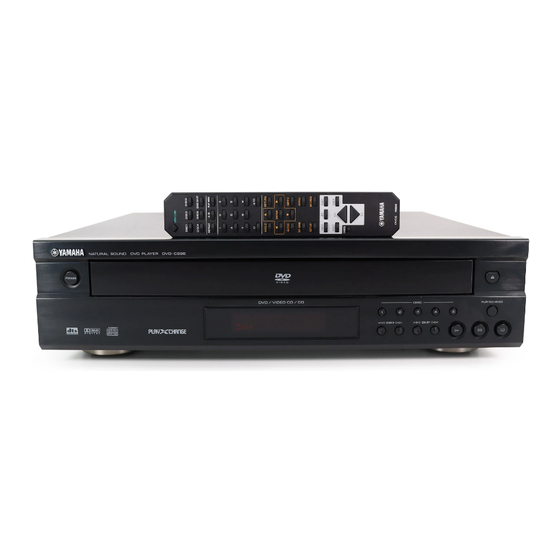

Yamaha DVD-C996 Owner's Manual

Dvd / video cd / cd player
Hide thumbs

Advertisement

Quick Links

DVD-C996
DVD / VIDEO CD / CD PLAYER
LECTEUR DE DVD CHANGEUR
NATURAL SOUND DVD PLAYER
POWER
DOLBY
D I G I T A L
DIGITAL OUT
DIGITAL VIDEO
DVD / VIDEO CD / CD
MANUAL DE INSTRUCCIONES
DISC
PLAYXCHANGE
1
2
3
4
5
SEARCH
SKIP
OWNER'S MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
GEBRUIKSAANWIJZING
GB

Advertisement

loading

  Also See for Yamaha DVD-C996

  Related Manuals for Yamaha DVD-C996

  Summary of Contents for Yamaha DVD-C996

  • Page 1 DVD-C996 DVD / VIDEO CD / CD PLAYER LECTEUR DE DVD CHANGEUR NATURAL SOUND DVD PLAYER POWER DOLBY D I G I T A L DIGITAL OUT DIGITAL VIDEO DVD / VIDEO CD / CD DISC SEARCH BEDIENUNGSANLEITUNG MANUALE DI ISTRUZIONI...
  • Page 2 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may result in fire or other accidents. YAMAHA will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.
  • Page 3: Table Of Contents

    INTRODUCTION 5-Disc Auto-changer for playing DVD-Video, audio CD and Video CD PLAYXCHANGE; Disc Changing Capability while playing another 1 OPTICAL and 1 COAXIAL Digital Outputs for Dolby Digital, DTS, MPEG and Linear PCM 96 kHz, 24 Bit Audio DAC for high sound quality INTRODUCTION FEATURES ...
  • Page 4: Getting Started

    Checking the Package Contents Check that the following items are included in your package. Remote control OPEN/ CLOSE DISC1 DISC2 DISC3 DISC4 DISC5 DISC SKIP REPEAT A–B PLAY MODE > = 10 ANGLE RETURN ENTER AUDIO SUBTITLE TOP MENU MENU SETUP ON SCREEN CANCEL...
  • Page 5: Notes About Handling Discs

    Region management information This DVD player is designed to meet DVD standard that supports region management system. Check the regional code number marked on the disc packages. If the number does not match this unit’s region number (see the below table or the back of this unit), this unit refuses to play that disc.
  • Page 6: Controls And Functions

    Front Panel/Remote Control Front Panel NATURAL SOUND DVD PLAYER POWER DOLBY D I G I T A L DIGITAL OUT DIGITAL VIDEO Remote Control OPEN/ CLOSE DISC1 DISC2 DISC3 DISC4 DISC5 DISC SKIP REPEAT A–B PLAY MODE > = 10 ANGLE RETURN ENTER...
  • Page 7: Disc Skip

    w REPEAT (p.16) Press to repeat playback of a title, chapter, track, etc. e A-B (p.17) Press to specify two points and to repeat playback between them. r Numeric buttons Use to select a title, chapter, track, etc. t ANGLE Press to change angles when the scene of the disc being played contains two or more angles.
  • Page 8: Display

    CONTROLS AND FUNCTIONS Display PROG RNDM TC REP A – BDISC 15 1 2 3 4 5 1 VCD VCD lights up when a Video CD is selected and CD lights up when a CD is selected. 2 DVD Lights up when a DVD is selected. 3 RNDM Lights up during random-sequence play.
  • Page 9: Preparation

    PREPARATION Installing Batteries in the Remote Control Battery Replacement If the remote control operates only when it is close to the unit, the batteries are weak. Replace all the batteries with new ones. Notes • Use only AA, R06 or UM-3 batteries for replacement. •...
  • Page 10: Connections

    CAUTION • Never connect this unit and other equipment to power supply until all connections have been completed. Be sure all connections are made correctly, observing the color-coding of terminals of both this unit and the equipment to be connected. Also refer to the instructions of the equipment to be connected. Remote Control in /out terminals [U.S.A.
  • Page 11: Digital Terminals

    Digital Terminals [U.S.A. model] COMPONENT S VIDEO VIDEO VIDEO OUT COAXIAL AUDIO VIDEO OUT AV amplifier Center speaker Left main Right main speaker speaker Left rear speaker Analog Terminals [U.S.A. model] COMPONENT S VIDEO VIDEO VIDEO OUT VIDEO OUT CD/DVD AUDIO INPUT Amplifier This unit has COAXIAL and OPTICAL digital output...
  • Page 12: Video Terminals

    CONNECTIONS Video Terminals [U.S.A. model] <A> <B><C> COMPONENT S VIDEO VIDEO VIDEO OUT AUDIO VIDEO OUT COMPONENT S VIDEO VIDEO IN INPUT COMPONENT S VIDEO VIDEO OUT COMPONENT S VIDEO VIDEO IN Video monitor If your AV amplifier has video output terminals, connect your amplifier (and then to your video monitor) so that you can use one video monitor for several different video sources (LD, VCR etc.) by simply switching the input...
  • Page 13: Remote Control In/Out Terminals [U.s.a. And Canada Models]

    [U. K. model] S VIDEO VIDEO WOOFER COAXIAL OPTICAL PCM/ DIGITAL AUDIO VIDEO OUT 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1 Remote Control in/out Terminals [U.S.A. model] REMOTE CONTROL COMPONENT...
  • Page 14: Playback

    Before Starting Playback To play a disc properly, you need to adjust the formats of audio and video signals output from this unit in accordance with the equipment connected to this unit. See p.25 to 30 for more detailed information. CAUTION •...
  • Page 15: Playing A Disc

    Playing a Disc NATURAL SOUND DVD PLAYER POWER DVD / VIDEO CD / CD DOLBY D I G I T A L DIGITAL OUT DIGITAL VIDEO Label side upward Disc tray OPEN/ ANGLE CLOSE ENTER DISC DISC1 DISC2 DISC3 AUDIO (1, 2, 3, 4, 5), DISC4 DISC5...
  • Page 16: Search (To Advance Or Reverse Playback Rapidly)

    BASIC OPERATION OPEN/ CLOSE DISC1 DISC2 DISC3 DISC4 DISC5 DISC SKIP REPEAT A–B PLAY MODE SEARCH DISC DISC (1, 2, 3, 4, 5) (1, 2, 3, 4, 5) Search (to advance or reverse playback rapidly) SEARCH PLAY CANCEL SEARCH SEARCH Skipping Chapters / Tracks DVD / VIDEO CD / CD SEARCH...
  • Page 17: Still Picture (To Pause Playback)

    Still Picture (to pause playback) PAUSE CANCEL DISC SEARCH SKIP Frame Advance / Reverse ANGLE RETURN ENTER AUDIO SUBTITLE TOP MENU MENU SETUP ON SCREEN PLAY CANCEL Slow-Motion Play PLAY CANCEL DISC SEARCH Press d (PAUSE). • To resume play, press w (PLAY). PLAYXCHANGE PAUSE Press d (PAUSE) during playback.
  • Page 18: Selecting Play Modes

    Repeat Play OPEN/ CLOSE DISC1 DISC2 DISC3 DISC4 DISC5 DISC SKIP REPEAT A–B PLAY MODE REPEAT > = 10 ANGLE RETURN C REP T REP DISC 5 ‘REP’ goes off. ‘REP’ goes off. Program repeat Random-sequence repeat PROG RNDM T REP PROG RNDM PROG...
  • Page 19: A-B Repeat

    A-B Repeat OPEN/ CLOSE DISC1 DISC2 DISC3 DISC4 DISC5 DISC SKIP REPEAT A–B PLAY MODE A–B > = 10 ANGLE RETURN REP A – B Lights up REP A – B Lights up Random-Sequence Play [VCD] [CD] OPEN/ ANGLE CLOSE ENTER DISC1 DISC2...
  • Page 20: Program Play [Vcd] [Cd]

    SELECTING PLAY MODES Program Play [VCD] [CD] OPEN/ ANGLE CLOSE ENTER DISC1 DISC2 DISC3 AUDIO DISC4 DISC5 DISC SKIP TOP MENU REPEAT A–B PLAY MODE SETUP CANCEL > = 10 ANGLE RETURN PROG PROG Disc No. PROG Disc No. track No. PROG You can enjoy listening to your favorite tracks selected from RETURN...
  • Page 21: Advanced Features

    Refer to the discographic information of each disc to determine whether the disc supports these features. Menu Screen [DVD] ANGLE RETURN ENTER AUDIO SUBTITLE TOP MENU MENU TOP MENU SETUP ON SCREEN CANCEL Playback Control [VCD] OPEN/ ANGLE CLOSE ENTER DISC1 DISC2 DISC3...
  • Page 22: Switching Audio Tracks [Dvd] [Vcd]

    ADVANCED FEATURES Switching Audio Tracks [DVD] [VCD] OPEN/ ANGLE CLOSE DISC1 DISC2 DISC3 AUDIO DISC4 DISC5 DISC SKIP TOP MENU REPEAT A–B PLAY MODE SETUP Numeric buttons CANCEL > = 10 ANGLE RETURN Audio track Soundtrack number being played (“–” indicates a soundtrack is not recorded.) Digital...
  • Page 23: Switching Subtitle Tracks [Dvd]

    Switching Subtitle Tracks [DVD] OPEN/ ANGLE CLOSE ENTER DISC1 DISC2 DISC3 AUDIO DISC4 DISC5 DISC SKIP TOP MENU REPEAT A–B PLAY MODE SETUP Numeric buttons CANCEL > = 10 ANGLE RETURN Subtitle Subtitle language number being played 1 ENG 2 FRA I love you Switching Camera Angles OPEN/...
  • Page 24: On-Screen Menu

    This unit features On-Screen Menu icons (Graphical User Interface) that makes operation easy and intuitive. Graphics that represent the functions appear in alignment on the upper side of the video monitor. Operating On-Screen Menu Digital 1:06:37 3/2.1ch ***** –100 Video CD 3:37 ***** –...
  • Page 25: Disc Information Screen

    Disc Information Screen Each icon shows the status of the currently played disc. Title No. Track No. Select the desired title/track number and press ENTER to start playback. Chapter No. Select the desired chapter number and press ENTER to start playback. Time Index (hour:minute:second) 1:06:37 Enter the time and press ENTER to start playback from there.
  • Page 26: Player's Information Screen

    ON-SCREEN MENU Player’s Information Screen This screen enables you to operate various features equipped with this unit to expand your enjoyment for audio listening and video watching. A-B Repeat Press ENTER during playback to specify the point A, then press ENTER again to specify the point B. This unit starts A-B repeat play.
  • Page 27: Setup Menu

    SETUP MENU This unit provides you with the following items on the Setup menu to maximize the performance of this unit and your AV system. Select the appropriate positions as necessary. 1. Disc Language ( p.26) 2. Ratings ( p.27) 3.
  • Page 28: Description Of Each Item

    1. Disc Language [DVD] Disc Languages 1 Audio English 2 Subtitle Automatic 3 Menus English Press RETURN to exit DESCRIPTION OF EACH ITEM You can select the language of audio track, subtitle track and disc menu. U.S.A. and Canada models 1 Audio 1 English 4 Original*...
  • Page 29: Ratings [Dvd]

    2. Ratings [DVD] Please set a rating limit 8 No Limit 0 Lock All Press RETURN to exit DISC4 DISC5 DISC SKIP TOP MENU MENU REPEAT A–B PLAY MODE SETUP ON SCREEN CANCEL CANCEL > = 10 ANGLE RETURN ENTER AUDIO SUBTITLE TOP MENU...
  • Page 30: Menu Language

    DESCRIPTION OF EACH ITEM 3. Menu Language Select the language for these Menus. 1 English 2 Français 3 Deutsch 4 Italiano 5 Español Press RETURN to exit 4. On-Screen Messages On-Screen Messages 1 On-Screen Messages 2 Colour and Position Blue Press RETURN to exit 5.
  • Page 31: Digital Audio Output

    7. Digital Audio Output U.K., Europe and Australia models Digital Audio Output 1 PCM Down Conversion 2 Dolby Digital Bitstream 3 DTS Digital Surround 4 MPEG Press RETURN to exit U.S.A, Canada and General models Digital Audio Output 1 PCM Down Conversion 2 Dolby Digital Bitstream 3 DTS Digital Surround...
  • Page 32: Other Settings

    DESCRIPTION OF EACH ITEM 9. Other Settings U.S.A. and Canada models Other Settings 1 Still Mode Automatic 2 Audio during Search 3 TV Mode (4:3) Pan&Scan 4 D. Range Compression 5 Still Picture Display 6 Black Level Control Lighter Press RETURN to exit U.K.
  • Page 33: Appendix

    If this unit fails to operate normally, check the following points to determine whether the fault can be corrected, or if the fault is not listed in the PROBLEM column, disconnect the power code and contact your authorized YAMAHA dealer or service center.
  • Page 34 TROUBLESHOOTING PROBLEM Picture does not match The setting at ‘6 TV Aspect’ on the setup your video monitor. menu is not correct. Audio track and/or The disc does not contain the language you subtitle language is not have selected. the selected one. No subtitles.
  • Page 35: Glossary

    GLOSSARY / LANGUAGE CODE LIST Title ‘Title is a unit to divide the contents on a DVD disc. Generally, one title is assigned to one movie. When a disc has two or more titles, they are numbered in sequence as title 1, title 2, etc.
  • Page 36: Specifications

    Audio Section Frequency response DVD (48 kHz sampling): ... 2 Hz to 22 kHz DVD (96 kHz sampling): ... 2 Hz to 44 kHz CD, Video CD: ... 2 Hz to 20 kHz Harmonic distortion + noise (1 kHz): ... 0.002% S/N ratio: ...
  • Page 37 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ATTENTION L’emploi de commandes, de réglages ou un choix de procédures différents des spécifications de cette brochure peut entraîner une exposition à d’éventuelles radiations pouvant être dangereses.
  • Page 38 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN Printed in Malaysia V624870-1 YAMAHA MUSIC AUSTRALIA PTY, LTD.
