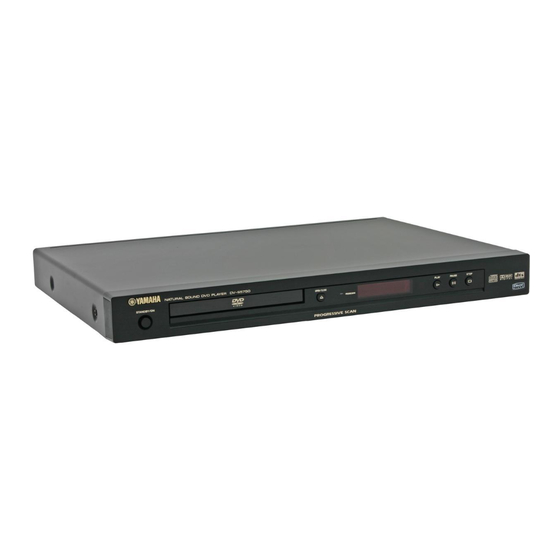

- Page 1 DVD PLAYER LECTEUR DE DVD DV-S5750 OWNER’S MANUAL MODE D’EMPLOI...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. • Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous... - Page 3 If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., 6660 Orangethorpe Ave. Buena Park, CA90622.
-
Page 4: Laser Safety
YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than as specified. -
Page 5: Table Of Contents
Introduction Region Codes...2 Supplied accessories...2 Notes about discs ...2 Cleaning discs...2 Patent information...2 Functional Overview Front and Rear Panels...3 Remote Control...4 Preparation General Notes on connections ...5 Digital Connections...5 Analog Connections...5 Video Connections...6 S-Video terminal <A>...6 Composite Video terminal <B>...6 Component Video terminal <C>...6 Getting Started Inserting batteries into the Remote Control ...7... -
Page 6: Introduction
Introduction Thank you for purchasing this unit. This Owner’s Manual explains the basic operation of this unit. Region Codes DVD discs must be labeled for ALL regions, Region 1 (U.S.A model) or Region 4 (Australia model) in order to play on this Player. -
Page 7: Functional Overview
Front and Rear Panels STANDBY/ON – turns on this unit or sets it to the standby mode Disc tray / OPEN/CLOSE – opens or closes the disc tray PROGRESSIVE indicator – lights up when the unit enters Progressive mode * Press button for about two seconds. AC Power Cord –... -
Page 8: Remote Control
Functional Overview Remote Control TOP MENU/RETURN – display the top-level disc menu (DVD) / go back to previous menu (VCD) MENU – access menu of a disc (DVD) / switch PBC on/off (VCD) 1 2 3 4 – (left/right/up/down) select an item in the menu ENTER/OK –... -
Page 9: Preparation
General Notes on connections Never make or change connections with the power switched on. • Depending on the equipment you wish to connect, there are various ways you could connect this unit. Possible connections are shown in the following drawings. •... -
Page 10: Video Connections
Preparation Video Connections If your AV receiver has video output jacks, connect your receiver (and then to your TV) so that you can use one TV for several different video sources (LD, VCR etc.) by simply switching the input source selector of your receiver. -
Page 11: Getting Started
Step1: Inserting batteries into the Remote Control 1 Open the battery compartment. 2 Insert two batteries type R06 or AA, following the indications (+ –) inside the compartment. 3 Close the cover. Using the remote control Remote control Point the remote control at the sensor, within approximately 6 m (20 feet) of the unit. -
Page 12: Step4: Setting Language Preference
Getting Started 4 Press 34 to highlight one of the options below: Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format. NTSC Select this if the connected TV is NTSC system. -
Page 13: Setting The Audio, Subtitle And Disc Menu Language
Setting the Audio, Subtitle and Disc menu language PREFERENCE PAGE AUDIO ENGLISH SUBTITLE CHINESE (SIMP) DISC MENU FRENCH PARENTAL SPANISH PORTUGUESE MP3/JPEG NAV POLISH PASSWORD ITALIAN DEFAULT TURKISH 1 Press STOP 9 twice, then press SETUP. 2 Press 2 repeatedly to select {PREFERENCE PAGE}. -
Page 14: Disc Operations
Disc Operations IMPORTANT! – If the inhibit icon ( on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – Depending on the DVD or VIDEO CD, some operations may be different or restricted. -
Page 15: Selecting Various Repeat/Shuffle Functions
Selecting various repeat/shuffle functions Repeat and Shuffle • While playing a disc, press REPEAT continuously to choose a ‘Play Mode’. ➔ RPT ONE (repeat chapter) ➔ RPT TT (repeat title) ➔ SHUFFLE (shuffle) ➔ RPT SHF (shuffle repeat) ➔ RPT OFF (repeat off) VCD/SVCD/CD ➔... -
Page 16: On-Screen Display (Osd)
Disc Operations On-Screen Display (OSD) OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback. 1 During playback, press ON SCREEN. ➜... -
Page 17: Special Dvd Features
Special DVD Features Playing a Title 1 Press MENU. ➜ The disc title menu appears on the TV screen. 2 Use 1 234 or numeric keypad (0-9) to select a play option. 3 Press ENTER/OK to confirm. Camera Angle • Press ANGLE repeatedly to select different desired angle. -
Page 18: Track Digest
Disc Operations TRACK DIGEST This function will minimize the picture of every track in order to display every six of these tracks on the screen to help you know the content of every track on the disc. DISC INTERVAL This function is used to divide a disc into six parts by regular intervals and display them on one page to preview the whole disc. -
Page 19: Selecting A Folder And Track/File
Selecting a folder and track/file 1 Press 34 to select the folder and press ENTER/OK to open the folder. 2 Press 34 to select a track/file. 3 Press ENTER/OK to confirm. ➜ Playback will start from the selected file to the end of the folder. Repeat and Shuffle When the Picture CD/MP3 CD menu is shown on the screen;... -
Page 20: Zoom Picture
Disc Operations Zoom picture 1 During playback, press ZOOM repeatedly to display the picture with different scales. 2 Use 1 234 to view the zoomed picture. Playback with multi-angles • During playback, press 1 234 to rotate the picture on the TV screen. 1: rotate the picture anti-clockwise 2: rotate the picture clockwise 3: flip the picture vertically... -
Page 21: Setup Menu
The setup is carried out via the TV, enabling you to customize the DVD Player to suit your particular requirements. General Setup menu 1 Press SETUP. 2 Press 1 2 to select ‘General Setup’ icon. 3 Press ENTER/OK to confirm. GENERAL SETUP PAGE DISC LOCK DISPLAY DIM... -
Page 22: Osd Language
Setup Menu To input your favorite tracks/chapter 3 Use the numeric keypad (0-9) to enter a valid track/chapter number. 4 Use 1 234 to move the cursor to the next position. ➜ If the track number is more than ten, press T to open the next page and proceed with programming or, ➜... -
Page 23: Divx ® Vod Registration Code
® DivX VOD registration code Yamaha provide you with the DivX (Video On Demand) registration code that allows you to rent and purchase videos ® using the DivX VOD service. For more information, visit at www.divx.com/vod. 1 In ‘GENERAL SETUP PAGE’, press 34 to highlight {DIVX(R) VOD CODE}, then press 2. -
Page 24: Setting The Digital Output
Setup Menu Setting the Digital output The options included in Digital Audio are: ‘Digital Output’ and ‘LPCM Output’. 1 In ‘AUDIO SETUP PAGE’, press 34 to highlight {DIGITAL AUDIO}, then press 2. 2 Press the 34 to highlight an option. 3 Enter its submenu by pressing 2. -
Page 25: Night Mode
Night Mode In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favorite action movie without disturbing others at night. 1 In ‘AUDIO SETUP PAGE’, press 34 to highlight {NIGHT MODE}, then press 2. -
Page 26: Progressive
MODEL 525P AND 625P DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. This unit is compatible with the complete line of YAMAHA products, including the projectors DPX- 1100, LPX-510 and the plasma monitor PDM- 4210. TIPS: To return to the previous menu, press 1. -
Page 27: Selecting The Black Level (U.s.a. Model Only)
4 Press 34 to highlight one of the following options. BRIGHTNESS Increase the value will brighten the picture or vice versa. Choose zero (0) for average setting. CONTRAST Increase the value will sharpen the picture or vice versa. Choose zero (0) to balance the contrast. -
Page 28: Preference Setup Menu
Setup Menu Preference Setup Menu 1 Press STOP 9 twice to stop playback (if any), then press SETUP. 2 Press 1 2 to select the ‘Preference Setup’ icon. 3 Press ENTER/OK to confirm. PREFERENCE PAGE AUDIO SUBTITLE DISC MENU PARENTAL MP3/JPEG NAV PASSWORD DEFAULT... -
Page 29: Mp3/Jpeg Menu
MP3/JPEG Menu MP3/JPEG Navigator can be set only if the disc is recorded with menu. It allows you to select different display menus for easy navigation. 1 In ‘PREFERENCE PAGE’, press 34 to highlight {MP3/JPEG NAV}, then press 2. WITHOUT MENU Select this to display all the files contained in the MP3/Picture CD. -
Page 30: Language Code
Language Code These pages can be used to select other languages.This does not affect the options in “AUDIO”, “SUBTITLE” or “DISC MENU”. Abkhazian Afar Afrikaans Albanian Amharic Arabic Armenian Assamese Avestan Aymara Azerbaijani Bashkir Basque Belarusian Bengali Bihari Bislama Bokmål, Norwegian Bosnian Breton Bulgarian... - Page 31 These pages can be used to select other languages.This does not affect the options in “AUDIO”, “SUBTITLE” or “DISC MENU”. Maori Marathi Marshallese Moldavian Mongolian Nauru Navaho, Navajo Navajo; Navaho Ndebele, North Ndebele, South Ndonga Nepali Northern Sami North Ndebele Norwegian Norwegian Bokmål;...
-
Page 32: Troubleshooting
YAMAHA dealer or service center. Problem No power... - Page 33 Problem The player does not respond to the Remote Control Buttons do not work Player does not respond to some operating commands during playback. DVD Player cannot read CDs/ DVDs Menu items cannot be selected Unable to play DivX movies No sound during DivX movies playback Troubleshooting...
-
Page 34: Glossary
Glossary Analog: Sound that has not been turned into num- bers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. -
Page 35: Specifications
PLAYBACK SYSTEM DVD Video Video CD & SVCD PICTURE CD CD-R, CD-RW DVD+R, DVD+RW DVD-R, DVD-RW VIDEO PERFORMANCE Video (CVBS) Output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm C: 0.3 Vpp into 75 ohm Component video output Y: 1 Vpp into 75 ohm 75 ohm... - Page 36 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN Printed in China YAMAHA MUSIC AUSTRALIA PTY, LTD.
