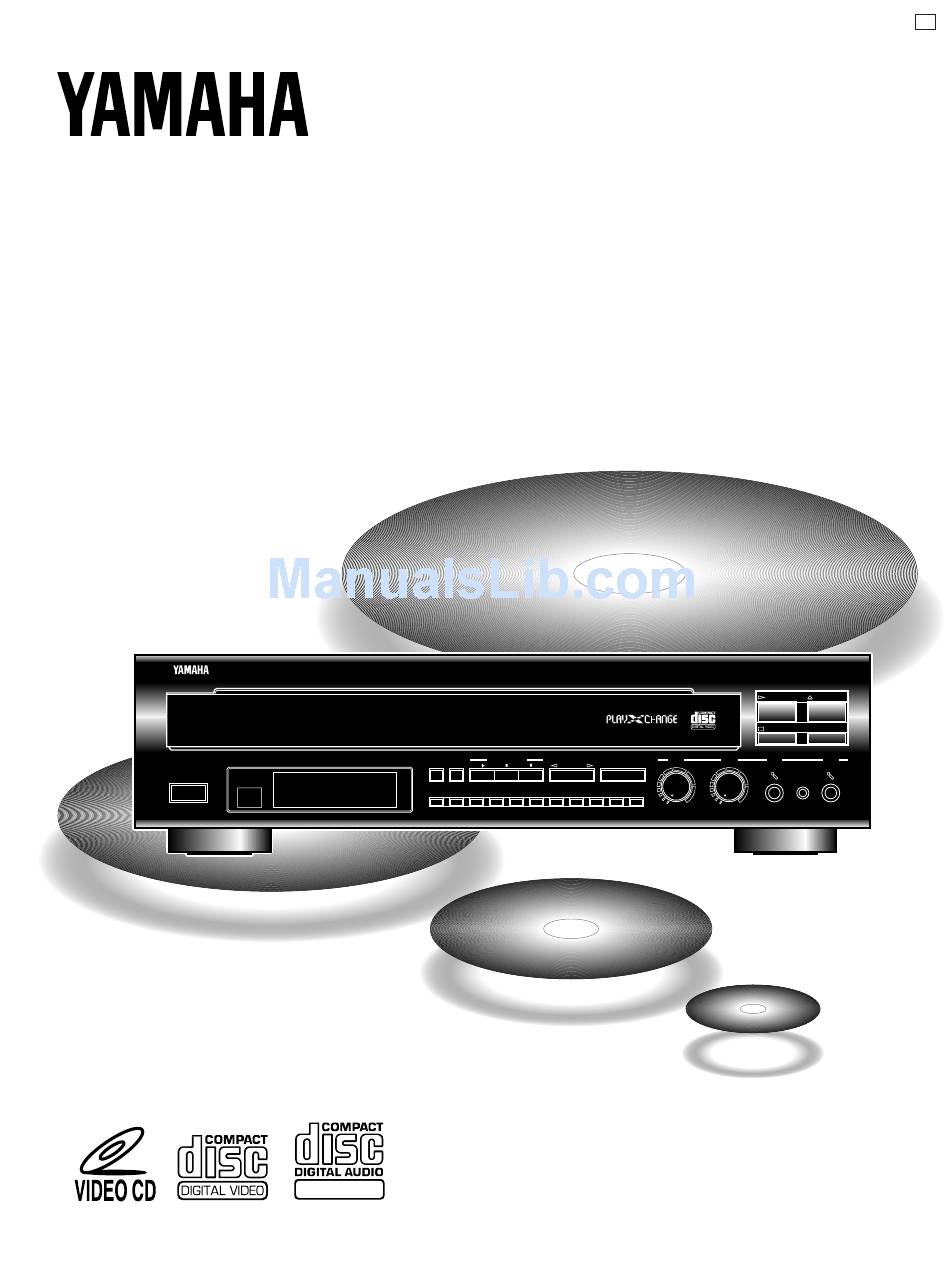

- Page 1 VCD-1 20K NATURAL SOUND VIDEO CD CHANGER NATURAL SOUND VIDEO CD CHANGER VIDEO CD POWER GRAPHICS MPX KARAOKE KEY CONTROL DISC SKIP SKIP/SEARCH ECHO PREV NEXT OWNER’S MANUAL PLAY/SELECT OPEN/CLOSE STOP/RETURN PLAYXCHANGE LEVEL MIC 1 MIC 2 KEY CONTROL...
-
Page 2: Table Of Contents
Thank you for selecting this YAMAHA Video CD changer. This unit can play discs of the following types only. Mark printed Type of disc Video CD (including CD-G) Never attempt to load a disc other than above into the unit because it may cause a damage to this unit and/or other units connected to this unit. -
Page 3: Caution
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. To ensure the finest performance, please read this manual carefully. Keep it in a safe place for future reference. Install your unit in a cool, dry, clean place – away from windows, heat sources, and too much vibration, dust, moisture or cold. -
Page 4: Connections
Before making any connections, switch OFF the power to this unit, the amplifier, the video monitor, etc. Connections should be made to the correct input terminals of the amplifier, the video monitor, etc. Video connection cord (included) LINE OUT VIDEO OUT MODE SELECT AUTO... - Page 5 Connecting microphones for singing Karaoke One or two microphones can be connected to this unit. Moreover, if you have a Yamaha microphone which has a key control function, connect the mini-plug connector cable of the microphone to the KEY CONTROL jack of this unit. This connection allows you to change key of source sound by using controls on the microphone.
-
Page 6: Controls And Their Functions
CONTROLS AND THEIR FUNCTIONS FRONT PANEL NATURAL SOUND VIDEO CD CHANGER VIDEO CD POWER REMOTE CONTROL TRANSMITTER KEY CONTROL KARAOKE ON SCREEN PROG CANCEL ENTER DIGEST INTRO TIME INDEX INDEX SLOW PAUSE MPX KARAOKE KEY CONTROL Up to 5 discs can be loaded on the disc tray. Five disc-setting positions on the disc tray are numbered from 1 to 5. - Page 7 One or two microphones can be connected to these jacks. KEY CONTROL jack If you have a Yamaha microphone which has a key control function, connect the mini-plug connector cable of the microphone to this jack. This connection allows you to change key of source sound by using controls on the microphone.
-
Page 8: Display Panel
DISPLAY PANEL KARAOKE VIDEO CD PBC PROG AUTO NTSC PAL VIDEO CD indicator Lights up when the selected disc is a Video CD. KARAOKE indicator Lights up when the KARAOKE function is turned on by pressing the KARAOKE button, and goes off if the KARAOKE button is pressed once more. -
Page 9: Basic Operations
This manual mainly describes how to operate this unit by using the remote control transmitter. To operate this unit from the front panel, use the same named buttons on the front panel. For information about the Playback Control operation for Video CDs, version 2.0, refer to pages 18–20. Loading discs and starting disc play NATURAL SOUND VIDEO CD CHANGER VIDEO CD... -
Page 10: Display Information
To play a desired track If necessary, select a desired disc. DISC SKIP * If you want to play from the first track on the disc, press the PLAY/REPEAT button. Select a desired track number. Display information DISC MUSIC VIDEO CD AUTO NTSC PAL Shows the tray number of the selected disc. -
Page 11: Manual Search
To replay from the beginning of the track currently playing PLAY/REPEAT SELECT To skip to the beginning of a desired track To play from the beginning of the track following the one currently playing PREV SKIP NEXT To play from the beginning of the track currently playing PREV SKIP NEXT... -
Page 12: To Repeat Playback
To repeat playback Pressing the S/F REP button allows you to play any desired track or disc repeatedly. S/F REP Whenever you press the button, the repeat play mode indication appears on the display as follows: Display indication Repeat play mode Single repeat mode for playing a track repeatedly Full repeat mode for playing all... - Page 13 To monitor the operation status Pressing the ON SCREEN button once shows the status screen on the video monitor. You can easily monitor the operations of this unit such as play, search, and stop. Pressing the button again cancels this function. ON SCREEN Note This function is not available for CDs.
- Page 14 KEY CONTROL CONTROL KARAOKE ON SCREEN PROG CANCEL ENTER S/F REP Adjusting the level of sound signals input from the microphone(s) LEVEL Turning the LEVEL control clockwise increases the level, and counterclockwise decreases the level. Changing audio output mode You can select any of four audio output modes by pressing the MPX button.
-
Page 15: Pre-Programming Selections (For Singing Karaoke)
PRE-PROGRAMMING SELECTIONS (FOR SINGING KARAOKE) KEY CONTROL KARAOKE ON SCREEN PROG CANCEL ENTER S/F REP DIGEST INTRO TIME INDEX INDEX PREV SLOW PAUSE STOP RETURN Load discs on the disc tray. Press the KARAOKE button so that “KARAOKE” lights up on the display. To cancel it, press the KARAOKE button once again. - Page 16 Display information during programming KARAOKE DISC MUSIC VIDEO CD PROG AUTO KARAOKE DISC MUSIC VIDEO CD PROG AUTO Numeric buttons To check program data CANCEL The disc number, the track number and the program number of the last selection will flash on the display. PREV SKIP NEXT...
- Page 17 To cancel a programmed selection CANCEL The disc number and the track number of the last selection will flash on the display. PREV SKIP NEXT Display the disc number and the track number to be canceled. ENTER Press once while the number is flashing. Notes The SEARCH buttons can be used during play to search all tracks including tracks not programmed.
-
Page 18: Playback Control Of Video Cd (Ver. 2.0)
PLAYBACK CONTROL OF VIDEO CD (Ver. 2.0) This function is available for Video CDs, version 2.0 only. “PBC” will light up on the display when a version 2.0 disc is used. The Playback Control differs with each disc. This section gives a basic explanation of Playback Control. -
Page 19: Basic Operation
Basic operation Note Disc play in the Playback Control mode depends on the data of the disc used. So, according to the contents of disc, the following operating method may not be applied to the disc. Be sure to refer to the instruction manual for the disc. Before operation If “KARAOKE”... -
Page 20: To Stop Play
To stop play STOP RETURN Press and hold for more than 2 seconds. If the disc has index numbers Pressing the INDEX button once or more searches for and select any index number. Play starts from the point of selected index number. INDEX Note When you press the DISC SKIP button or a numeric button to... -
Page 21: Notes About The Remote Control Transmitter
NOTES ABOUT THE REMOTE CONTROL TRANSMITTER Battery installation Battery replacement If you find that the remote control transmitter must be used closer to the main unit, the batteries are weak. Replace both batteries with new ones. Notes Use only AA, R6, UM-3 batteries for replacement. Be sure polarities are correct. -
Page 22: Troubleshooting
If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM This unit does not switch ON when the POWER switch is pressed. - Page 23 YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA...
