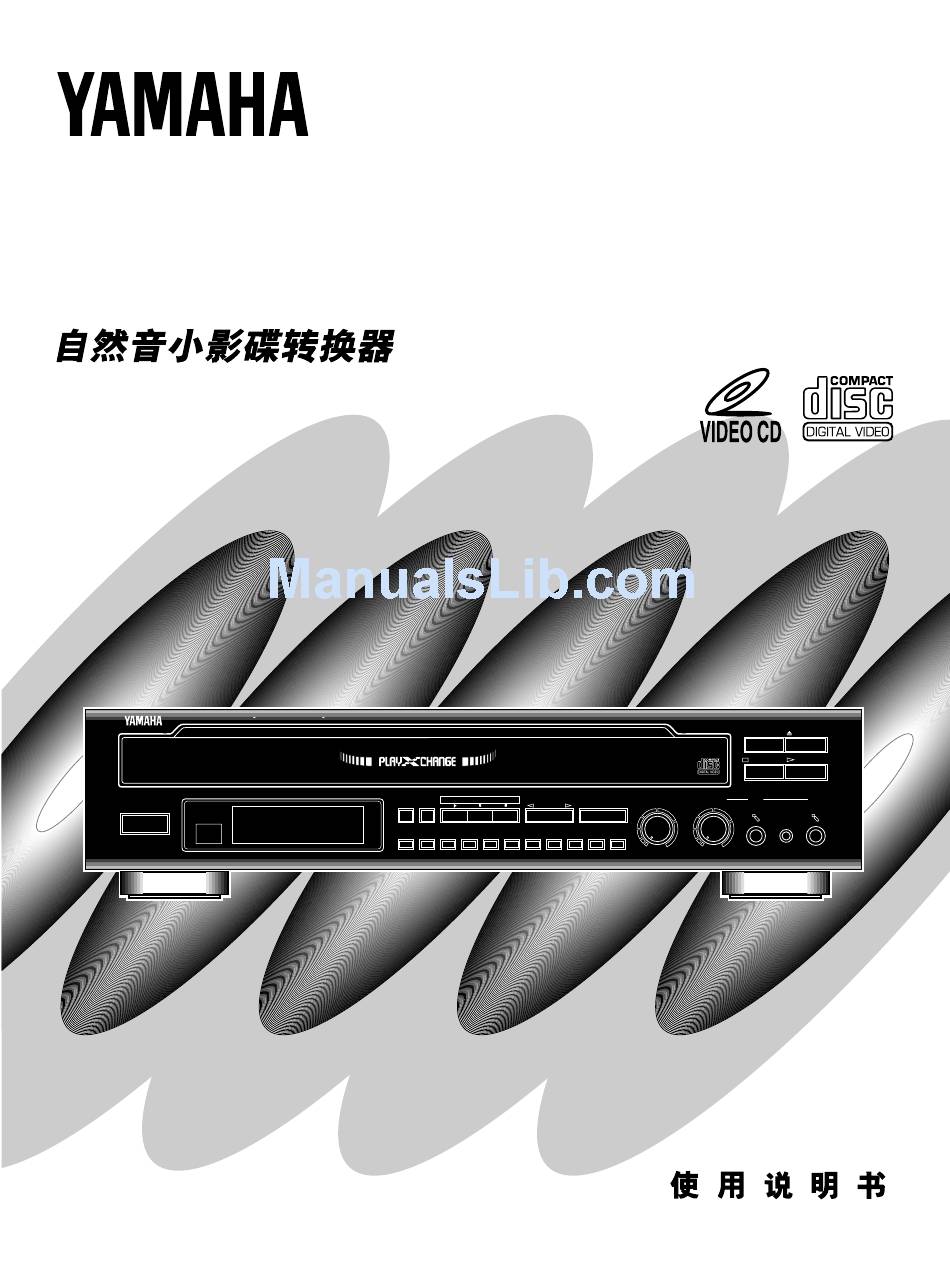

  • Page 1 VCD-1 00K NATURAL SOUND VIDEO-CD CHANGER NATURAL SOUND VIDEO CD CHANGER VCD I00K POWER 5–Disc Carousel VIDEO CD Digital Echo / 1 1 Step Key Control Version 2.0 / Interactive Operation MPX KARAOKE KEY CONTROL DISC SKIP SKIP/SEARCH PREV NEXT ENTER PLAYXCHANGE OPEN/CLOSE...

  • Page 2: Table Of Contents

    Thank you for selecting this YAMAHA Video-CD changer. This unit can play discs of the following types only. Mark printed Type of disc on the disc Video-CD Compact disc Never attempt to load a disc other than above into the unit because it may cause a damage to this unit and/or other units connected to this unit.

  • Page 3: Caution

    CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. To ensure the finest performance, please read this manual carefully. Keep it in a safe place for future reference. Install your unit in a cool, dry, clean place – away from windows, heat sources, and too much vibration, dust, moisture or cold.

  • Page 4: Connections

    Before making any connections, switch OFF the power to this unit, the amplifier, the video monitor, etc. Connections should be made to the correct input terminals of the amplifier, the video monitor, etc. VIDEO IN Video connection cord (included) VIDEO OUT LINE OUT MODE SELECT...
  • Page 5 Connecting microphones for singing Karaoke One or two microphones can be connected to this unit. Moreover, if you have a Yamaha microphone which has a key control function, connect the mini-plug connector cable of the microphone to the KEY CONTROL jack of this unit. This connection allows you to change key of source sound by using controls on the microphone.

  • Page 6: Controls And Their Functions

    CONTROLS AND THEIR FUNCTIONS FRONT PANEL NATURAL SOUND VIDEO CD CHANGER VCD I00K POWER REMOTE CONTROL TRANSMITTER 5–Disc Carousel Digital Echo / 1 1 Step Key Control MPX KARAOKE KEY CONTROL DISC SKIP ENTER PROG OPEN/CLOSE KARAOKE CANCEL ENTER INDEX DISC SKIP PREV NEXT...
  • Page 7 One or two microphones can be connected to these jacks. KEY CONTROL jack If you have a Yamaha microphone which has a key control function, connect the mini-plug connector cable of the microphone to this jack. This connection allows you to change key of source sound by using controls on the microphone.

  • Page 8: Display Panel

    DISPLAY PANEL KARAOKE VIDEO CD PBC PROG AUTO NTSC PAL VIDEO CD indicator Lights up when the selected disc is a Video-CD. KARAOKE indicator Lights up when the KARAOKE function is turned on by pressing the KARAOKE button, and goes off if the KARAOKE button is pressed once more.

  • Page 9: Basic Operations

    This manual mainly describes how to operate this unit by using the remote control transmitter. To operate this unit from the front panel, use the same named buttons on the front panel. Loading discs and starting disc play NATURAL SOUND VIDEO CD CHANGER VCD I00K POWER Turn the power on.
  • Page 10 To play a desired track STOP/ RETURN If necessary, select a desired disc. DISC SKIP * If you want to play from the first track on the disc, press the PLAY/REPEAT button. Select a desired track number. Start play. PLAY/ REPEAT SELECT Display information DISC...

  • Page 11: Manual Search

    To replay from the beginning of the track currently playing PLAY/REPEAT SELECT To skip to the beginning of a desired track To play from the beginning of the track following the one currently playing PREV NEXT SKIP To play from the beginning of the track currently playing PREV NEXT SKIP...
  • Page 12 OPEN/ CLOSE KARAOKE CANCEL ENTER INDEX DISC SKIP PREV NEXT SKIP SEARCH CONTROL CONTROL STOP PLAY/REPEAT RETURN SELECT Adjusting the level of sound signals input from the microphone(s) MIC LEVEL Turning the MIC LEVEL control clockwise increases the level, and counterclockwise decreases the level. Changing audio output mode You can select any of four audio output modes by pressing the MPX button.

  • Page 13: Pre-Programming Selections (For Singing Karaoke)

    PRE-PROGRAMMING SELECTIONS (FOR SINGING KARAOKE) PROG OPEN/ CLOSE KARAOKE CANCEL ENTER INDEX DISC SKIP PREV NEXT SKIP SEARCH CONTROL STOP PLAY/REPEAT RETURN SELECT Load discs on the disc tray. Press the KARAOKE button so that “KARAOKE” lights up on the display. To cancel it, press the KARAOKE button once again.
  • Page 14 Display information during programming KARAOKE DISC MUSIC VIDEO CD PROG AUTO KARAOKE DISC MUSIC VIDEO CD PROG AUTO To check program data CANCEL The disc number, the track number and the program number of the last selection will flash on the display. PREV NEXT SKIP...
  • Page 15 To cancel a programmed selection CANCEL The disc number and the track number of the last selection will flash on the display. PREV NEXT SKIP Display the disc number and the track number to be canceled. ENTER Press once while the number is flashing. Notes The SEARCH buttons can be used during play to search all tracks including tracks not programmed.

  • Page 16: Playback Control Of Video-Cd (Ver. 2.0)

    PLAYBACK CONTROL OF VIDEO-CD (Ver. 2.0) This function is available for Video-CDs, version 2.0 only. “PBC” will light up on the display when a version 2.0 disc is used. The Playback Control differs with each disc. This section gives a basic explanation of Playback Control. Refer to the instruction manual for the disc for details.

  • Page 17: Basic Operation

    Basic operation Note Disc play in the Playback Control mode depends on the data of the disc used. So, according to the contents of disc, the following operating method may not be applied to the disc. Be sure to refer to the instruction manual for the disc. Before operation If “KARAOKE”...

  • Page 18: To Stop Play

    To stop play STOP RETURN Press and hold for more than 2 seconds. If the disc has index numbers Pressing the INDEX button once or more searches for and select any index number. Play starts from the point of selected index number. INDEX To return to a previous screen mode during play...

  • Page 19: Notes About The Remote Control Transmitter

    NOTES ABOUT THE REMOTE CONTROL TRANSMITTER Battery installation Battery replacement If you find that the remote control transmitter must be used closer to the main unit, the batteries are weak. Replace both batteries with new ones. Notes Use only AA, R6, UM-3 batteries for replacement. Be sure polarities are correct.

  • Page 20: Troubleshooting

    If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and contact your authorized YAMAHA dealer or service center for help. SYMPTOM This unit does not switch ON when the POWER switch is pressed.
