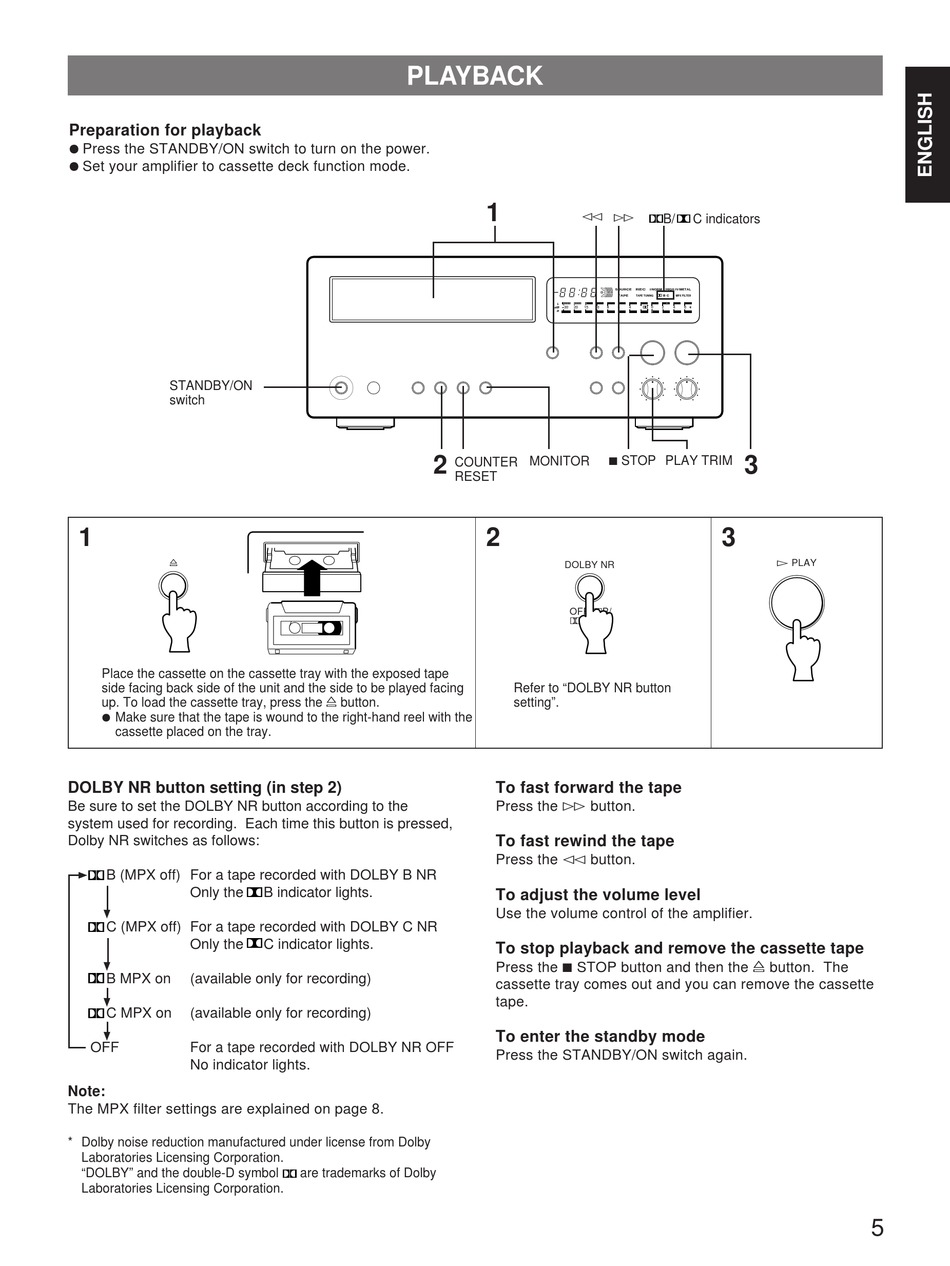

Preparation for playback
¶ Press the STANDBY/ON switch to turn on the power.
¶ Set your amplifier to cassette deck function mode.
STANDBY/ON
switch
1
)
Place the cassette on the cassette tray with the exposed tape
side facing back side of the unit and the side to be played facing
up. To load the cassette tray, press the ) button.
¶ Make sure that the tape is wound to the right-hand reel with the
cassette placed on the tray.
DOLBY NR button setting (in step 2)
Be sure to set the DOLBY NR button according to the
system used for recording. Each time this button is pressed,
Dolby NR switches as follows:
B (MPX off) For a tape recorded with DOLBY B NR
3
Only the
C (MPX off) For a tape recorded with DOLBY C NR
Only the
B MPX on (available only for recording)
C MPX on (available only for recording)
OFF For a tape recorded with DOLBY NR OFF
No indicator lights.
Note:
The MPX filter settings are explained on page 8.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol
Laboratories Licensing Corporation.

PLAYBACK

2
B indicator lights.
C indicator lights.
are trademarks of Dolby
1
! ⁄
SOURCE
TAPE
L
dB 30 20 15 10 8 6 4
R
7 STOP
MONITOR
COUNTER
RESET
2
DOLBY NR
OFF/ŸB/
ŸC/MPX
Refer to "DOLBY NR button
setting".
To fast forward the tape
Press the ⁄ button.
To fast rewind the tape
Press the ! button.
To adjust the volume level
Use the volume control of the amplifier.
To stop playback and remove the cassette tape
Press the 7 STOP button and then the ) button. The
cassette tray comes out and you can remove the cassette
tape.
To enter the standby mode
Press the STANDBY/ON switch again.
B/ C indicators
REC I/NORM II/HIGH IV/METAL
Ÿ
TAPE TUNING B C MPX FILTER
Ÿ
0 2 4 6
3
PLAY TRIM
3
‹ PLAY
5
