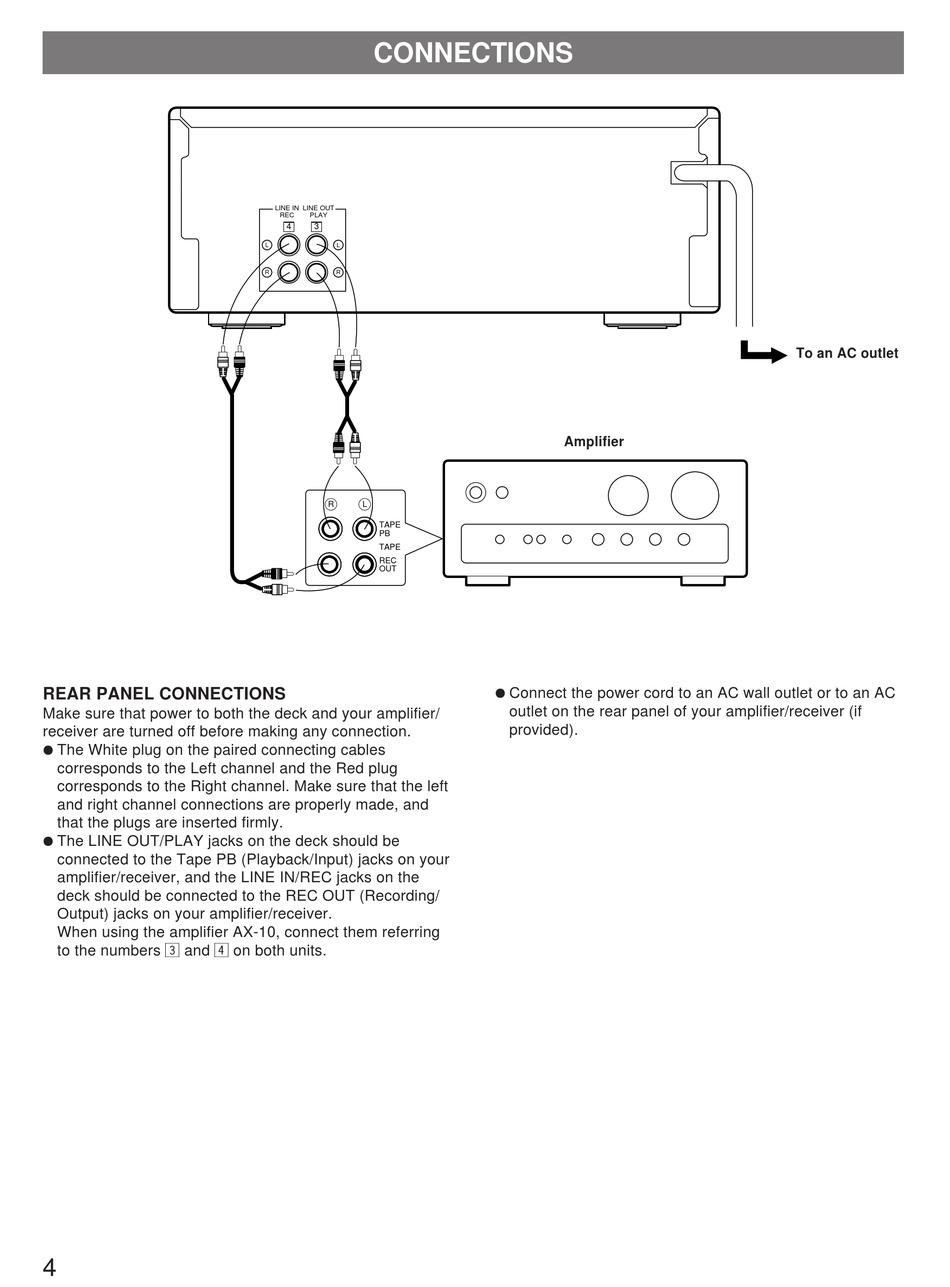

REAR PANEL CONNECTIONS
Make sure that power to both the deck and your amplifier/
receiver are turned off before making any connection.
¶ The White plug on the paired connecting cables
corresponds to the Left channel and the Red plug
corresponds to the Right channel. Make sure that the left
and right channel connections are properly made, and
that the plugs are inserted firmly.
¶ The LINE OUT/PLAY jacks on the deck should be
connected to the Tape PB (Playback/Input) jacks on your
amplifier/receiver, and the LINE IN/REC jacks on the
deck should be connected to the REC OUT (Recording/
Output) jacks on your amplifier/receiver.
When using the amplifier AX-10, connect them referring
to the numbers 3 and 4 on both units.
4

CONNECTIONS

LINE IN LINE OUT
REC PLAY
4 3
L L
R R
R L
TAPE
PB
TAPE
REC
OUT
Amplifier
¶ Connect the power cord to an AC wall outlet or to an AC
outlet on the rear panel of your amplifier/receiver (if
provided).
To an AC outlet
