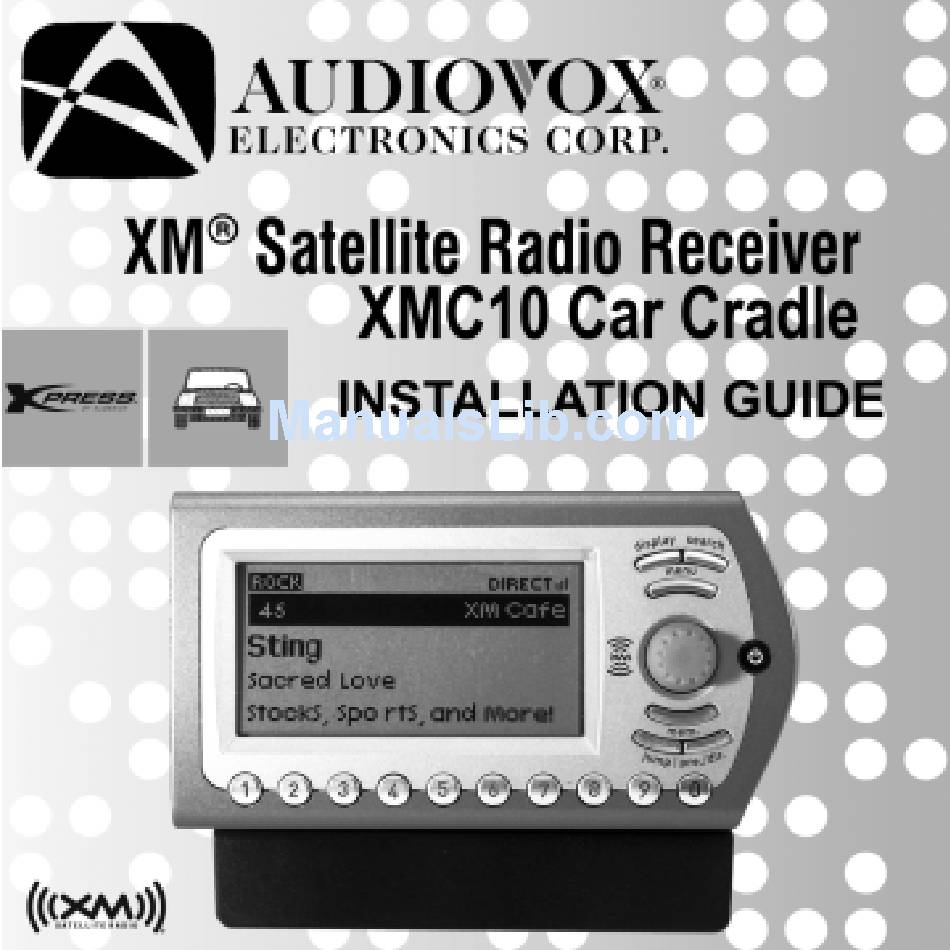

XM Satellite Radio XMC10 Installation Manual

Xm satellite radio installation guide satellite radio receiver xmc10
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for XM Satellite Radio XMC10

Summary of Contents for XM Satellite Radio XMC10

  • Page 2: Table Of Contents

    Table of Contents Congratulations ... 3 FCC Information ... 4 Cautions and Warnings ... 5 Contents XMC10 ... 6 Accessory Kit ... 7 Installation/Wiring Precautions ... 8 Setting Up and Installing Your Kit ... 9 Cabling Interconnections ... 9 Installing the Cradle Mount Base Assembly ... 9 Interconnect Diagram ...

  • Page 3: Congratulations

    Congratulations Thank you for purchasing the Audiovox Xpress XM are one step closer to experiencing the latest innovation in XM ® Radio. XM Satellite Radio will revolutionize your vehicle or in-home entertainment. ® features over 170 digital channels — the most commercial-free music, over 30 channels of news, sports, talk and entertainment, over 20 dedicated channels of XM play-list in the industry with access to over 2 million titles!

  • Page 4: Fcc Information

    The user is cautioned that changes or modifications not expressly approved by XM Satellite Radio, Inc. can void the user’s authority to operate this device. Please note that the cables that have been supplied with your XMC10 car cradle are supplied with permanently attached ferrite beads. It is the responsibility of the user to use the cable with the ferrite beads.

  • Page 5: Cautions And Warnings

    Cautions and Warnings 1. Do not install the XMC10 car cradle in a position that hinders your view through the windshield, or obstructs viewing of the dashboard indicators and displays. 2. Do not install the unit where it may obstruct the operation or deployment of safety devices, such as airbags, etc.

  • Page 6: Contents Xmc10

    Contents XMC10 Install Manual Swivel Bracket 1 pc. Antenna 1 pc. Cradle XMC10 1 pc. 12 Volt-to-5 Volt DC Power Adapter 1 pc.

  • Page 7: Accessory Kit

    Contents XMC10 (Cont) CLA Female Socket 1 pc. ACCESSORY KIT Alcohol Cleaning Pad, Surface Cleaning Pad, Instruction Sheet, Antenna Cable Exit Plug OPTIONAL Audio Cable (P/N SAT-RCA) Cassette Adapter 1pc. FM Direct Adapter (P/N XMFM-1)

  • Page 8: Installation/Wiring Precautions

    7. Use only the 12 Volt-to-5 Volt DC Power Adapter supplied. Use of an alternative power adapter may damage the Xpress XM the XMC10 cradle. CAUTION: You could drain the vehicle battery if the DC power adapter remains plugged in after the ignition is turned off.

  • Page 9: Setting Up And Installing Your Kit

    Setting Up and Installing Your Kit NOTE: The XM signal can be received and processed virtually anywhere as long as there are no obvious satellite signal obstructions such as nearby buildings, high terrain, parking garages or tunnels. 1. Cabling Interconnections You can begin to enjoy XM ®...

  • Page 10: Interconnect Diagram

    Interconnect Diagram NOTE: 1. IF THE XMC10 IS INSTALLED USING THE OPTIONAL XMFM-1 FM DIRECT ADAPTER, DO NOT CONNECT AN AUDIO CABLE TO THE LINE OUT CONNECTOR OF THE CRADLE. 2. THE FM TRANSMITTER OPTION MUST BE SET TO ”FM ON” IN THE XPRESS XM USER MENU.
  • Page 11 Interconnect Diagram (Cont) XMC10 CRADLE (REAR VIEW) TO VEHICLE RADIO ANTENNA JACK OPTIONAL FM DIRECT (PURCHASED SEPARATELY) OPTIONAL SAT-RCA AUDIO CABLE (PURCHASED SEPARATELY) ADAPTER XMFM-1 (CONNECT TO AUXILIARY AUDIO INPUTS ON VEHICLE HEAD UNIT.) XM ANTENNA XMC10 CRADLE (RIGHT SIDE VIEW)
  • Page 12 CAUTION: Do not install the swivel bracket on a leather or fabric surface, or in a position that could impair your vision, block air bag(s) or obstruct vehicle dashboard controls and/or radio CD/cassette operational displays. NOTE: The adhesive backing on the bracket will not permit easy repositioning once it has been mated to the surface;...
  • Page 13 Use appropriate sheet metal or machine screws for this purpose. To mount the XMC10 cradle atop the swivel bracket, line up the slot at the rear of the cradle with the bracket retainer tab, and slide the cradle down so that the slot and tab mesh together in a locked position.
  • Page 14 VERTICAL MOUNTING CONFIGURATION SWIVEL ADJUSTMENT SCREW PLASTIC LINER AND ADHESIVE BACKING SIDE (HORIZONTAL) MOUNTING CONFIGURATION XMC10 CRADLE ASSEMBLY S W I V E L SCREW HOLES (2) BRACKET FOR DIRECT HARD MOUNTING...

  • Page 15: Using Other Manufacturer's Mounts

    3. Using Other Manufacturer’s Mounts The XMC10 Cradle can also be installed using other manufacturer’s mounts; the mounting plate provisions on the rear and bottom of thecradle provide you with two mounting options within the vehicle using various vehicle-specific aftermarket brackets.
  • Page 16 ® Xpress XM RECEIVER REAR VIEW CRADLE CONNECTOR FRONT VIEW GUIDE PIN RECEIVER NOTCH Xpress XM RECEIVER SYSTEM CONNECTOR RAISED DETENT XMC10 SYSTEM CONNECTOR ®...

  • Page 17: Connection Options

    The Xpress Receiver and Cradle provide an audio output signal in three ways: a. FM Wireless Transmitter - When using the XMC10 cradle with the wireless FM transmitter option, the XM audio signal can be received through your vehicle radio on selectable FM frequencies using the menu options included in your Xpress Receiver.
  • Page 18 (see chart below). TO VEHICLE RADIO ANTENNA JACK OPTIONAL FM DIRECT ADAPTER XMFM-1 (PURCHASED SEPARATELY) XMC10 CRADLE (RIGHT SIDE VIEW) OPTIONAL SAT-RCA AUDIO CABLE (PURCHASED SEPARATELY) (CONNECT TO AUXILIARY AUDIO INPUTSON VEHICLE HEAD UNIT.)
  • Page 19 Xpress Cassette Adapter Installation. Installation is simple. 1.) Plug the end jack (1) into the XM7 Xpress Car Cradle’s audio output (2). 2.) Insert the cassette adapter (3) in the vehicles in-dash cassette slot (4).

  • Page 20: Installation Guidelines

    6. Installation Guidelines IMPORTANT: For best wireless FM Modulator performance, you must locate the satellite radio antenna in a location that is in close proximity to the vehicle’s FM antenna. For example, with reference to the adjacent illustration, if your FM antenna is located on a rear fender or top of the roof, mount the XM antenna near the rear window location (option 1).
  • Page 21 OPTION 1 KEEP EXCESS CABLE UNDER OR BEHIND THE DASHBOARD b. When routing the antenna cable along the windshield or rear window, tuck the antenna cable under the window seal to maintain a professional looking installation and to avoid loose wires on the exterior of the vehicle which are susceptible to damage.
  • Page 22 f. For option 2 and front mounting locations, route the cable along the door jam and into the vehicle as shown. Route the cable across the weather seal near the bottom of the door to reduce water leaks. Step 2. Be sure to locate your car cradle and receiver below the top of the dash in your vehicle to keep the product within easy reach while driving.
  • Page 23 Step 3. Once you have plugged the power and antenna jacks into the car cradle, use the included cable organizer as shown in the illustration at right to improve the overall appearance of the installation. Step 4. Re-use the cable twist ties that were provided with the power adapter and car antenna cables and always...
  • Page 24 For example, secure the excess cable up under your dash board, between the seat and the console, or on the floor under a seat or floor mat. This will help to prevent the excess cable from interfer ing with the everyday use of your vehicle, improve the appearance of the installation, and avoid any undesirable accidental damage to the cables that might result in loss of power or satellite signal.
  • Page 25 NOTES...

  • Page 26: Warranty

    12 MONTH LIMITED WARRANTY AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 27 THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
  • Page 28 © 2006 Audiovox Electronics Corporation 128-7472D...
