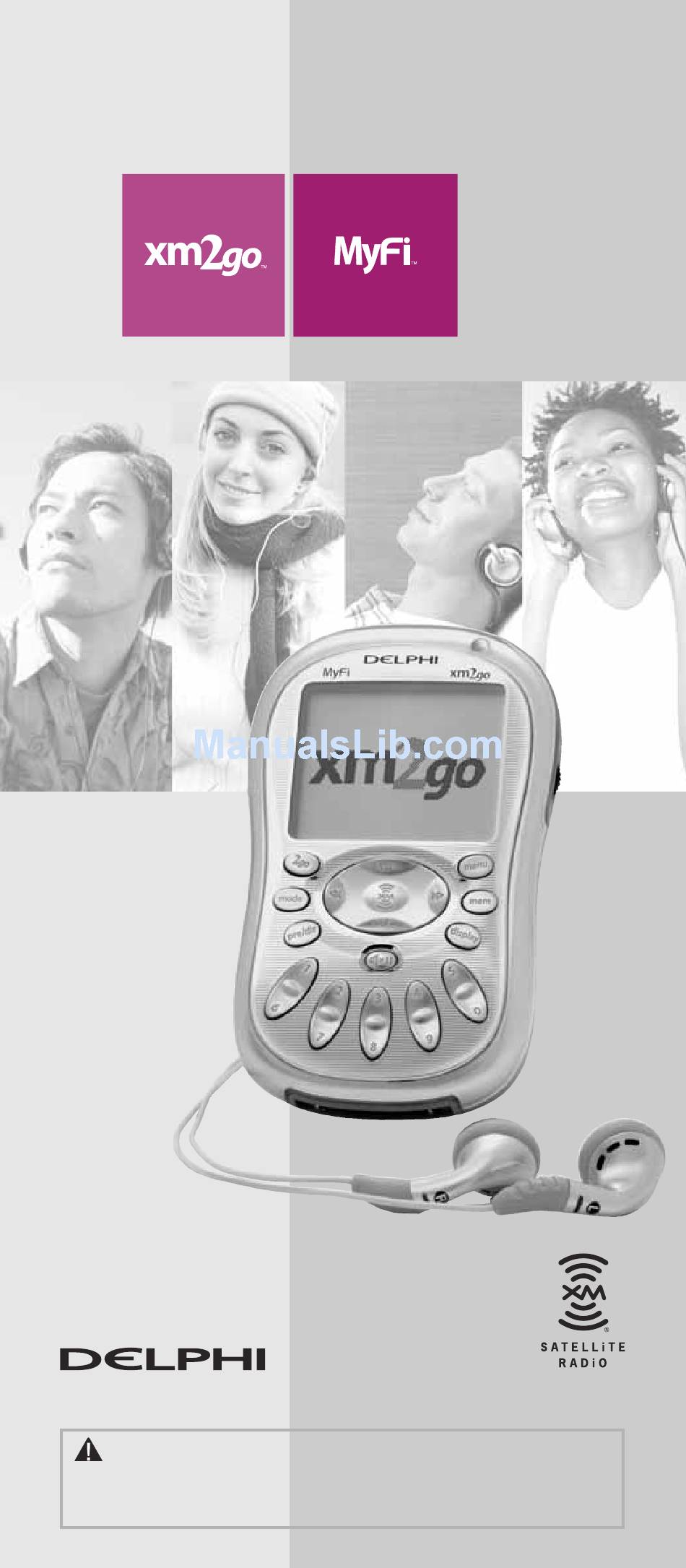

Satellite Radio Receiver · User Guide
Model SA10113
Warning: This manual contains important safety and operating information.
Please read, understand, and follow the instructions in this manual. Failure to do
so could result in personal injury, death, and/or damage to your MyFi receiver,
accessories, and/or to your vehicle or other property.
Advertisement
Table of Contents
Related Manuals for XM Satellite Radio SA10113
Summary of Contents for XM Satellite Radio SA10113
- Page 1 Satellite Radio Receiver · User Guide Model SA10113 Warning: This manual contains important safety and operating information. Please read, understand, and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or damage to your MyFi receiver,...
- Page 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The Delphi XM MyFi Satellite Radio Receiver incorporates an FM transmitter and is therefore classified as an intentional transmitter.
-
Page 3: Table Of Contents
Table of Contents A Brief History ....... 4 About Delphi....... . 5 About XM . -
Page 4: A Brief History
A Brief History Ever since XM Satellite Radio signed up its first subscriber in 2001, Delphi and XM have been working constantly to create the best satellite radio receiver. We imagined a radio that works not only in a vehicle, a home, or an office, but something you can take with you virtually anywhere you go. -
Page 5: About Delphi
About Delphi Delphi is a worldwide leader in mobile electronics, vehicle components, and audio technology. Delphi created the first in-dash car radio in 1936 and continues its strong tradition of innovation in the audio industry. Now Delphi technology has helped make satellite radio a reality, and Delphi continues to expand its in-vehicle and consumer electronics technologies. -
Page 6: Let's Get Started
Let’s Get Started First, some important reminders We know you’re eager to turn on your brand new MyFi and listen to XM. Please take a moment to remember the following: Warning: This manual contains important safety and operating information. Please read, understand, and follow the instructions in this manual. - Page 7 Warning: If you use your MyFi in a moving vehicle or watercraft, keep your eyes on the road or water, and hands on the wheel or controls. Not doing so could result in personal injury, death, and/or damage to your MyFi receiver, accessories, and/or to your vehicle or other property.
-
Page 8: Remote Control
REMOTE CONTROL search button – search by scanning presets or by scanning all channels 2go button – store up to five hours of XM programming jump button – switch to previous channel arrow buttons – view channel categories (“LIVE”); skip to previous or next song (“MY XM”) preset/direct button –... -
Page 9: On The Flip Side
power button – press to turn your MyFi on and off mode button – switch between “LIVE” XM and “MY XM” playback channel buttons – preview channels (“LIVE”); preview songs (“MY XM”) menu button – customize options and access advanced features XM button –... -
Page 10: What's In The Box
What’s in the box? Your MyFi includes these components: MyFi receiver belt clip/stand remote control wearable antenna with two clip options home stand protective case home antenna home power audio cable adaptor... - Page 11 rechargeable lithium ion battery headphones vehicle antenna cassette adaptor vehicle cradle vehicle power adaptor swivel mount (with extra adhesive pad) flush mount vent mount cleaning kit Velcro ® pads...
-
Page 12: Setting Up
Setting Up Assembly Insert the battery and assemble your MyFi and its home stand as shown; plug the AC adaptor into an outlet. Let the battery charge for at least three hours. Insert battery Important! You will need to fully charge your MyFi battery for at least three hours to have sufficient battery power for portable use. -
Page 13: Connecting To A Stereo
Connecting to a stereo Plug the AC adaptor into an outlet. Connect the home antenna and connect the line out to either your home stereo or powered (PC type) speakers. 5V DC Receiving the XM signal Turn your MyFi on by pressing the power button. You should be able to hear channel 1, the XM Preview Channel. -
Page 14: Activating Your Myfi
MyFi’s package and under the battery.) Write the ID here: The XM Radio ID does not use the letters I, O, S, and F. Activate your XM Satellite Radio service by contacting XM at http://activate.xmradio.com or by calling 1.800.XM.RADIO (1.800.967.2346). You will need the XM Radio ID and a major credit card. -
Page 15: Listening To Xm
Listening To XM Changing channels 1. Rotate the dial to preview a list of channels. 2. When your desired channel is highlighted, press the dial in to select that channel. -OR- 1. Press the “pre/dir” button until the word “DIRECT” flashes in the display. 2. -
Page 16: Saving Favorite Channels Into Presets
Saving favorite channels into presets Your MyFi can store up to 30 of your favorite channels as presets. The presets are organized into three banks (A, B, or C) that each contain 10 presets. TO SAVE A CHANNEL INTO A PRESET: 1. -
Page 17: Storing Song Information In Memory
Storing song information in memory Ever hear a song and later forget the artist’s name or song title? Let your MyFi remember for you. TO STORE A SONG’S INFORMATION IN MEMORY: Press and release the “mem” button while the song or program is playing. -
Page 18: My Xm
My XM 2go: Store and play back Your MyFi lets you store up to five hours of programming and play it back at a later time or where live signal reception is limited. Listen to XM wherever you are, whenever you prefer. TO STORE BY PRESSING ONE BUTTON: 1. -
Page 19: Scheduling A Session
Scheduling a session You can set your MyFi to store XM programming at a specific time. 1. Press the “menu” button and use the dial to select “MY XM.” 2. Select “Schedule MY XM.” 3. You can schedule up to two sessions. Choose “Session 1”... -
Page 20: Personalizing Your Myfi
Personalizing Your MyFi You can easily adapt your MyFi to the way you listen and use the satellite radio. You can change how the display appears, track stocks and other information, adjust your MyFi’s audio output, and change how you use the display. Simply press the “menu”... -
Page 21: Changing Display Information
TO CHANGE THE AUDIO LEVEL of the cassette adaptor, FM transmitter, or line-level audio output: 1. Press the “menu” button and use the dial to select “Set Audio.” 2. Select “Line Out Level.” Your MyFi can detect when you’re using the FM transmitter or cassette adaptor and will make the appropriate changes to the settings. - Page 22 TO CHANGE THE APPEARANCE OF THE SCREEN, press the “menu” button and select “Change Display.” You can change the brightness and contrast, set how long the backlight remains on, flip the screen between positive (black characters on white background) or negative (white characters on black background) modes, and set the way the Stock Ticker and Info Extras appear on the screen.
-
Page 23: Make Any Fm Radio An Xm Radio
Make any FM radio an XM radio Your MyFi contains a built-in FM transmitter that sends the XM audio signal to any nearby FM radio—home stereo, boombox, car radio, or marine radio. 1. Turn on your FM radio and turn off your MyFi. Unplug any headphone or audio cable from your MyFi’s headphone jack and any audio cables connected to the home stand or vehicle cradle. -
Page 24: Stock Ticker
“Erase Stocks.” Follow the directions on your MyFi’s screen. Info Extras XM Satellite Radio will broadcast information such as sports scores and other features from time to time. To see what’s available, press the “menu” button and select “Info Extras.” Simply follow the instructions on the display to select which Info Extras you’re interested in. -
Page 25: Direct Tune: Select Channels Faster
Direct Tune: Select channels faster Normally as you rotate the dial, you can preview what’s playing on other XM channels before you push the dial in to select a channel. To automatically tune to the channel without pressing the dial, you can set the following option: 1. -
Page 26: Skipping Channels
Skipping channels You can simplify the list of channels that you see when you rotate the dial. To skip over a channel: 1. Use the “menu” button and dial to select “Channel Access.” 2. Choose the “Channel Skip/Add” option. 3. You will see a list of channels. -
Page 27: Using Myfi At Home
Using MyFi At Home Turn off your MyFi and your audio system. Connect your MyFi to your audio system in either way illustrated below. If you use the home stand and connect it to a stereo, you must plug in the AC adaptor and home antenna. Your MyFi’s audio output will not work if these are not connected. -
Page 28: Aiming The Home Antenna
TIP: If you experience difficulty obtaining a strong antenna signal based on your particular home setup conditions, a home antenna extension cable (model XMAC1000, sold separately) was designed specifically to help you and is available at www.xmradio.com along with many other cool XM Satellite Radio accessories. -
Page 29: Using Myfi In Your Vehicle
Using MyFi In Your Vehicle Because every vehicle is different, we can only provide some general guidelines. If you need help, consult a professional installer. 1. Decide which method (cassette adaptor, wireless FM transmitter, or wired connection) is best for your vehicle and location. - Page 30 For a neat, fully integrated installation, use the DELPHI FM DIRECT ADAPTOR (model SA10112, sold separately). We recommend that you consult a professional installer. The WIRELESS FM TRANSMITTER is the easiest and quickest way to hear XM programming in your vehicle. Simply set your FM radio and your MyFi to the same frequency.
-
Page 31: Placing The Antenna
Placing the antenna Your XM antenna should be mounted on the vehicle’s metallic roof, at least 6" from any window or sunroof. It can be placed in the front, middle, or rear of the roof. (Two optional locations) Avoid crimping, twisting, or chafing the XM antenna cable. -
Page 32: Mounting Your Myfi On The Dash
Mounting your MyFi on the dash We’ve included three types of mounts to help you install your MyFi in your vehicle’s interior. FLUSH MOUNT: Attach the included Velcro pads or adhesive pad to the ® back of your MyFi’s vehicle cradle. Stick the vehicle cradle onto a flat surface in your vehicle, preparing the surface as described below. -
Page 33: Using Myfi On The Go
Using MyFi On The Go Your MyFi contains a built-in antenna that works best when your MyFi receiver is upright. Use the belt clip to hold your MyFi in the proper position; laying your MyFi down flat may weaken reception. TIP: If you carry your MyFi in a bag or use it while exercising, you can lock the buttons and dial and prevent something from accidentally pressing the... -
Page 34: Signal Reception Guidelines
Signal reception guidelines Your MyFi’s antenna should have an unobstructed view of the XM satellites in the southern sky. In large cities, XM also has a network of ground repeaters to help increase the signal coverage. -
Page 35: Other Things You Should Know
Other Things You Should Know Care You should be able to take your MyFi along with you during most of your daily activities. Still, you should remember: • Your MyFi is not waterproof. Avoid splashing it with liquids and never submerge it. •... -
Page 36: Accessories (Sold Separately)
TIP: Both the home and vehicle power adaptors can be used independently from the home stand and vehicle cradle, plugging directly into the MyFi power connector. This feature provides a convenient alternative for battery charging and powered operation when traveling or for using your MyFi away from home. -
Page 37: Troubleshooting
Tune to another channel. This message should disappear in a few seconds in good signal conditions. Simply wait a few seconds until the update is done. To receive that channel, contact XM Satellite Radio at 1.800.967.2346. - Page 38 Verify that you are authorized to receive that channel as part of your XM subscription, and that you have not asked XM Satellite Radio to block that channel. Nothing is wrong with your MyFi. That information may be in the process of being updated.
- Page 39 If this happens: Your MyFi’s controls do not respond. The display does not change or the backlight does not turn on or turn off. Battery level meter doesn’t match the charging or expected playback time. You should: Check whether the lock indicator is being displayed.
-
Page 40: Contacting Technical Support
Contacting technical support and customer service For additional information in solving problems with your MyFi, contact Delphi Technical Support at 1.877.GO.DELPHI (1.877.463.3574) 8:00 a.m. to 8:00 p.m. Eastern Time, Monday—Friday. Technical Support is also available at www.delphi.com. Technical information DIMENSIONS MyFi receiver: 4.5 in. -
Page 41: Warranty
Warranty Delphi limited consumer warranty Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite Radio Products sold by Delphi (each “Product”) to be free of defects in material and workmanship, subject to the following conditions: Subject to express limitations with respect to the battery and ear bud com- ponents of any Product, the duration of Delphi’s warranty with respect to each Product is limited to one (1) year from the date of sale to the original consumer purchaser. -
Page 42: How You (The Customer) Can Get Service
How you (the Customer) can get service To obtain warranty service during the first thirty (30) days after the date of purchase, you must return the defective Product with the original receipt to the original place of purchase. To obtain warranty service during the first thirty (30) days for Products purchased from www.delphi.com and for all Products for the remainder of the limited warranty period, you must contact Delphi by phone at 1.877.GO DELPHI (1.877.463.3574) or by fax at... - Page 44 Printed on Recycled Paper ©2004 Delphi Corporation. All rights reserved. DPSS-04-E-076 MyFi is a registered trademark of Delphi Corporation. The XM name, XM2Go, TuneSelect, and related logos are trademarks of XM Satellite Radio Inc. Velcro is a registered trademark of Velcro Industries B.V.
