XL-2031IDW
USER S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-2031IDW and is the answer not in the manual?

Questions and answers

Summary of Contents for Xingtel Xiamen Electronics XL-2031IDW

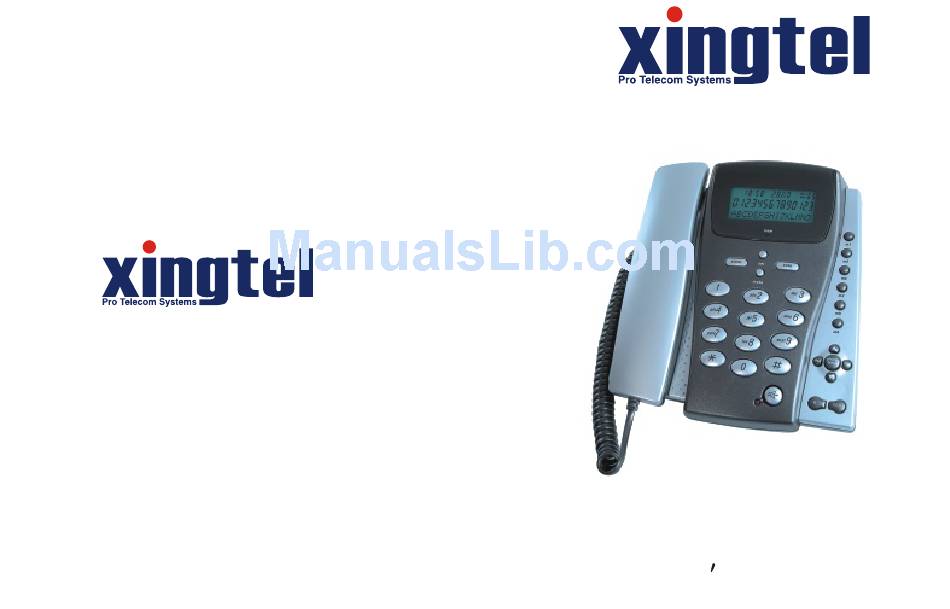

  • Page 1 XL-2031IDW USER S MANUAL...

  • Page 2: Main Diagram

    MAIN DIAGRAM Hook Switch Handset store Speaker pqrs Coil Cord Line Cord Battery Compartment Jack For Coil Cord Speaker Ringer Volume Volume (HI/LO) (HI/LO) Switch Switch LCD Display BLANK OR FAINT NEW Call and SCREEN NEW Message Indicator CALLER ID auto WILL NOT WORK...

  • Page 3: Table Of Contents

    Select the caller that you want to call back by pressing button in the on- hook state. Pick up the handset or press button,then the number will be dialled out automatically. 4. Save the Caller ID records Your phone stores minimum 76 call records before the memory becomes full.

  • Page 4: Feature List

    FEATURE LIST 1. FSK + DTMF dual system caller ID 2. Stores minimum 76 incoming calls name & number, date & time 3. Stores up to 10 outgoing calls number 4. Stores up to 70 names & numbers in phone book 5.

  • Page 5: Caller Id On Call Waiting

    CALLER ID ON CALL WAITING When you subscribe to Call Waiting service from your local telephone company, this telephone will display the name and number of the second caller while you are having a conversation. Caller two's information Caller ID info displayed is displayed 436-1234 Caller 1...

  • Page 6: Introduction

    INTRODUCTION CHECK THE CONTENTS OF THE BOX Box should contain: Handset with handset cord and phone base Telephone line cord 4 AA size 1.5V batteries User's manual Adapter BATTERY INSTALLATION The Caller ID phone requires four 1.5V AA size batteries for LCD display. 1.

  • Page 7: Receiving Call Records

    RECEIVING CALL RECORDS A caller ID record consists of the following information: 9:52 9/12 The total number of new calls Time and Date TOTAL 04 MON Total number of calls and the week day 9:52 9/12 CALL # The serial number of caller list 12274612345 JOHN SMITH Caller's number...

  • Page 8: Caller Id System Operations

    Dial button - Refer to " CALLER ID SYSTEM OPERATIONS" , section " Using the call back feature . " Del button - When the number you want to remove displayed on the LCD, press the del button, the LCD will show DEL? Press del button again to remove this number.

  • Page 9: Function Operations

    OPERATION ABOUT THE STORED NUMBERS Two -touch memory a. To store number You can store number to the two-touch memory in either on-hook or off-hook state. Press the store button and the LCD shows - - >. Then enter the telephone number you want to store. Press the store button once again and the LCD shows - - >?.
  • Page 10 When the setting is completed, press and hold dial button (or press phone book button once) to store the records and meanwhile enter the next number presetting. b. To review the number and name in phone book Press dial button to select the phonebook menu and the LCD will show: REVIEW.
  • Page 11 7. AREA & LONG DISTANCE CODE SETTING (Only under "English1", "English2", "Greek", "Austral", "Czech", "Slovak" and "Turkish" language and in on-hook state, the setting can be done.) When you use this phone for the first time, or move to an area that has different area code, you must enter your area code.
  • Page 12 2. SET THE RING Press dial button when the LCD show SET RING to enter the setting, or t button to select the sub-menu. SET RING RING TYPE RING VOLUME Select the RING TYPE and press dial button to confirm. or t button to select the desired ringer melody(up to 11 kinds) or standard ring.
