Sonic-Pro
1

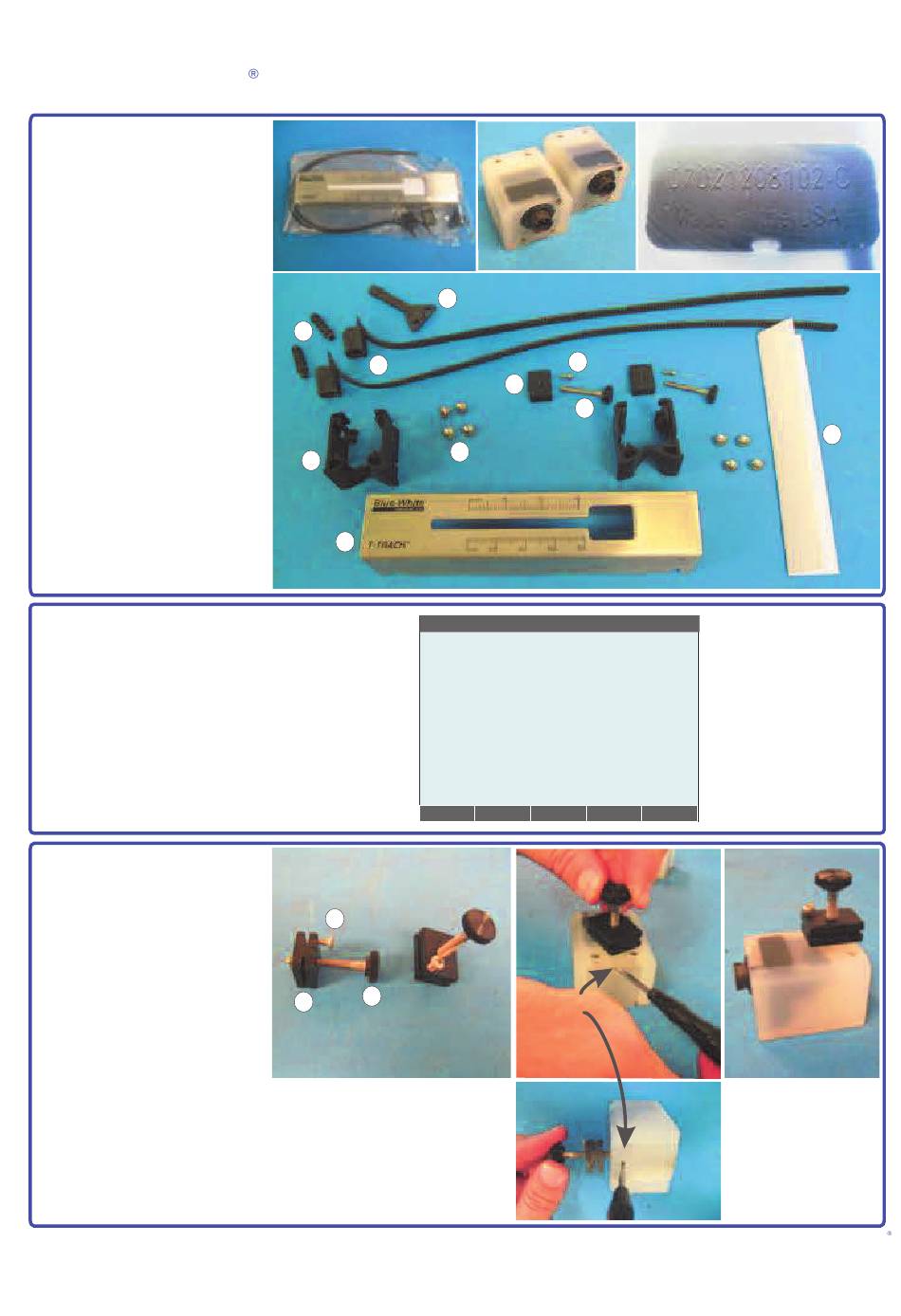

Parts Locator
Locate the T-Track assembly
package and your Transducer
set. The package should
contain the following items:
1) Retainer slide nut (2)
2) Positioning set screw (2)
3) Tensioning thumb screw (2)
4) T-Track cover
5) V-Block (2)
6) V-Block screws (8)
7) Pipe clamp (2)
8) Pipe clamp screws (2)
9) Pipe clamp wrench (1)
10) Installation Guide (1)
Note the serial number
location on the transducer.
2
Determine Separation
Distance
If not already done, configure
the meter for the pipe
application. The meter's
display screen will display the
transducer separation
distance.
3
Install Retainer Slide
Nut Assembly
Install the Positioning Set
Screws (2) and the
Tensioning Thumb Screws
(3) into the Retainer Slide
Nuts (1).
There is a captured nut
located inside transducer
housing. While holding the
captured nut with a small
screwdriver, thread the thumb
screw into the captured nut.
Do not over-tighten.
T-Track Installation Guide -
9
8
7
5
4
2 2
3
1
2
2
1
3
6
V-Mount method
10
Sonic-Pro
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue-White Sonic-Pro T-Track
Summary of Contents for Blue-White Sonic-Pro T-Track
- Page 1 Sonic-Pro T-Track Installation Guide - V-Mount method Parts Locator Locate the T-Track assembly package and your Transducer set. The package should contain the following items: 1) Retainer slide nut (2) 2) Positioning set screw (2) 3) Tensioning thumb screw (2) 4) T-Track cover 5) V-Block (2) 6) V-Block screws (8)
- Page 2 Install the V-Blocks Position the transducer cable through the V-Block (5). Install the V-Block into the T- Track Cover (4). Install the 4 V-Block Screws (6). Repeat this process for the second V-Block. Install and Position the Transducers in the T-Track Insert the first transducer’s Retainer Slide Nut (1) through the square opening in...
- Page 3 Adjust the Tensioning Thumb Screws Adjust the Tensioning Thumb Screws (2) counter- clockwise so that the transducers are fully inside the T-Track Cover (4) as shown. Apply Acoustic Coupling Material An acoustic coupling material must be placed between the transducer and the pipe surface at the point where the sound waves enter the pipe.
- Page 4 Install the T-Track on the Pipe Position the T-Track on the side of the pipe - do not install on the top or bottom of the pipe. Insert the first Pipe Clamp (7) into the slot in the V- Block (5) and tighten. Ensure the transducers are fully adjusted up into the T-Track Cover (4).
