Summary of Contents for SAEVO 40L
-
Page 2: Presentation Of Manual

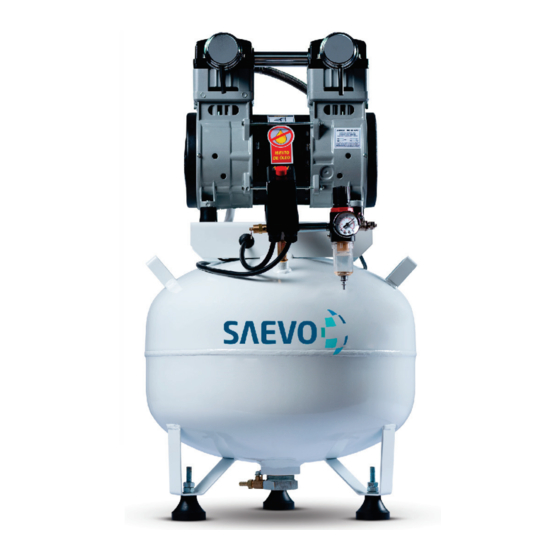

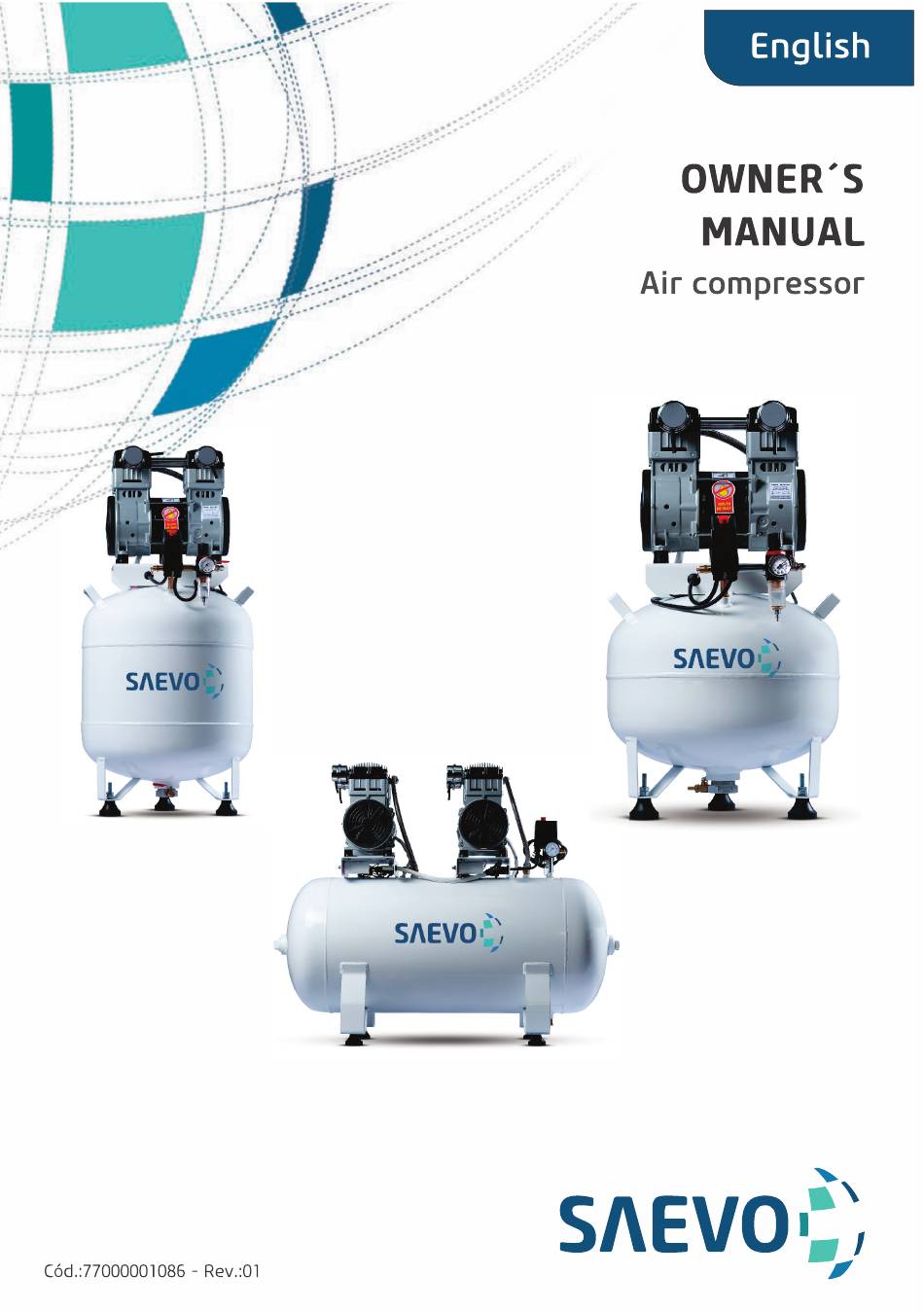

PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Air compressor Models: 40, 65 and 150 Liters Brand: Saevo Manufacturer / Distribuitor: Chiaperini industrial LTDA C.N.P.J. 59.064.766/0001-82 Avenida Professora Luiza Garcia Ribeiro, 130 Santa Rosa de Viterbo – SP – Brasil... - Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 07 TECHNICAL SPECIFICATIONS 09 Dimensions 12 Packing symbols 12 Product symbols 13 INSTALLATION OF EQUIPMENT 14 EQUIPMENT OPERATION 14 Turning on the compressor 15 Compressed air outlet 15 Drainage 16 PRECAUTIONS, RESTRICTIONS AND WARNINGS...
-
Page 4: Identification Of Equipment
IDENTIFICATION OF EQUIPMENT Dear Customer This manual is a general presentation of your product and it will give you important details to help you to solve possible problems. Please, read it and keep this with you. Indication of Equipment This equipment is for dental use use only. It must be operated and utilized by specialized professional (certified professional, according to the legislation of the country) and following the instructions of the manual. -
Page 5: Description Of Equipment
IDENTIFICATION OF EQUIPMENT Principles and fundamentals applied to the product operation All components of the equipment are mounted over the air tank. One or more electric engines trigger the pistons´ system with rings made of non-metallic material resistant to abrasion and high temperatures that are able to operate without lubrication for a long period of time. -
Page 6: Modules, Accessories, Options And Materials Of Con- Sumption
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION 01 - Air tank 07 - Safety valve 02 - Rubber feet 08 - Overload protector 03 - Air intake filter 09 - Register of the outlet pressure 04 - Electric engine 10 - Manometer of the outlet pressure 05 - On - off switch 11 - Outflow rate register... -
Page 7: Technical Specifications
65L 220V~: 6,7 A 150L 220V~: 13,4 A General power and energy consumption 40L 127V~: 1651 VA / 1,65 KW/h 40L 220V~: 1474 VA / 1,47 KW/h 65L 127V~: 1651 VA / 1,65 KW/h 65L 220V~: 1474 VA / 1,47 KW/h... -
Page 8: Other Specifications
Filling Time 40L: 1'53" 65L: 3'32" 150L: 3'52" Theoretical displacement 40l: 283 l/min - 10 cfm 65l: 283 l/min - 10 cfm 150l: 566 l/min - 20 cfm Max pressure 40l: 120 psi - 8,3 bar 65l: 120 psi - 8,3 bar... - Page 9 TECHNICAL SPECIFICATIONS Dimensions 40 LITERS...
- Page 10 TECHNICAL SPECIFICATIONS Dimensions 65 LITERS...
- Page 11 TECHNICAL SPECIFICATIONS Dimensions 150 LITERS...
-
Page 12: Packing Symbols
TECHNICAL SPECIFICATIONS Packing symbols It determines the maximum Packing to be transported and / quantity of boxes which can be or stored avoiding humidity, rains stacked during transportation and and wet floor storage “as per packaging” The packing must be stored and Packing to be transported and / or transported away from direct sun stored with the harrows up... -
Page 13: Installation Of Equipment
TECHNICAL SPECIFICATIONS Product symbols Grounding (at several points of the Turned off position equipment) indicates the condition of being grounded INSTALLATION OF EQUIPMENT The installation of this equipment requires specialized technical assistance (Alliage). These information also make part of the Manual of Installation and Maintenance of the equipment that can be found with the authorized Alliage techician. -
Page 14: Operation Of Equipment
INSTALLATION OF EQUIPMENT Voltage Rated current Circuit breaker 13 A 16 A 127V~ ±10% 220V~ ±10% 6,7 A 10 A Voltage Rated current Circuit breaker 13 A 16 A 127V~ ±10% 220V~ ±10% 6,7 A 10 A 150L Voltage Rated current Circuit breaker 13,4 A 16 A... -
Page 15: Compressed Air Outlet
OPERATION OF EQUIPMENT Compressed air outlet The air pressure on the outlet can be adjusted through the register (09), check the setting on the pressure gauge (10). The air outflow rate can also be adjusted in the register (12). In tandem with the pressure and flow rate registers, there is a filter that removes moisture and impurities remaining in the air, the moisture that is removed from the outlet will get stored in the reservoir (11), to empty it press the pin underneath the reservoir. -
Page 16: Precautions, Restrictions And Warnings
PRECAUTIONS, RESTRICTIONS AND WARNINGS Transportation, storage and operation This equipment must be transported and stored observing the following directions: - Avoid falls and impacts; - Keep it dry, do not expose it to rain, water drops or wet floor; - Keep it away from water and direct sunlight, and in it original wrapping; - Don’t move it over irregular surfaces, protect it from rain and observe the maximum stack quantity specified in the packaging;... -
Page 17: Precautions And Warnings "During The Use" Of Equipment
PRECAUTIONS, RESTRICTIONS AND WARNINGS - This equipment was not planned for use in an environment where vapors, anesthetic mixtures inflammable with air, or oxygen and nitrous oxide can be detected. - Check the voltage of the equipment at the moment of executing the electrical installation. - The equipment must be grounded correctly. -
Page 18: Precautions To Be Adopted Against Foreseeable Or Uncommon Risks, Related To The Deactivation And Abandoning Of Equipment
PRECAUTIONS, RESTRICTIONS AND WARNINGS Manufacturer shall not be responsible for: - Use of the equipment differing from that for which it is intended. - Damages caused to the equipment, the professional and/or the patient by the incorrect installation and erroneous procedures of maintenance, differing from those described in these Instructions for use which come with the equipment or by the incorrect operation of it. -
Page 19: Corrective And Preventive Maintenance And Preservation
CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Additional procedures for reuse The equipment can be reused in undetermined, i.e. unlimited, quantities, only needing to be cleaned and disinfected. Cleaning Important: In order to execute cleaning or any type of maintenance, ensure that the equipment is disconnected from the electrical network. - Page 20 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Corrective Maintenance Alliage states that the supplying of the circuits’ diagram, Part lists or any other information that permits the technical assistance by the user, can be requested, since previously agreed between the buyer and Alliage. Attention In case of the equipment presents any abnormality;...
-
Page 21: Unforeseen Events - Solution Of Problems
UNFORESEEN EVENTS – SOLUTION OF PROBLEMS Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Imprevistos Provável Causa Soluções Problem Probable cause Solution - The compressor does not - Power plug disconnected. -
Page 22: Final Considerations
EQUIPMENT’S WARRANTY This equipment is covered by the warranty terms and norms contained in the Warranty Certificate that accompany the product. FINAL CONSIDERATIONS Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement.
