Xerox DocuColor 12 Specifications

XEROX
DOCUCOLOR 12 PRINTER
SPECIFICATIONS
Print Resolution
Continuous tone 600 x 600 dpi x 8-bit depth maximum
Productivity
A4 (210 x 297mm)
Full colour: 12.5 pages per minute (ppm) from internal trays
Black and white: 50 ppm
A3 (297 x 420mm)
Full colour: 6ppm from internal trays
Black and white: 25 ppm
After power-on, warm-up time: 8 minutes, 20 seconds
First-print-out time: 14.1 seconds (full colour); 5.8 seconds (black and white)
Paper Handling
Maximum image size: A3 (297 x 420mm) full bleed on stock up to 320 x 457mm
(supporting 12.6 x 18" and SRA3); 303 x 438mm (12 x 17.2") maximum print image
Minimum size print: 102 x 152mm (4 x 6")
Paper Supply (standard):
Four paper drawers:
Tray 1: 500 sheets, 64-105gsm (16-28 lb.) paper, A4 (210 x 297mm)
Trays 2-4: 550 sheets each, 64-128gsm (16-32 lb.) paper, customer-adjustable up to
A3 (297 x 420mm). One-sided and two-sided coated stock acceptable within weight
range
Multiple-Sheet Inserter:
Tray 5: 100-sheet maximum when using 80gsm (20 lb.) stock. Accepts up to
250gsm (90 lb. cover and 140 lb. index). Maximum paper size: 320 x 457mm
(supporting 12.6 x 18" and SRA3). One-sided and two-sided coated stock
acceptable within weight range
High-Capacity Feeder (optional):
Tray 6: 2,000 sheets, 64-105gsm (16-28 lb.) paper, A4 (210 x 297mm)
Offsetting Catch Tray (standard): 500-sheet capacity
Automatic Two-Sided Printing (standard):
Automatic trayless (limitless): Up to A3 (297 x 420mm), 64-105gsm (16-28 lb.) paper
Manual: Via Multiple-Sheet Inserter, up to 50 sheets

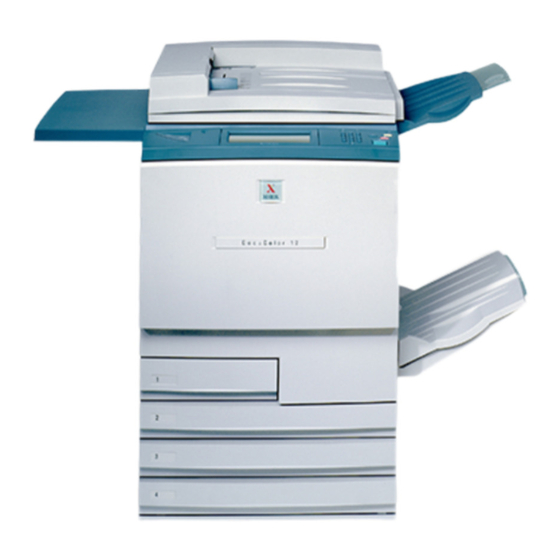

DocuColor 12 Printer DocuColor 12 Printer
with Offsetting Catch Tray with High-Capacity Feeder
XEROX ® , The Document Company ® and the digital X are trademarks of XEROX EUROPE. In support of Xerox's environmental leadership goals, this model adds functions or features to a
previously disassembled model and contains both new components and recycled components that are reconditioned. Whilst this information is correct at the time of going to press, Xerox
Europe reserves the right to change the specifications of the equipment described herein without notice. 3/01 708P86067GBE
Features
Auto tray switching
Auto duplex
A3 (297 x 420mm) full bleed
250gsm (140 lb.) index maximum throughput)
Offsetting Catch Tray
Transparency separators
Energy Star compliant
Left work surface
Options and Accessories
High-Capacity Output Tray: 500-sheet capacity (can be combined with
Mailbox/Sorter)
Mailbox/Sorter: 10 bins, 100 sheets per bin
Right work surface (cannot be used with Mailbox/Sorter or Finisher)
High-Capacity Feeder: 2,000-sheet capacity
Convenience Stapler: 50-sheet capacity
In-Line Stapler/Finisher
Auto colour calibration via densitometer
Network Connectivity Options
Electronics for Imaging Fiery
Splash G Series (available Q2 2001)
Electrical
220-250V, 50/60 Hz, 10-amp power source
Size
Smallest footprint: 620mm W x 788mm D x 987mm H
(24.4" W x 31.0" D x 40.8" H)
Weight: 192kg (423 lb.)
Counterfeit Deterrent Marking System
For more information, contact your Xerox representative, call
0800 787 787, or visit our Web site at www.xerox.co.uk
DocuColor 12 Printer
In-Line Stapler/Finisher
with
AWARD-WINNING DIGITAL COLOUR—
EXCEPTIONAL VALUE
XEROX
DOCUCOLOR 12
PRINTER
