Birlea
Suppliers of Inspiration
IMPORTANT : READ THIS INSTRUCTIONS CAREFULL Y BEFORE ASSEMBLING OR USING YOUR
NEXUS TRIPLE SLEEPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY
DO NOT jump on this bed frame.
WARNING : DO NOT use the bunk bed / high bed if any structural part is broken or missing.
DO NOT use this bed frame unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
WARNING : High beds and the upper bed of bunk beds are not suitable for children under six years due to the risk of injury
from falls.
This bed frame complies to BS EN 747 1&2:2012 + A1:2015
Always follow the manufacturer's instructions.
WARNING : Bunk beds and high beds can present a serious risk of injury from strangulation if not used correctly.
Never attach or hang items to any part of the bunk bed that are not designed to be used with the bed, for example,
but not limited to ropes, strings, cords, hooks, belts and bags.
WARNING: Children can become trapped between the bed and the wall. To avoid risk of serious injuries the
distance between the top safety barrier and the adjoining structure shall not exceed 75mm or shall be more
than 230mm.
WARNING : If this bed is placed on a non-carpeted floor you must place some protection under all legs to
stop the bed from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
CARE & MAINTENANCE
Assemble in the room of use.
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
Recommended size of mattress for top bunk is 3ft x 6ft 3inch.
Recommended size of mattress for bottom bunk is 4ft 6in x 6ft 3inch.
Sticker marking the mattress maximum thickness can be found on the headboard post and mattress being
used do not exceed the arrow on the sticker.
Recommended maximum mattress height for top bunk is 200mm.
Ventilation of the room is necessary in order to keep the humidity low and to prevent mold in and around the bed.
ASSEMBLY INSTRUCTIONS

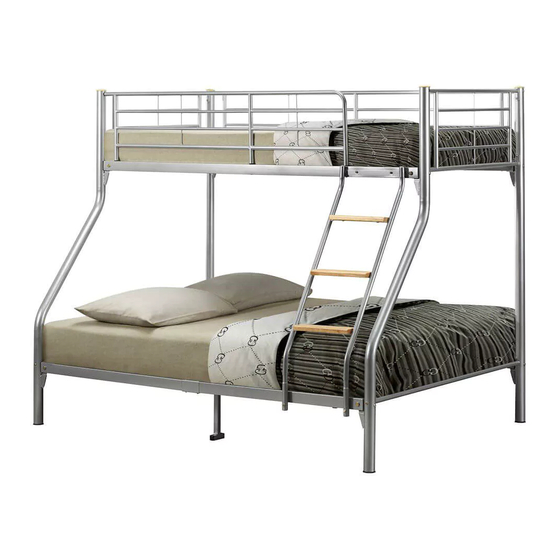

NEXUS TRIPLE SLEEPER
www.birlea.com
Vendor: S000053
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Birlea NEXUS TRIPLE SLEEPER
Summary of Contents for Birlea NEXUS TRIPLE SLEEPER
- Page 1 Birlea Vendor: S000053 Suppliers of Inspiration ASSEMBLY INSTRUCTIONS NEXUS TRIPLE SLEEPER IMPORTANT : READ THIS INSTRUCTIONS CAREFULL Y BEFORE ASSEMBLING OR USING YOUR NEXUS TRIPLE SLEEPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY DO NOT jump on this bed frame.
- Page 2 Vendor: S000053 PART LIST HARDWARE LIST (FOUND IN BOX 2) Part Description Box Qty Part Description Right Post A (Sticker 1) M6 x 16mm JCBC Screw Left Post A M6 x 80mm JCBC Screw Right Post B (Sticker 1) M6 x 60mm JCBC Screw Left Post B M6 Nut Headend Frame...
- Page 3 Vendor: S000053 STEP 2: Join together the Bottom Base Panels (6) with the Center Support (11) using hardware parts (C) and (D), then attach the Base Legs (8) using hardware parts (D), (E) and (F). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Do not tighten these screws until the base leg is assembled...
- Page 4 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on instagram.
