- Page 1 O O P P E E R R A A T T O O R R M M A A N N U U A A L L Initial issue: 02/03 Latest revision: 10/03 9.133702...
- Page 2 This page is intentionally left blank. Operator Manual Page 9 - 2 Initial issue: 02/03 Latest revision: 10/03...
-
Page 3: Table Of Contents
INTRODUCTION DESCRIPTION OF THE PROCESS ......6 DESCRIPTION OF THE MACHINE 1 - Features description .........7 2 - Technical specifications JAM DETECTION . - Page 4 Operator Manual Page 9 - 4 This page is intentionally left blank. Initial issue: 02/03 Latest revision: 10/03...
-
Page 5: Introduction

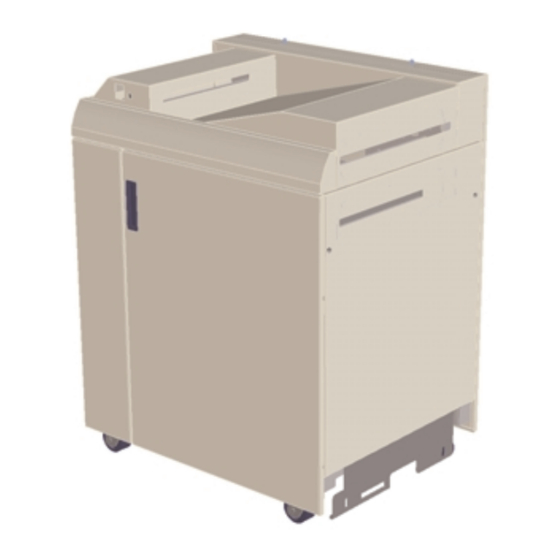

This manual provides informations for operating the Welcome to the Xerox Interface Module. This product is an interface for the DocuTech 120 prin- ter. The XIM will enable in line finishing by receiving sheets from the host printer and sendinig these sheets in to a stacker or other Finishing device. -
Page 6: Description Of The Process
Schematic view of the paper path. WITHOUT ROTATION Centered input -> Centered output Centered input -> Registred output Operator Manual Page 9 - 6 DESCRIPTION OF THE PROCESS Initial issue: 02/03 Latest revision: 10/03 WITH ROTATION Centered input -> Centered output Centered input ->... -
Page 7: Description Of The Machine
1 - Features description Led display Top cover Front Front door Operator Manual Page 9 - 7 DESCRIPTION OF THE MACHINE Keyboard and switch for service use only. General: Height of the entrance / exit: 860mm / 33.8in. Height of the exit : 860 mm (33.8 in.) or 1020mm (40.1 in.) (Adjustable : + 60mm / 2.4in. -
Page 8: Technical Specifications
2 - Technical specifications Paper type: Paper processing direction Paper format: Envelopes Statement 7x10 B5 - JIS Executive 16K (Taiwan) 8x10 8x10 Letter Letter Ltr Cover Ltr Cover Ltr Tab 210x270 210x270 210x330 215x275 215x275 215x356 216x273 216x273 A4 Cover A4 Cover A4 Tab Spanish –... - Page 9 215x330 Foolscap – XE 220x330 Legal 9x14 B4 –JIS 8K (Taiwan) Ledger 12x18 12x18.5 12.2x17 4 up-6x9 2 up-6x9 SRA4 2 up-A5 SRA3 4 up-A5 Labels Notes : 1 Tabs are fed tab trailing. 2 #10 Envelopes enters IOT with flap open, flap trailing and front side facing down. Paper orientation , excluding Envelopes, encompass both long grain and short grain papers.
-
Page 10: Jam Detection
The display represents the top tray and the paper path area. When part of the mimic is illuminated, there is a problem in this area. If the top tray area is illuminated, you have to open the top cover to check the area and clear the problem. -
Page 11: How To Program A Job (Rotation Or Registration)
HOW TO PROGRAM A JOB (ROTATION OR REGISTRATION)? Refer to printer user interface, not available on XIM. Functions to be programmed: - Rotation/No rotation. Operator Manual Page 9 - 11 - Centered or edge registered output. - Higher or lower exit selection... Initial issue: 02/03 Latest revision: 10/03... -
Page 12: Jam Clearance - Job Recovery
JAM CLEARANCE - JOB RECOVERY - Location of the baffles Operator Manual Page 9 - 12 Initial issue: 02/03 Latest revision: 10/03... -
Page 13: Troubleshooting
Problem Green power window not illuminated Poor registration Paper Jams Operator Manual Page 9 - 13 TROUBLESHOOTING Cause No power High paper curl Mechanical obstruction High paper curl Dirty sensors Initial issue: 02/03 Latest revision: 10/03 Solution • Check that the power cord is connected to the wall outlet •... - Page 14 Operator Manual Page 9 - 14 This page is intentionally left blank. Initial issue: 02/03 Latest revision: 10/03...
