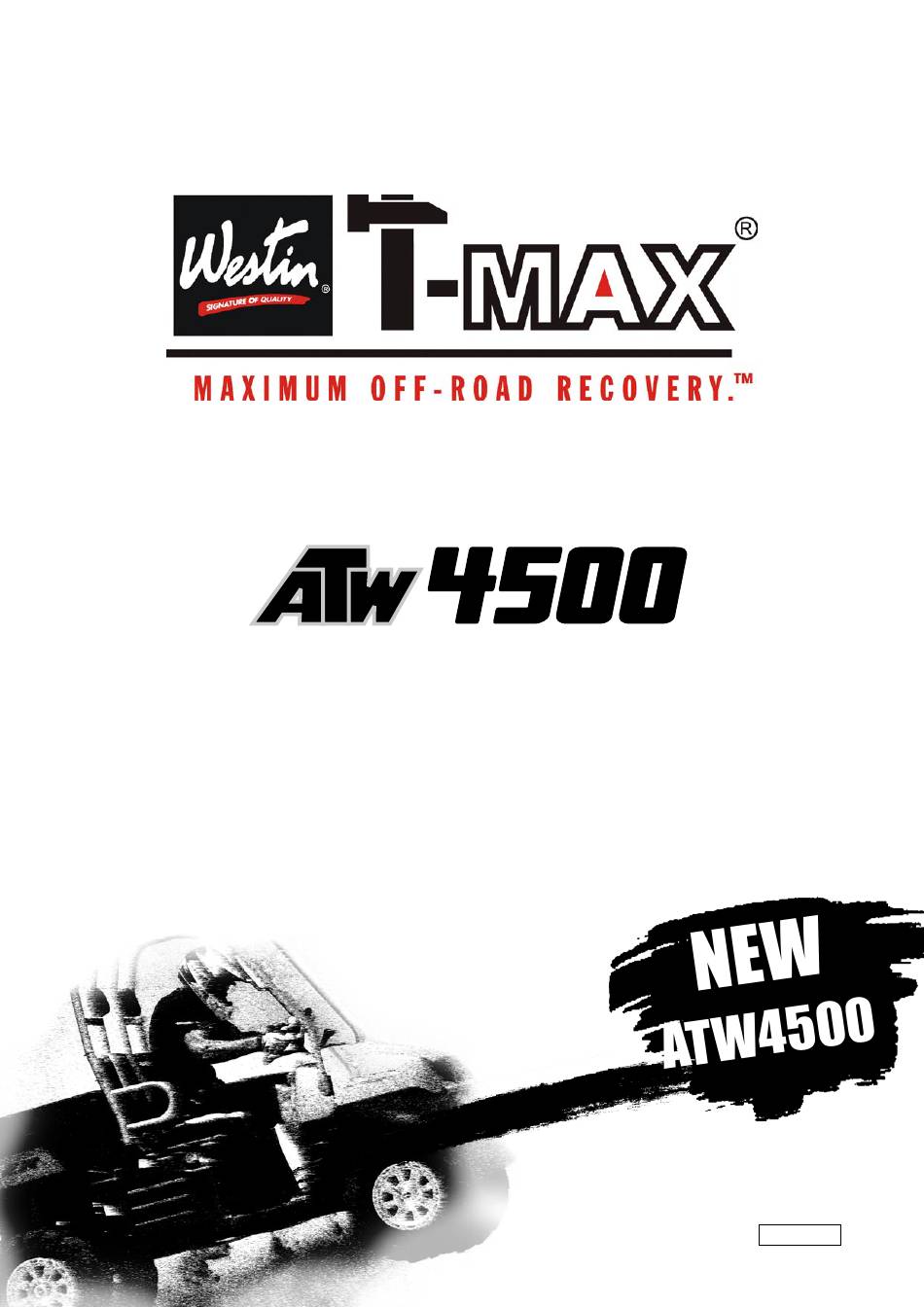

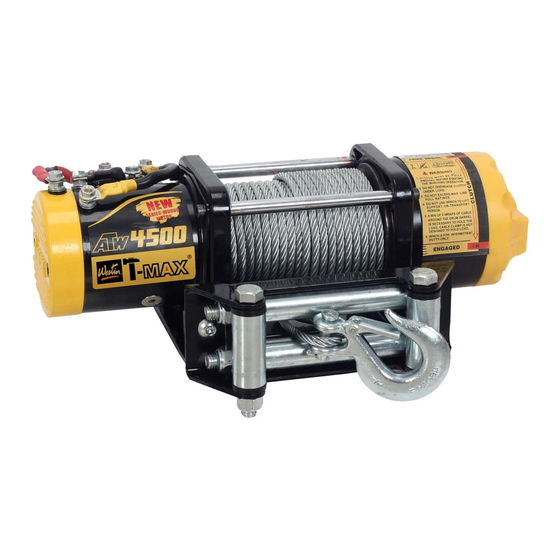

- Page 1 FITTING INSTRUCTIONS M73080930A...
- Page 2 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS INTRODUCTION Thanks for your interesting in T-MAX Products, especially the ATW4500, and we sincerely hope that it will satisfy you. We not only have the professional capability to design winches but also with comprehensive after-sale service.
- Page 3 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS Packaging list of ATW4500 Description ATW4500, W/ WIRE ROPE or W/SYNTHETIC ROPE REMOTE CONTROL ROLLER FAIRLEAD or ALUMINUM FAIRLEAD MOUNTING HARDWARE KIT OWNER’S MANUAL MOUNTING PLATE WIRE CABLE (1.8Mx10MM) Parts List of ATW4500 T-MAX UTV SERIES...
- Page 4 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS EXPLODED VIEW OF ATW4500 Item Part No. Description GB/T70 M6×120 Bolt M6 X 120 7241100.1.3-2 Motor End Cover 7241100.1.1.3.1 Carbon Assy 7241100.1.1 Stator 7241100.1.2 Rotor GB/T-85 M6×18 Bolt M6X18 7241100.1-1 Motor Frame Cover 7241100.3-1 Drum Base 7241100.8 Torque Limiter...
-
Page 5: Features And Specifications
VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS EXPLODED VIEW OF ATW4500’s CONTROL BOX Part No. Description 7329200.6A-10 Plug Cover 7329200.6A-11 Socket 7241100.6.5-1 Mini box 7241100.6.5-2 Radio Sender & Receiver 7241100.6.1 GB/T93 6 Washer GB/T41 M6 7241100.6.5-3 Mounting Plate GB/T70.2 M5×10 Bolt 7241100.6.5-4 Control Box soleplate DEMENSION... - Page 6 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS P/N: 7241110 Rated Line Pull: 4500 lbs (2040kgs) Single-line Motor: 12V DC, 0.8KW (Series Wound) Control: Remote Control Gear Ratio: 148:1 Clutch: Turn 90°By Hand wheel Barking: Eccentric Block Type Drum Size: Diameter 2.0” (52mm) x Length 4.7” (Length) Recommended Battery:650CCA Minimum for Winching Fairlead: Aluminum Fairlead Synthetic Rope: Length (18m) x Diameter (6mm)
- Page 7 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS 2. After reading and understanding this manual, learn to use your winch. After installing the winch practice using it. 3. Do not move your vehicle to assist the winch in pulling the load. The combination of the winch and vehicle pulling together could overload the wire rope and winch.
-
Page 8: Installation
VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS 14. Take appropriate precautions to disable the winch when not in use or under supervision to prevent use by children or other unauthorized persons. Do not operate the winch when under the influence of drugs, alcohol or medication. 15. -
Page 9: Installation Drawings
VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS c. To connect the clevis hook on the wire rope; d.Turn the clutch cover as 90°reversely to engaged the clutch; NOTE: To turn the drum, the clutch is engaged if it could be turned; or to repeat as “c” once more; e.To fix the roller fairlead on the mounting plate. - Page 10 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS Step (4) Note: This step is aim at who purchase the ATW4500 with Control Box. a. Discharge two bolt of the tie rod which is which is at the side of motor, and then to fix the control box and screw the two bolt back.
- Page 11 VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS NOTE: [1] and [2] is optional Figure of the Electric Theory NOTE: 1 and 2 is optional Battery Cable Wiring Diagram T-MAX UTV SERIES...
-
Page 12: Maintenance
VEHICLE RECOVERY ELECTRIC WINCH FITTING INSTRUCTIONS Step (8) Check the Winch a) All connections of cables is correct; b) No cable or tie-in is uncovered well; c) All cables should be wrapped by Thermoplastics Pipes; d) To disengage the clutch, turn on the remote control as “OUT” position. Cable may be free spooled off the drum; e) To engage the clutch, turn on the remote control as “IN”...
