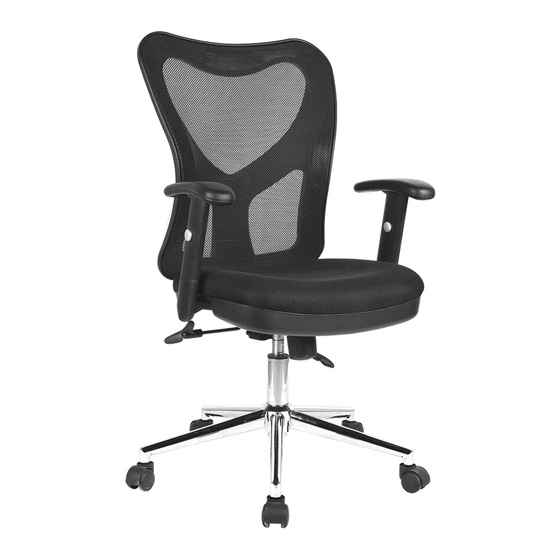

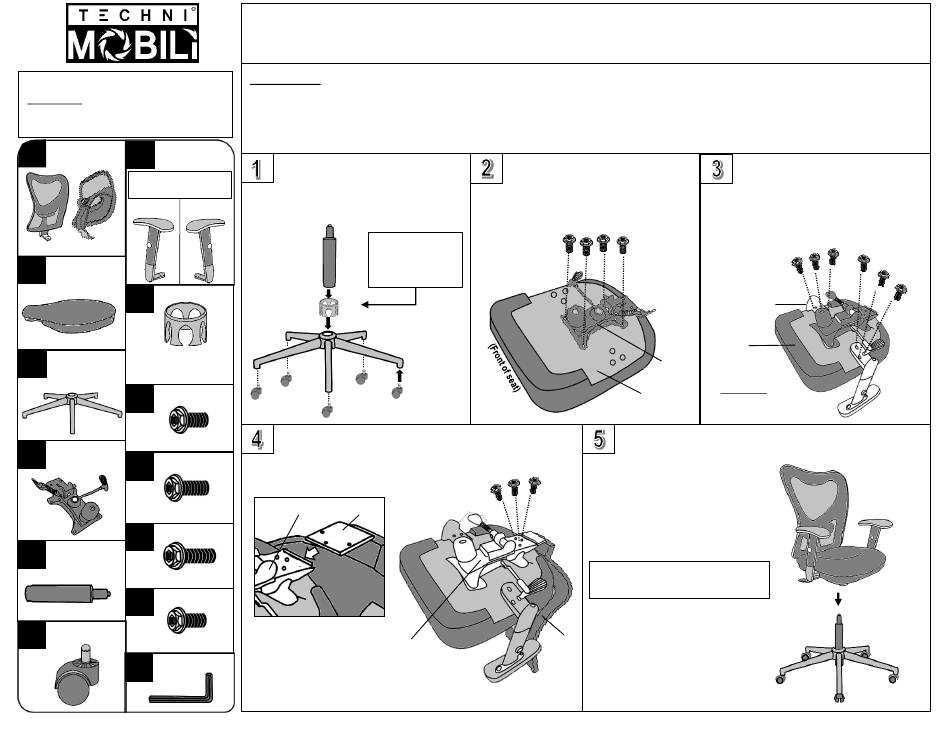

Techni Mobili RTA-0098M Assembly Instructions

PARTS LIST

ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Backrest, x1 Armrest
A
G
NOTE: When you are seated
on the chair, not looking at it.
X1 Left
X1 Right
(FRONT) (BACK)
Seat, x1
B
Base Cover, x1
H
(Note: This part might
Star Base, x1
C
come with the gas lift or
attached to the base)
M6x20mm, x4
I
(Mechanism)
Mechanism,
D
M6x30mm, x2
x1
J
(Armrests)
M6x35mm, x4
K
Hydraulic
E
Gas Lift, x1
(Armrests)
M8x20mm, x3
L
Caster, x5
F
(Backrest to mechanism)
Allen Wrench, x1
M
ASSEMBLY INSTRUCTIONS FOR CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
Insert the casters (F) into the legs of
the base (C) using pressure, then
place the base cover (H) and the gas lift (E)
in the middle of the base as shown.
(Note: Part H might
come with the gas lift
E
or already attached
to the base)
H
C
F
Insert the metal plate of the backrest (A) into the mechanism
(D) and secure it with screws (L) as shown.
D A
D
RTA-0098M
Place the seat (B) upside-down with
its front towards you as shown. Using
screws (I), assemble the mechanism (D) to
the seat with its knob facing to the FRONT.
I
B
Place the seat over the base, making sure the tip of the gas lift
enters into the hole of the mechanism.
L
Tighten well all the screws before you
sit on the chair for the first time.
A
With the seat positioned as shown,
assemble the armrests (G) on their
respective sides using the short screws (J)
for the inner holes and the longer screws (K)
for the outer holes as shown.
J
K
K
G (LEFT)
B
D
☛
ATTENTION:
J: Shorter screws for inner holes
K: Longer screws for outer holes
J
K
K
G
(RIGHT)
