- Page 1 Video Receiver for use with X10 Wireless Camera Systems MODEL VR36A OWNER'S MANUAL...
-
Page 2: Controls And Connections

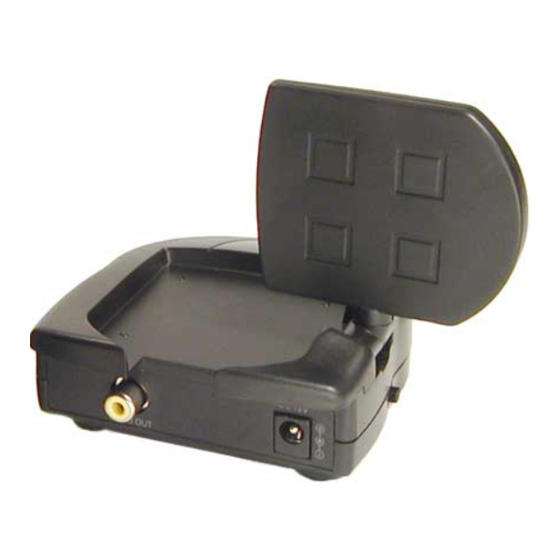

NTRODUCTION The VR36A Video Receiver works with X10's Wireless Cameras. The Camera converts video into wireless radio frequency (RF) signals and transmits them (even through walls) to the Video Receiver which you connect to a TV anywhere in your home (up to 100 ft. away from the Camera). -
Page 3: Fine Tuning Your System
ONNECTING 1. Connect a Video cable to the VIDEO OUT jack on the Video Receiver. Connect the other end to your TV's VIDEO IN jack. If your TV does not have a Video IN jack, you will need to purchase an RF modulator, or connect as shown in the diagram below. -
Page 4: Troubleshooting
ROUBLESHOOTING If you do not see a picture on your TV: Check that the Receiver and the Camera are on the same letter channel (A, B, C, or D). On the Receiver the switch is on the bottom. On the Camera the switch is located under the rubber plug on the base of the unit. -
Page 5: 12 Month Limited Warranty
ONTH IMITED ARRANTY X10.COM A DIV. OF X10 WIRELESS TECHNOLOGY, INC. (X10) WARRANTS ITS PRODUCTS TO BE FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR FROM THE ORIGINAL DATE OF PURCHASE AT RETAIL. X10 AGREES TO REPAIR OR REPLACE, AT ITS SOLE DISCRETION, A DEFECTIVE X10 PRODUCT IF RETURNED TO X10 WITHIN THE WARRANTY PERIOD AND WITH PROOF OF PURCHASE.
