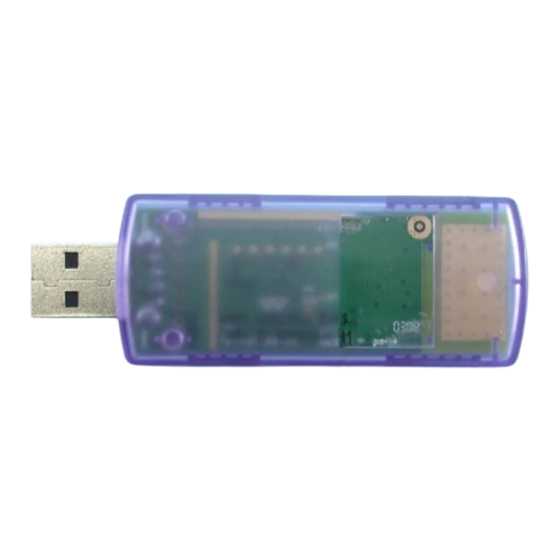

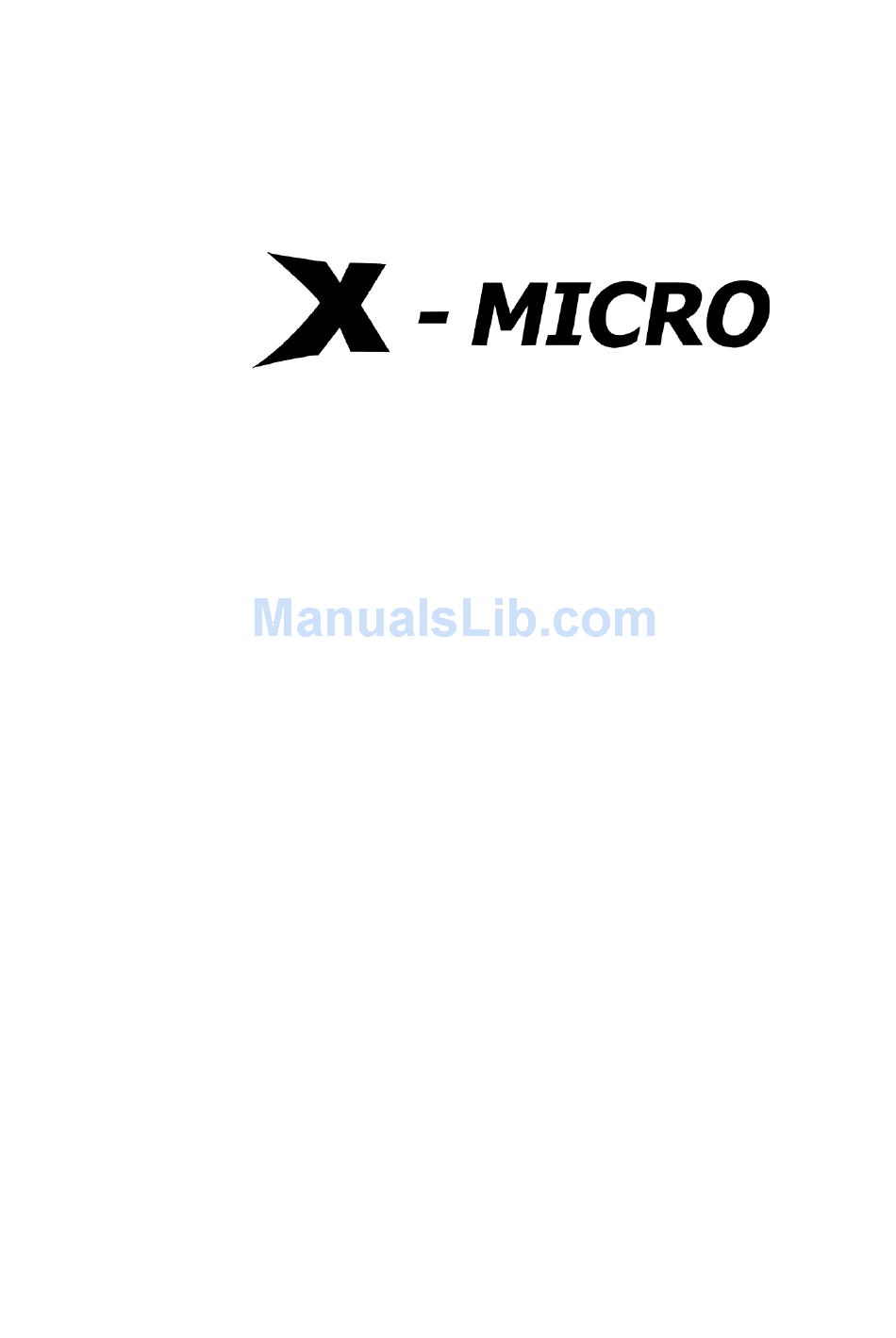

- Page 1 X-Micro Bluetooth USB Dongle User Manual...
- Page 2 Copyright Copyright 2003 by X-Micro Technology Corp., All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of X-Micro Technology Corp.
-
Page 3: Table Of Contents
Introduction ...1 1.1 Bluetooth Tray ...1 1.2 Access My Bluetooth Places...1 1.3 Icons Used for Bluetooth Devices and Services ...2 Basic Operations ...5 2.1 Start or Stop Bluetooth...5 2.2 Create a Connection From the Bluetooth Icon in the System Tray...5 2.3 Create a Connection Using the Bluetooth Setup Wizard ...5 2.4 Create a Connection From Entire Bluetooth Neighborhood ...5 2.5 Find Bluetooth Devices...6... - Page 4 Security ... 41 4.1 Authentication ... 41 4.2 Authorization ... 41 4.3 Bluetooth Device Identity... 41 4.4 Encryption ... 41 4.5 Link Key... 41 4.6 Pairing Devices... 42 4.7 Passkey... 42 4.8 Secure Connection ... 42 4.9 Security Request Dialog Box... 42 Troubleshooting ...
-
Page 5: Introduction
Introduction The Bluetooth tray resides in the Windows system tray, which is normally located in the lower-right corner of the screen. The Bluetooth tray provides fast access to most Bluetooth operations. From the Bluetooth tray you can: Access My Bluetooth Places— double-click the Bluetooth icon, or right-click the Bluetooth icon and then select Explore My Bluetooth Places. -
Page 6: Icons Used For Bluetooth Devices And Services
C O N S SED FOR LUETOOTH Bluetooth icons provide at-a-glance feedback about a device or service's status by changing appearance. The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status. Figure 1: Bluetooth Icon Bluetooth Icon Indicates Bluetooth Status Enabled Disabled Blue with White... -
Page 7: Figure 3: Service Icons For Windows 9X, Me And 2K
Figure 3: Service Icons for Windows 9x, Me and 2K Service Icons for Windows 9x, Me and 2K Name Audio Gateway Dial-up Networking Headset Network Access PIM Item Transfer PIM Synchronization Public Folder Serial Port *Services may be unavailable because they are in use or because the necessary hardware is not installed. Figure 4: Device Icons for Windows XP Device Icons for Windows XP Name... -
Page 8: Figure 5: Service Icons For Windows Xp
Figure 5: Service Icons for Windows XP Service Icons for Windows XP Name Normal Audio Gateway Dial-up Networking Headset Network Access PIM Item Transfer PIM Synchronization Public Folder Serial Port *Services may be unavailable because they are in use or because the necessary hardware is not installed. Connected Not Available*... -
Page 9: Basic Operations
Basic Operations TART OR To start Bluetooth: in the Windows system tray, right-click the Bluetooth icon and select Start the Bluetooth Device. The Bluetooth icon is blue in color with a white insert when Bluetooth is running. To stop Bluetooth: in the Windows system tray, right-click the Bluetooth icon and select Stop the Bluetooth Device. -
Page 10: Find Bluetooth Devices
Search for Devices looks for Bluetooth devices in the vicinity and displays the devices that it finds in My Bluetooth Places. To start a search for devices, in the Folders pane of My Bluetooth Places, select Entire Bluetooth Neighborhood, and then, from the Bluetooth menu, select Search for Devices. NOTE: The Bluetooth menu is only visible when My Bluetooth Places is acti ve. -
Page 11: Finda Service
The process of determining the services that a device provides is called Service Discovery. To initiate a Service Discovery, in the Folders pane of My Bluetooth Places, right-click a device name and select Discover Available Services from the shortcut menu. Bluetooth services are those things that this computer can do for remote Bluetooth devices. -
Page 12: Bluetooth Connection Status
LUETOOTH The Bluetooth Connection Status dialog box displays information about the state of a connection and provides a means to disconnect an active connection. Display the Connection Status dialog box: in My Bluetooth Places, from the Folders pane, select a device, and then, in the right pane of My Bluetooth Places, right-click a service name and select Status from the shortcut menu. -
Page 13: Send To Bluetooth
END TO This feature is used to send information to another Bluetooth device. Data types include: Files from Windows Explorer Documents from Microsoft Office applications, including: § Word § Excel § Access § PowerPoint. Microsoft Outlook items, including: § Contacts §... -
Page 14: Configure Bluetooth
Configure Bluetooth CCESS THE The Bluetooth Configuration Panel provides access to settings for Bluetooth services, client applications, hardware, security, discovery, accessibility, default paths, event notification and other Bluetooth related items. To Open the Bluetooth Configuration Panel From the Windows Control Panel, select Bluetooth Configuration In the Windows System Tray, right-click the Bluetooth icon, and select Advanced Configuration from the shortcut menu. -
Page 15: General Configuration Settings
ENERAL General Configuration Settings The settings on the General tab of the Bluetooth Configuration Panel determine information that is displayed to remote devices. Identity Computer Name -enter a unique name to identify this computer to other Bluetooth devices in the vicinity; this field cannot be left blank. Computer type -select either Desktop or Laptop from the shortcut menu to set the type of icon remote devices will use to represent this computer. -
Page 16: Audio Gateway
3.1.3 Audio Gateway Overview The Audio Gateway Application allows a remote Bluetooth device to use this computer’s microphone and speakers as the remote device’s audio input and output devices. Open a connection to the Audio Gateway service that is provided by another Bluetooth device using one of these techniques: Windows system tray, Bluetooth icon From My Bluetooth Places... -
Page 17: Bluetooth Serial Port
3.1.4 Bluetooth Serial Port Overview The Bluetooth Serial Port application allows this computer to establish a wireless serial connection with a remote Bluetooth device. The applications on both this computer and the remote device must be configured to send and receive data to and from the respective communications port (COM port) assigned to the Bluetooth serial port. -
Page 18: Dial-Up Networking
3.1.5 Dial-up Networking Overview The Bluetooth Dial-up Networking application allows this computer to use a modem that is physically connected to a remote device to access the Internet, log on to a remote network. Open a connection to the Dial - up Networking service that is provided by another Bluetooth device using one of these techniques: Windows system tray, Bluetooth icon From My Bluetooth Places... -
Page 19: Fax
3.1.6 Fax Overview The Bluetooth Fax service allows this computer to send a fax using a Fax/Modem that is physically connected to a remote device. To Send a Fax 1. Open a connection to the Fax service that is provided by another Bluetooth device, using one of these techniques: §... -
Page 20: Headset
3.1.7 Headset Overview The Headset application allows this computer to use a Bluetooth headset (or any other device that offers the Bluetooth headset service) as the audio input and output device for this computer. Possible uses include: If this computer has on-board telephone hardware, a Bluetooth headset might be used as the audio input/output device to make/receive telephone calls. -
Page 21: File Transfer
3.1.8 File Transfer Overview The Bluetooth File Transfer application allows this computer to perform file operations on the Bluetooth Exchange Folder (and the folders and files it contains) of a remote device. Copy to/from a remote device In the Folders pane of Windows Explorer, from the Entire Bluetooth Neighborhood branch, select a device and expand that branch to view the Bluetooth Exchange Folder of the remote device. -
Page 22: Network Access
3.1.9 Network Access Overview The Bluetooth Network Access application makes it possible for this computer: To connect to a Local Area Network via a physical connection on a remote Bluetooth device. To connect to an ad hoc network provided by a remote Bluetooth device. The type of network connection that is available is determined by the configuration of the remote Bluetooth device. -
Page 23: Pim Synchronization
3.1.10 PIM Synchronization Overview The PIM Synchronization Application is used to synchronize the Personal Information Manager (PIM) database of this computer with the PIM database of a remote Bluetooth device. The supported PIMs are: Microsoft Outlook Microsoft Outlook Express Lotus Notes. The supported data types are: Business cards Calendar items... - Page 24 (Continued from the previous page) Configure PIM Synchronization The Bluetooth Configuration Panel > Client Applications > PIM Synchronization > General tab provides options to configure: The application name— to change it, highlight the existing name and enter the new name. Enable or disable secure connection.
-
Page 25: Pim Item Transfer
3.1.11 PIM Item Transfer Overview The Bluetooth PIM Item Transfer application allows this computer to send and receive Personal Information Manager items to-and-from a remote Bluetooth device. Item transfer can be accomplished several ways: To send, receive or exchange business cards: 1. - Page 26 (Continued from the previous page) Configure PIM Item Transfer The Bluetooth Configuration Panel > Client Applications > PIM Item Transfer > General tab provides options to configure: The application name— to change it, highlight the existing name and enter the new name.
-
Page 27: Printer
3.1.12 Printer Overview The Bluetooth Printer application allows this computer to use a Bluetooth printer. Once a Bluetooth printer has been properly installed it can be used from this computer in the same way as any other printer would be. Configure The Bluetooth Configuration Panel >... -
Page 28: Bluetooth Services
LUETOOTH Common Configuration Settings These properties can be set individually for each Bluetooth service: Service Name -the default name of each service can be changed. Secure Connection-requires that remote devices provide proof of identity and that all data be encrypted. Startup Automatically-starts the service automatically when Bluetooth is started. -
Page 29: Notifications
3.1.13 Notifications Overview There are three types of notification: Authentication request, also called a PIN code request— this notification appears automatically in a balloon over the Windows system tray if a Personal Identification Code is required before a connection can proceed. An audio file can also be associated with the notification. - Page 30 (Continued from the previous page) Service Access Notification “Notifications” lets you associate a sound (Windows *.wav file) and/or a visual indication with access attempts by remote devices. A different notification sound can be associated with each local Bluetooth service. Associate a sound with service access From the Bluetooth Configuration Panel, Local Services tab: 1.
-
Page 31: Audio Gateway
3.1.14 Audio Gateway The Bluetooth Audio Gateway service allows this computer to use a remote Bluetooth device’s microphone and speakers as this computer’s input and output devices. For example, if this computer has voice recognition capabilities, a Bluetooth headset might be used as the audio input device. -
Page 32: Bluetooth Serial Port
3.1.15 Bluetooth Serial Port The Bluetooth Serial Port service allows a remote Bluetooth device to establish a wireless serial connection with this computer. The wireless serial connection may be used by applications as though a physical serial cable connected the devices. To establish a Bluetooth Serial Port conne ction The connection must be initiated from the remote device by the Bluetooth Serial Port application. -
Page 33: Dial-Up Networking Service
3.1.16 Dial-up Networking Service The Bluetooth Dial-up Networking service makes it possible for a remote Bluetooth device to use a modem that is physically connected to this computer. The remote device can then access the Internet or log on to a remote network. Configure the Dial-up Networking service: From the Windows system tray, right-click the Bluetooth icon, select Advanced Configuration >... -
Page 34: File Transfer Service
3.1.18 File Transfer Service Overview The File Transfer service allows this computer to perform file operations on the Bluetooth Exchange Folder (and the folders and files it contain s) of a remote device. Basic setup procedure Right-click the Bluetooth icon and select Explore My Bluetooth Places. Configure Windows Explorer so that the Folders pane is visible (View >... -
Page 35: Headset Service
3.1.19 Headset Service The Bluetooth Headset Service allows this computer to provide audio input/output for remote Bluetooth devices. For example, if the remote device is a Bluetooth telephone, this computer’s microphone and speakers can be used as speakerphone input and output for that device. NOTE: Windows 98 limitation—... -
Page 36: Network Access
3.1.20 Network Access The Bluetooth Network Access service makes it possible for a remote Bluetooth device to use the Local Area Network connection that is physically attached to this computer. After this computer has been configured to provide the Network Access service to other Bluetooth devices, it will not be able to use the Bluetooth Network Access service provided by another Bluetooth device without being re-configured. -
Page 37: Pim Item Transfer
3.1.21 PIM Item Transfer Overview The PIM Item Transfer service allows Personal Information Manager items to be transferred between this computer and a remote Bluetooth device. Four data types are supported: Business Cards Calendar Items Email Messages Notes Each data type can be saved in any of the supported and installed PIMs. NOTE: PIMs which are not installed on this computer will not appear in the shortcut menus. - Page 38 (Continued from the previous page) Configure In addition to the configuration options common to all Bluetooth services, this service also has settings that determine: How business card requests are handled. The options are: § Never send my business card— ignore the request §...
- Page 39 (Continued from the previous page) Default Business Card Selection When the “Always send the same business card” option is selected, a dialog box appears to allow the selection of a default business card. The first time the dialog box appears it provides a way to choose the Personal Information Manager that stores the default business card.
-
Page 40: Pim Synchronization
3.1.22 PIM Synchronization The PIM Synchronization service can be used by a remote device to synchronize its Personal Information Manager (PIM) database with the PIM database of this computer.. Four data types are supported: Business cards Calendar items Email messages Notes. -
Page 41: Hardware Settings
ARDWARE The Hardware tab of the Bluetooth Configuration Panel provides basic information about the Bluetooth hardware installed on this computer and access to the Advanced Settings dialog box, if required: Devices: § Name: the name of the device, e.g., WIDCOMM Bluetooth Device §... -
Page 42: Advanced Settings
3.1.23 Advanced Settings When available, this dialog box is reached from the Hardware tab of the Bluetooth Configuration Panel. NOTE: Depending on the country in which the hardware is sold and/or in which it will be used, the Advanced button may not be present. From this dialog box you can set the: Country Code: §... -
Page 43: Accessibility Settings
The Accessibility tab of the Bluetooth Configuration Panel lets you specify whether remote devices may access this computer, which remote devices have access, and whether an audio warning is played when a Personal Identification Number (PIN code) is required. Allow other devices to discover this computer Select “Let other Bluetooth devices discover this computer”... -
Page 44: Discovery Settings
The settings on the Discovery tab of the Bluetooth Configuration Panel determine whether this computer looks for other Bluetooth devices automatically, how often it looks and what type of devices it looks for. Periodic Search for Devices When “Look for other Bluetooth devices” is selected, Bluetooth automatically searches for devices every X minutes. -
Page 45: Security
Security Authentication is used to verify identity; it requires a passkey or link key from the remote device. When a remote device attempts access, a visual and/or audio warning notifies the local operator. If the notification is ignored, access is denied after a preset timeout. When devices are “paired,”... -
Page 46: Pairing Devices
Pairing allows you to avoid entering access information each time a connection is attempted. Paired devices share a unique Link Key, which they exchange each time they connect. NOTE: The mate of a pair always appears in My Bluetooth Places, even if the mate is not turned on or is out of connection range. -
Page 47: Troubleshooting
BTW User’s Guide Troubleshooting ANNOT CONNECT TO A P AIRED DEVICE Paired devices are always displayed in My Bluetooth Places, even if the remote device is out of range or not powered up. Verify that the remote member of the pair is within radio range, and powered up, and then attempt the connection again. -
Page 48: Find Information About The Bluetooth Hardware Attached To My Computer
BTW User’s Guide The eighth entry contains the Link Manager Protocol sub-version number information, if appropriate. IND INFORMATION ABOUT THE In the Bluetooth Configuration Panel, select the Hardware tab. NTERNET ONNECTION This occurs because Internet Connection Sharing was enabled when Bluetooth was installed (this is a Microsoft Windows behavior and is considered proper operation). - Page 49 BTW User’s Guide www.x-micro.com...
