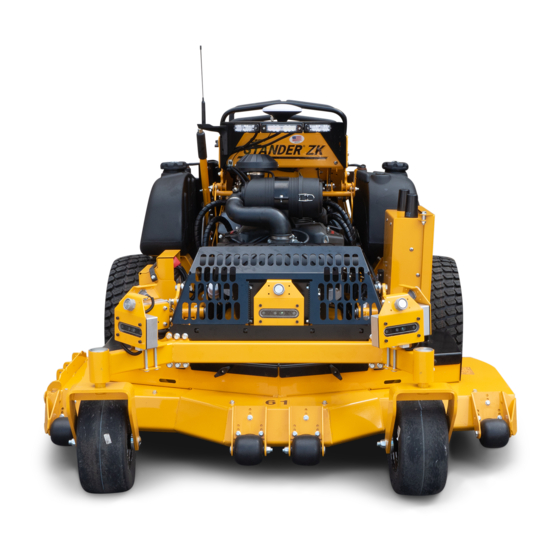

Commercial Mower Owner's Manual
For Stander ZK serial # 43181 and higher until superseded
WARNING: READ THIS MANUAL BEFORE USING
Revised 08/2008
For your safety and for proper operation and maintenance read
carefully and keep readily available for future reference.
For reference please note the following information at the time of purchase:
SERIAL # ________________________________
MODEL # ________________________________
DATE OF PURCHASE ______________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wright Manufacturing Stander ZK 43181
Summary of Contents for Wright Manufacturing Stander ZK 43181

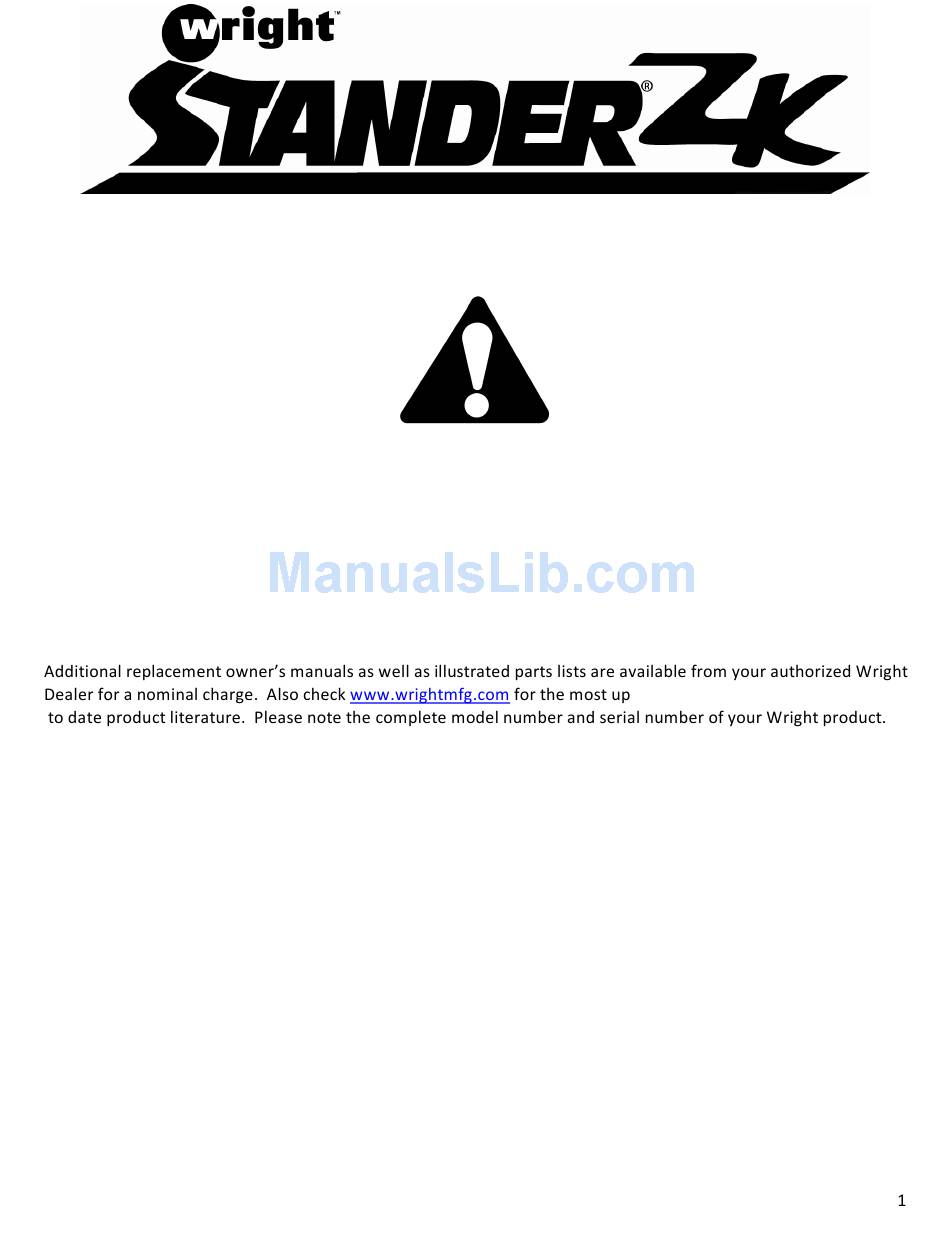

- Page 1 Commercial Mower Owner’s Manual For Stander ZK serial # 43181 and higher until superseded WARNING: READ THIS MANUAL BEFORE USING Revised 08/2008 For your safety and for proper operation and maintenance read carefully and keep readily available for future reference. For reference please note the following information at the time of purchase: SERIAL # ________________________________ MODEL # ________________________________...
-
Page 2: Safety Alert
©1998-2008 Wright Manufacturing, Inc. All rights reserved. This material may not be reproduced or copied, in whole or part, without written permission from Wright Manufacturing, Inc. Grass Gobbler, Gobbler, Leaf Gobbler, Velke, Pro 1, X2, Stander, and Sentar are... -
Page 3: Table Of Contents
TABLE OF CONTENTS PRE-DELIVERY SERVICE OF MOWER BY DEALER ... 4 SAFETY INSTRUCTIONS ... 6 ... 6 NTRODUCTION ENERAL AFETY NSTRUCTIONS ... 6 WNER OTICE ... 6 UALIFICATIONS ... 7 LOTHING NSPECT OWER EFORE EGULAR OWER AFETY & I ONDITIONS NITIAL PERATING AFETY... -
Page 4: Pre-Delivery Service Of Mower By Dealer
Pre-Delivery Service of Mower by Dealer WARNING The Wright Stander ZK is shipped completely assembled and has been adjusted and tested at the factory. However, due to jostling during the shipping process and the delivery time lapse the following items need to be repeated again before starting the mower. After you have uncrated the mower, follow these procedures in the order indicated: •... - Page 5 Wright Manufacturing Distributor. The limited warranty is not valid unless the mower is registered and all of the above steps are taken. Remember, the purchaser is both your and our customer and his satisfaction is very important.
-
Page 6: Safety Instructions
WARNING This symbol with the word “WARNING” indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. SAFETY INSTRUCTION MANUAL TO WRIGHT MOWER USERS & OWNERS: READ THIS MANUAL BEFORE USING. INTRODUCTION This mower is built to the highest standards in the industry. -
Page 7: User Clothing
WARNING User Clothing: DO NOT operate the mower while wearing sandals, tennis shoes, sneakers, or shorts. Always wear long non-baggy pants. Wear high- top leather work boots with thick, textured tread, soft-rubber soled at all times. Hard or smooth soled shoes are too slippery for a good footing on mower platform. -
Page 8: Initial Operating Safety Guidelines
• Before attempting to start the engine, follow all starting instructions below and in the engine operator’s manual. • Look behind before backing up. • Before leaving the operator’s position, even momentarily, turn off the blade clutch engagement switch and apply the parking brake. -
Page 9: Operation On Slopes
WARNING Operation on Slopes DO NOT operate on steep slopes. Do not operate the mower on slopes steeper than you can feel secure about the traction of the tires and the stability of the mower. Do not operate the mower on slopes at all when the grass is wet. -
Page 10: Replacement Parts
WARNING Replacement Parts Use of parts other than specified parts supplied by Wright Manufacturing, Inc. may compromise the safe use of the mower, are not recommended and their use could void the warranty. Always check with your Dealer or the Wright Mfg website for the latest Illustrated Parts List for your equipment. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS WARNING Inspect Mower Before Each Use Inspection of Mower: Do not use the mower if any parts are not maintained in good operating condition. Examine all moving parts prior to each use. Look for excessive wear, bald drive tires or worn out front tires (normally smooth), cracks in parts, loose or missing bolts, cotter, linchpin or “hair”... -
Page 12: Driving The Mower Over A Curb
How to Drive the Mower Over a Curb To climb a curb, first see the Safety Instruction Manual section of this manual, especially the parts •Initial Operating Safety Guidelines •Operation In Reverse •Operation In Forward Direction Next, raise the mower deck into the locked transport position. -
Page 13: How To Test /Use The Blade Clutch /Brake Switch
the pump in the Return-To-Neutral position, the lower rod end should be the same height as the rigidly fixed ball joint connected on the same end of the torsion rod. NOTE: This adjustment may not be necessary if tracking is slightly off. Upper control rods should be the only adjustment required. -
Page 14: Service And Adjustments
WARNING Service and Adjustments Tire Maintenance and Pressure Excessively worn tire tread is dangerous on all hills. Replace drive tires with less than 3/32” of any tread groove left. Use tires with the tread pattern recommended by Wright Mfg., Inc. only. Keep the tire pressure in the drive tires between 18 and 24 psi. -
Page 15: How To Move The Mower If The Engine Won't Start
prevent a rattle and should be installed hump down, like a “U”. Using compressed air or water to clean may or may not be necessary. Oil Cooler Removal and Cleaning Clean oil cooler weekly. Clean more often in dry conditions. To remove oil cooler for a thorough cleaning “STOP ENGINE”, lift thigh pad for access. -
Page 17: Maintenance Interval Chart
* * This Page Intentionally Left Blank * *... -
Page 19: Maintenance Record
Maintenance Record Unit Date Maintenance/Service Performed Shop/Technician Hours... - Page 20 WRIGHT MANUFACTURING, INC. POWER EQUIPMENT LIMITED WARRANTY THIS WARRANTY SUPERSEDES ALL PREVIOUS ON UNITS WITH A RETAIL SALES DATE ON OR AFTER 04/01/05 Wright Manufacturing, Inc. (hereinafter: WMI) warrants to the original owner that the new WMI mower accompanying this document will be free from manufacturing defects in materials or workmanship subject to the following limitations and exclusions.
- Page 21 4600X Wedgewood Blvd Frederick, MD 21703 www.wrightmfg.com...
