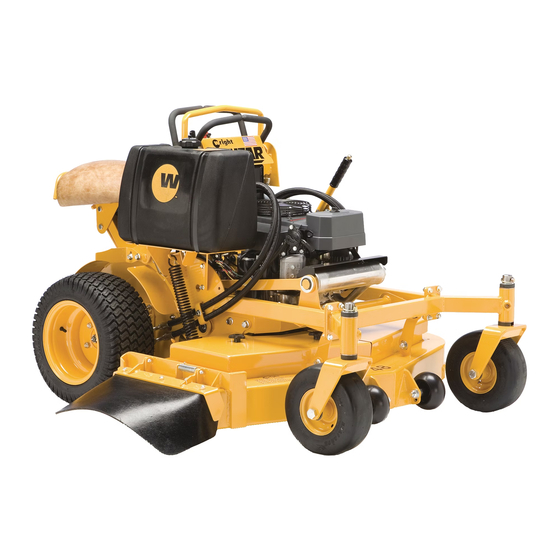

Summary of Contents for Wright Manufacturing Sentar Sport 26077
Page 1
Please note the model number and serial number of your Wright product. For reference please note the following information at the time of purchase: SERIAL # _________________________ MODEL # _________________________ DATE OF PURCHASE ______________________ Wright Manufacturing Inc.
Pre-Delivery Service of Mower by Dealer WARNING The Wright Sentar Sport is shipped completely assembled and has been adjusted and tested at the factory. However, due to jostling during the shipping process and the delivery time lapse the following items need to be repeated again before starting the mower. After you have uncrated the mower, follow these procedures in the order indicated: •...
Page 6
Wright Manufacturing Distributor. The limited warranty is not valid unless the mower is registered and all of the above steps are taken. Remember, the purchaser is both your and our customer and his satisfaction is very important.
SAFETY INSTRUCTIONS WRIGHT MOWER USERS & OWNERS: READ THIS MANUAL BEFORE USING WARNING This symbol with the word “WARNING” indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Introduction This mower is built to the highest standards in the industry.
WARNING User Clothing DO NOT operate the mower while wearing sandals, tennis shoes, sneakers, or shorts. Always wear long non-baggy pants. Wear high- top leather steel-toed work boots with thick, textured tread, soft-rubber soled at all times. Hard or smooth soled shoes are too slippery for a good footing on mower platform.
stop the mower. This could throw you off the mower or into and possibly over the handle bars causing serious injury or death. The faster you are moving the more potential there is for injury. Mow only in daylight or in good artificial light. Keep away from drop-offs, the edges of ponds, streams, pools, etc.
mower operates. Do not operate the mower faster than conditions allow. For example, hills, wet or bumpy ground, dim light or high grass are all conditions requiring slower speeds. Never operate the mower at the highest speed unless you are on level, wide, open areas of clearly visible ground or transporting on paved areas.
WARNING Replacement Parts Use of parts other than specified parts supplied by Wright Manufacturing, Inc. may compromise the safe use of the mower, are not recommended and their use could void the warranty. Always check with your Dealer or the Wright Mfg website for the latest Illustrated Parts List for your equipment.
OPERATING INSTRUCTIONS WARNING Inspect Mower Before Each Use Inspection of Mower : Do not use the mower if any parts are not maintained in good operating condition. Examine all moving parts prior to each use. Look for excessive wear, bald drive tires or worn out front tires (normally smooth), cracks in parts, loose or missing bolts, cotter, linchpin or “hair”...
about half of the way from idle speed. Release the parking brake. The higher engine speed will make the controls much more responsive and the mower much quicker; Use caution if it is your first time. Now try moving the hand control levers, one at a time, very slightly, forward and backward.
Changing the Speed/Sensitivity Adjustment The controls are initially set with the Speed/ Sensitivity Adjustment in the faster, more sensitive position. If an operator is not completely familiar with the mower operation the operator may desire to decrease the ground speed. The slower setting has a corresponding decrease in the sensitivity of the controls.
¼” allen wrench at the Return-to-Neutral (RTN) mechanism, if necessary. It is normal to make these adjustments from time to time. How to Test/Use the Blade Clutch/Brake Switch Before testing the blade clutch/brake operation, make sure the area is clear and there is nothing vulnerable to thrown objects from under the mower.
oil fill tube. Use fully synthetic oil: Mobil1 15W- 50. Lift the mower so that the rear wheels are off the ground. Be careful to support the mower so that it will not fall or tip while the system is bled of air.
MAINTENANCE ITEM Inspect for cracks in frame, cutter deck or other steel parts Inspect all belts for wear, adjustment and alignment Check all bolts and nuts for tightness (tighten as necessary) Lubricate hand control lever pivot shafts with waterproof grease Check hydraulic oil reservoir level and fill as needed - Use SYNTHETIC oil - Mobil1 15W-50 Grease caster wheel bearings...
Maintenance Record Unit Date Maintenance/Service Performed Shop/Technician Hours 14 14...
Page 19
WRIGHT MANUFACTURING, INC. POWER EQUIPMENT LIMITED WARRANTY THIS WARRANTY SUPERSEDES ALL PREVIOUS ON UNITS WITH A RETAIL SALES DATE ON OR AFTER 04/01/05 Wright Manufacturing, Inc. (hereinafter: WMI) warrants to the original owner that the new WMI mower accompanying this document will be free from manufacturing defects in materials or workmanship subject to the following limitations and exclusions.
