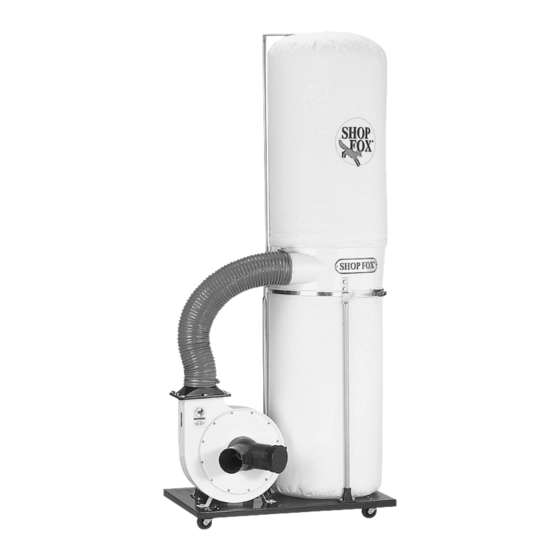

MODELS W1666, W1685
DUST COLLECTORS
INSTRUCTION MANUAL
Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz
COPYRIGHT © 2000 BY WOODSTOCK INTERNATIONAL, INC. REVISED JANUARY 2006.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China
#6941CR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W1666 and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodstock W1666

  • Page 1 INSTRUCTION MANUAL Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz COPYRIGHT © 2000 BY WOODSTOCK INTERNATIONAL, INC. REVISED JANUARY 2006. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
  • Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities con- tains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
  • Page 3: Table Of Contents

    MAINTENANCE ... 20 General ...20 Lubrication ...20 Collector Bag Cleaning ...20 Troubleshooting ...21 Wiring Diagram (W1666 and W1685) ...22 Parts Diagram (W1666 and W1685) ...23 Parts List (W1666 and W1685) ...24 Accessories ...25 Warranty ...26 USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
  • Page 4: Introduction

    Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation. Depending on the design of the dust collection system, the W1666 will draw up to 1550 CFM, and the W1685 will draw up to 1280 CFM.
  • Page 5: W1666 Specifications

    W1666, W1685 Dust Collectors W1666 Specifications Motor ... 2 HP, 12A, 220V, 3450 RPM, Single-Phase Impeller ... 12" Radial Steel Fin Static Pressure ...12.8" (of water) Air Suction ... 1550 CFM Lower Bag Capacity ... 5.4 (cubic feet) Upper Bag (Filter Bag) ... 30 Micron Woven Fabric Lower Bag (Storage Bag) ...
  • Page 6: Controls And Features

    D. Inlet Y—Allows for single port suction or dual port suction. E. Roller Base—Supports the lower bag and the dust collector, and allows you to quickly and easily roll and locate your dust collector where you want it. W1666, W1685 Dust Collectors...
  • Page 7: Safety

    W1666, W1685 Dust Collectors READ MANUAL BEFORE OPERATING MACHINE. FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY. Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
  • Page 8 22. If at any time you are experiencing difficulties performing the intended operation, stop using the machine! Then contact Woodstock Technical Support or ask a qualified expert how the operation should be performed. 22. Habits—good and bad—are hard to break. Develop good habits in your shop, and safety will become second-nature to you.
  • Page 9: Safety Instructions For Dust Collectors

    TROUBLESHOOTING: If you are experiencing difficulties with dust collector setup or use, contact Woodstock Technical Support or ask a qualified expert for solutions. REDUCING FIRE HAZARDS: Make sure the dust collector ducting is grounded against static elec- tricity buildup, and never use the dust collector in a wet or flammable environment.
  • Page 10: Avoiding Potential Injuries

    W1666, W1685 Dust Collectors Avoiding Potential Injuries Figure 1. Wear a respirator when dust collec- Figure 4. Never collect anything except wood tor is in use and when using your machines. dust. Figure 2. DO NOT remove impeller guard. Figure 5. Keep hands and loose objects away.
  • Page 11: Electrical

    220V Operation (W1666) The Model W1666 2 HP dust collector operates at 220V only, and draws up to 12 amps. Connect a 220V 6-15 plug and outlet for your power connection (see Figure...
  • Page 12: Setup

    If the part is not found, find the part number in the back of this manual and contact Woodstock International, Inc. at (360)-734-3482 or at tech-support@shopfox.biz. Figure 8. Dust Collector Inventory.
  • Page 13: Casters And Motor

    Install the four swivel casters to the base plate with the sixteen M6-1 X 12 Phillip head screws, washers, and nuts (see Figure 9). GET assistance when lifting machine parts. The Model W1666 and W1685 dust collector SHOP FOX ® motor/impeller assembly is heavy, and ignoring this warning can cause you a severe back injury.
  • Page 14: Outlet, Gasket, And Separator Supports

    Figure 14. 5. Secure the three collector supports in place with six M8-1.25 X 16 hex bolts and flat washers. W1666, W1685 Dust Collectors Figure 12. Placing the outlet on the gasket. Figure 13. Separator support bolt locations. Figure 14. Orientation of separator sup- port tails.
  • Page 15: Separator And Transfer Hose

    W1666, W1685 Dust Collectors Separator and Transfer Hose Never bypass the dust collector or and duct the transfer hose outside without using dust collection bags, or move the separator to a remote location and use a longer transfer hose. Any modification can damage the dust collector motor and create an unsafe condition.
  • Page 16: Dust Bags And Inlet Y

    5. Position the inlet Y on the impeller housing inlet, and fasten it in place with the Phillips head screw (see Figure 20). W1666, W1685 Dust Collectors logo. ® Figure 18. Latch clamp with toggle.
  • Page 17: System Grounding

    W1666, W1685 Dust Collectors System Grounding Under some circumstances, static electricity can be generated in dust collection systems and can collect on the plastic ducting surfaces. If this static electricity is discharged through a spark, there is a potential for the dust and oxygen in the ducting to ignite.
  • Page 18: Test Run

    • If the source of the problem is not an easy fix, contact our Technical Support Department for help at (360)-734-3482 or via tech- support@shopfox.biz. W1666, W1685 Dust Collectors DO NOT investigate problems or adjust the dust collector while it is running. Wait until the machine is turned off,...
  • Page 19: Operations

    Operation This dust collector is designed for collecting wood dust from woodworking machines. The Model W1666 will draw up to 1550 CFM, and the Model W1685 will draw up to 1280 CFM. The dust collectors are not designed to be used as central whole-house vacuums.
  • Page 20: Maintenance

    Emptying the collector bag exposes you to harmful dust. Always wear a respirator and safety goggles when emptying the collector bag! Figure 26. Wearing a respirator and safe- ty goggles for personal dust protection. -20- W1666, W1685 Dust Collectors...
  • Page 21: Troubleshooting

    W1666, W1685 Dust Collectors This section covers the most common dust collector problems. DO NOT make any adjustments until the dust collector is unplugged and moving parts have come to a complete stop. SYMPTOM Motor will not start, or it 1.
  • Page 22: Wiring Diagram (W1666 And W1685)

    Wiring Diagram (W1666 and W1685) 110V Power Supply Toggle Switch 220V Power Supply Toggle Switch W1666, W1685 Dust Collectors W1685 110V Motor Connection Motor Capacitor W1666 220V Motor Connection Motor Capacitor -22-...
  • Page 23: Parts Diagram (W1666 And W1685)

    W1666, W1685 Dust Collectors Parts Diagram (W1666 and W1685) �������������������������� ��������������������������� ���� ��� ��� ���� ������������������������������������������������� ��� ���� �� �� ���� �� ��� ���� �� � ���� ��� ��� � � �� �� �� �� � �� �� �� ��...
  • Page 24: Parts List (W1666 And W1685)

    PHLP HD SCR M6-1 X 12 X1666026 CAP SCREW M6-1.0 X 20 LH XPS14M PHLP HD SCR M6-1 X 12 X1666026 CAP SCREW M6-1.0 X 20 LH Parts List (W1666 and W1685) W1666, W1685 Dust Collectors PART # DESCRIPTION 24A X1666024A INLET 25A X1666025A...
  • Page 25: Accessories

    Below are some of the accessories that work well with this dust collector. If you do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of dealers at: (800)-840-8420 or at sales@shopfox.biz.
  • Page 26 W1666, W1685 Dust Collectors Notes -26-...
  • Page 27 W1666, W1685 Dust Collectors Notes -27-...
  • Page 28: Warranty

    ® with the provisions of any law or acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of our products.
  • Page 29: Warranty Registration

    Warranty Registration Name ___________________________________________________________________________________ Street __________________________________________________________________________________ City _________________________ State ___________________________Zip ________________________ Phone # ______________________ Email __________________________Invoice # ___________________ Model #_________Serial #______________Dealer Name__________________Purchase Date___________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services.
  • Page 30 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE WOODSTOCK INTERNATIONAL, INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
