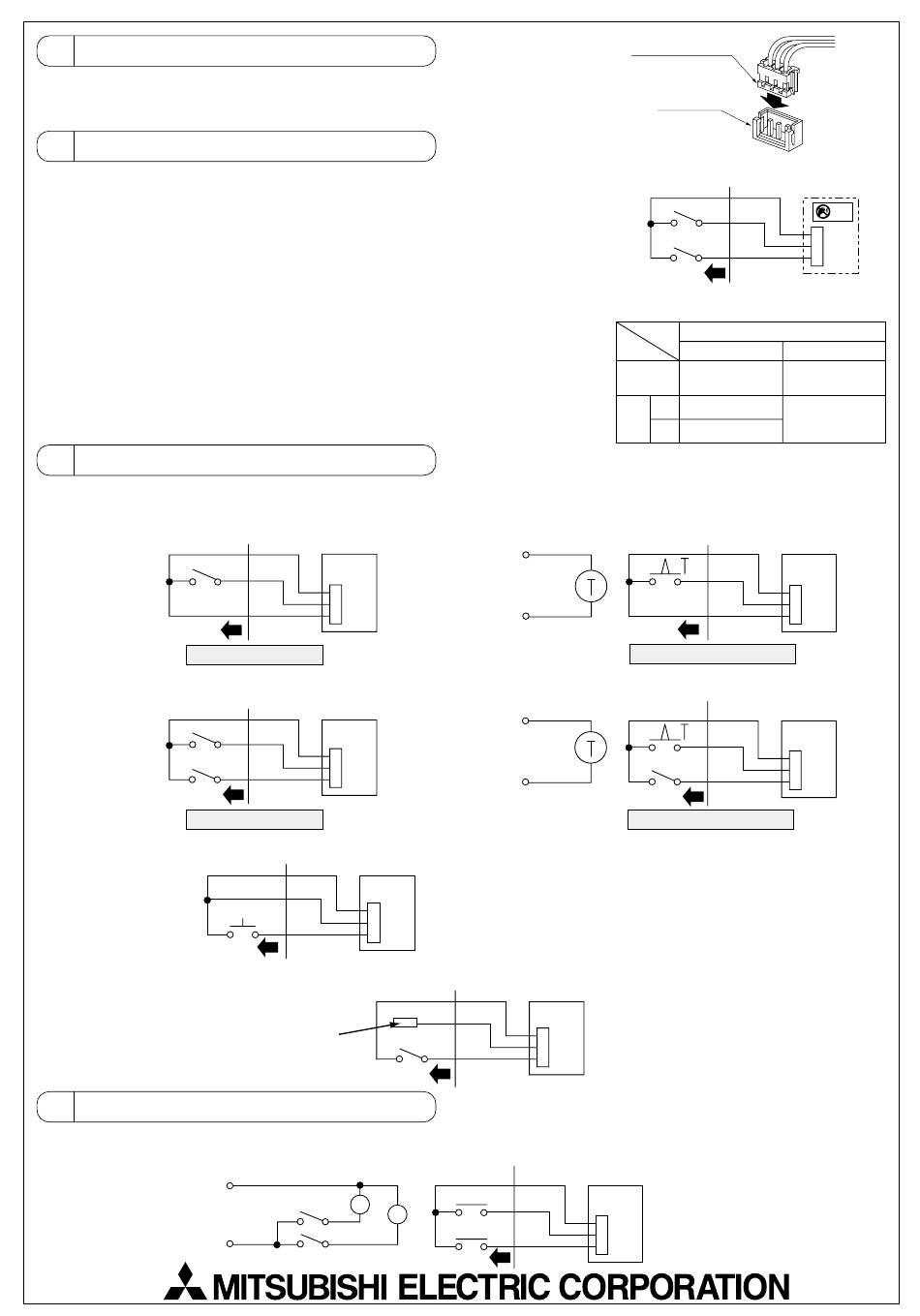

3 Connecting to the Indoor Unit
1. Connect to the connector CN32 on the indoor controller board.
2. Press the connector for the remote ON/OFF adaptor into the CN32 connector.
The connector can only be connected in one direction only. Do not force the connection.
4 Locally Procured Wiring
With the remote ON/OFF adaptor, variations of connection method with the locally
installed circuit will provide different types of operating configurations.
Example: External timer operation, remote control operation
1. Basic Connection Method
SW1 - Operating switch
Performs operation/stopping of indoor unit.
SW2 - Selecting switch
For selecting whether the operation/stopping is to be performed by external circuit
or remote control.*
* Also includes system controller (central controller).
2. Switch Settings (Refer to table at right for details.)
SW2 - If on.
• Operation/stopping cannot be controlled from
remote controller.
Other operations (such as temperature settings
and changing fan speed) can be performed.
• Operation/stopping can be performed by SW1.
5 Examples of Usage
In either case, there is a 5 to 6 second delay from the time when the operating command is sent until the unit operates.
1. To perform operation/stopping by only remote operation or external timer and to prohibit operation/stopping by the remote
controller, use the following circuits.
SW1
Local wiring
For remote operation
2. To perform operation/stopping by remote operation or external timer and allow operation/stopping by the remote
controller, use the following circuits.
SW1
SW2
Local wiring
For remote operation
3. To start operation by remote operation and then freely use remote controller, use the following circuit.
Local wiring
4. To permit/prohibit the use of the remote controller by an external circuit.
Since this is not used, be sure to
completely wrap with insulation tape
6 Wiring Restrictions
Keep the length of wire from the circuit board of the indoor unit within 10 meters. Excessive length could cause improper opera-
tion.
Use a transit relay when extending wiring such as remote wiring.
Power supply
SW2 - If off.
• Operations can be performed
• Operation/stopping cannot be
Indoor controller board
Orange
Red
CN32
Brown
Indoor controller board
Orange
Red
CN32
Brown
Indoor controller board
Orange
Red
SW2
CN32
Brown
SW2
Local wiring
X1
SW1
X2
SW2
from remote controller.
performed by SW1.
Power supply for
external timer
Power supply for
external timer
Use a momentary switch (a switch that is turned on manually and
turns off automatically) for SW2.
Press SW2 (for 1 second or more) and the operation starts. After
this, the remote controller can be used for operations.
Indoor controller board
Orange
Red
CN32
Brown
Indoor controller board
Orange
X1
Red
X2
Brown
Local wiring
Remote ON/OFF adaptor
2
CN32 connector
Orange
SW1
Red
SW2
Brown
Local wiring
SW2
ON
Remote
Cannot perform
controller
operation/stopping
ON
Operation
SW1
Stopping
OFF
Indoor controller board
Orange
Red
Brown
Local wiring
For remote timer operation
Indoor controller board
Orange
Red
SW2
Brown
Local wiring
For remote timer operation
If SW2 is on, operation cannot be performed by
the remote controller.
If SW2 is off, operation is permited.
CN32
3
Indoor controller
board
ELV
CN32
OFF
Can perform
operation/stopping
Cannot perform
operation/stopping
CN32
CN32
