Summary of Contents for Cembre TND6-70

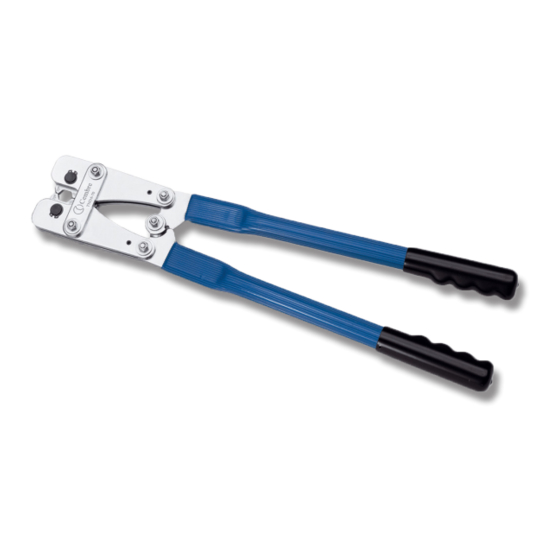

- Page 1 MECHANICAL CRIMPING TOOL TND6-70 TNH6-70 ENGLISH OPERATION AND MAINTENANCE MANUAL...
- Page 2 - TNH6-70: Rotate the die profiles until the stamped cross section matches the cross section on the cable lug/connector. - TND6-70: Rotate the die profiles until the 'K' number matches the equivalent No. marked on the palm of the terminal lug or the wall of the splice.
- Page 3 Incorrect choice of die profile will result in tool damage and/or affect the quality of the crimped joint, leading to potential failure 2.4) Cable preparation: - Cut the cable perpendicular to the central axis. - Neatly strip the insulation over a distance equal to the barrel length allowing an additional 10%.
- Page 4 - The table below shows the number of compressions required per conductor size. - If only one compression is required, please position the crimp at the midpoint of the connec- tor barrel. If several compressions are required these should be spaced evenly. TNH6-70 Copper cross-section TND6-70 Copper Identification Cross-section Number 3. MAINTENANCE - Remove dust, humidity and other impurities with a clean brush or a soft cotton-free cloth.
- Page 5 - Alteration of the tool is prohibited. - Before operating the tool, check for any damage, the tool should not be used if damage is visible - The tool should be returned to the nearest Cembre service centre for any repairs required. 4. TROUBLESHOOTING PROBLEM:...
- Page 6 23 CIRCLIP 12X1 9065207 6950042 24 PROFILE DIE LEFT (TND) 9018222 The guarantee is void if parts used are not Cembre original spares. When ordering spare parts always specify the following: - code number of item - name of item...
- Page 7 FIG. 1...
- Page 8 Tel.: +1 732 225-7415 - Fax: +1 732 225-7414 Telefax: +34 91 4852581 E-mail: sales.US@cembre.com E-mail: comercial@cembre.es www.cembreinc.com www.cembre.es Cembre GmbH Cembre GmbH (Betriebsstätte Weinstadt) Heidemannstraße 166 Boschstraße 7 80939 München (Deutschland) 71384 Weinstadt (Deutschland) Telefon: +49 89 3580676 Telefon: +49 7151 20536 - 60 E-mail: info@cembre.de...
