Planning Information
Pro 54"
Wall Chimney Hood
(1372)
M O D E L P W C 5 4 2 4 1 8 ( R )
Model PWC542418
Model PWC542418R
Rail Option
Wolf Pro wall chimney hoods are
available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall chimney hoods are sold as a shell
only, internal, in-line and remote blower
options are available.
Dimensions in parentheses are in
millimeters unless otherwise specified.
6/07
Hand finished
craftsmanship
Backdraft damper
Stainless steel
baffle filters
Location of
rating plate
Halogen lighting

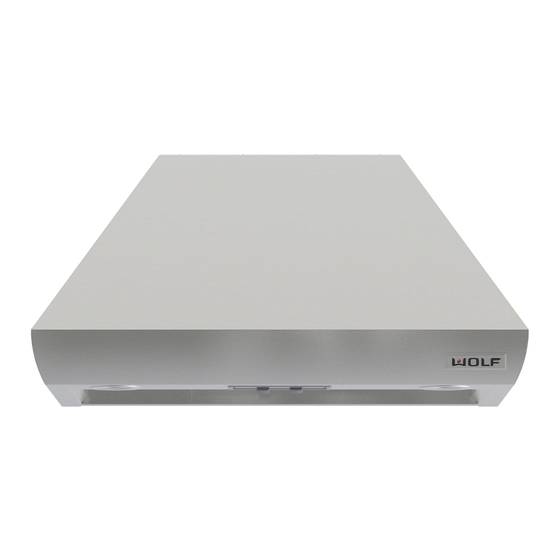

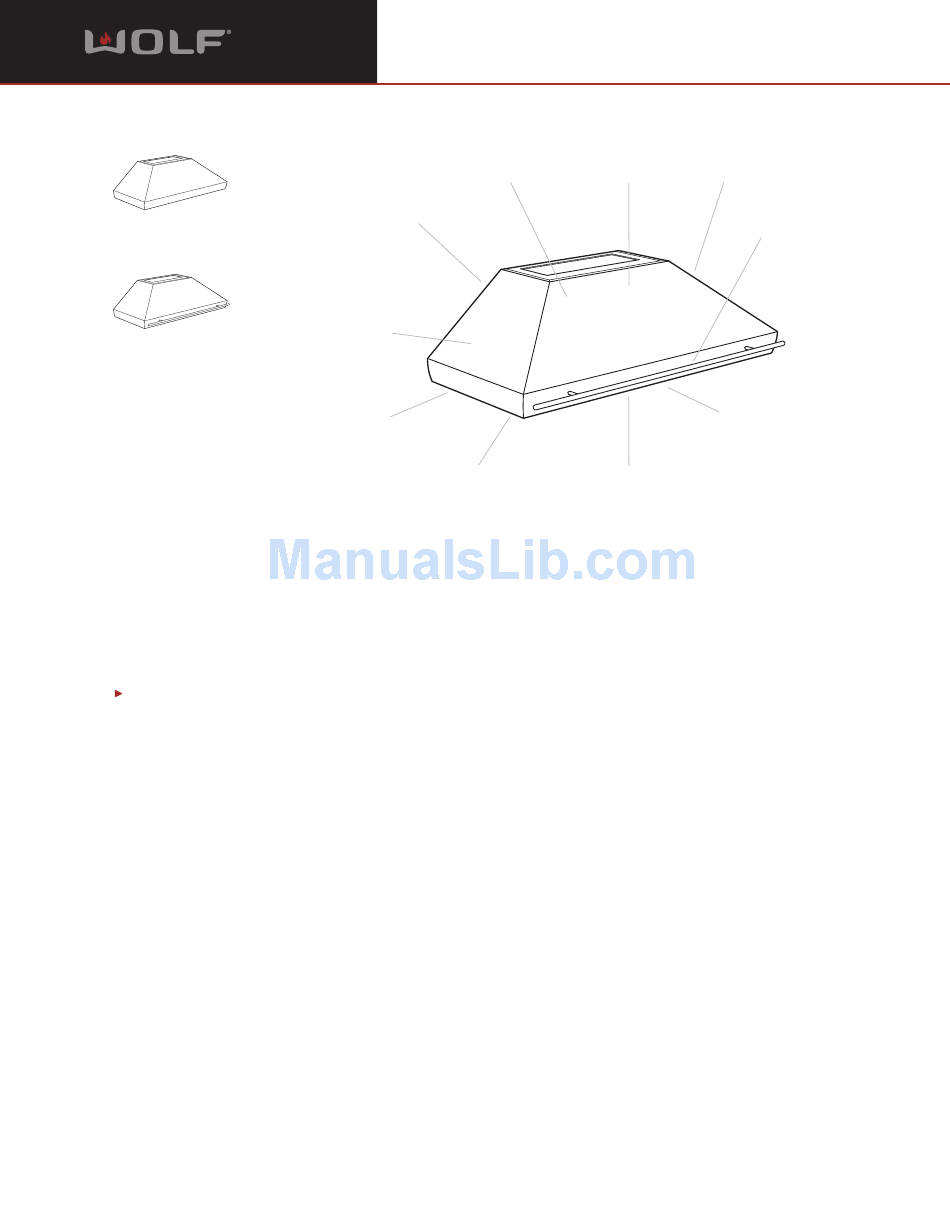

Model PWC542418R shown with decorative rail
W
olf Pro wall chimney hoods provide the ultimate
in ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
The Pro wall chimney hood installed with an optional
6" (152), 12" (305), 18" (457) or 24" (610) classic
stainless steel duct cover completes the chimney
design. With the Pro wall chimney hood you also have
the option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
dual fuel ranges.
Pro wall chimney ventilation hoods are recommended
for use with all Wolf cooking appliances.
Classic stainless
Welded seams and
steel finish
hemmed edges
Decorative rail
(optional)
Recessed easy-
access controls
Infinite-speed
blower control
1
