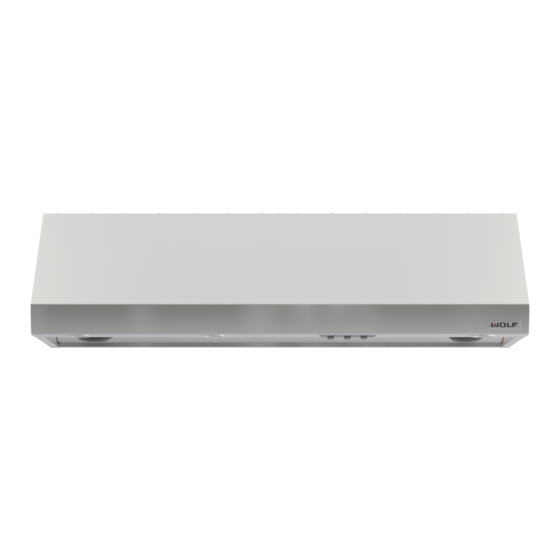

Pro 27" (686) deep wall ventilation hood
Hide thumbs Also See for PW662718:

Advertisement

Planning Information
Pro 27"
Deep Wall Ventilation Hood
(686)
M O D E L P W 6 6 2 7 1 8 ( R )
Model PW662718
Model PW662718R
Rail Option
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum rail matches
dual fuel range bezels. Pro wall hoods are
sold as a shell only; internal, in-line and
remote blower options are available.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
Hand finished
craftsmanship
Stainless steel
baffle filters
Location of
rating plate
Welded seams
and hemmed edges
Halogen lighting
Model PW662718R shown with decorative rail.
W
olf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
Pro 27" (686) deep wall hoods are available in the
classic stainless steel finish. You also have the option
of a decorative rail. While a classic stainless steel rail
is standard on (R) models, a platinum rail is available
to match the bezels of our dual fuel ranges and sealed
burner rangetops.
The deepest of the Pro wall hoods, this 27" (686)
model provides an additional exclusive feature—heat
lamps.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal perform-
ance, a Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain a
charbroiler or griddle.
Classic stainless
steel finish
Decorative rail
(optional)
Recessed easy-
access controls
Infinite-speed
blower control
1
