Wolf MWC24 Planning Information

Planning Information
Convection Microwave Oven
M O D E L M W C 2 4
Model MWC24 Convection
Freestanding air openings
Oven door
with window
Model MWC24
30" (762) L Series Trim
Safety door
latches

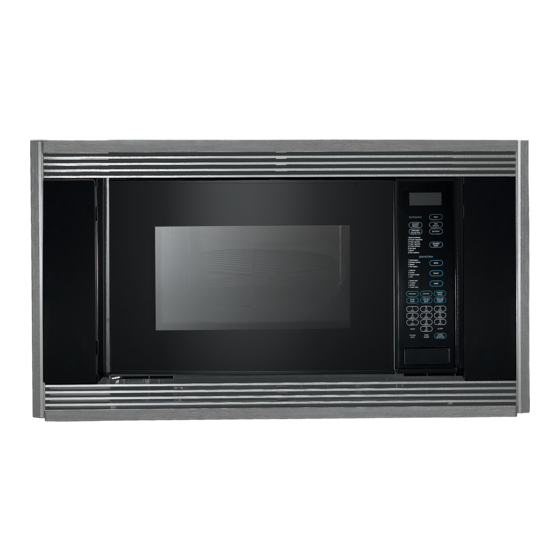

Model MWC24
36" (914) L Series Trim
Model MWC24
27" (686) E Series Trim
Model MWC24
30" (762) E Series Trim
The Wolf Model MWC24 24" (610)
convection microwave oven can be used
freestanding or in built-in applications.
L Series trim kits allow microwave to be
built in to fit above a 30" (762) or 36"
(914) L Series oven and are available in
classic, platinum and carbon stainless
steel finishes. The E Series 30" (762) trim
kit allows microwave to be built in to fit
above a 30" (762) E Series oven. A 27"
(686) E Series trim kit is also available.
E Series trim kits come in the classic
stainless steel finish.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/07
Door hinges Ventilation
openings (rear)
Location of Turntable
rating plate
T
aking the experience we've gained from our
microwave ovens and combining that with the expertise
of convection, Wolf has brought the best of both
cooking technologies together in one unit.
This handsome microwave can be used with optional
trim in combination with a Wolf built-in oven to finish
off your cooking tower with an integrated look.
You can choose from two different trim styles to match
our L Series and E Series ovens. The L Series trim is
more traditional while the E Series trim is more contem-
porary in appearance. L Series trim is available in three
stainless steel finishes—classic, platinum and carbon
and E Series trim comes in classic only.
Aside from looking beautiful whether you use it in
conjunction with a built-in oven or not, this microwave
oven offers you all the performance you would expect
from Wolf—a cooking company with a heritage of nearly
75 years in the kitchen.
Oven light
Lighted digital
display
Auto-touch
control panel
One-touch
door open pad
Waveguide
cover
1
