Planning Information
Pro 24"
Deep Wall Ventilation Hood
(610)
M O D E L P W 3 0 2 4 1 8 ( R )
Model PW302418
Model PW302418R
Rail Option

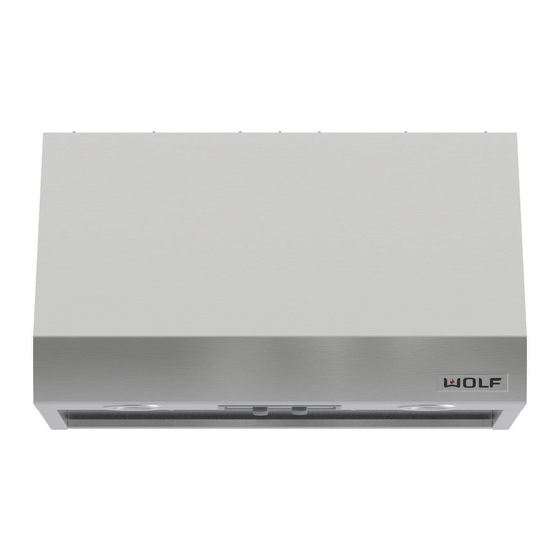

Wolf Pro 24" (610) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only;
internal, in-line and remote blower
options are available.
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/07
Hand finished
craftsmanship
Stainless steel
baffle filters
Location of
rating plate
Welded seams
and hemmed edges
Halogen lighting
Model PW302418R shown with decorative rail.
W
olf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
Pro 24" (610) deep wall hoods are available in the
classic stainless steel finish. You also have the option
of a decorative rail. While a classic stainless steel rail
is standard on (R) models, platinum or brass rails are
available to match the bezels of our dual fuel ranges
and sealed burner rangetops.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal perform-
ance, a Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain a
charbroiler or griddle.
Classic stainless
steel finish
Decorative rail
(optional)
Recessed easy-
access controls
Infinite-speed
blower control
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PW302418 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wolf PW302418

  • Page 1 Pro wall hoods provide the ultimate in ventilation. With standard elements like heat sentry and dual setting halogen lighting, Wolf elevates the need for ventilation to an enjoyable perk. Pro 24" (610) deep wall hoods are available in the classic stainless steel finish.
  • Page 2 O V E R A L L D I M E N S I O N S 18" (457) OVERALL HEIGHT 30" (762) OVERALL WIDTH Model PW302418 4" (102) 30" (762) OVERALL WIDTH Model PW302418R with Rail Unit dimensions may vary by ±...
  • Page 3 24" (610) classic stainless steel duct covers Horizontal discharge kit Recirculating kit Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Showroom Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
  • Page 4 Planning Information Pro 24" Deep Wall Ventilation Hood (610) M O D E L P W 3 0 2 4 1 8 ( R ) I N S T A L L A T I O N S P E C I F I C A T I O N S LOCATION OF ELECTRICAL 30"...
  • Page 5 Refer to the illustrations and specifications for overall dimensions and installation specifics. Wolf Pro wall ventilation hoods are recom- mended for use with any Wolf cooking appli- ance, and should be as least as wide as the cooking surface. It is recommended that the hood overlap the cooking surface by 3"...
  • Page 6 M O D E L P W 3 0 2 4 1 8 ( R ) D U C T I N G C O N S I D E R A T I O N S Wolf Pro 24" (610) deep wall hoods are shipped without the blower assembly. Internal, in-line and remote blower assemblies are available.
  • Page 7 Remote blowers can be mounted on the roof or in some cases, on an exterior wall. Refer to the illustra- tions below for dimensions of Wolf in-line and remote blowers. Pro ventilation recommendation charts on the...
  • Page 8 DF606 / R606 DF604 Minimum CFM requirements for Wolf ranges and rangetops. CFM recommendations are based on total Btu/hr output. Additional CFM may be required for long duct runs. P R O V E N T I L A T I O N B L O W E R O P T I O N S Pro 24"...
