BHM
01/13/20
NTV-DOC352
3950 NW 120
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com

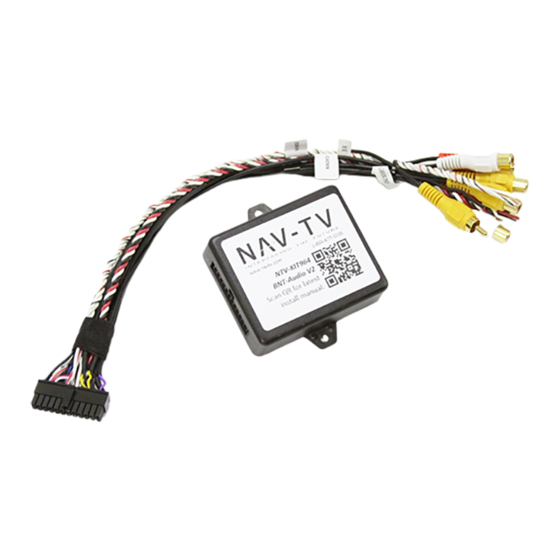

BNT-Audio V2
NTV-KIT964
Overview

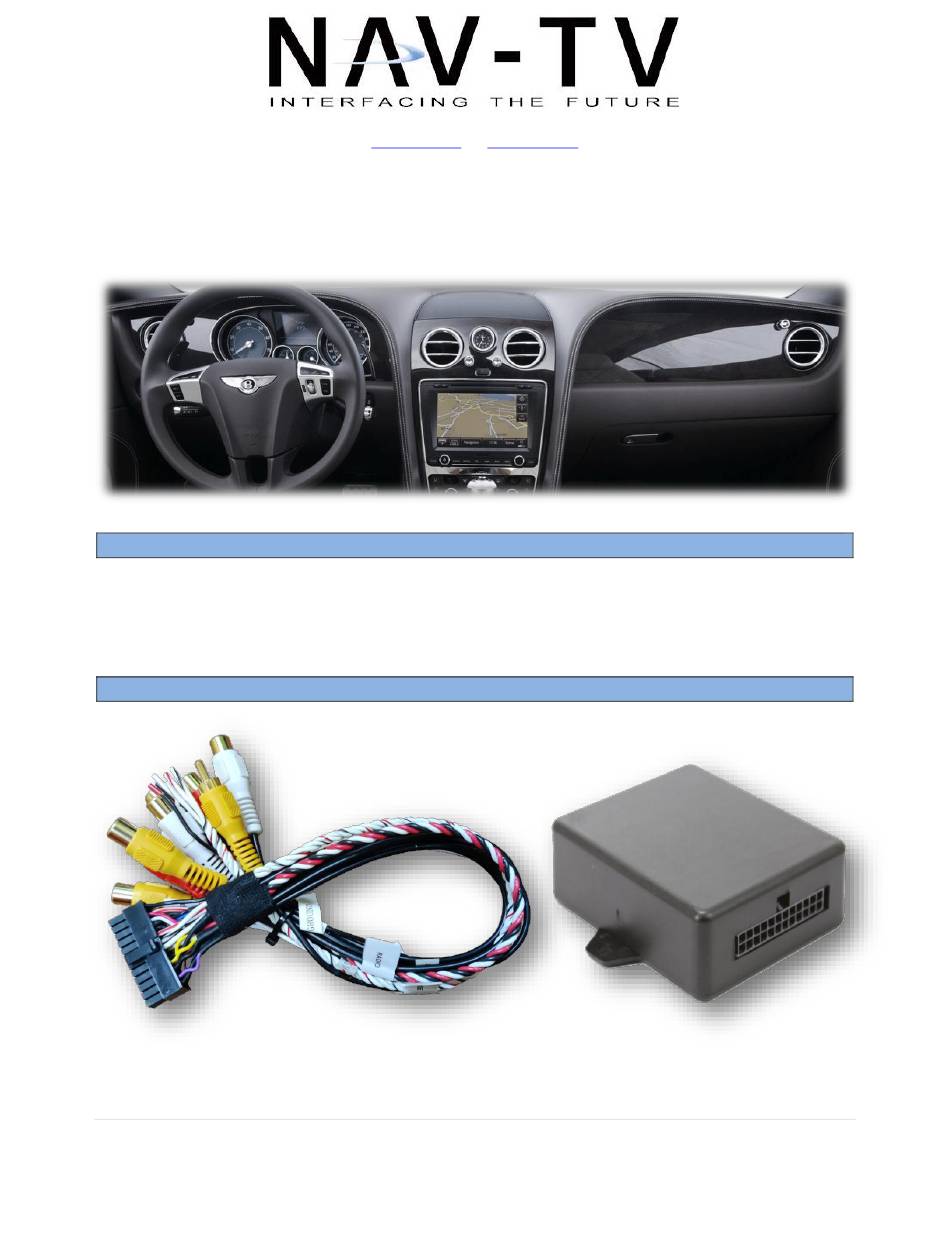

The BNT Audio Kit V2 allows the user to add auxiliary audio to the factory media systems in
select Bentley vehicles. Currently this kit is not plug & play and must be manually wired in to
the system.
Kit Contents
Trigger Harness
BNT Audio Switcher
NTV-HAR350
NTV-ASY255
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nav TV BNT-Audio V2
Summary of Contents for Nav TV BNT-Audio V2
- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com BNT-Audio V2 NTV-KIT964 Overview The BNT Audio Kit V2 allows the user to add auxiliary audio to the factory media systems in select Bentley vehicles. Currently this kit is not plug & play and must be manually wired in to the system.
- Page 2 01/13/20 NTV-DOC352 AVSWv2 Pin Out Pin # Description Label/Color AV 1 Trigger (+) White/Blue AV 2 Trigger (+) White/Red Audio IN Right (2) Group Label ‘AV2’ Audio IN Left (2) Group Label ‘AV2’ Audio IN Right (signal) Red (OEM INPUT) Audio IN Left (signal) White (OEM INPUT) Audio IN Left (shield)
- Page 3 6. Connect your AUX source to the RCA labeled ‘AV1’. 7. Connect the BNT-Audio V2 module to the 22-pin connector. 8. Test functionality before reconnecting all dash pieces: a. With the ignition on, go to the FM radio. Make sure audio is heard clearly.
- Page 4 01/13/20 NTV-DOC352 Wire Connection Chart and Install Diagram Wire Color Description Connect to CAR’s: Car wire color Black Shield OUT Shield Amp Side Black Right Channel (+) OUT Right Channel (+) Yellow Amplifier Amp Side Side White Left Channel (-) OUT Left Channel (-) Amp Green Side...
