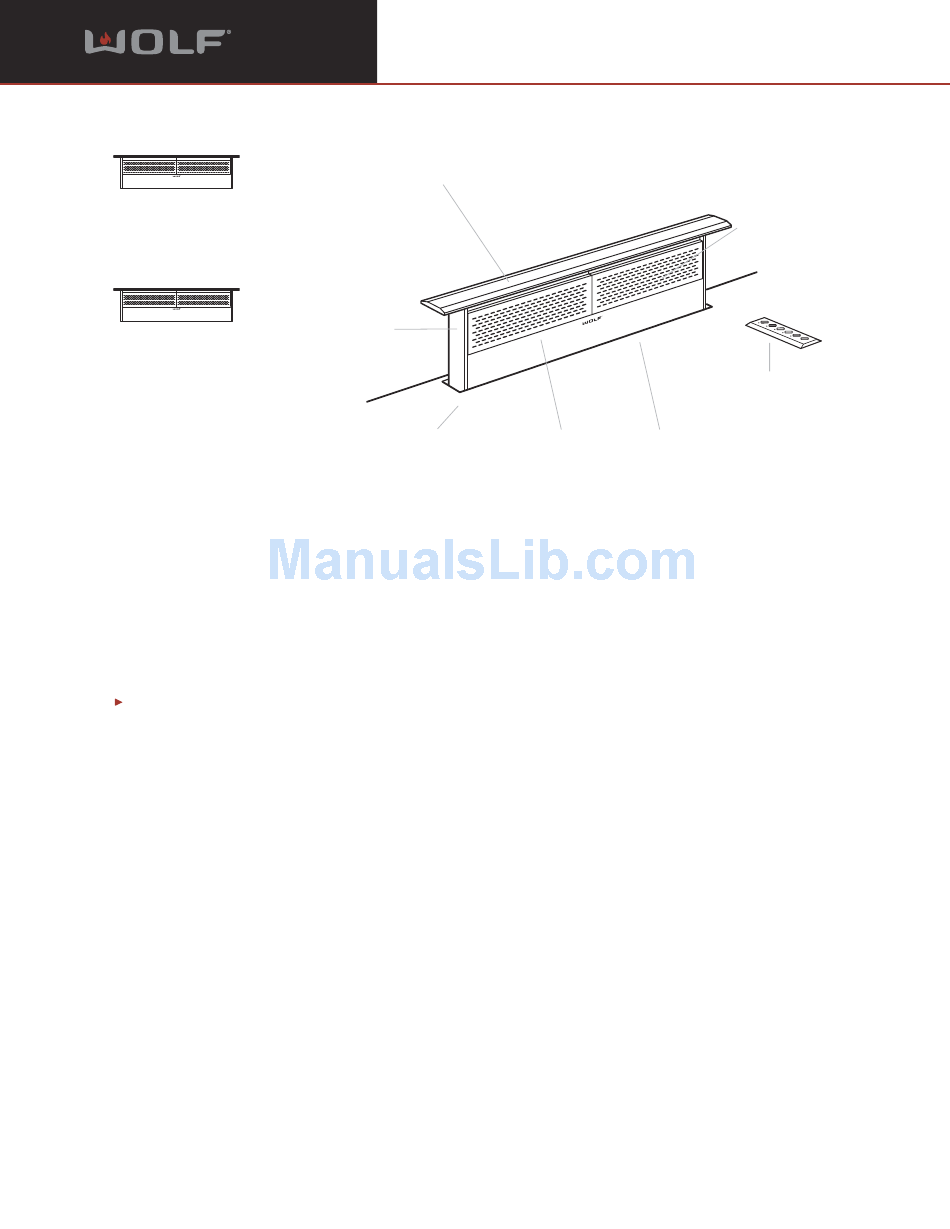

Planning Information
Models DD36 I and DD36 R Downdraft Systems
Model DD36I
Internal Blower
9" (229) chimney
Model DD36R
elevation
In-Line or
Remote Blower

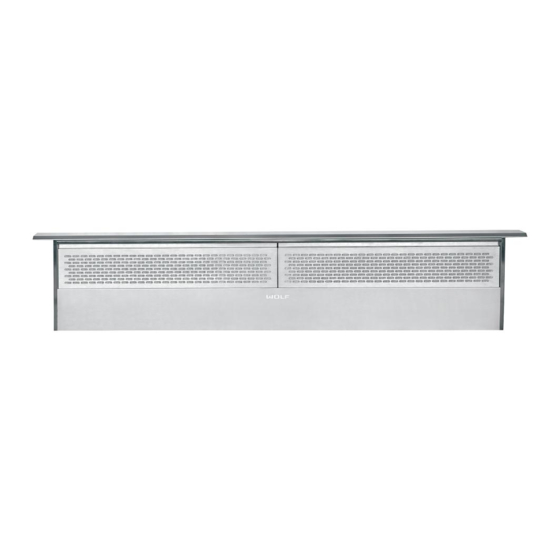

Model DD36I 36" (914) downdraft
ventilation system includes a 500 CFM
internal blower. In-line and remote blower
options are available for Model DD36R.
Control module and top cover come in
classic, platinum and carbon stainless
steel finishes.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
Top cover available
in three finishes
Three-speed
Stainless steel
blower control
filter covers
T
he cooktop downdraft unit rises from the counter-
top to whisk away odors and smoke into the easy-to-
clean, five-layer mesh filter. The control module and top
cover are available in the exclusive premium finishes of
platinum or carbon stainless steel, or the standard
classic stainless steel for ease in matching your
cooktop.
Wolf downdraft ventilation systems are recommended
for use with Wolf electric and gas cooktops and
integrated modules, excluding the unframed electric
cooktops and electric grill, steamer and fryer modules.
Wolf downdraft systems cannot be used with Wolf
dual fuel ranges, gas ranges, sealed burner rangetops
and gas rangetops.
Aluminum mesh
filters
Remote-mounted
control module
Rating plate
location
1
